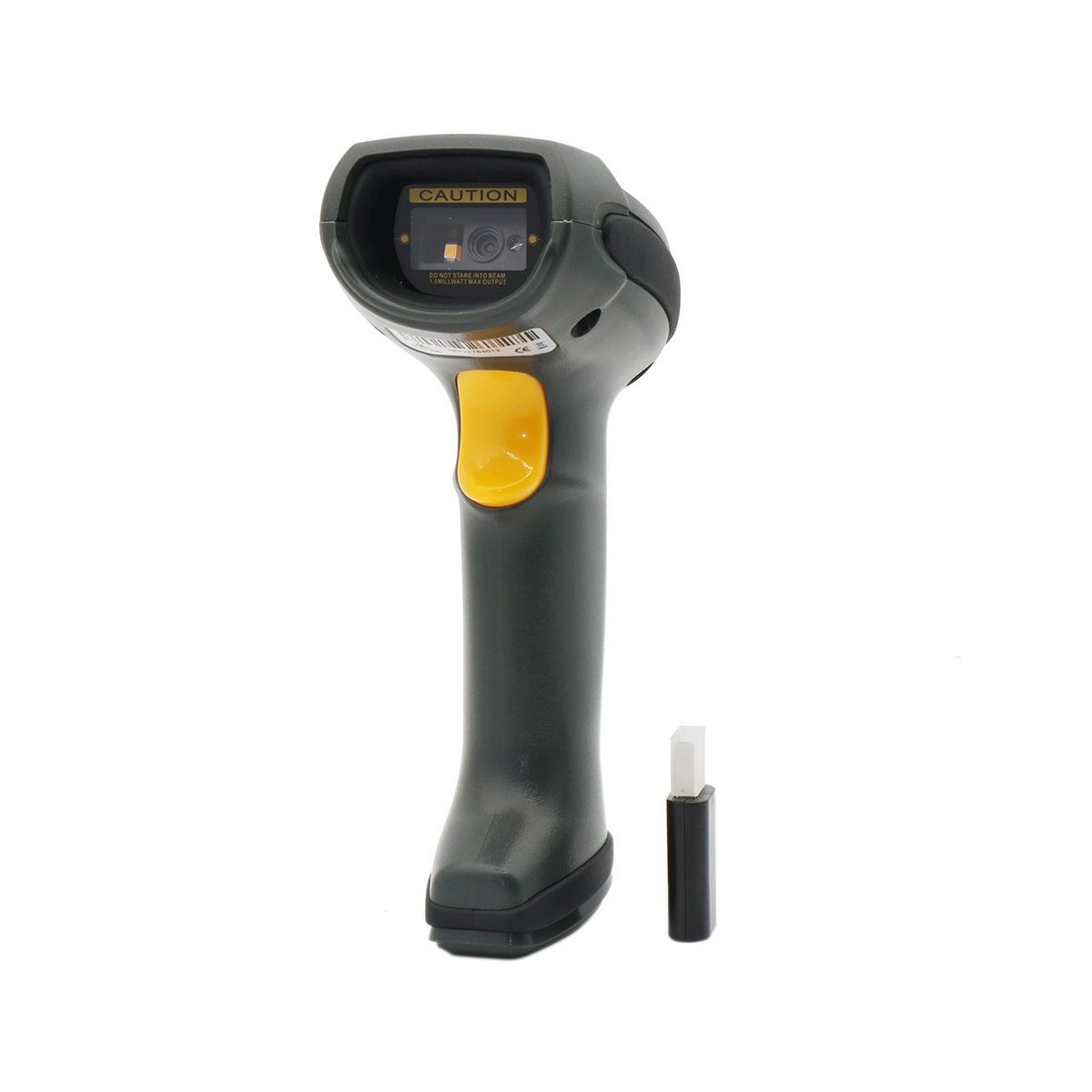

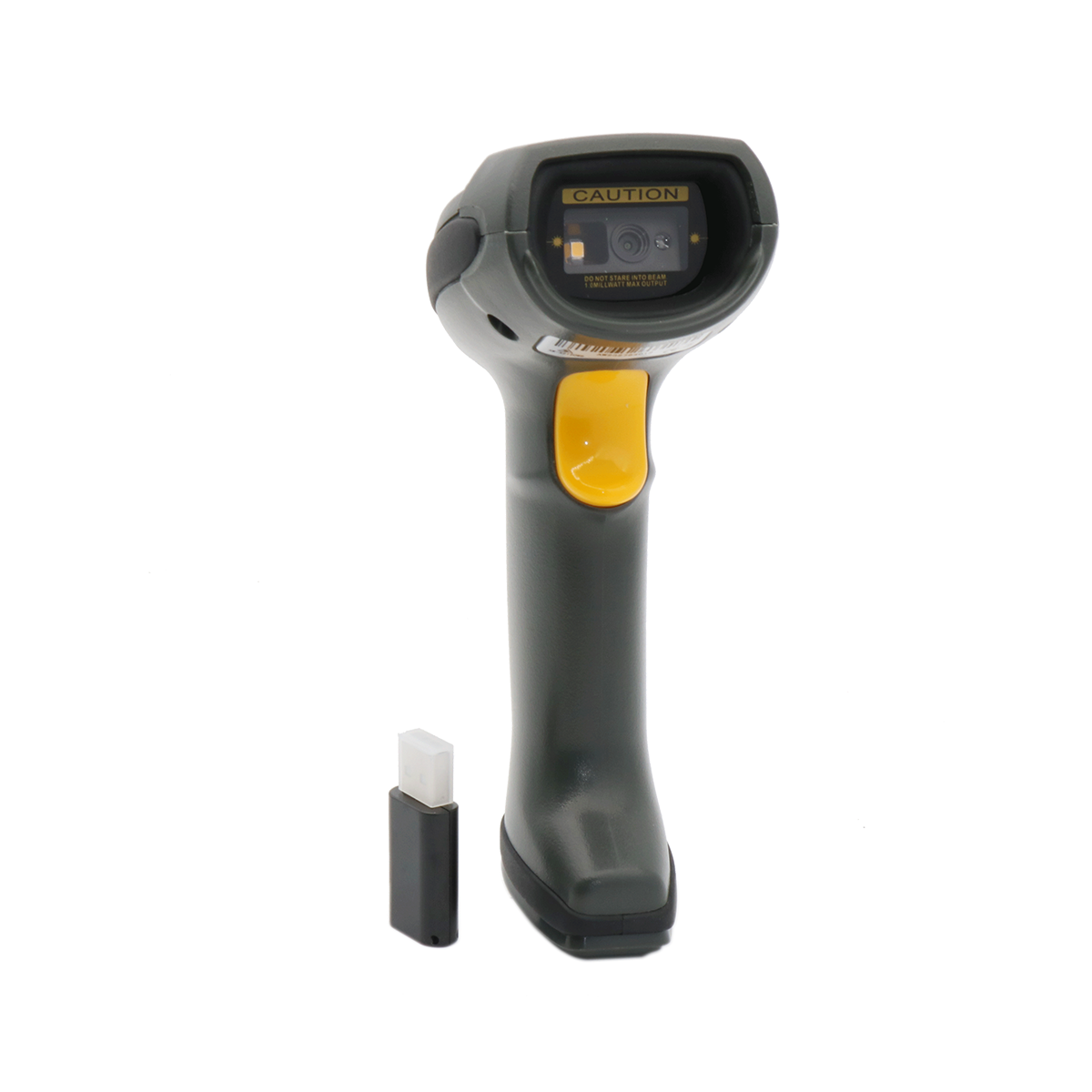

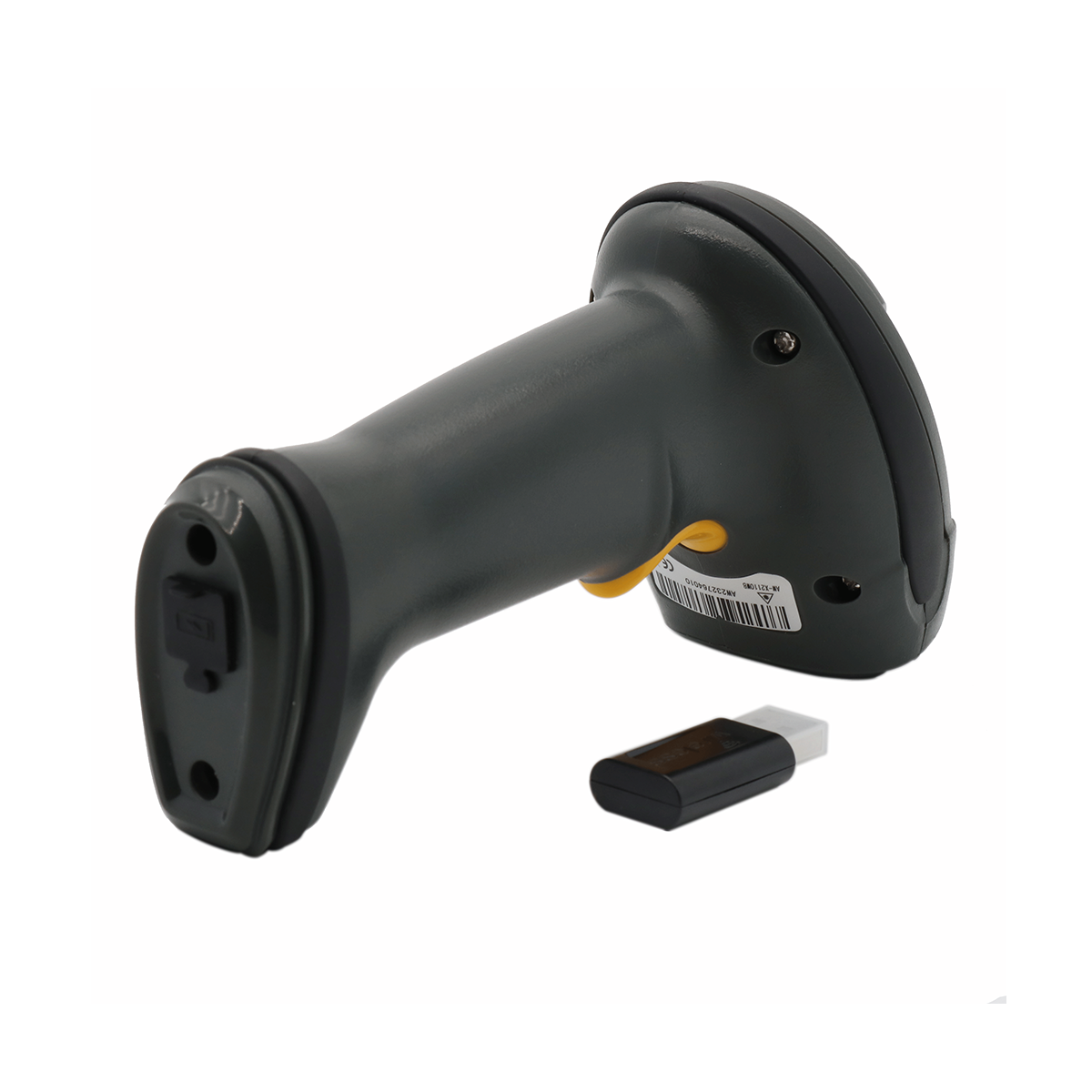

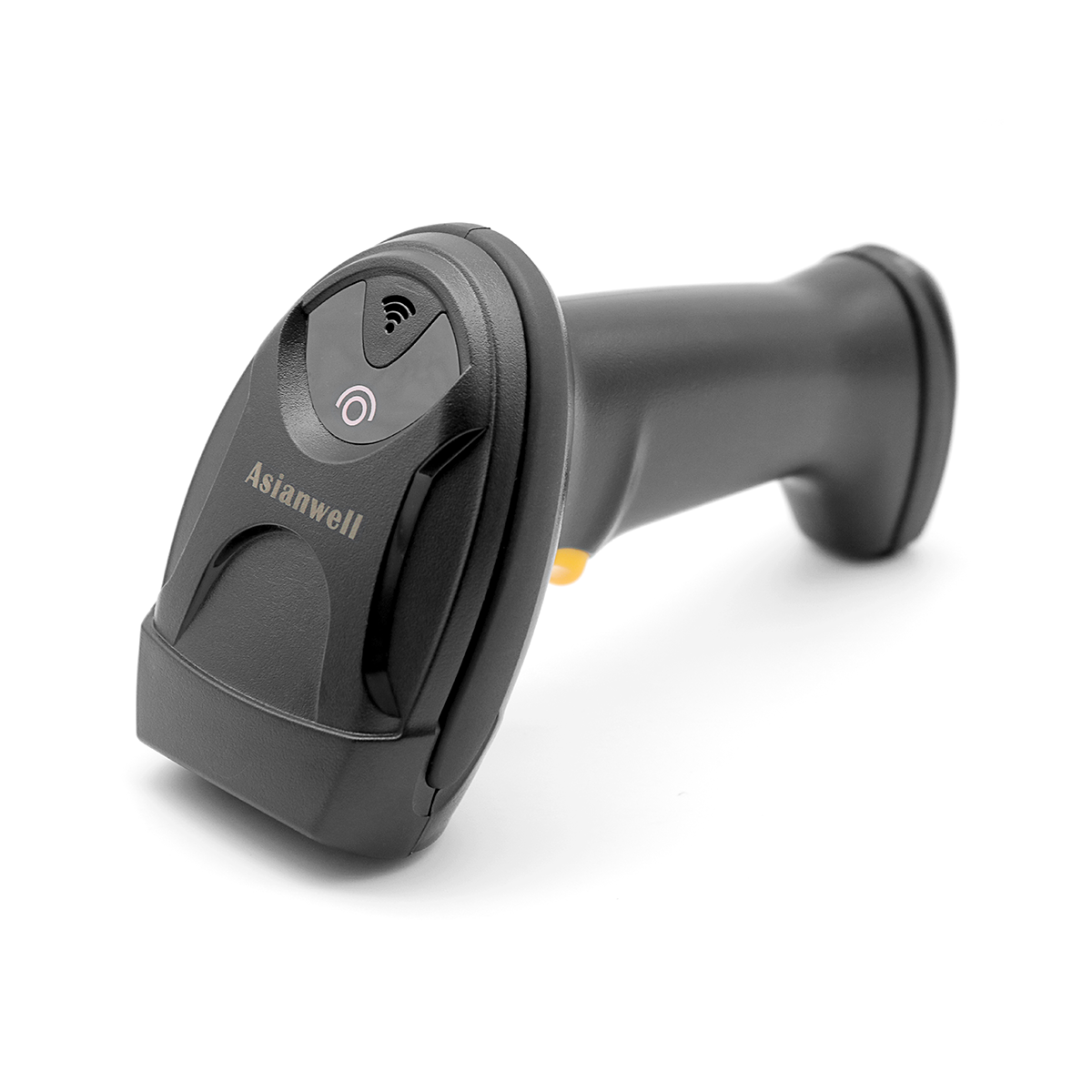

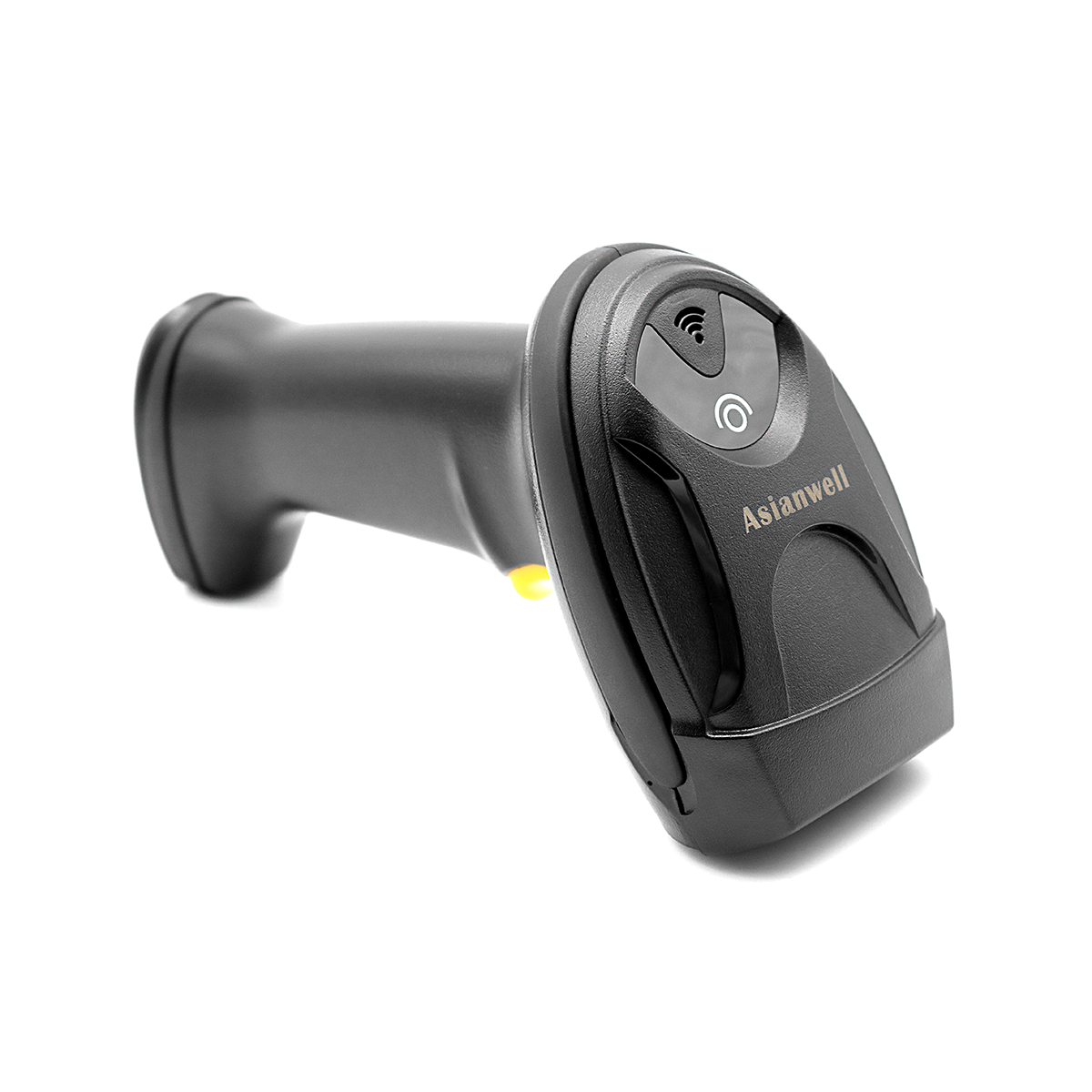

AW-X2120WB
Feature
1. Can interpret various 1D/2D codes and Support Chinese direct transmission of QR code
2. USB Bluetooth Receiver supports plug and play, easy to set up and quickly match
3. Wireless Bluetooth transmission distance: 100-300 meters (outdoor area)
4. 512,000 characters can be stored in offline/ inventory storage mode
5. Can be paired directly with Bluetooth-enabled mobile phones, tablets, and laptops
-
￥0.00￥0.00
-
Product Description
Feature
1. Can interpret various 1D/2D codes and Support Chinese direct transmission of QR code
2. USB Bluetooth Receiver supports plug and play, easy to set up and quickly match
3. Wireless Bluetooth transmission distance: 100-300 meters (outdoor area)
4. 512,000 characters can be stored in offline/ inventory storage mode
5. Can be paired directly with Bluetooth-enabled mobile phones, tablets, and laptops
|
|
|
Specification ——
Technology | |
Light Sources | 617nm LED Aimer,White LED |
Supported Symbologies | 1D: EAN, UPC, Code 39, Code 93, Code 128, UCC/EAN128, Codebar, Interleaved 2 of 5, ITF-6, ITF-4, ISBN, ISSN, MSI-Plessey, GS1 Databar, GS1 Composite Code、Code11、Industrial 25, Standard 25, Plessey, Matrix 2 of 5. |
Contrast: | ≥20% |
Scan Type | CMOS |
Resolution | 1280*720 |
Scan Method | Manual/Continuous/Automaticscanning |
Scan angle | Yaw ±45°,Rotation 360°,Pitch ±45° |
Precision | ≥5mil |
Depth of scan field | EAN13 50mm-200mm (13mil )；QR 25mm-240mm (20mil)；PDF147 30mm-130mm (6.67mil ) |
Error Rate | Less than 1/5million |
Interface | USB-HID / USB-COM / RS232 |
Wireless Communication: | Paring dedicated receiver: 2.4G communication |
Wireelss transmission distance: | 100-300meters (Open distance) |
Storage Mode: | Offline Storage Model: When the scanner exits the connection ranfe the data is automatically stored. |
Paring Mode: | One to one: One Scanner pairs one Receiver; |
Physical | |
Dimensions | 102mm x 71mm x 177mm |
Weight | 223.9g |
Material | ABS+PC |
Cable Length | 1.2m |
Electronical | |
Voltage | DC5V±5% |
Lithium Battery: | Stand 2200mA (max 2600mAh optional) can last continue work 7 hours |
Charging time: | 5 hours |
Operating Current: | when not scanning code≥26mA; when scanning code ≥280mA |
Standby Current | 0mA (Standby is to cut off battery power) |
Charging Model: | Square USB charging cable, plug straight charge |
Environmental | |
Operating Temperature | -20℃~+50℃ |
Storage Temperature | -40℃~+70℃ |
Relative Humidity | 5%~95% RH（Non-condensing） |
Ambient lighting | 0~100000LUX |
Drop/Shock Resistance | Withstands multiple times 3meters drops to concrete |
Packing List | |
Barcode scanner×1pc, USB Dongle×1pc, USB cable×1pc, Manul×1pc | |
Inner box | 1pc/box, 100 x 80 x 240mm, 0.48Kg |
Out box | 50pcs/ctn, 530 x 420 x 430mm, 24Kg |
