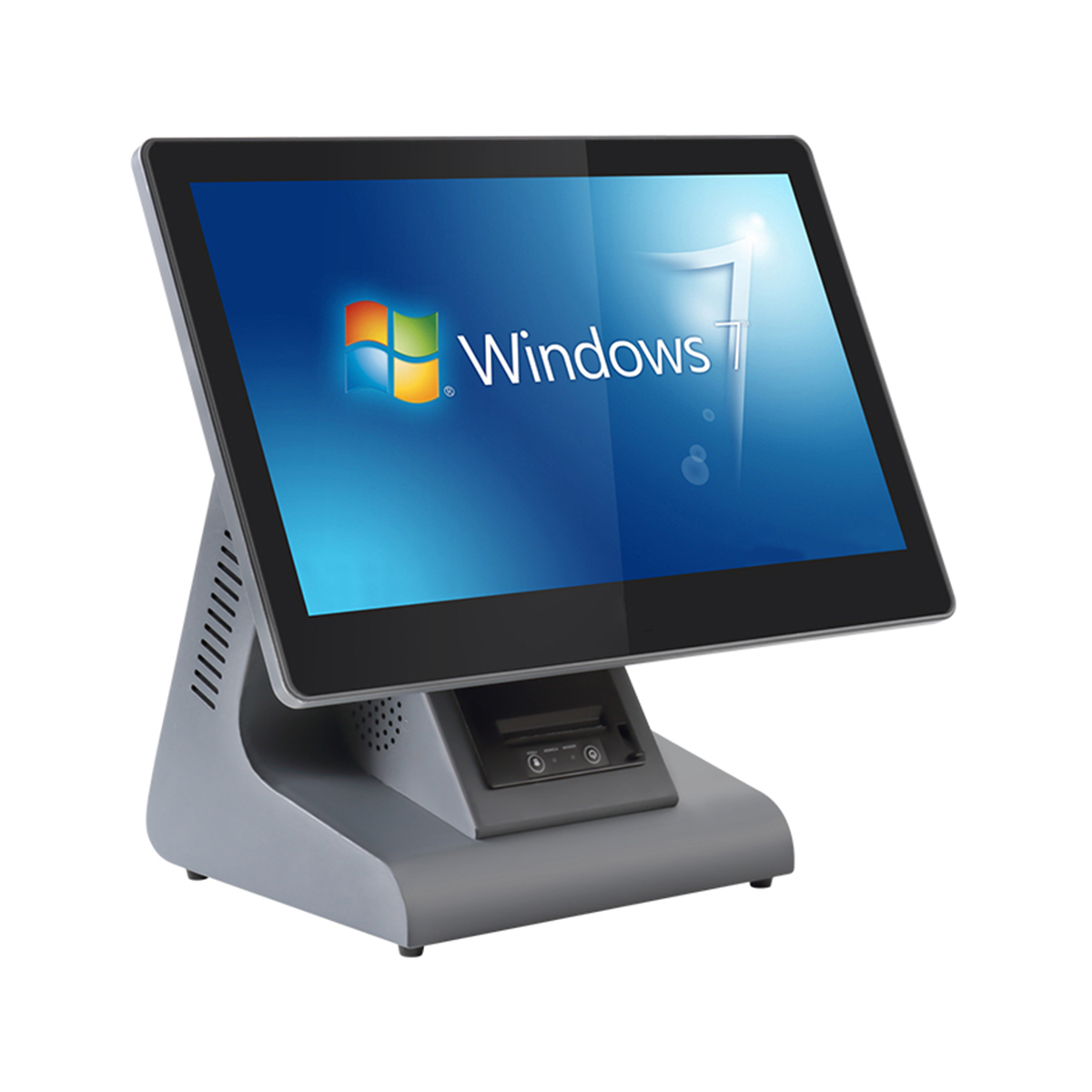

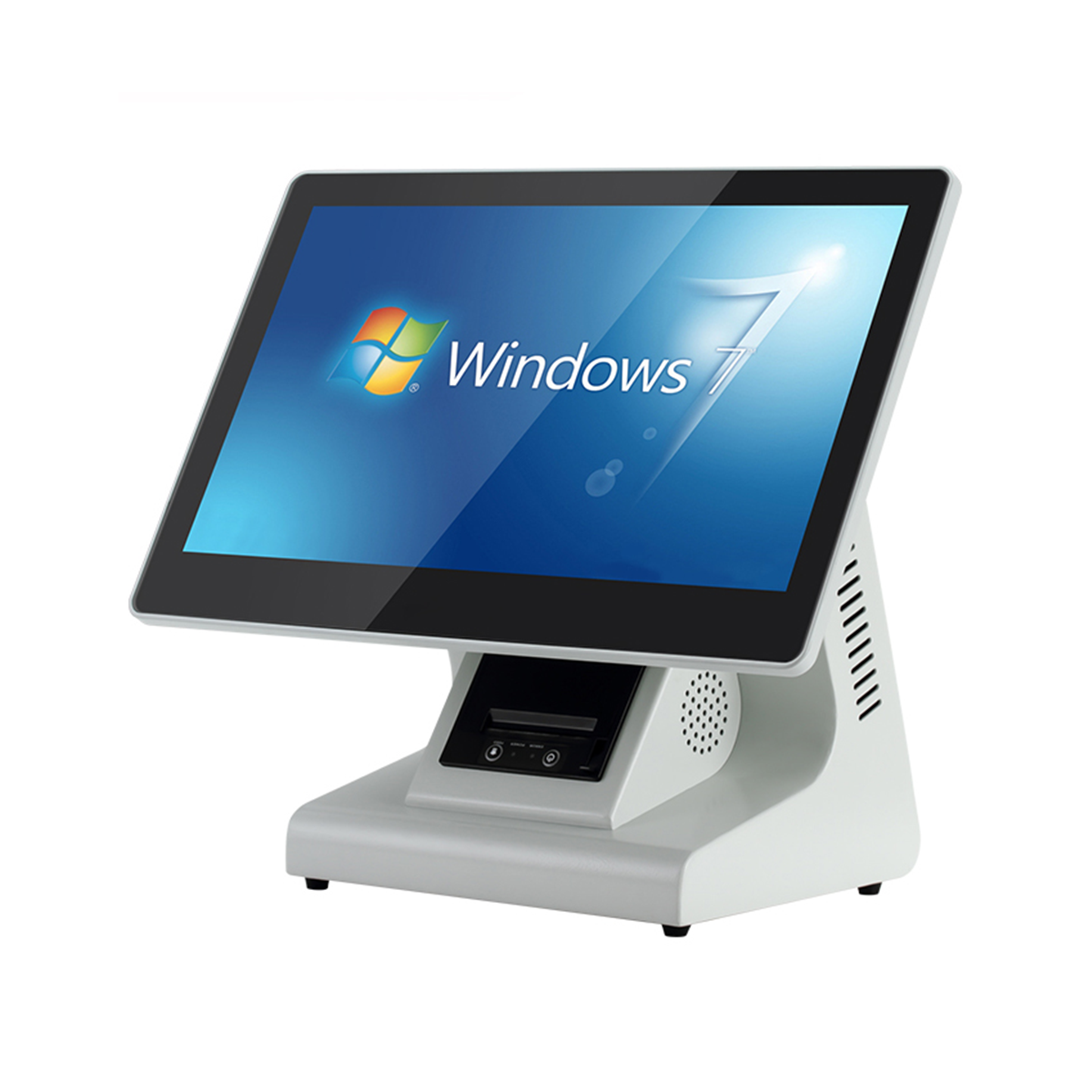

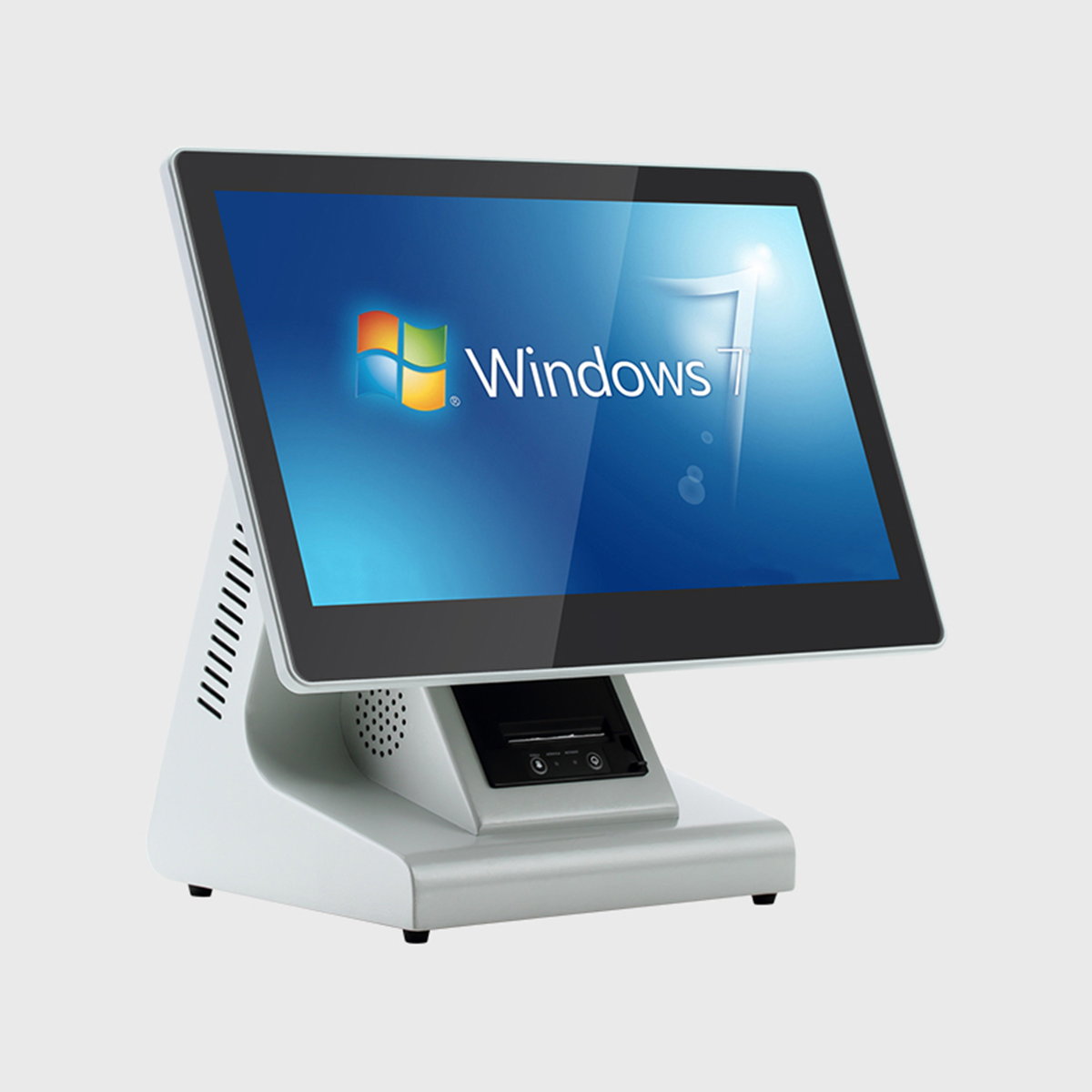

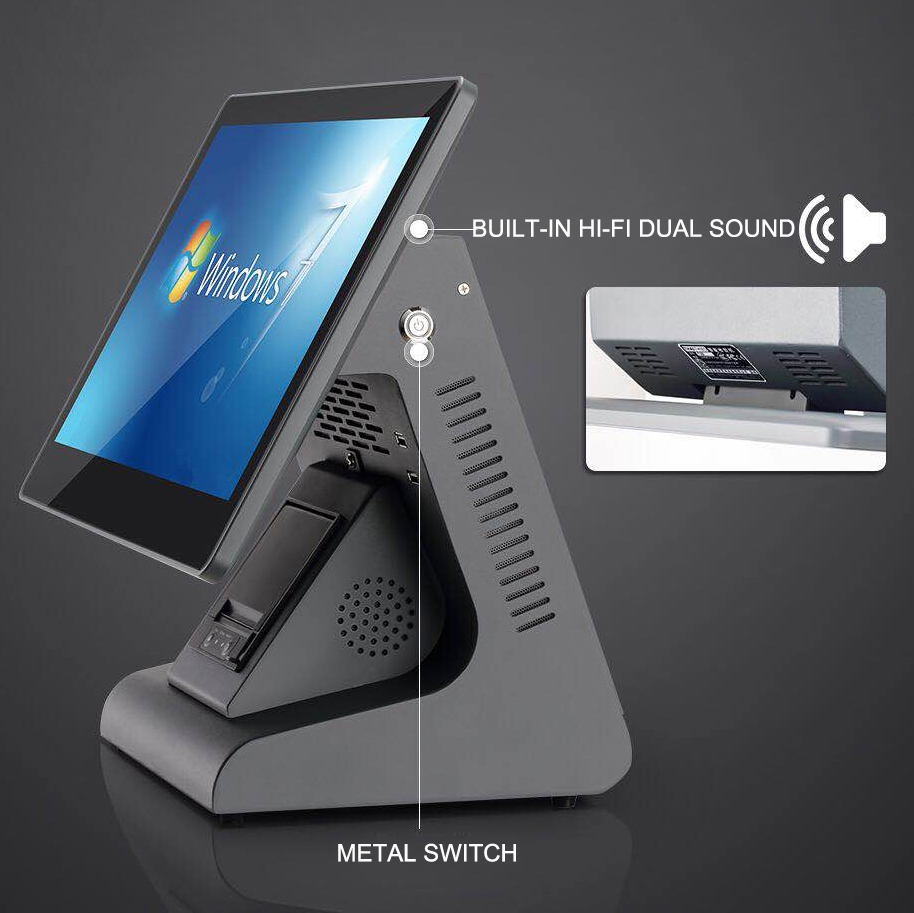

AW-T10 Touch Screen POS System
Feature：

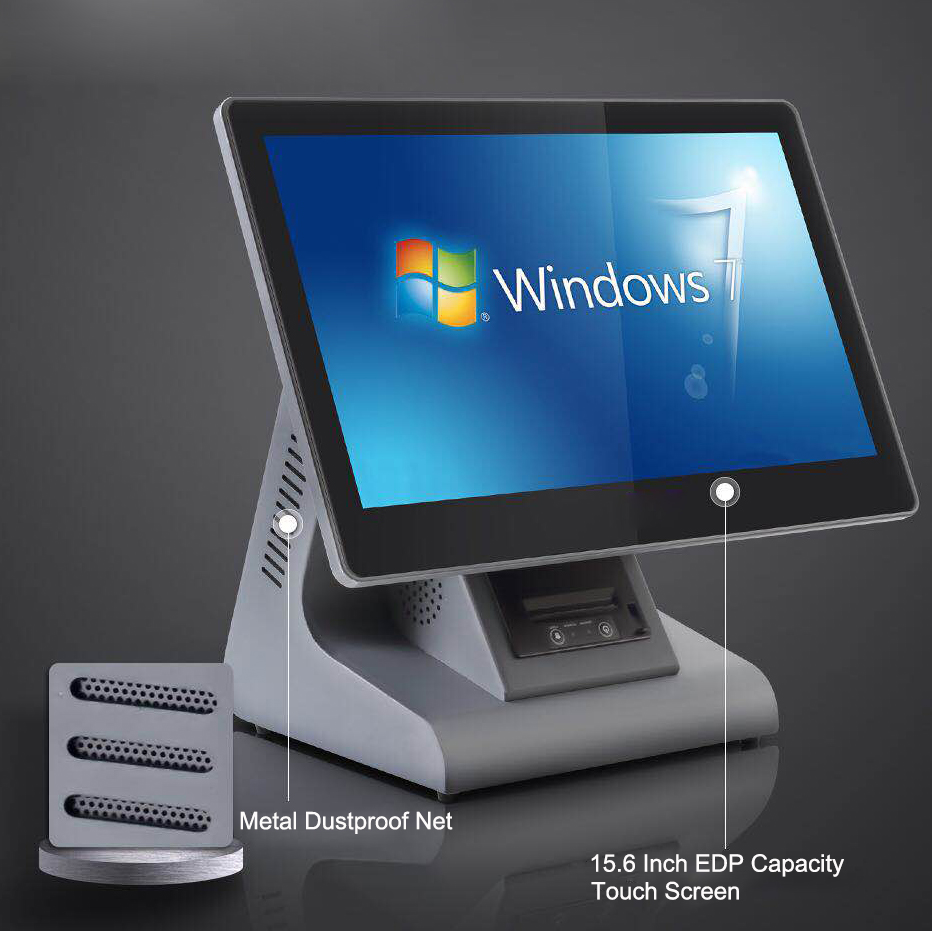

1. 15.6-inch brand new BOE capacitive touch LCD screen

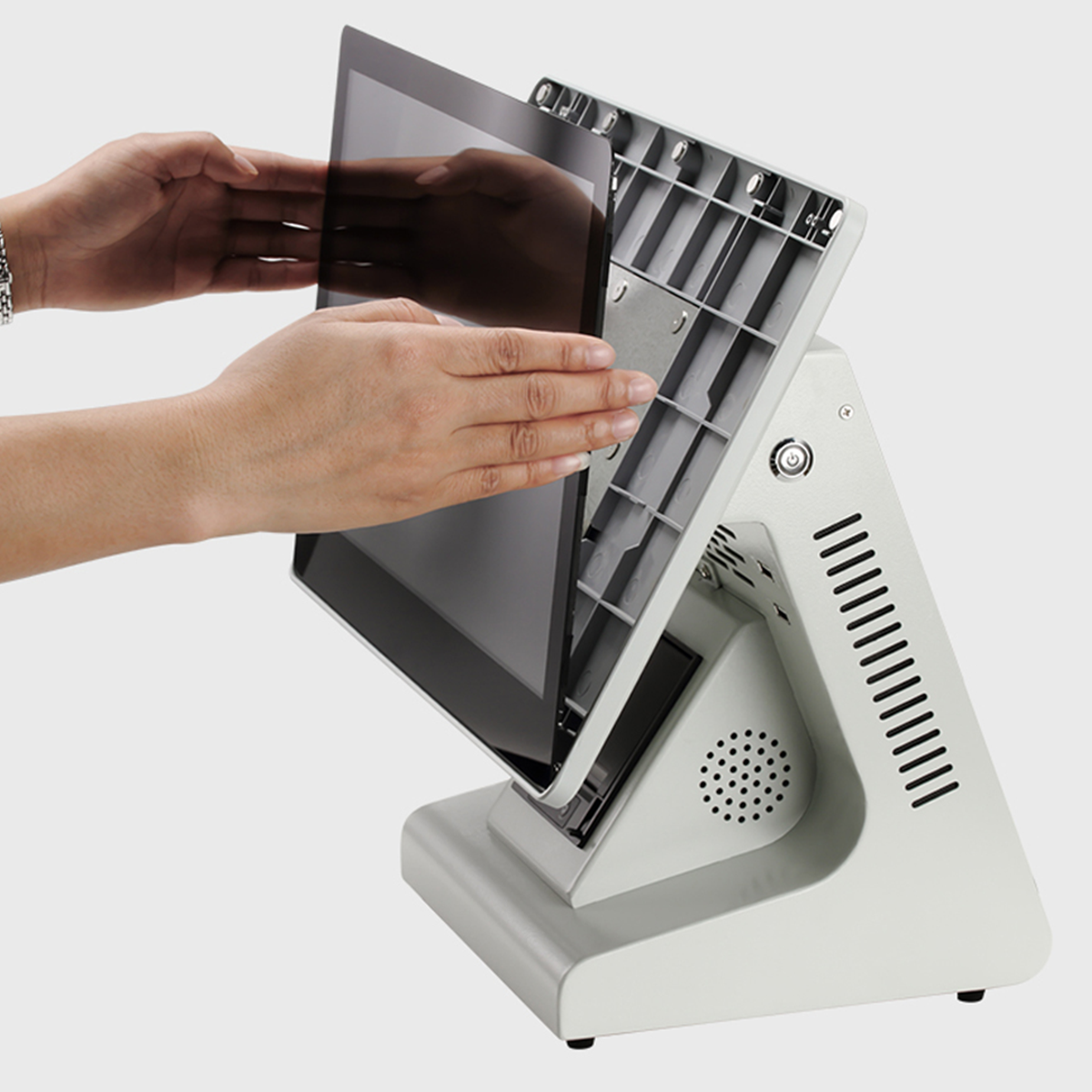

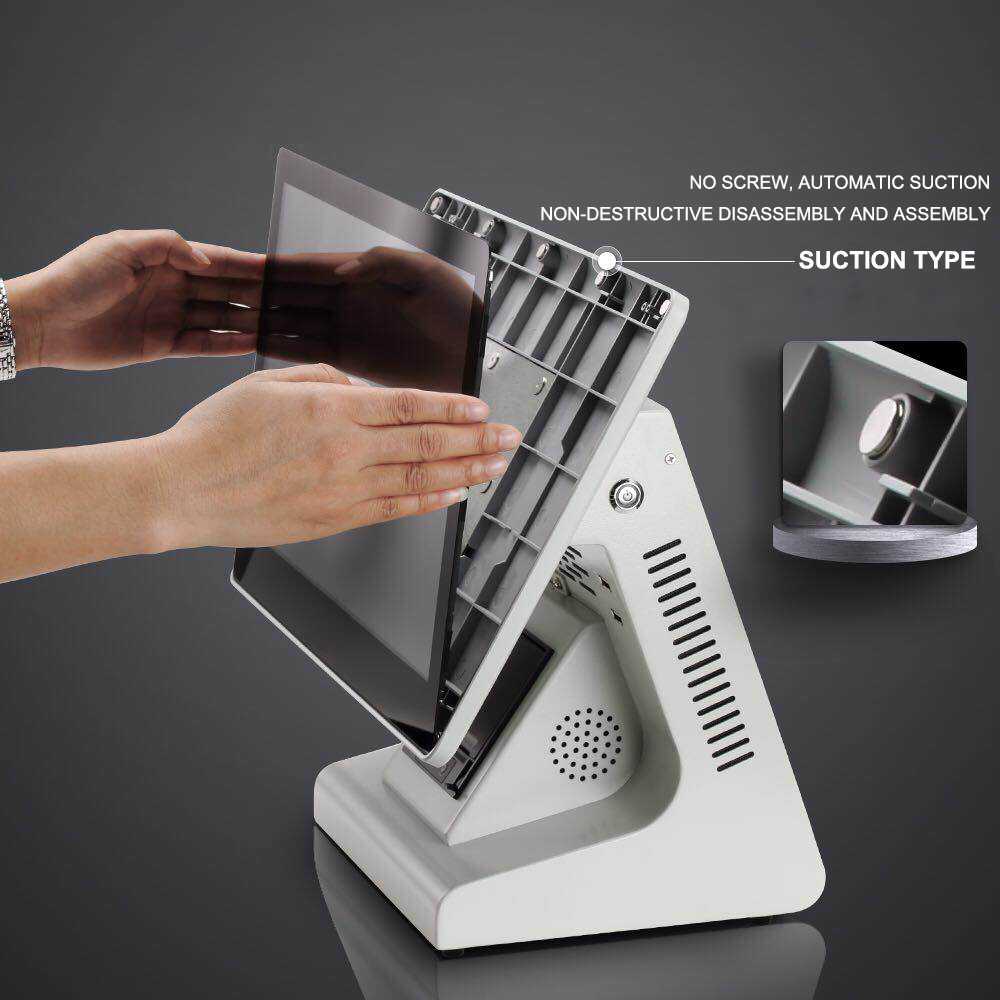

2. All aluminum alloy design, magnetic display screen for easy installation

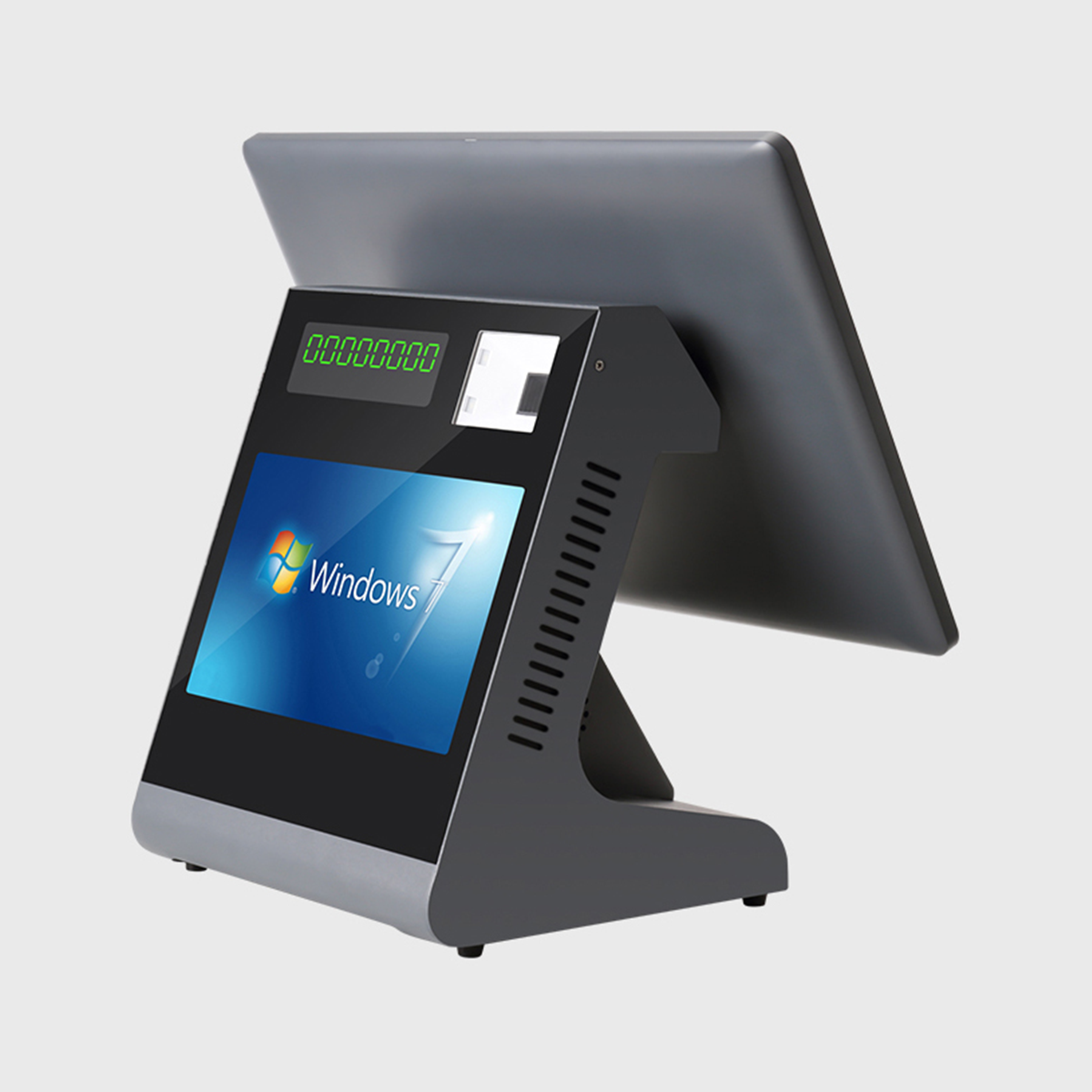

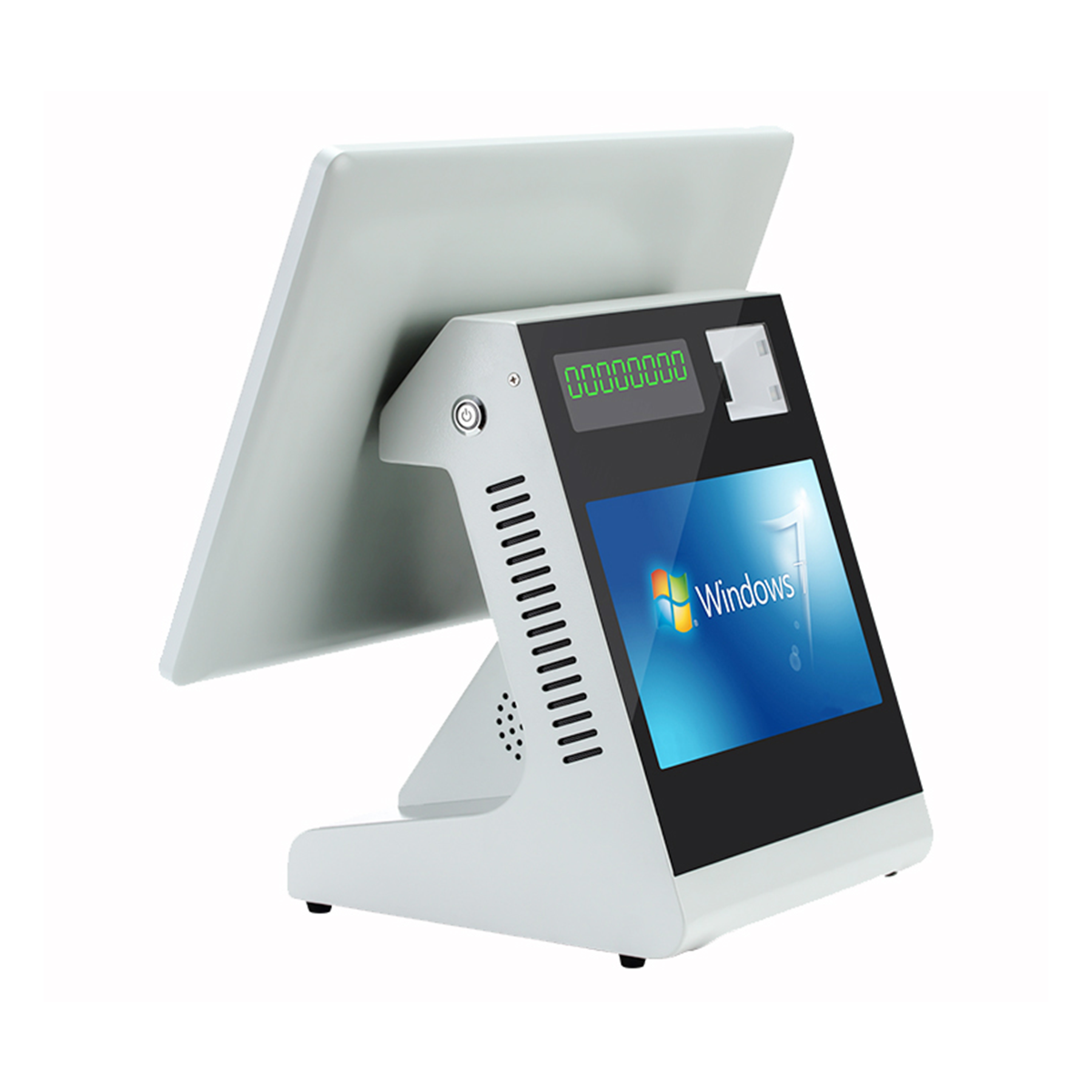

3. The secondary screen can be either Mitsubishi 9-inch or BOE's brand new 15.6-inch
4. Built in receipt printer, 58mm or 80mm is optional
5. 3-year extended warranty service.
-
￥0.00￥0.00
-
Product Description
Feature：
1. 15.6-inch brand new BOE capacitive touch LCD screen
2. All aluminum alloy design, magnetic display screen for easy installation
3. The secondary screen can be either Mitsubishi 9-inch or BOE's brand new 15.6-inch
4. Built in receipt printer, 58mm or 80mm is optional
5. 3-year extended warranty service.
|
|
|
Specification ——
Main Board | |||
CPU: | 1) J1800 /J1900 / J4125 / J6412 | ||
2) Intel i3 / i5 / i7 | |||
Memory: | DDR3;2GB/4GB/8G/16G/ 32G | ||
Graphic Memory: | Shared with System Memory | ||
OS Support: | Win7/win8/win10/win11, android is optional | ||
Display | |||
Size: | 15.6" LED | Brightness: | 250 -350 nits |
Resolution: | 1366*768, 1920*1080 | Touch Screen: | EDP Capacity |
Tilting Angle: | 35-90 Degree | ||
Harddisk | |||
SDD: | 32GB/64G/128G/256G/512G | HDD: | 2.5" 250G or 320G |
I/O Ports | |||

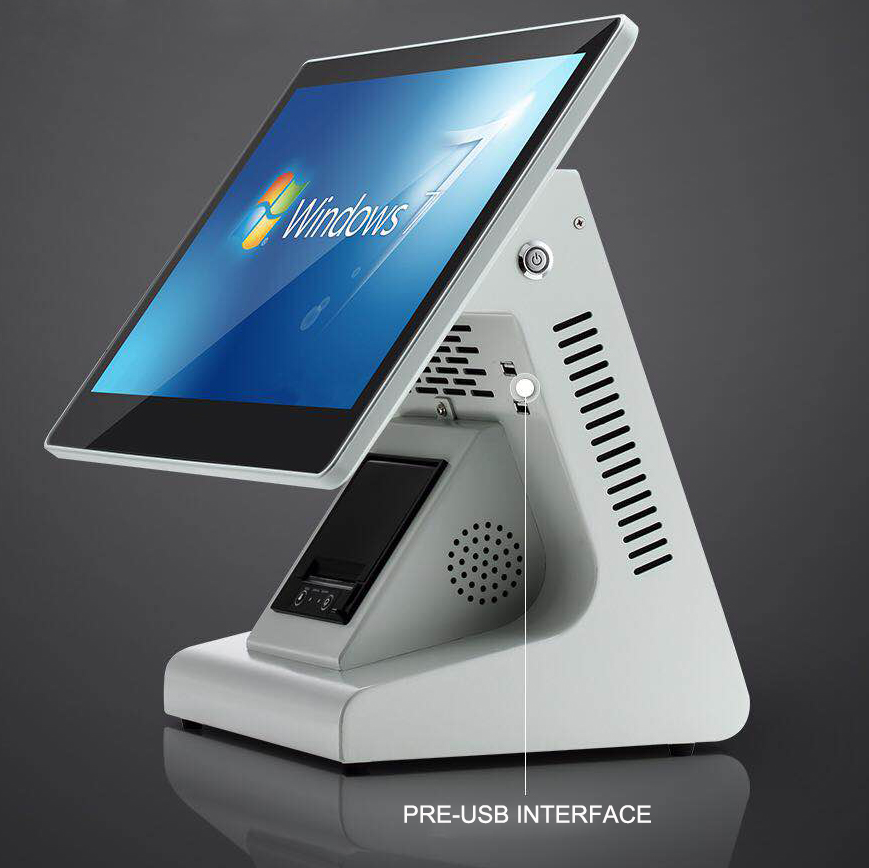

Serial: | 3 COM with Power Selected | USB: | 6 USB 2.0 (Eternal), 2 USB 2.0 |
1 COM without Power | Internal, reserved for touch screen,MSR | ||
COM2 is Customer Display | |||
SATA: | 1 mSATA (Internal) | PS/2: | 2 mini-DIN-6 port for PS/2 |
LAN: | 1 RJ-45, Giga LAN | VGA: | 1 DB-15, Female |
DC Out: | Optional:1 +12VDC Jack | Audio Jack: | 1 Line Out, 1 MIC In, |
(Customer Display or 2nd Display) | 1 Internal Speaker | ||
Optional Printers | |||
Type: | Thermal Receipt Printer | Print Speed: | 90mm/sec or 300mm/sec |
Interface: | RS-232/USB/Ethernet | Paper Size: | 58mm or 80mm |
Others | |||
Power Input: | 2V/5A DC 60W,2-pin Connector with Lock | Color: | Black / White |
(Internal Adaptor: 100~240 VAC,50/60HZ) | Compliance: | CE / RoHS/FCC | |
Weight: | 13.5 Kg | Dimension (mm): | 385.5(W) 341(H) 209(D) |
Operating Temperature: | 0C~40C | Operating Humidity: | 20% ~ 80% RH non-condensing |
Storage Temperature: | -20C~ 60C | Storage Humidity: | 20% ~ 85% RH non-condensing |
Optional Peripherals | |||

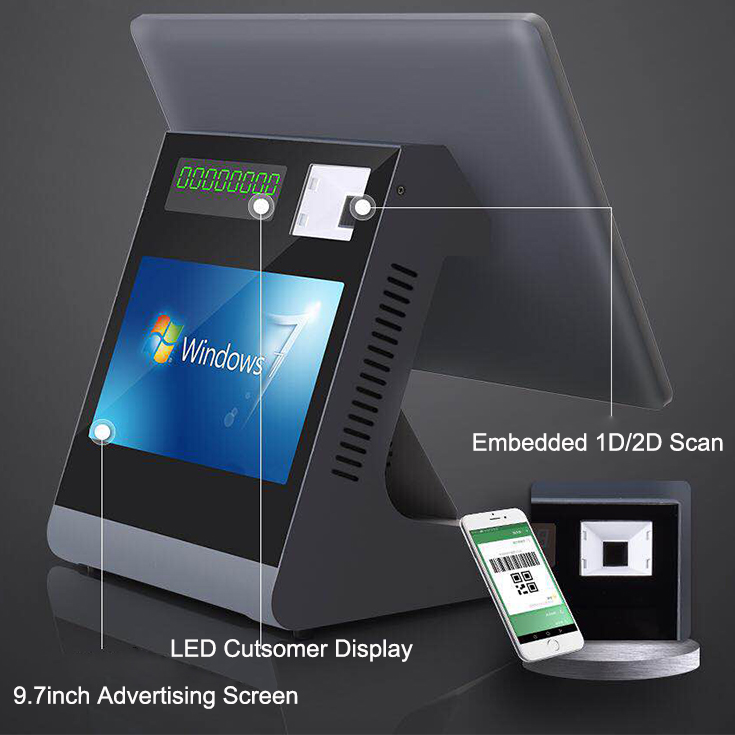

Customer Display: | VFD / LCD, build-in | MSR: | 3 Track, USB or COM |
I-Button: | Dallas Key RS232 I/F | Advertising screen : | 9.7inch LED screen |
Wi-Fi: | Internal MiniPCI-E | Warranty: | 24 months |
