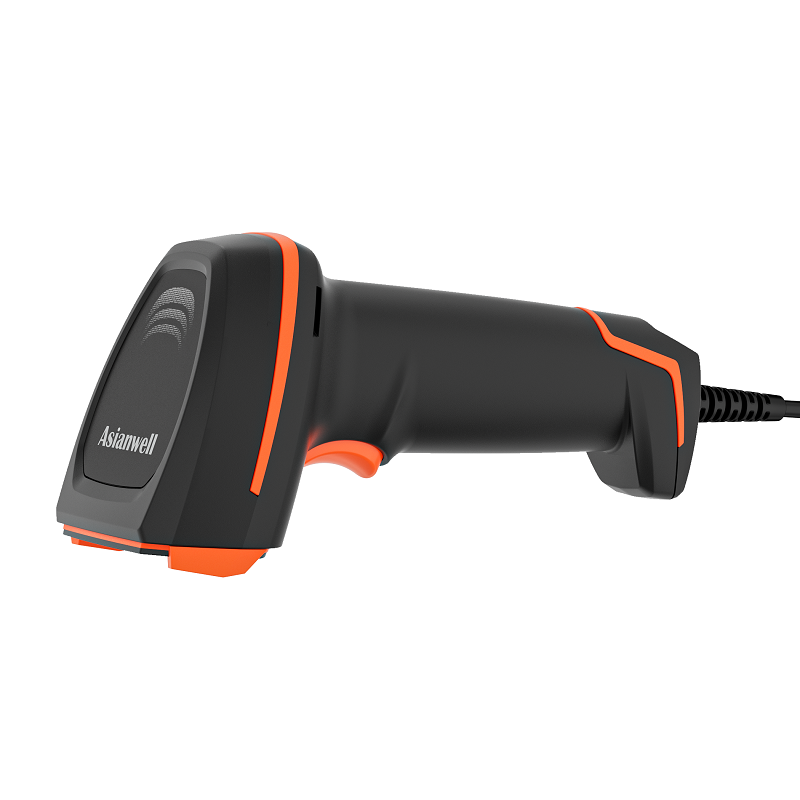

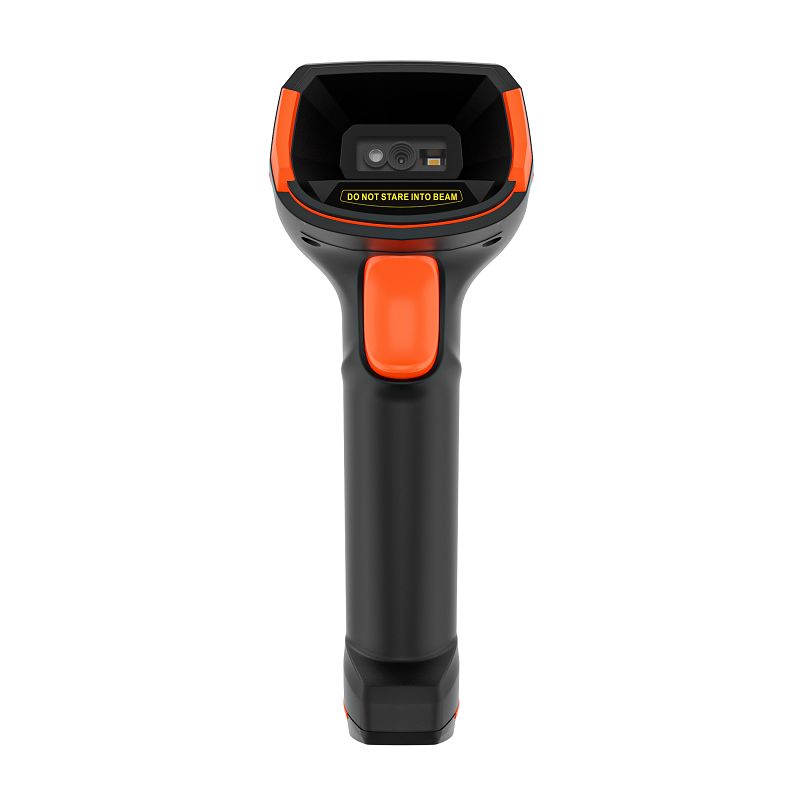

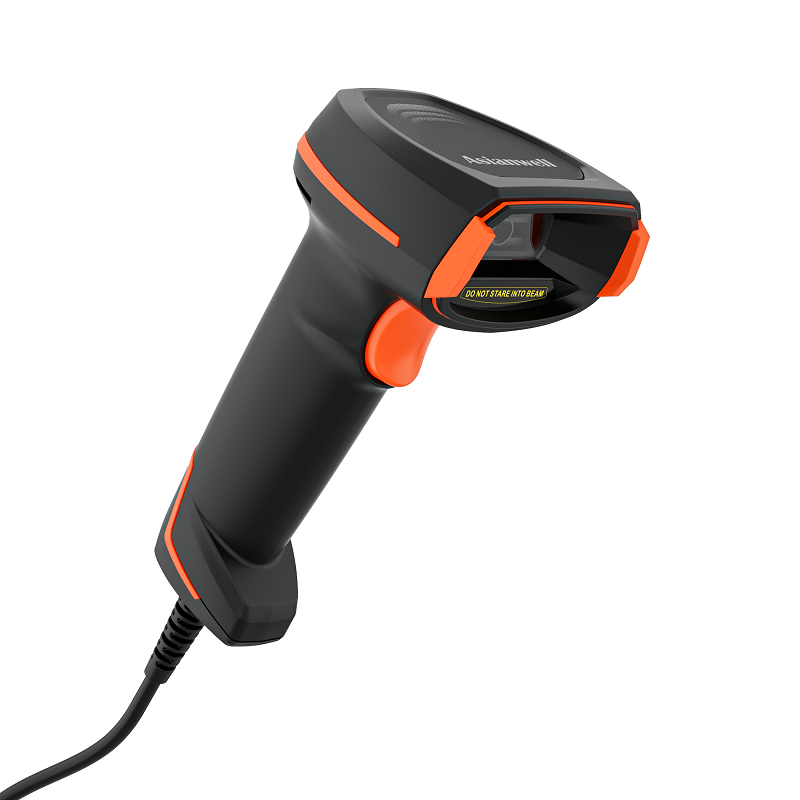

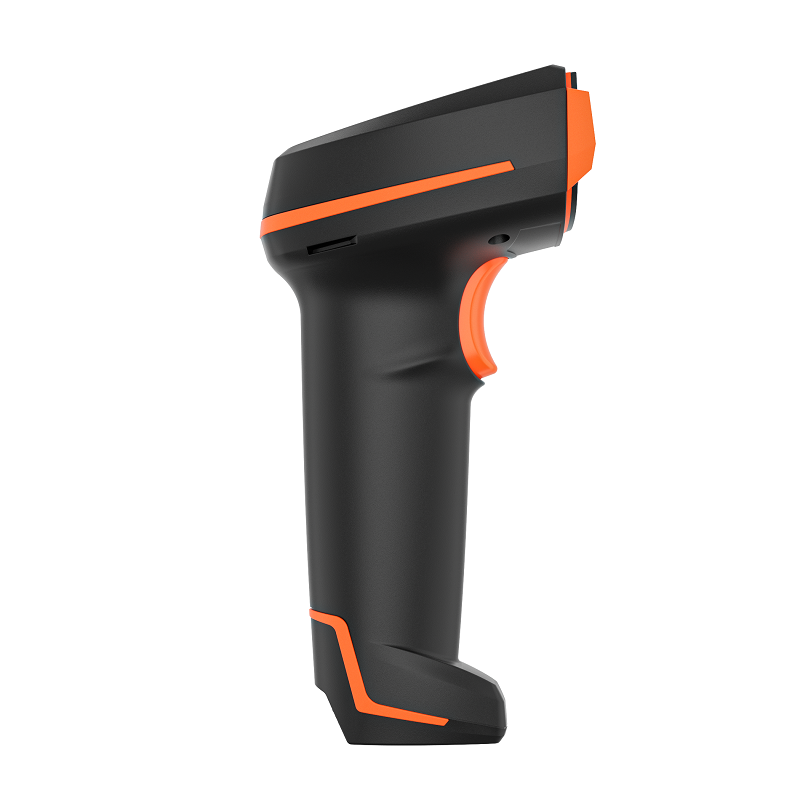

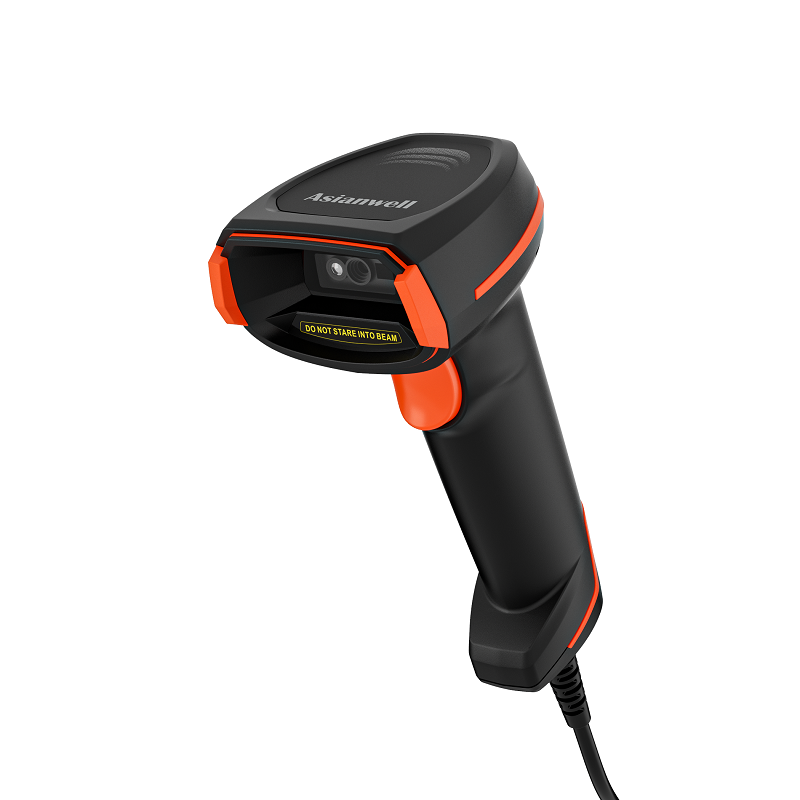

AW-4208H
Feature1. 1MP image frame rate up to 60fps
2. Support OCR ( Passport, ID card,driving license card,Visa Card etc.)
3. Support USB, RS-232 and Virtual serial port.
4. Can read all 1D/2D/Dotcode barcode on the screen and paper
5. Can work with Win XP/7/8/10,iOS,Android system
6. Strong decode ability to read difficult barcodes (blurred, wrinkled,fuzzy, low contrast,high density)-
￥0.00￥0.00
-
Product Description
Feature
1. 1MP image frame rate up to 60fps
2. Support OCR ( Passport, ID card,driving license card,Visa Card etc.)
3. Support USB, RS-232 and Virtual serial port.
4. Can read all 1D/2D/Dotcode barcode on the screen and paper
5. Can work with Win XP/7/8/10,iOS,Android system
6. Strong decode ability to read difficult barcodes (blurred, wrinkled,fuzzy, low contrast,high density)
|
|
|
Specification ——
Technology | |
Scan type | 2D image CMOS |
Interface | USB keyboard,USB virtual serial port, RS-232 |
Resolution | 1280 pixels(H)x 800 pixels(V) |
Scan Mode | Manual/Auto scan/ Continue Scan |
Lighting Sourcing | Aiming: 625 nm LED; illumination:4000K LED |
| Frame Rat | 60fps/ |
Scanning angle | Roll: ±360°, Pitch:±55°, Skew: ±55° |
Minimum Resolution | ≥4mil（CODE 39） |
| Field of view | 41° horizontal, 28° vetical |
| Visual Indicator | Red and Blue LED Light ,Buzzer |
Scan distance | EAN13 25-300MM(13mil) QR 30-350MM(20mil) |
Support Symbologies | 1D：UPC/EAN/JAN,UPC-A & UPC-E, EAN-8 & EAN-13, JAN-8 &JAN-13, ISBN/ISSN, Code 39 (with full ASCII), Codabar (NW7), Code 128 & EAN 128,Code 93, Interleaved 2 of 5 (ITF),Addendum 2 of 5, IATA, Code, MSI/Plessy, China Postal Code,Code 32 (Italian Pharmacode)，RSS-14、RSS-Limited、RSS-Expand, etc. OCR(Chinese ID card and passport) |
Printing contrast | ≥20% |
Transmission Mode | Wired Transmission |
Physical | |
Size | 92mm x 70mm x 179mm （L xW xH） |
Weight | 218g with cable |
Material | ABS+PC, TPU |
Cable Length | 1.8m |
Electronical | |
Voltage | 5VDC±5 |
Working Current | Working: 190mA， standby: 70mA |
Scanner Material | Eco-friendly, ABS+Rubber |
Environmental | |
Operation Temperature | -20 ℃ - 60℃ |
Storage Temperature | -40 ℃ - 70℃ |
| Electrostatic protection： | ±8 kV（Direct discharge） |
| Humidity | 5% - 95% |
Ambient lighting | 0-100000LUX |
Seismic resistance | 2m |
| Firmware Updat | Computer online upgrad |
IP level | IP52 |
Packing List | |
Barcode scanner×1pc, USB cable×1pc, Manul×1pc | |
Inner box | 1pc/box, 100 x 80 x 240mm, 0.31Kg |
Out box | 30pcs/ctn, 560 x 380 x 370mm, 9.3Kg |
