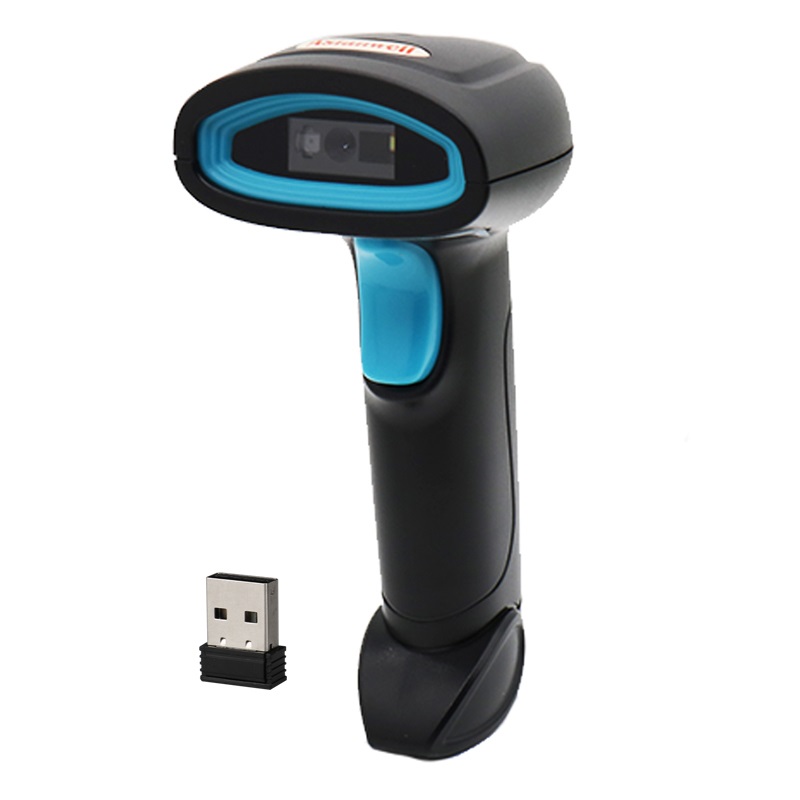

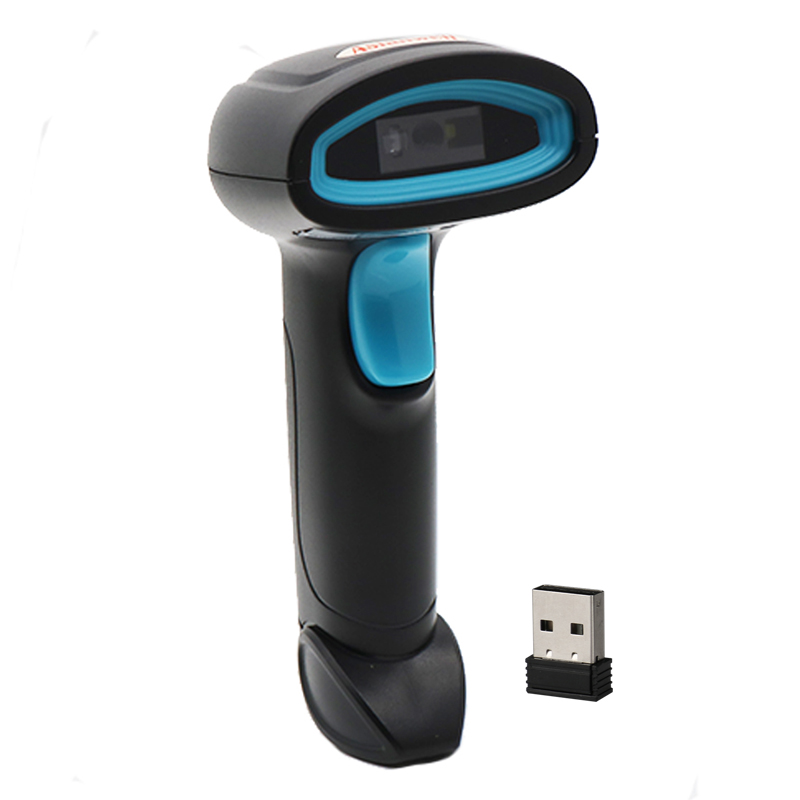

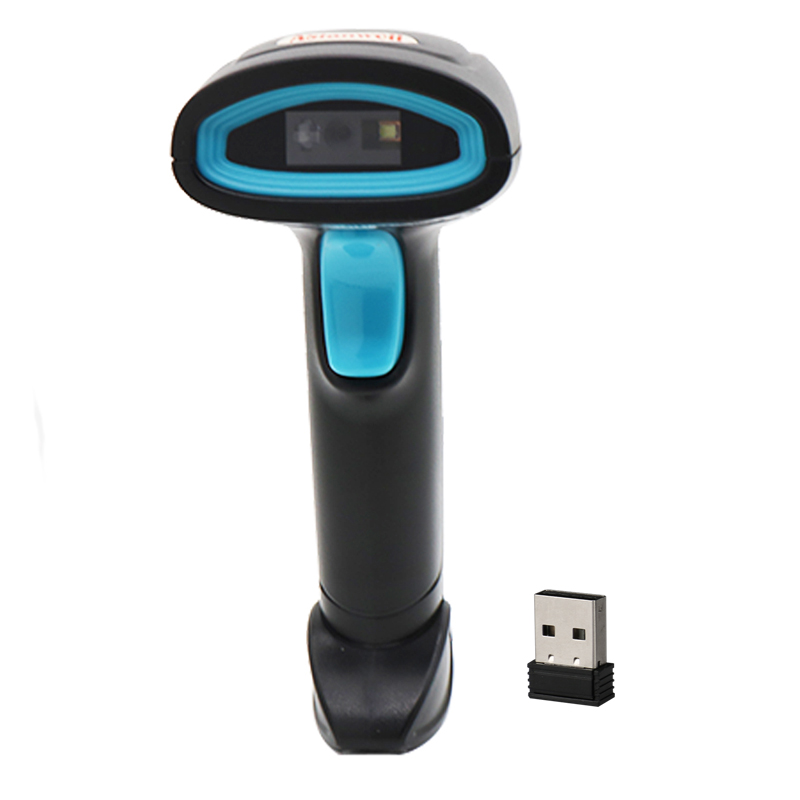

AW-U4W
Feature:
1. Large storage, maximum storage reaches 100000 codes
2. Long communication distance 150m indoors and 300m outdoors
3. Support network construction, 1 base to multiple reader or 1 reader to multiple base
4. Free of charging trouble, battery last 6-10hours after full charged
5. Unique trigger design, very comfortable operation sense
6. Fast and accurate in reading all 1D codes
7. Programmed to better read incomplete and fuzzy codes
8. Supporting keyboards of over 20 countries and regions
-
￥0.00￥0.00
-
Product Description
Feature:
1. Large storage, maximum storage reaches 100000 codes
2. Long communication distance 150m indoors and 300m outdoors
3. Support network construction, 1 base to multiple reader or 1 reader to multiple base
4. Free of charging trouble, battery last 6-10hours after full charged
5. Unique trigger design, very comfortable operation sense
6. Fast and accurate in reading all 1D codes
7. Programmed to better read incomplete and fuzzy codes
8. Supporting keyboards of over 20 countries and regions
|
|
|
Specification ——
| Technology | |
| Scan type | 2D image CMOS |
| Interface | 2.4G wireless / Bluetooth / USB-HID/RS232/PS2 |
| Resolution | 640 pixels(H)x 480 pixels(V) |
| Scan Mode | Manual/Auto scan/ Continue Scan |
| Lighting Sourcing | 617nm, LED Aiming light, White LED lightig light |
| Scanning angle | 360° (Turn), ±55° (Elevation) x ±55° (Deflection) |
| Minimum Resolution | ≥4mil |
| Scan distance | EAN - 50-200MM(13mil) QR - 25-240MM(20mil) PDF417 - 30-130MM(6.67mil) |
| Support Symbologies | 1D: EAN, UPC, Code39, Code93, Code128, UCC/EAN128, Codebar, Interleaved 2 of 5, ITF-6, ITF-14, ISBN, ISSN, MSI-Plessey, GS1-Databar, GS1 Composite code, Code11, Industrial 25, Standard 25, Plessey, Matrix 2of 5. 2D: QR Code, Data Matrix, PDF417, Aztec, Maxicode, Hanxin Code, Chinese code. |
| Printing contrast | ＞30%(UPC/EAN 100% , PCS 90%) |
| Electronical | |
| Voltage | 5V |
| Working Current | 280mA， Sleep current USB 25mA, RS232 2uA |
| Li-battery | 2200mA |
| Standby time | ≥40000 times scan |
| Scanner Material | Eco-friendly, ABS+Rubber |
| Environmental | |
| Operation Temperature | -20 ℃ - 45℃ |
| Storage Temperature | -20 ℃ - 45℃ |
| Humidity | 5% - 95% |
| Ambient lighting | 0-100000LUX |
| Seismic resistance | 3m |
Feature:
1. Avoid accidental touches, using infrared optical dual sensing technology
2. Intelligent anti-rereading, target detection method effectively reduces rereading
3. Reliable performance, mature decoding logic and image processing technology
4. Easy to operate, plug and play, support firmware upgrade
5. Smooth reading, quick passing in front of the window, can quickly capture and identify
6. Eye protection design, soft light LED is not dazzling
Appearance | |
| |
Performance | |
Image Sensor | CMOS 1280*800 |
Light Source | Red LED + LED |
Scan Angle | Skew±70° Pitch±60° Roll 360° |
FOV | D=44.6° H=36.4° V=27.8° |
Resolution | ≥5mil |
Minimum Print Contrast | ≥20% |
Decode Capacity | |
1D | Codabar、Code 11、Code 128、Code 39、Code 32、Code 93、EAN-8、EAN-13、ISBN、ISSN、UPC-A、UPC-E、GS1 DataBar、ISBT128、NEC 2 of 5、MSI Plessey、GS1 128、Industrial 2 of 5、Telepen、Interleaved 2 of 5、Matrix 2 of 5、Hong Kong 2 of 5、Postal Code、Trioptic、Straight 2 of 5 IATA |
2D | QR Code、Micro QR、Data Matrix、PDF417、Micro PDF417、HANXIN、Aztec Code、Maxi code |
Typical Decode Range | |
Code39（5mil） | 0 mm~40 mm Barcode Size：25mm*10mm |
EAN-13（13mil） | 5 mm~270 mm Barcode Size：31mm*17mm |
QR（15mil） | 0 mm~200 mm Barcode Size：8mm*8mm |
Physical characteristics | |
Interface | USB / RS232 |
Operating Voltage | 5 VDC±5% |
Operating Current(typical) | 450mA（5 VDC） |
Operating Current(Max) | 480mA（5 VDC） |
Standby Current | 220mA（5 VDC） |
Power Consumption | 2250mW |
Dimension(not with stand) | 145(W)×77(D)×136(H)mm |
Dimension(with stand) | 145(W)×84.5(D)×147(H)mm |
Color | Gray-blue |
Net weight | 415g（not with stand） / 520g（include stand） |
Country Keyboards | 30 country keyboard |
Indication | LED indicator, Beeper |
Environmental | |
Operating Temperature | -10℃ ~ 50℃ |
Storage Temperature | -20℃~ 60℃ |
Humidity | 5%~95%（Non-condensing） |
Drop | Can withstand multiple drops from a height of 1m onto a concrete floor. |
IP Level | IP52 |
ESD | EN61000-4-2，±6KV direct charge，±15KV air charge |
Ambient Light | 0~100,000LUX |
LED Safety | IEC 62471 |
Accessories | |
USB Cable | For data transmission, power supply. |
RS232 Cable | For data transmission, power supply. |
Stand | Flexible installation |
