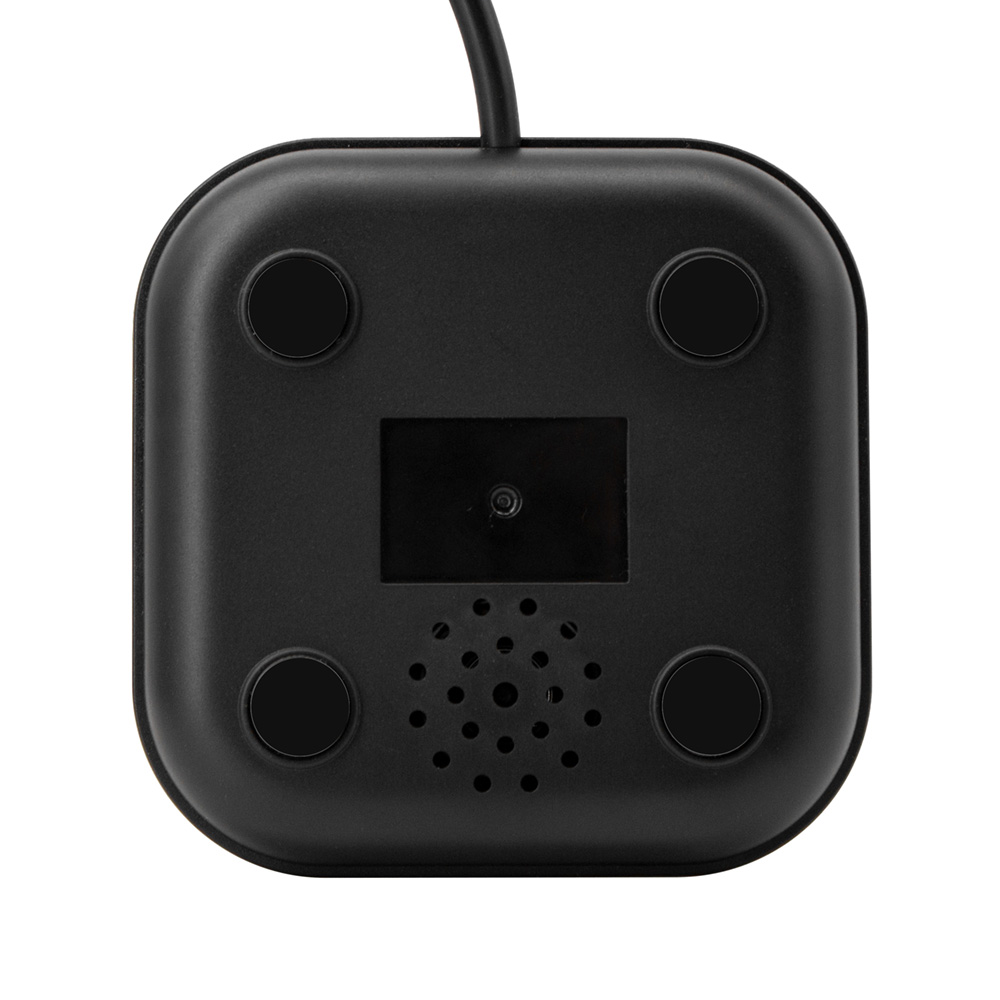

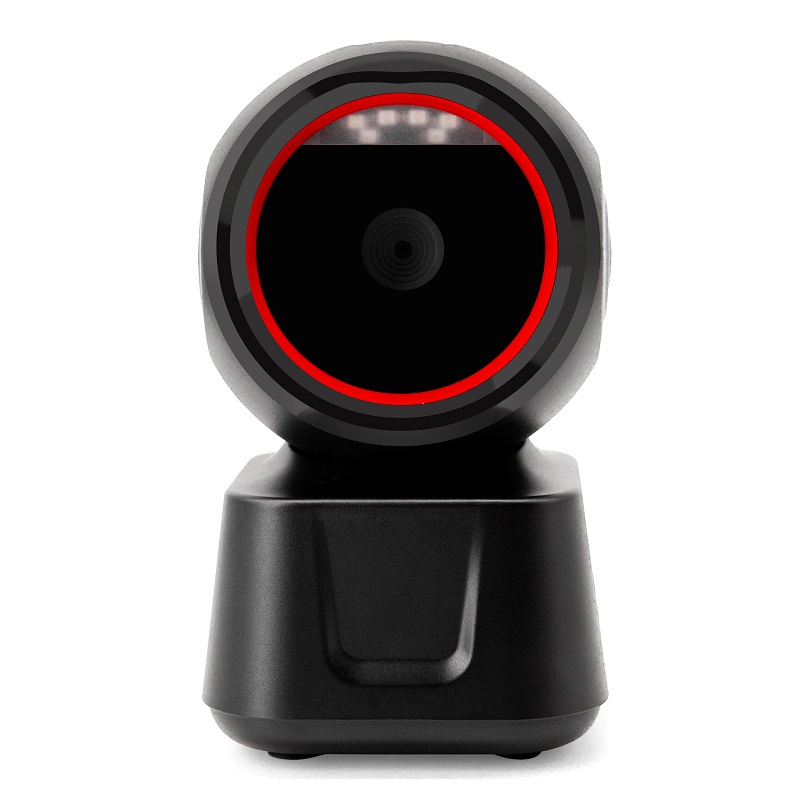

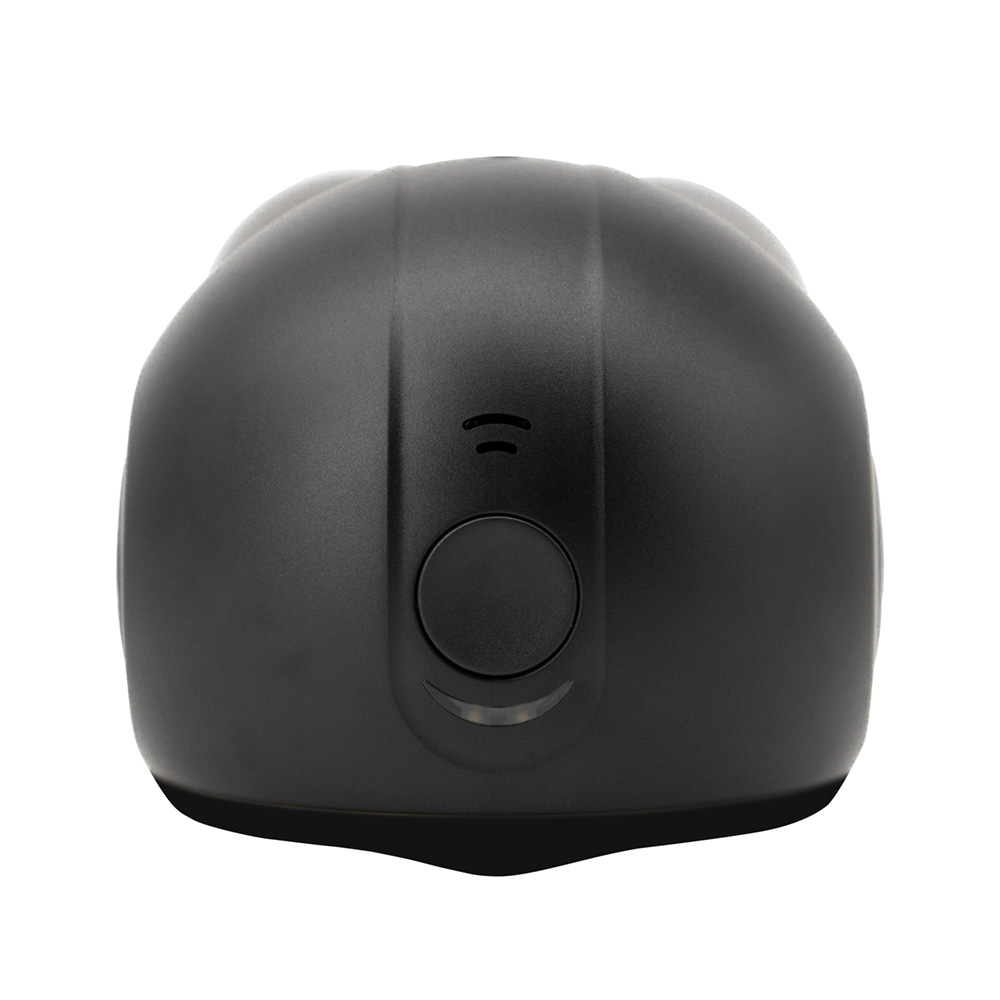

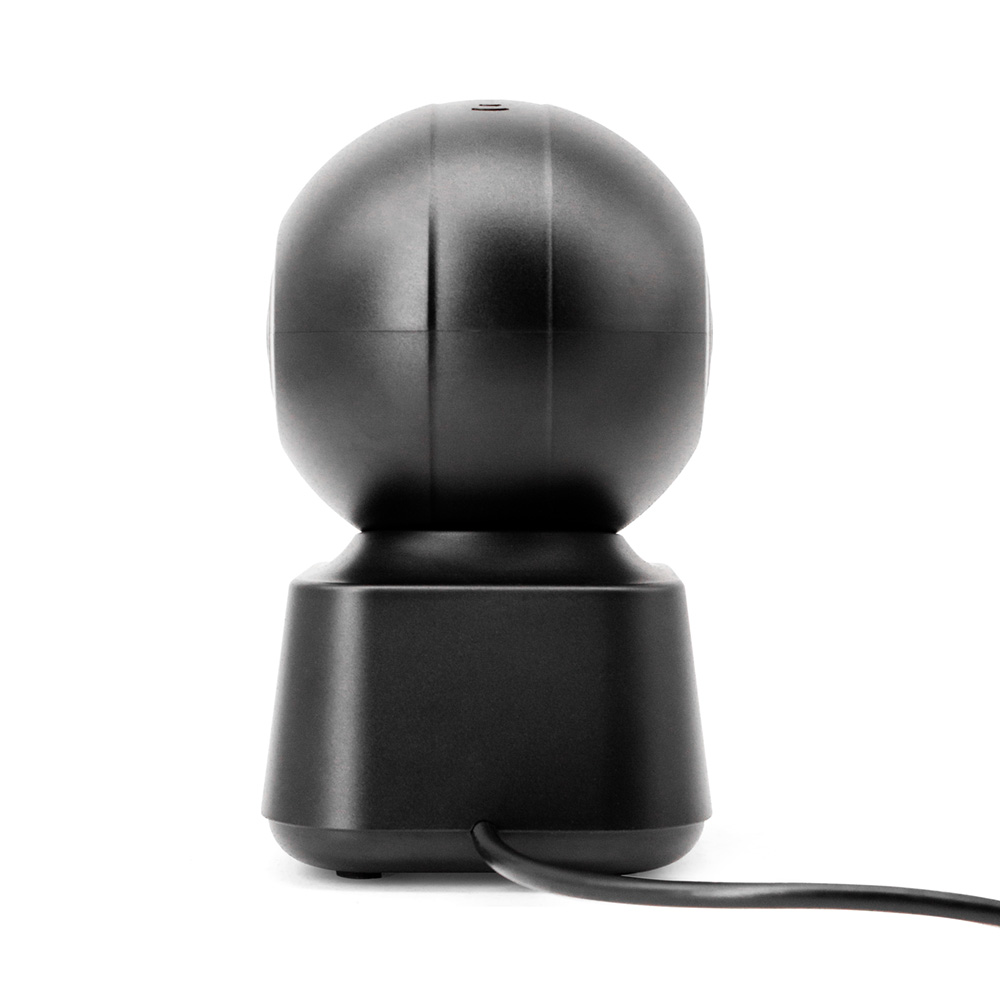

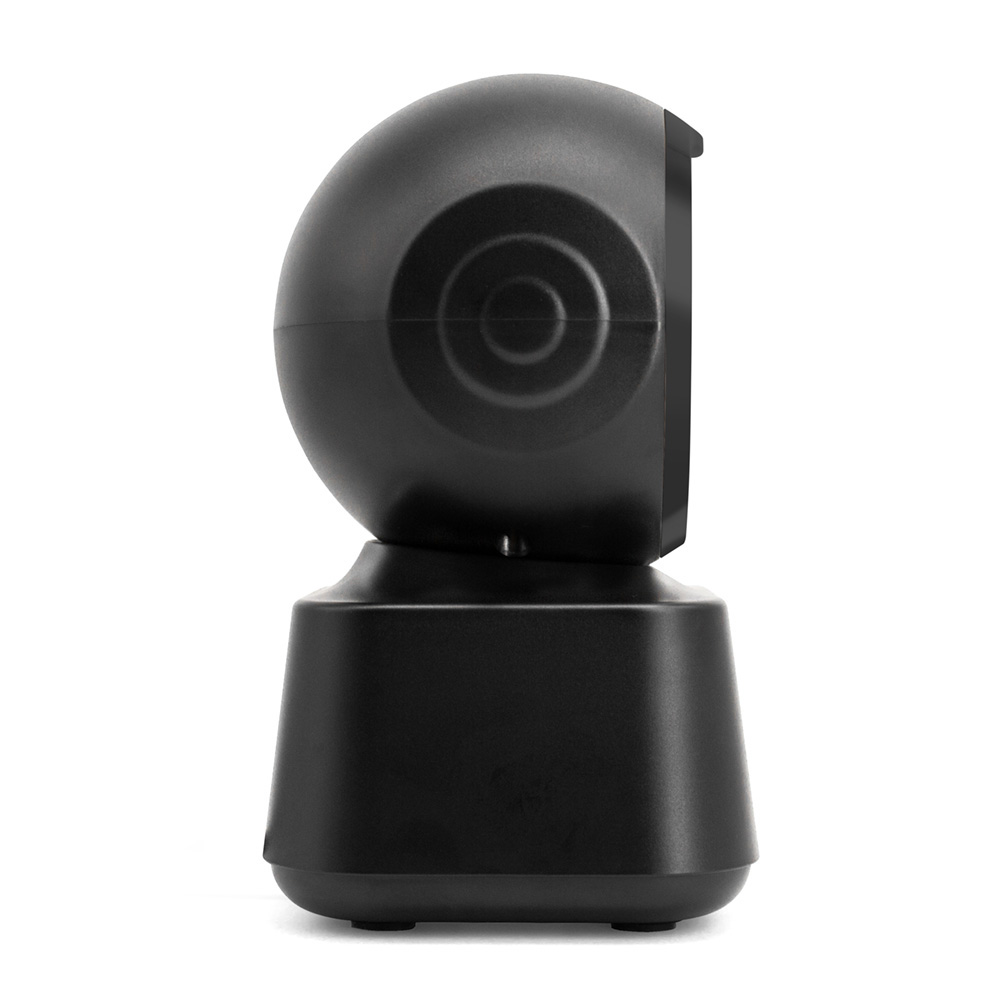

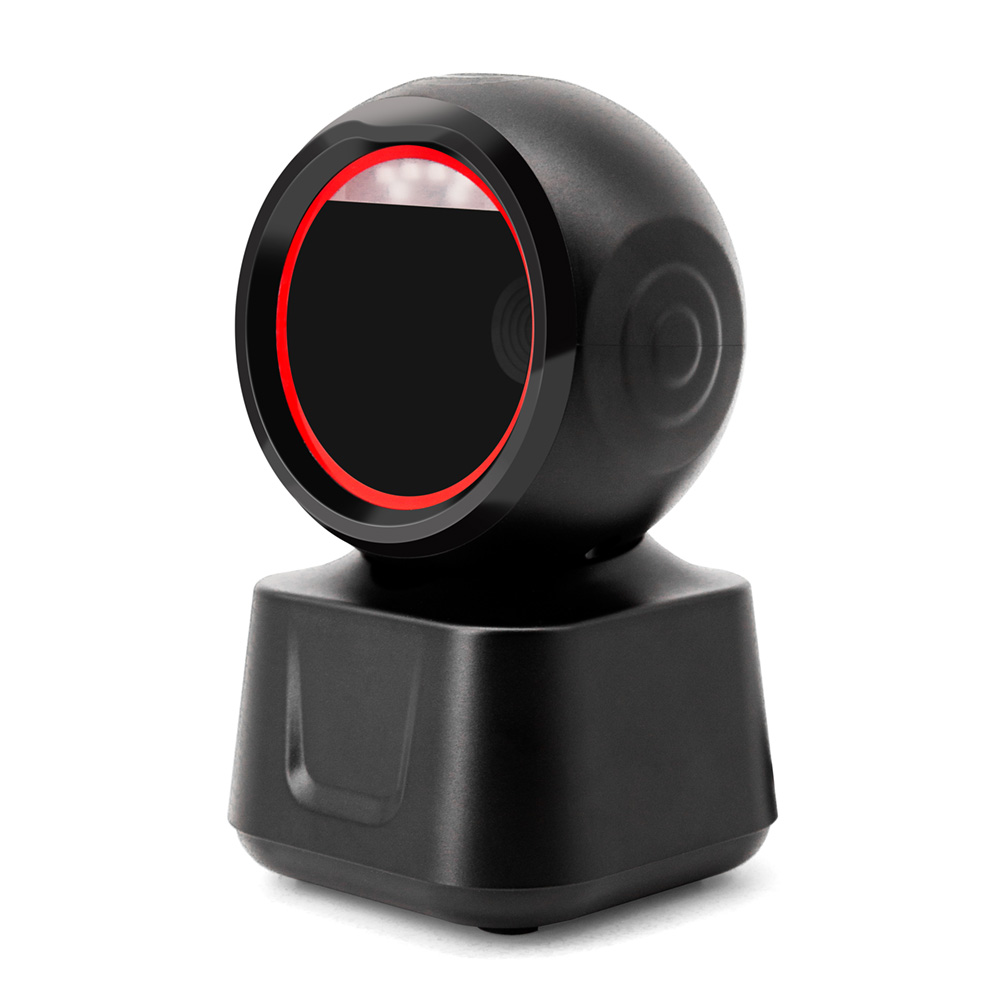

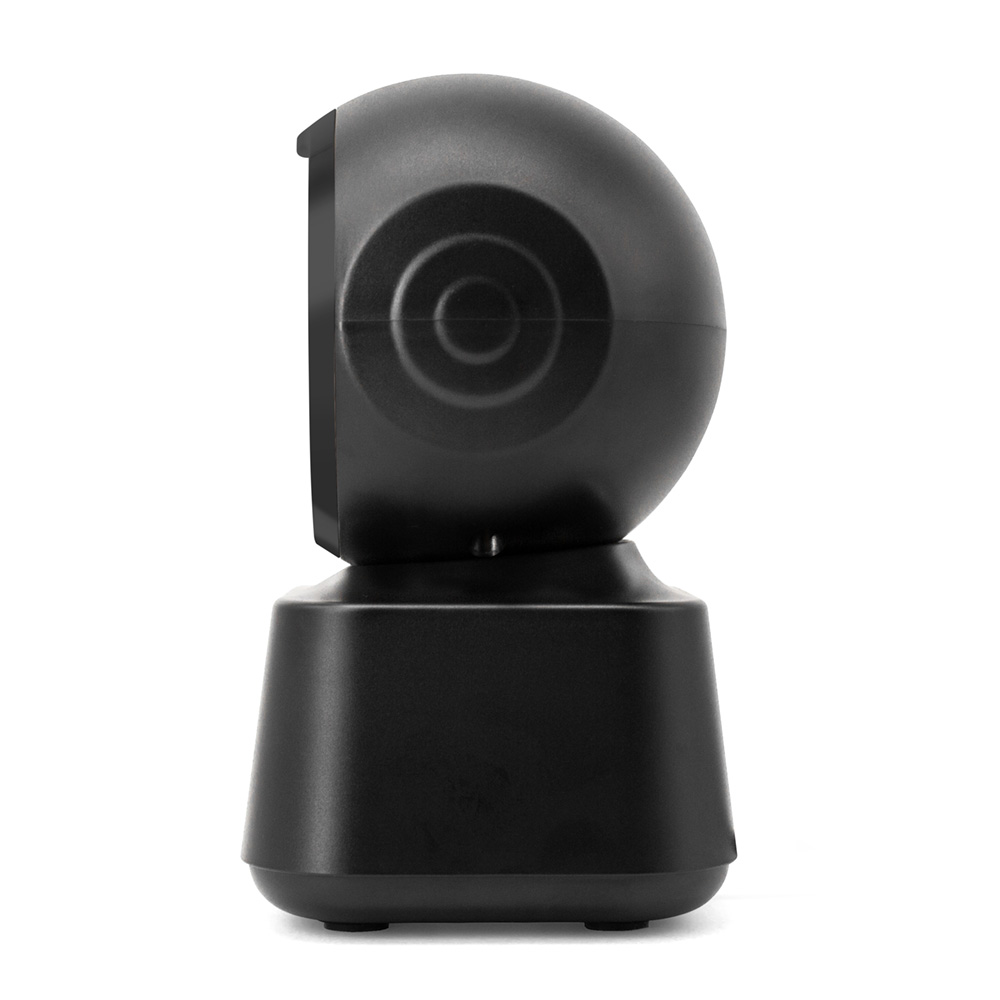

AW-S6
Feature
1. Brand new decoding chip with professional technology2. Fast scan speed with 1D/2D codes and also code on phone
3. Plug and play, easy to set up
4. The error rate is less than 1/5 million times, accurate and error free
5. The lifespan of the wire is longer
-
￥0.00￥0.00
-
Product Description
Feature
1. Brand new decoding chip with professional technology
2. Fast scan speed with 1D/2D codes and also code on phone
3. Plug and play, easy to set up
4. The error rate is less than 1/5 million times, accurate and error free
5. The lifespan of the wire is longer
|
|
|
Specification ——
| Performance Parameter | |
| Light Source | LED Red light（Germany） |
| Image sensor | 640*480 pixels |
| Resolution(maximum) | 0.1mm |
| Print contrast ratio(minimum) | ≥15% |
| Motion tolerance | 2M/sec |
| Reading Angle | Pitch: 0-360°; Roll(Tilt): ±60°; Skew (Yaw): ±60° |
| Decoding Capability | 1D: All standard 1D codes, including GS1 DataBar™ linear code can be automatically distinguished and decoded. |
| 2D: Aztec Code; Data Matrix; MaxiCode; QRCode; HANXIN; MicroQR Code | |
| Stack code: GS1 DataBar Expanded Stacked; GS1 DataBar Stacked; GS1 DataBar StackedOmnidirectional; GS1 DataBarComposite; MicroPDF417; PDF417. | |
| Reading Indicators | LED light&Buzzer(adjustable tone and volume） |
| Typical depth of Filed | Precision Barcode Depth of Filed |
| 5mil CODE128 1mm—80mm | |
| 5mil EAN-13 1mm—80mm | |
| 13.34mil EAN-13 5mm—245mm | |
| 5mil PDF417 5mm—70mm | |
| 10mil PDF417 5mm—180mm | |
| 15mil PDF417 10mm—280mm | |
| 20mil DM 5mm—80mm | |
| (The minimum depth of field is determined by the barcode length and scanning angle. It depends on the print resolution, contrast and ambient light.) | |
| Physical characteristics | |
| Color available | Black&White |
| Dimensions（L*W*H） | 90*95*150mm |
| Weight | 384g |
| Cable | 1.8m |
| Electrical Parameter | |
| Current | Working current（Standard): < 300 mA Standby current（Standard):< 210 mA |
| Input Voltage | 5 VDC (+/- 10%)/500mA |
| Environmental Parameter | |
| ESD protection(Air discharge) | 8 kV |
| Drop resistance | Withstands repeated drops from 1.2m/4.0 ft onto a concrete surface. |
| Particulate and water sealing | IP52 |
| Temperature | Operation: 0 to 40 °C |
| Storage/Transport: -40 to 70 °C | |
| Humidity(non-condensing) | 5 - 95% |
| Ambient light | 0 -100,000 lux |
| Interfaces | |
| Interfaces | RS-232; USB HID; USB COM;HID POS available as per customer’s needs |
| Warranty | |
| Warranty | 18/months |
Feature:
1. Avoid accidental touches, using infrared optical dual sensing technology
2. Intelligent anti-rereading, target detection method effectively reduces rereading
3. Reliable performance, mature decoding logic and image processing technology
4. Easy to operate, plug and play, support firmware upgrade
5. Smooth reading, quick passing in front of the window, can quickly capture and identify
6. Eye protection design, soft light LED is not dazzling
Appearance | |
| |
Performance | |
Image Sensor | CMOS 1280*800 |
Light Source | Red LED + LED |
Scan Angle | Skew±70° Pitch±60° Roll 360° |
FOV | D=44.6° H=36.4° V=27.8° |
Resolution | ≥5mil |
Minimum Print Contrast | ≥20% |
Decode Capacity | |
1D | Codabar、Code 11、Code 128、Code 39、Code 32、Code 93、EAN-8、EAN-13、ISBN、ISSN、UPC-A、UPC-E、GS1 DataBar、ISBT128、NEC 2 of 5、MSI Plessey、GS1 128、Industrial 2 of 5、Telepen、Interleaved 2 of 5、Matrix 2 of 5、Hong Kong 2 of 5、Postal Code、Trioptic、Straight 2 of 5 IATA |
2D | QR Code、Micro QR、Data Matrix、PDF417、Micro PDF417、HANXIN、Aztec Code、Maxi code |
Typical Decode Range | |
Code39（5mil） | 0 mm~40 mm Barcode Size：25mm*10mm |
EAN-13（13mil） | 5 mm~270 mm Barcode Size：31mm*17mm |
QR（15mil） | 0 mm~200 mm Barcode Size：8mm*8mm |
Physical characteristics | |
Interface | USB / RS232 |
Operating Voltage | 5 VDC±5% |
Operating Current(typical) | 450mA（5 VDC） |
Operating Current(Max) | 480mA（5 VDC） |
Standby Current | 220mA（5 VDC） |
Power Consumption | 2250mW |
Dimension(not with stand) | 145(W)×77(D)×136(H)mm |
Dimension(with stand) | 145(W)×84.5(D)×147(H)mm |
Color | Gray-blue |
Net weight | 415g（not with stand） / 520g（include stand） |
Country Keyboards | 30 country keyboard |
Indication | LED indicator, Beeper |
Environmental | |
Operating Temperature | -10℃ ~ 50℃ |
Storage Temperature | -20℃~ 60℃ |
Humidity | 5%~95%（Non-condensing） |
Drop | Can withstand multiple drops from a height of 1m onto a concrete floor. |
IP Level | IP52 |
ESD | EN61000-4-2，±6KV direct charge，±15KV air charge |
Ambient Light | 0~100,000LUX |
LED Safety | IEC 62471 |
Accessories | |
USB Cable | For data transmission, power supply. |
RS232 Cable | For data transmission, power supply. |
Stand | Flexible installation |
