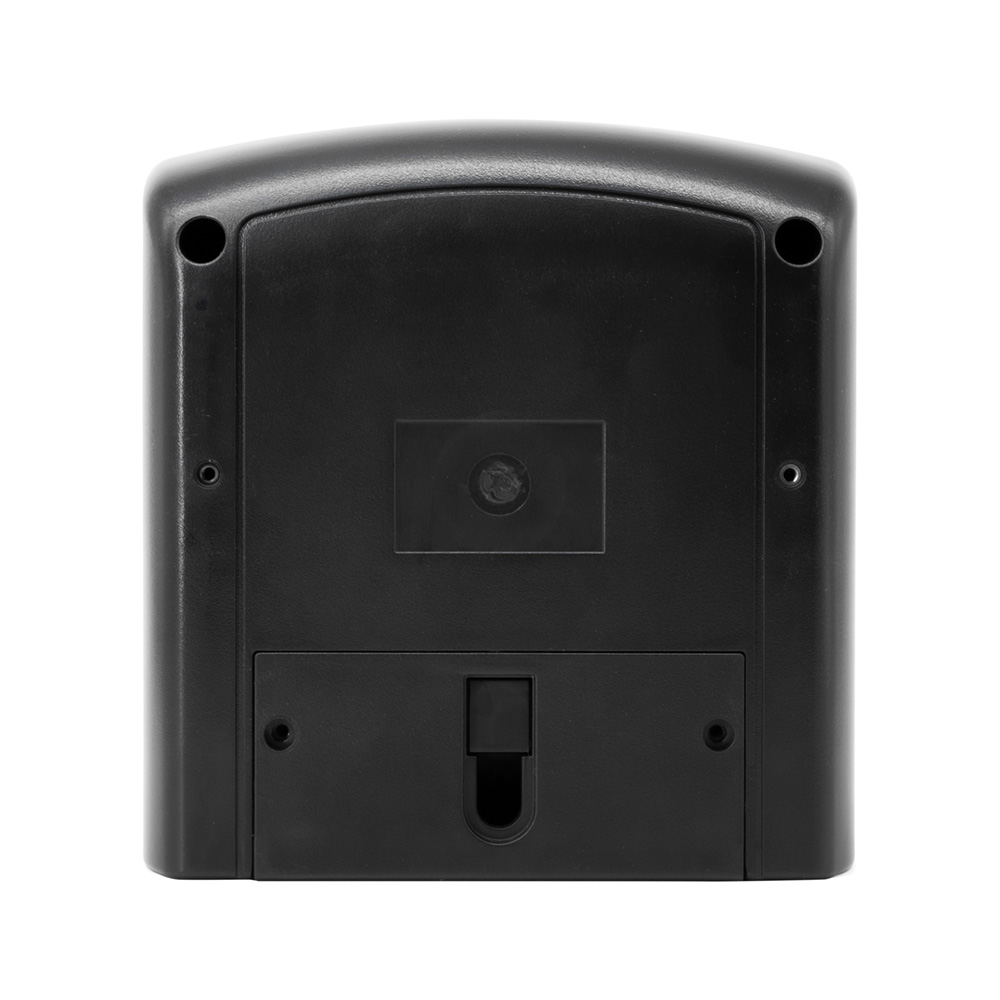

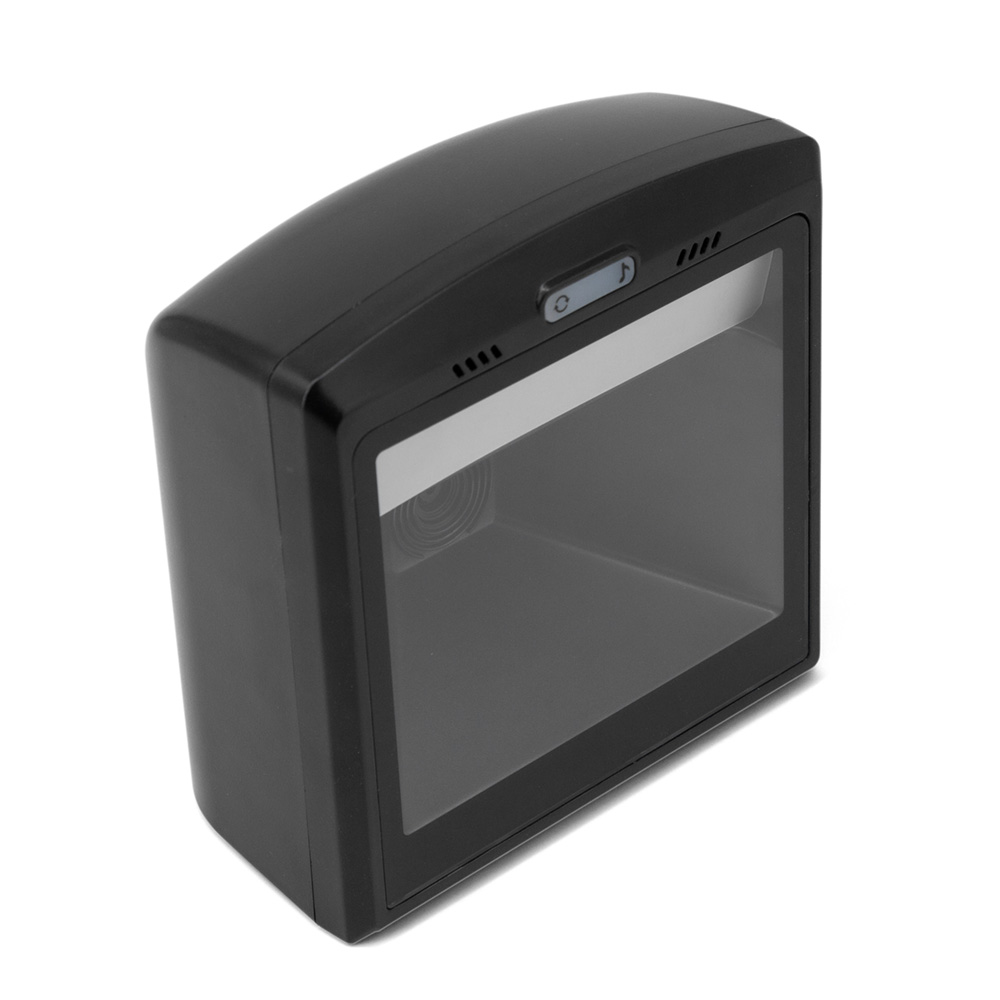

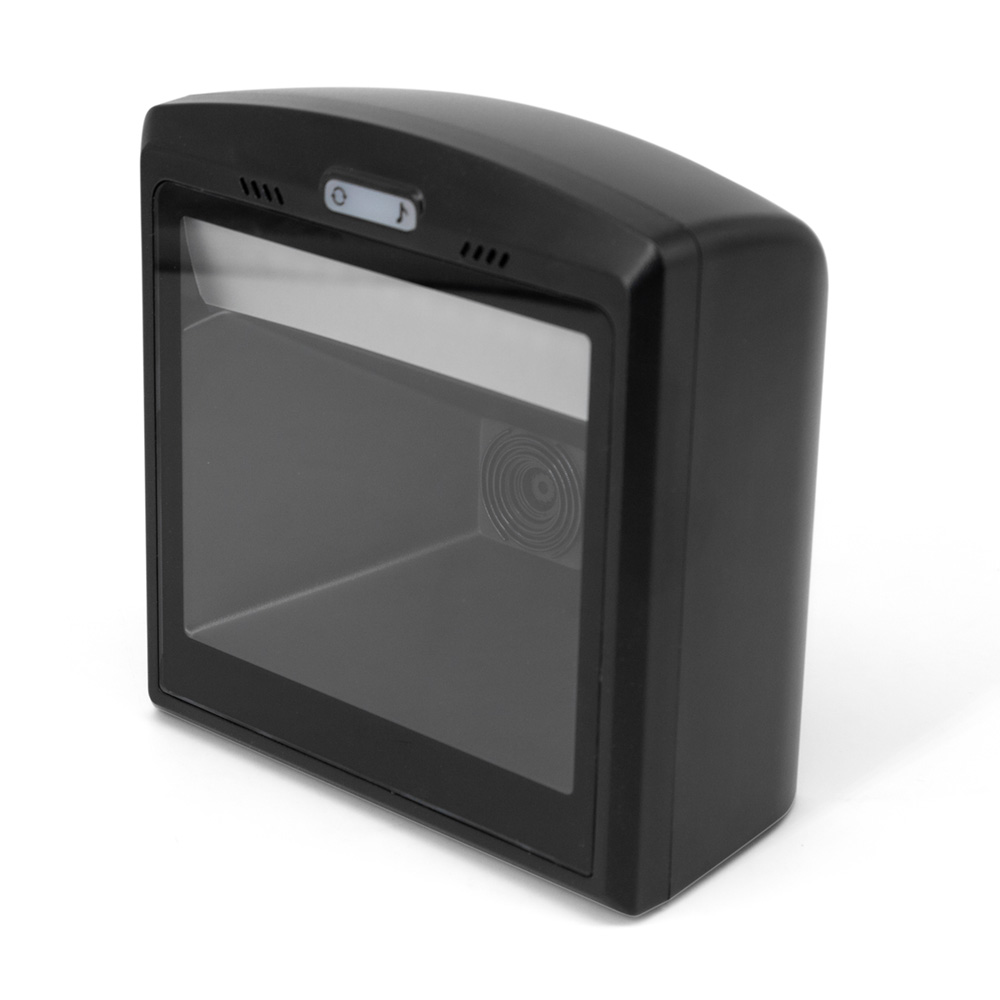

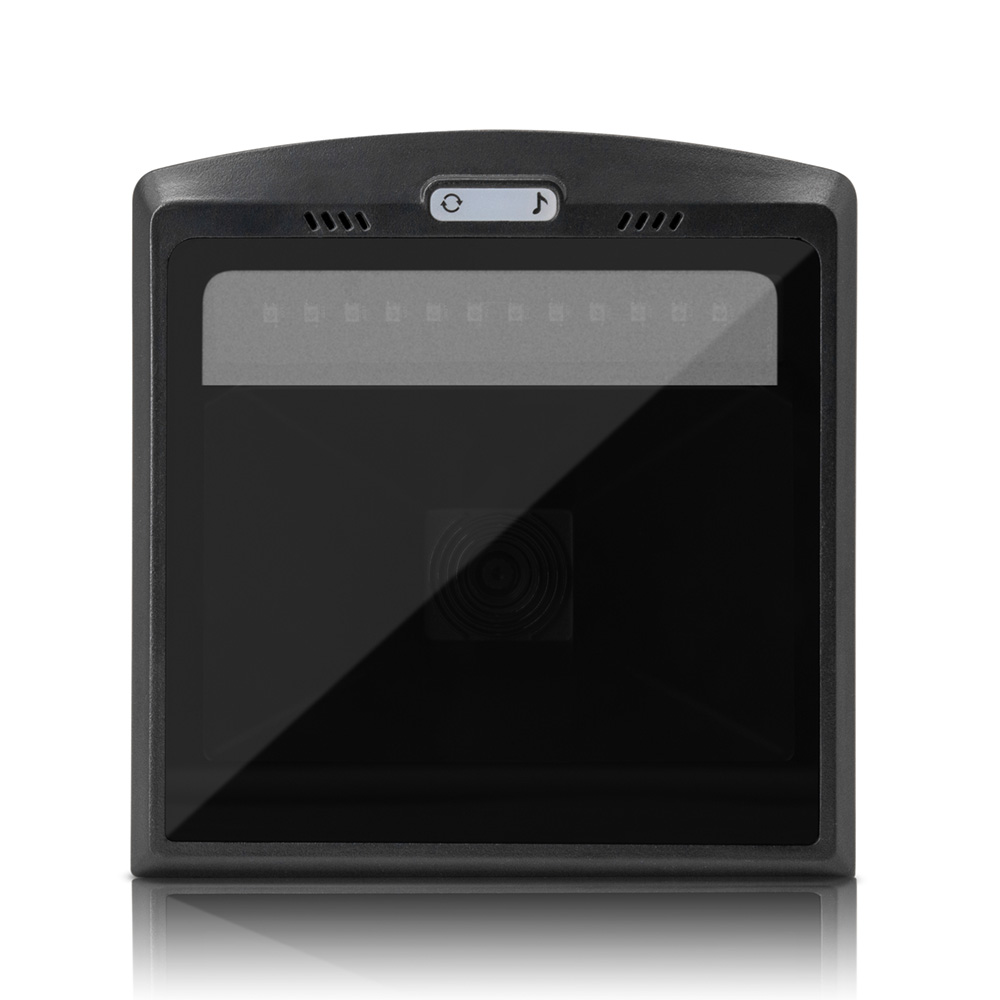

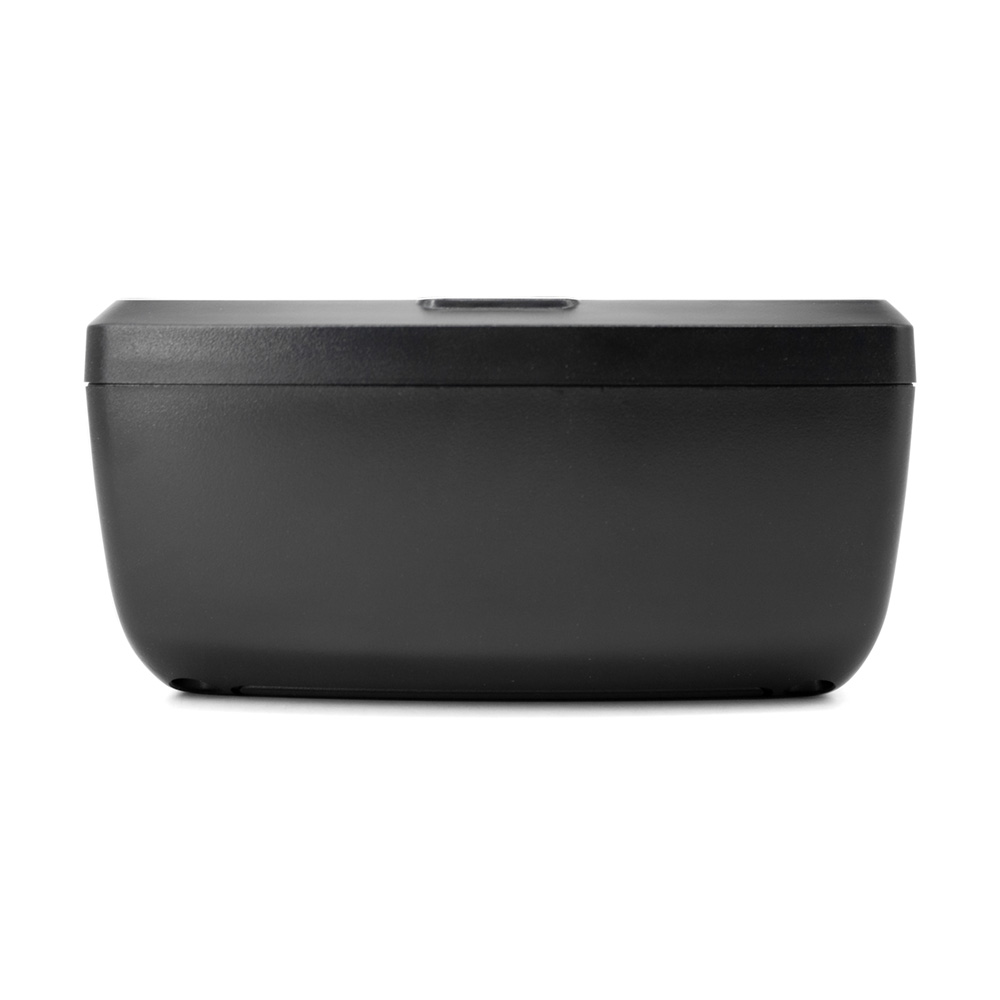

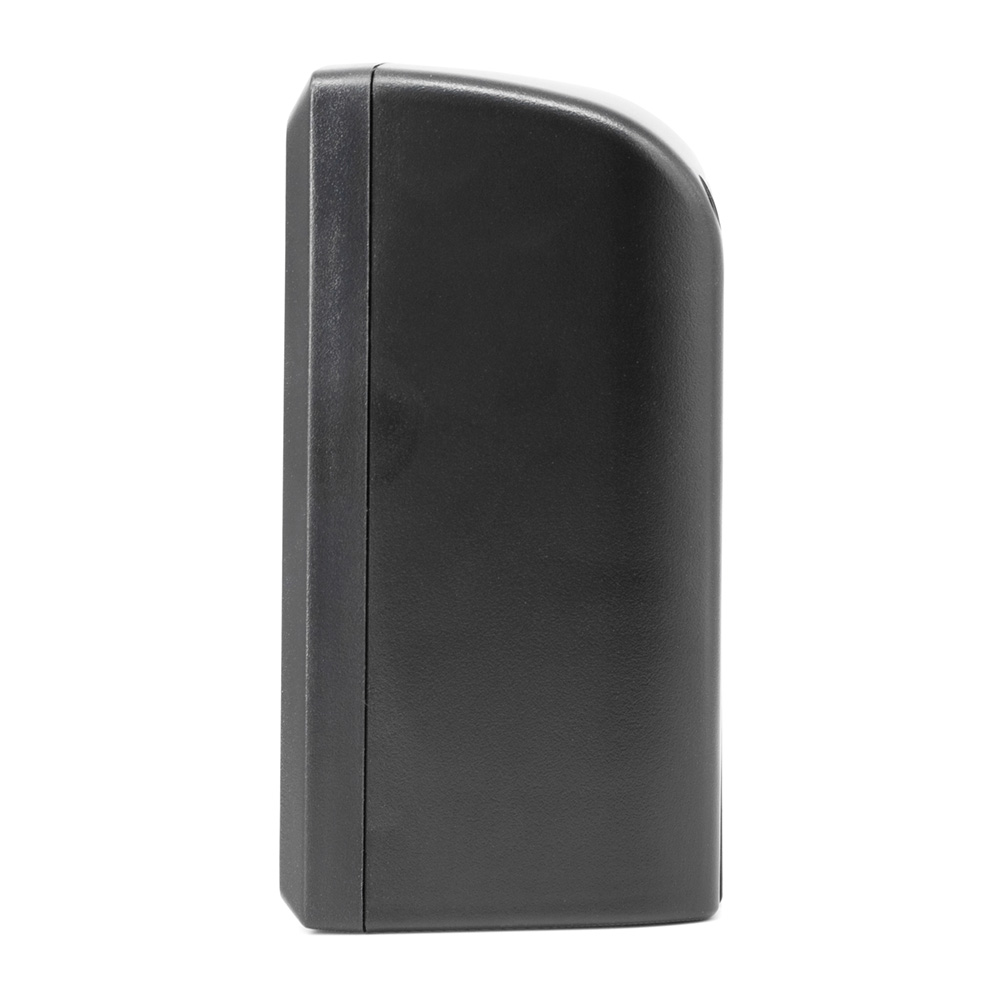

AW-S8
Feature
1. 0.5 mega pixel full new high quality scan module
2. Scan fast with super scan window
3. Flexible and easy to use by adjustable angle
4. Common function buttons for easier settings
5. Various styles of prompt tones and soft and bright LED indicator lights
6. Strong compatibility with multiple port, support different OS-
￥0.00￥0.00
-
Product Description
Feature
1. 0.5 mega pixel full new high quality scan module
2. Scan fast with super scan window
3. Flexible and easy to use by adjustable angle
4. Common function buttons for easier settings
5. Various styles of prompt tones and soft and bright LED indicator lights
6. Strong compatibility with multiple port, support different OS
|
|
|
Specification ——
Physical | |
Scan mode | Auto sense / Continue scan |
Communicate | USB-HID, USB-COM Virtual, RS232（Options） |
Connect port | USB TYPE-B |
Prompting mode | Beeper、 LED lighter |
Setting | Button or by program code |
Case materials | ABS+PC |
Cable | 1.5m |
Size | 155mm×150mm×75mm（Item） ； 200mm×155mm×85mm（Box） |
Weight | 483g（only item） ； 678g（with parts） |
Performance | |
Scan type | CMOS global exposure |
Resolution | 800*600 |
Light Source | 617nm Red LED |
Scab Angle | ±60°,±54°,360°（Left and right, front and back, rotation） |
Scan Speed | 120 frames/sec |
Fov | 48° (H) x 30° (V) |
Print Contrast | Min 20% |
Decoding type | 1D: UPC-A, UPC-E0, UPC-E1, EAN-8, EAN13, Code128, GS1-128, Code39, Code32, Code93, Code11, Interleaved 2 of 5, Industrial 25, Matrix 2 of 5, Standard 25, CodaBar, MSI-plessey, GS1 Databar |
Min Resolution | 1D: 3mil / 2D: 5mil |
Electrical | |
Input | DC 5V±10% |
Current | Operating： 240mAh； Standby： 190mAh |
Environmental | |
Temperature | 0°C-50°C（Operate） ； -20℃~+70℃（Storage） |
Humidity | 5%-95% non-condensing |
Feature:
1. Avoid accidental touches, using infrared optical dual sensing technology
2. Intelligent anti-rereading, target detection method effectively reduces rereading
3. Reliable performance, mature decoding logic and image processing technology
4. Easy to operate, plug and play, support firmware upgrade
5. Smooth reading, quick passing in front of the window, can quickly capture and identify
6. Eye protection design, soft light LED is not dazzling
Appearance | |
| |
Performance | |
Image Sensor | CMOS 1280*800 |
Light Source | Red LED + LED |
Scan Angle | Skew±70° Pitch±60° Roll 360° |
FOV | D=44.6° H=36.4° V=27.8° |
Resolution | ≥5mil |
Minimum Print Contrast | ≥20% |
Decode Capacity | |
1D | Codabar、Code 11、Code 128、Code 39、Code 32、Code 93、EAN-8、EAN-13、ISBN、ISSN、UPC-A、UPC-E、GS1 DataBar、ISBT128、NEC 2 of 5、MSI Plessey、GS1 128、Industrial 2 of 5、Telepen、Interleaved 2 of 5、Matrix 2 of 5、Hong Kong 2 of 5、Postal Code、Trioptic、Straight 2 of 5 IATA |
2D | QR Code、Micro QR、Data Matrix、PDF417、Micro PDF417、HANXIN、Aztec Code、Maxi code |
Typical Decode Range | |
Code39（5mil） | 0 mm~40 mm Barcode Size：25mm*10mm |
EAN-13（13mil） | 5 mm~270 mm Barcode Size：31mm*17mm |
QR（15mil） | 0 mm~200 mm Barcode Size：8mm*8mm |
Physical characteristics | |
Interface | USB / RS232 |
Operating Voltage | 5 VDC±5% |
Operating Current(typical) | 450mA（5 VDC） |
Operating Current(Max) | 480mA（5 VDC） |
Standby Current | 220mA（5 VDC） |
Power Consumption | 2250mW |
Dimension(not with stand) | 145(W)×77(D)×136(H)mm |
Dimension(with stand) | 145(W)×84.5(D)×147(H)mm |
Color | Gray-blue |
Net weight | 415g（not with stand） / 520g（include stand） |
Country Keyboards | 30 country keyboard |
Indication | LED indicator, Beeper |
Environmental | |
Operating Temperature | -10℃ ~ 50℃ |
Storage Temperature | -20℃~ 60℃ |
Humidity | 5%~95%（Non-condensing） |
Drop | Can withstand multiple drops from a height of 1m onto a concrete floor. |
IP Level | IP52 |
ESD | EN61000-4-2，±6KV direct charge，±15KV air charge |
Ambient Light | 0~100,000LUX |
LED Safety | IEC 62471 |

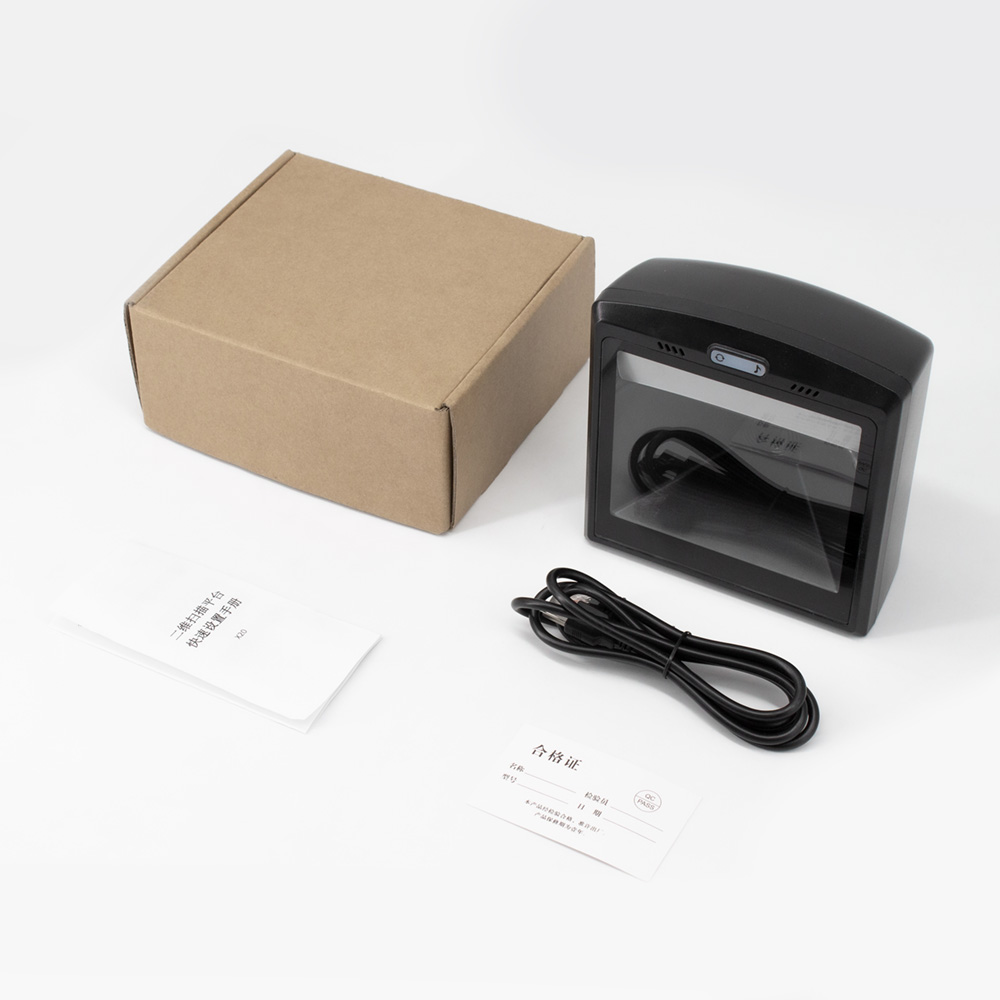

Accessories | |
USB Cable | For data transmission, power supply. |
RS232 Cable | For data transmission, power supply. |
Stand | Flexible installation |
