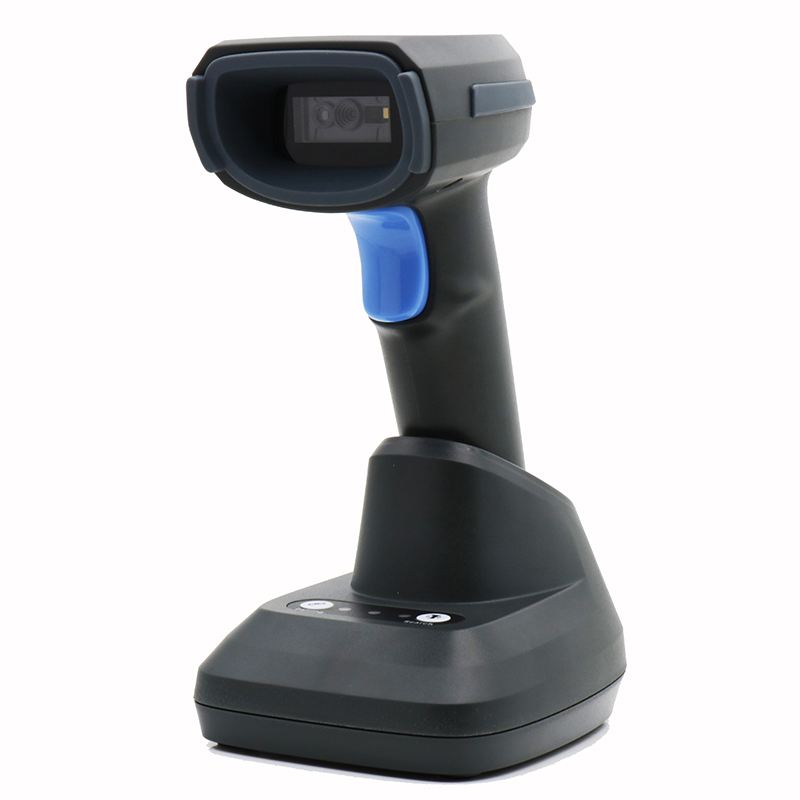

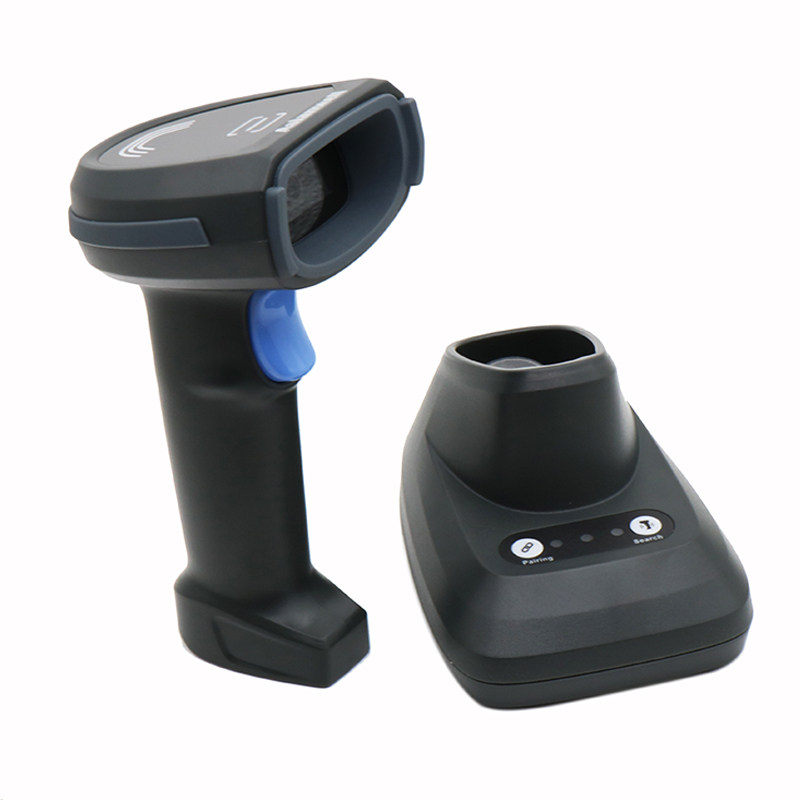

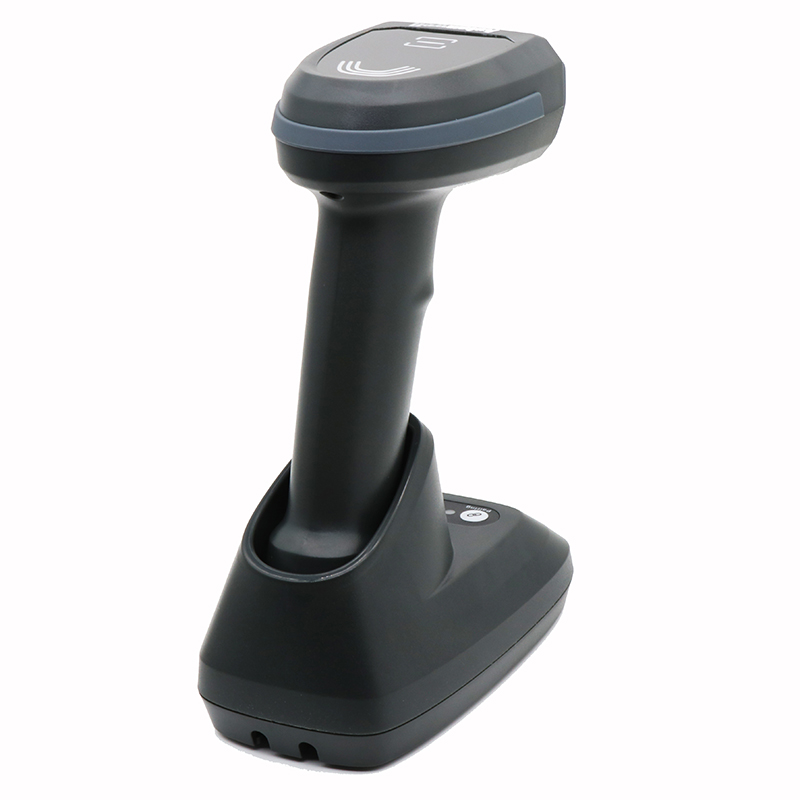

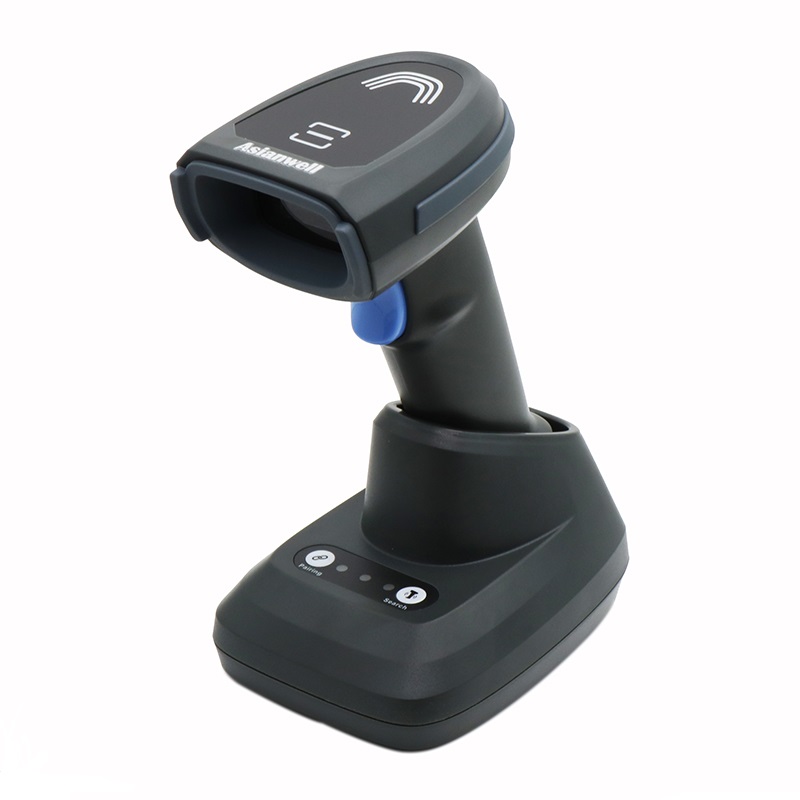

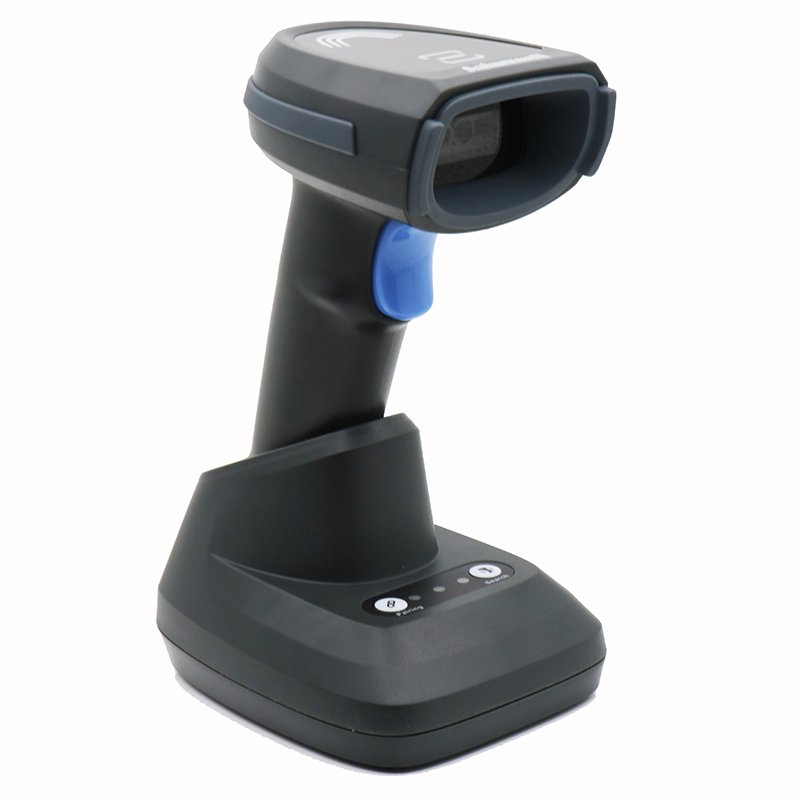

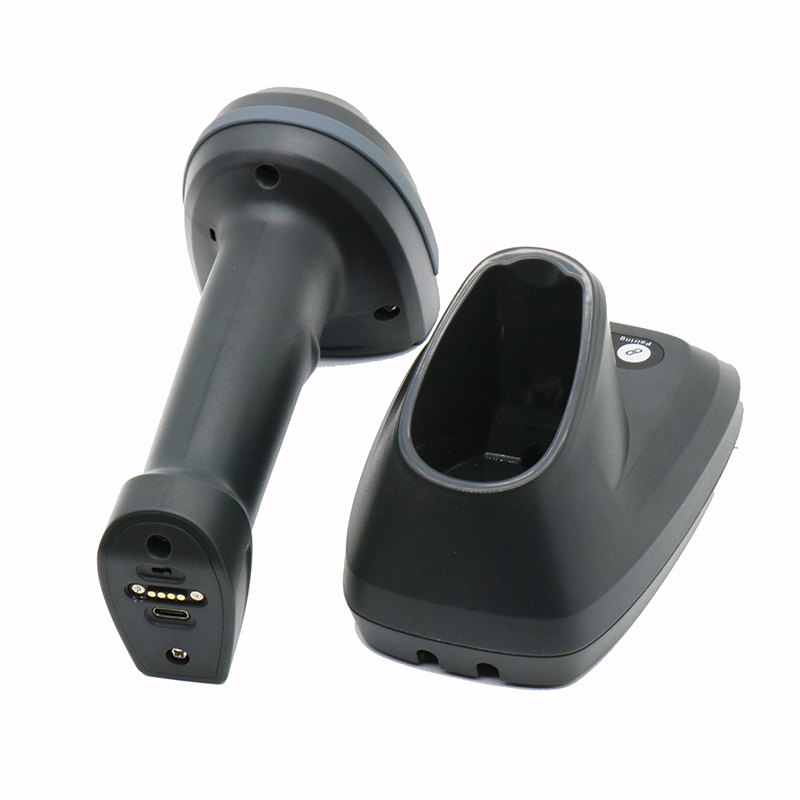

AW-8268WT
Feature1. 0.3MP image frame rate up to 30fps
2. 3-in -1 transmission: Cradle +BT+Type-C Cable
3. Reading range (open air): 2.4G:100meters BT: 40meters.
4. Large 2000mAh battery, 60 days standby
5. Can read all 1D/2D/Dotcode barcode on the screen and paper
6. Support for offline storage mode,can memory 380,000 characters (EAN-13 code)
-
￥0.00￥0.00
-
Product Description
Feature
1. 0.3MP image frame rate up to 30fps
2. 3-in -1 transmission: Cradle +BT+Type-C Cable
3. Reading range (open air): 2.4G:100meters BT: 40meters.
4. Large 2000mAh battery, 60 days standby
5. Can read all 1D/2D/Dotcode barcode on the screen and paper
6. Support for offline storage mode,can memory 380,000 characters (EAN-13 code)
|
|
|
Specification ——
| Technology | |
| Support OS | Windows / iOS / Androi |
| Scan type | 2D image CMOS |
| Interface | USB-HID USB-COM, RS232 |
| Resolution | 640 pixels(H)x 480 pixels(V) |
| Scan Mode | Manual/Auto scan/ Continue Scan |
| Lighting Sourcing | Aiming: 625 nm LED; illumination:4000K LED |
| Frame rate | 30fp/s |
| Scanning angle | Roll: ±360°, Pitch:±55°, Skew: ±55° |
| Field of view | 45° horizontal, 34° vertical |
| Minimum Resolution | ≥4mil（CODE 39） |
| Scan distance | EAN 20-200MM(13mil) |
| QR 5-170MM(20mil) | |
| Support Symbologies | 1D：UPC/EAN/JAN,UPC-A & UPC-E,EAN-8 & EAN-13, JAN-8 &JAN-13, ISBN/ISSN, Code 39 (with full ASCII), Codabar (NW7), Code 128 & EAN 128,Code 93, Interleaved 2 of 5 (ITF),Addendum 2 of 5, IATA Code,MSI/Plessy, China Postal Code,Code 32 (Italian Pharmacode)，RSS-14、RSS-Limited、RSS-Expand，etc. |
| 2D: QR Code，PDF417，Data Matrix, Aztec，Maxicode，Dotcode，GS1 DataBar Stacked，etc. | |
| Printing contrast | ≥20% |
| Visual Indicato | Red, blue and green LED lights, Buzzer and motor vibration |
| Memory Capacity | 380000 bytes |
| Work frequency | 2.400GHz-2.480GHz ISM frequency |
| Wireless | 2.4G: 100m; Bluetooth HID: 40m(in open air) |
| Paired Mode | one to one, or one to more (Optional) |
| Physical | |
| Size | Scanner: 92mm x 70mm x 179mm （L xW xH） |
| Cradle: 94mm x 75mm x 122mm （L xW xH） | |
| Weight | Scanner: 227g（with 18650 Electric core) |
| Cradle: 132g | |
| Material | ABS+PC, TPU |
| Cable Length | 1.8m |
| Electronical | |
| Voltage | 5VDC±5 |
| Working Current | 400mA |
| Firmware Update | Computer online upgrade |
| Scanner Material | Eco-friendly, ABS+Rubber |
| Charge Mode | Wired charging / seat charging |
| Battery | 2000mAh, 5hours full charge, continue use over 12hours |
| Environmental | |
| Operation Temperature | -10 ℃ - 50℃ |
| Storage Temperature | -20 ℃ - 60℃ |
| Humidity | 5% - 95% |
| Electrostatic protection: | ±8 kV（Direct discharge) |
| Ambient lighting | 0-100000LUX |
| Seismic resistance | 1.6m |
| IP Level | IP42 |
