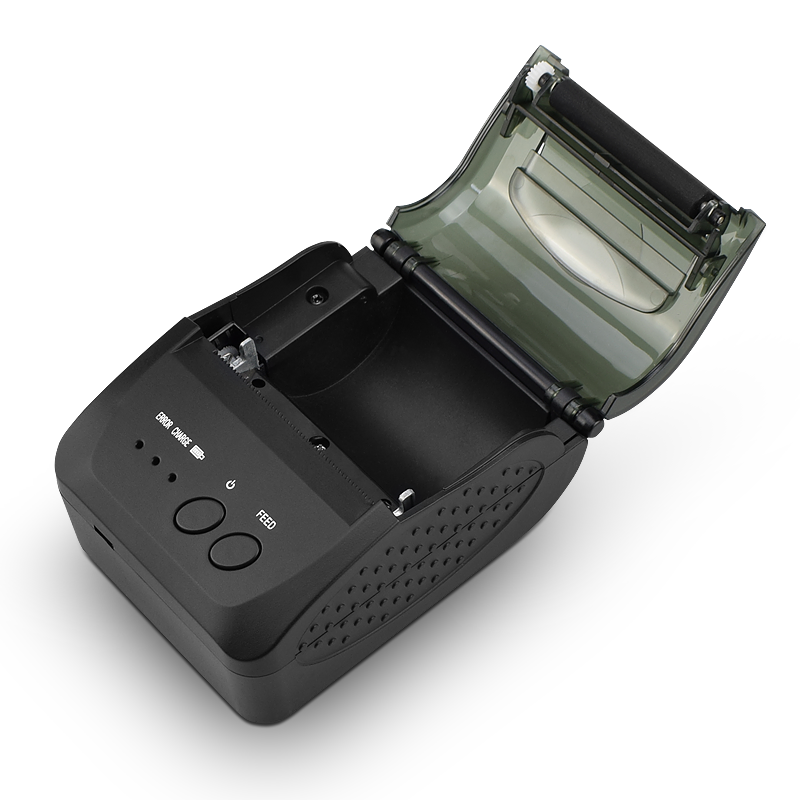

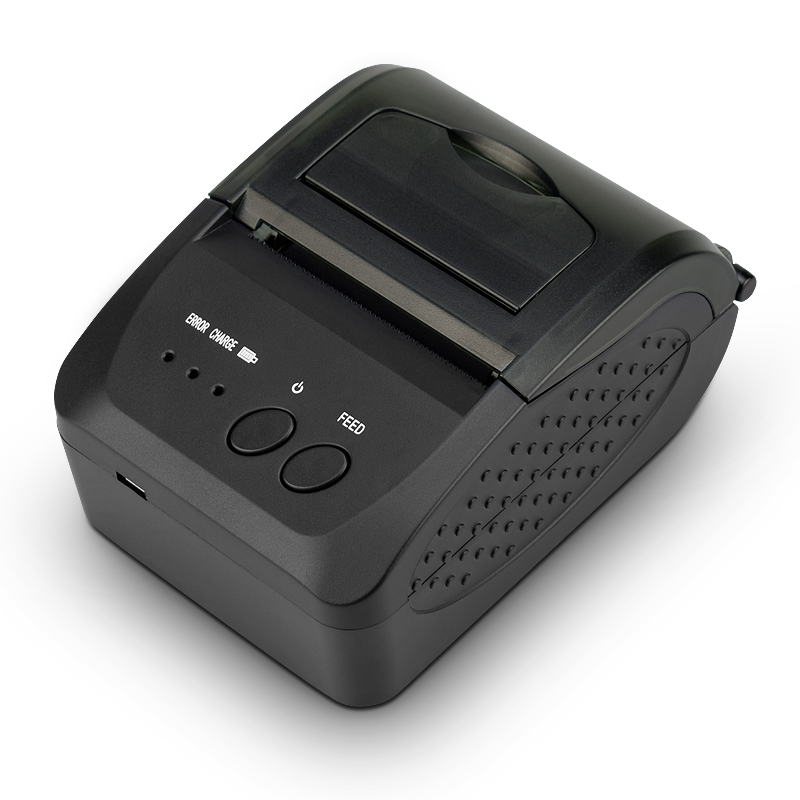

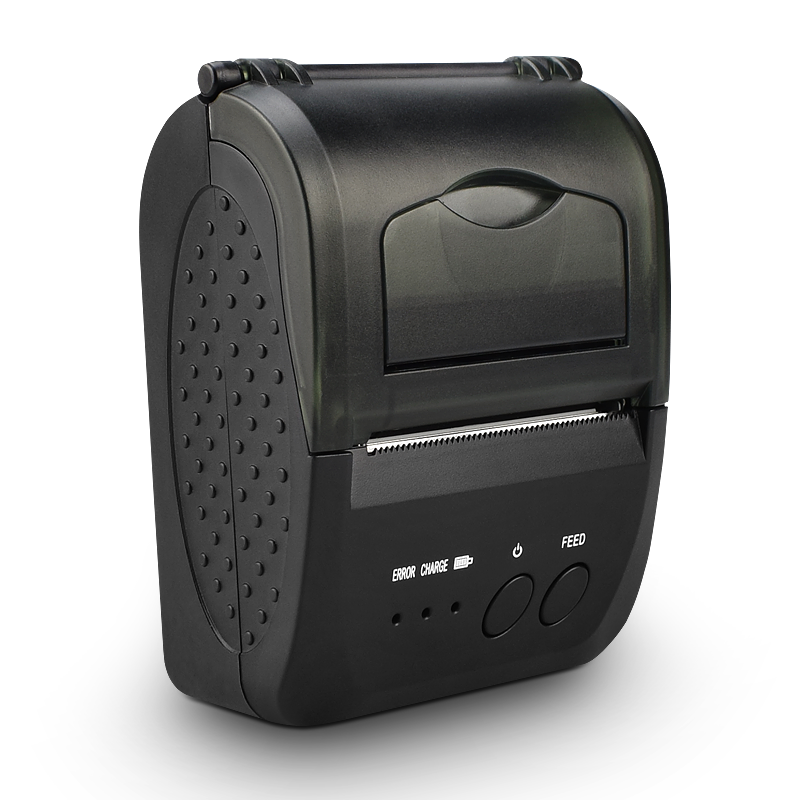

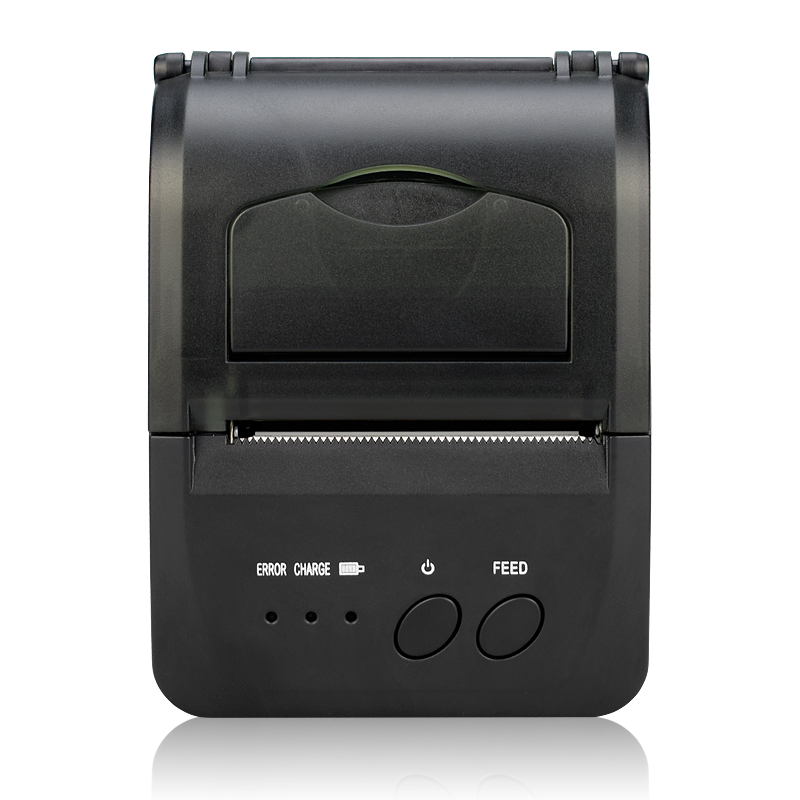

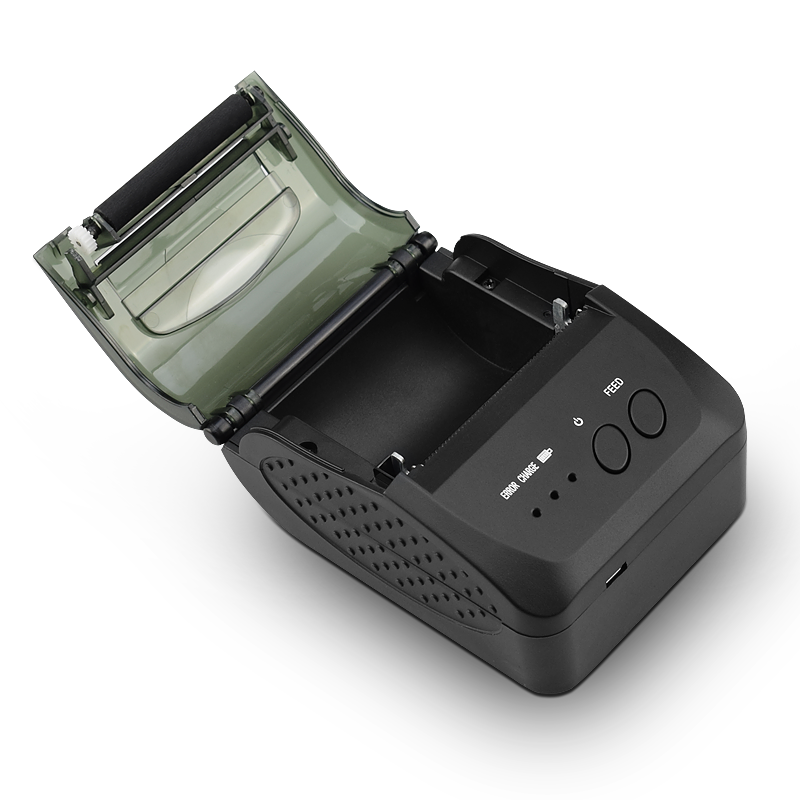

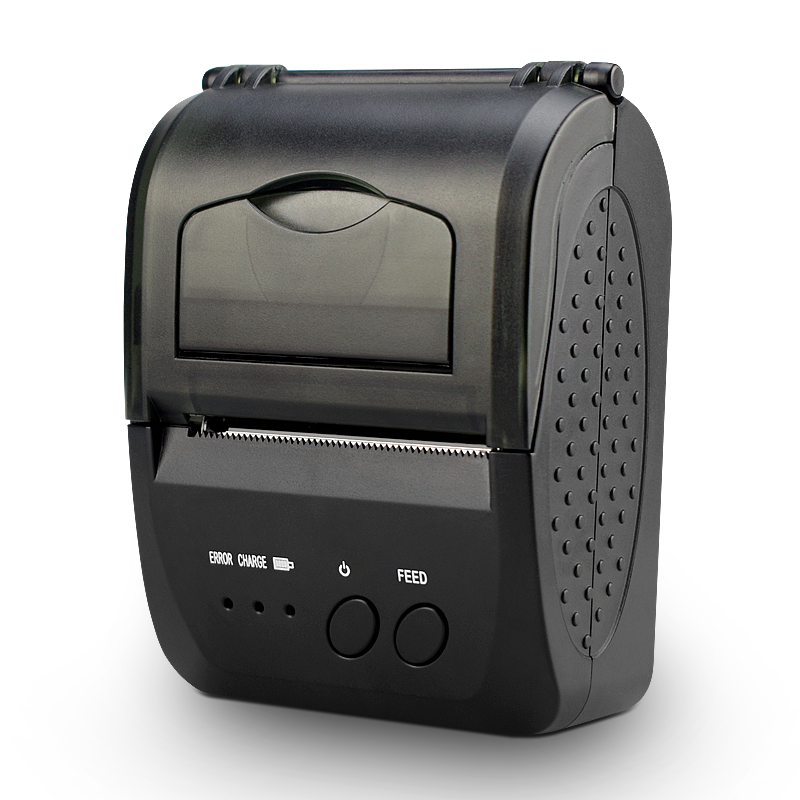

AW-5809
Feature
1. Small size with bluetooth connect
2. High printing quality and low cost
3. Low noise, high-speed printing
4. Super large capacity battery can last long time
5. Easy to pack paper structure, compact structure, easy to use and maintain
6. Low power consumption, low operating cost (no need for ribbons or ink cartridges)
-
￥0.00￥0.00
-
Product Description
Feature
1. Small size with bluetooth connect
2. High printing quality and low cost
3. Low noise, high-speed printing
4. Super large capacity battery can last long time
5. Easy to pack paper structure, compact structure, easy to use and maintain
6. Low power consumption, low operating cost (no need for ribbons or ink cartridges)
|
|
|
Specification ——
Specifications | |
Interfaces | USB / Bluetooth 4.0 |
Print Comand | ESC/POS |
Print Method | Thermal Line Printing |
Print Speed | 70mm/sec |
Resolution | 203DPI (8dot/mm) |
No. of Total Dots | 384 dots/Line |
Print Width | 48mm |
Character Size | 1.5 x 3.0mm (W x H)/3.0 x 3.0mm (W x H) |
Print Font | 12 x 24; 24x 24 |
Compatible OS | Windows Systems ; Android & IOS Operate Systems |
Paper | |
Type | Roll Paper |
Width | 57.5± 0.5mm |
Roll Diameter | φ≤40mm |
Paper Thickness | 0.06-0.08mm |
Electrical | |
Battery | 7.4VDC/2000mA |
Charging mode | DC 5V/2A |
Standby Time | 4 days after fully charged |
Continuous Printing | 120 pieces Thermal Roll for fully charged battery |
Physical | |
Dimension | 112*83*54mm |
Unit Weight | 440g (including accessories: lithium-ion batteries, cable, test paper) |
Carton Size | 47x38x850px |
GW per carton | 18kg (40pcs/CTN) |
Environmental | |
Temperature | Working: -10 to 50 Degrees |
Humidity | Working: 10%-90% |
Warantty | 12 months at least |
Certificates | CE& FCC ROHS ISO9001:2008 |
