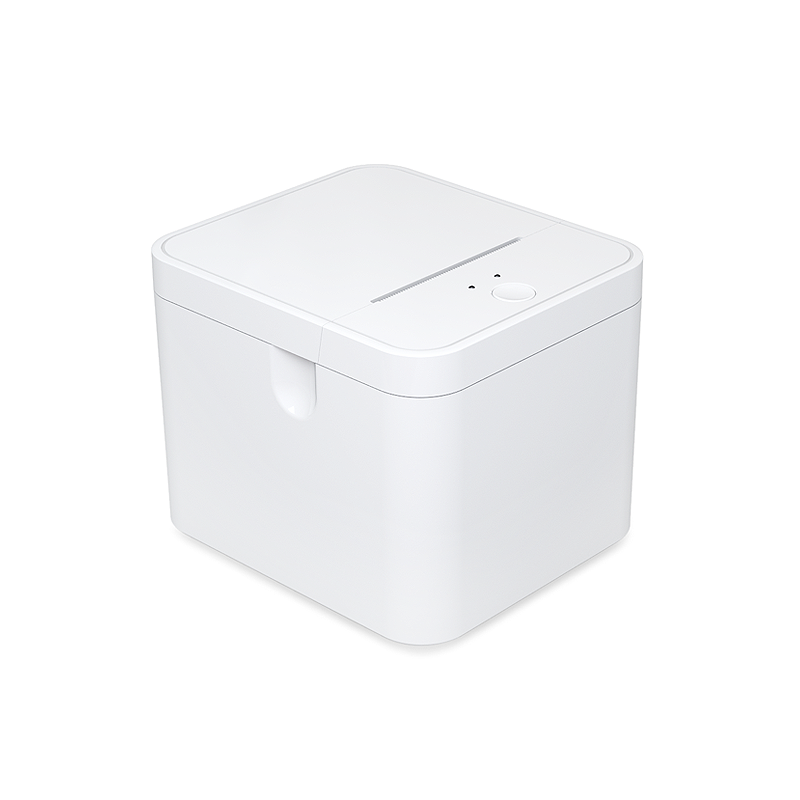

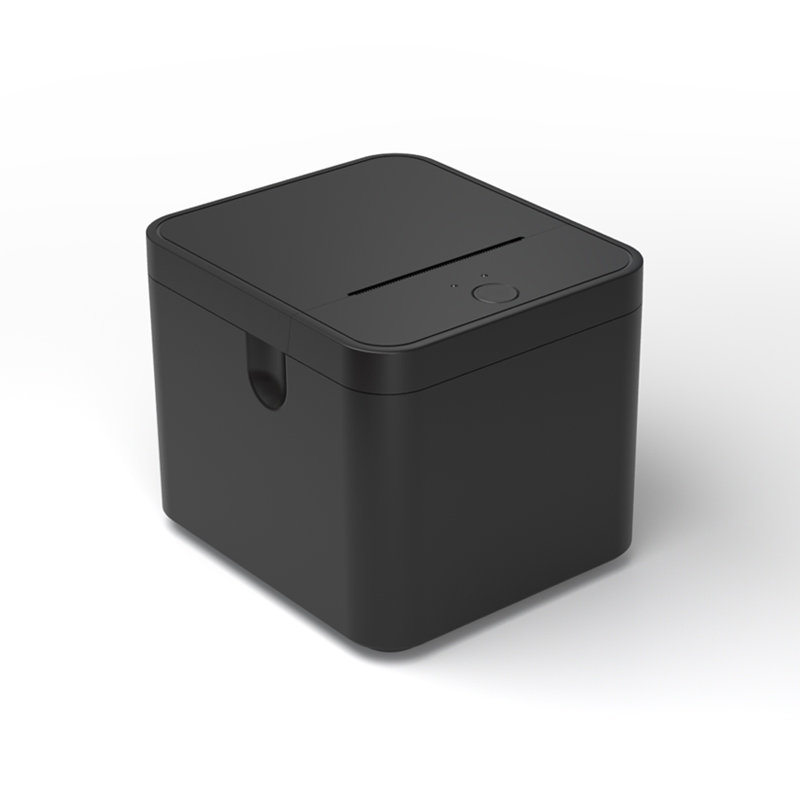

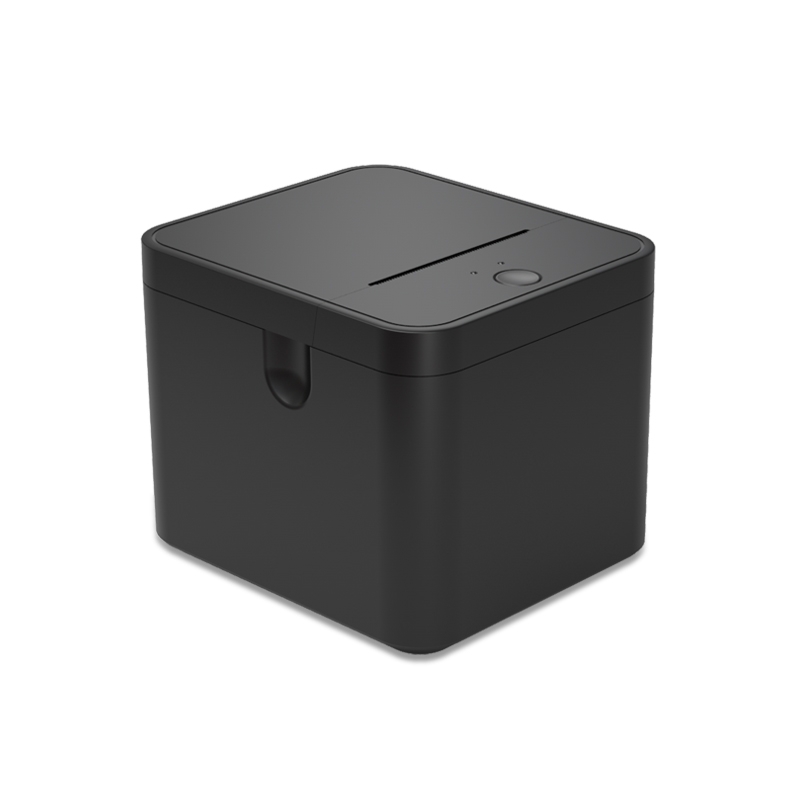

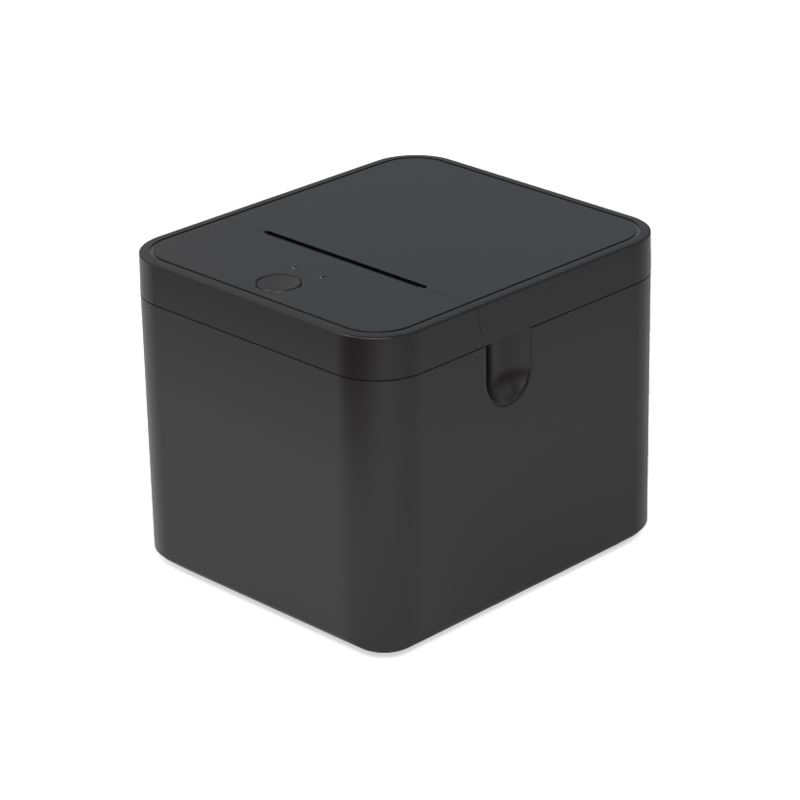

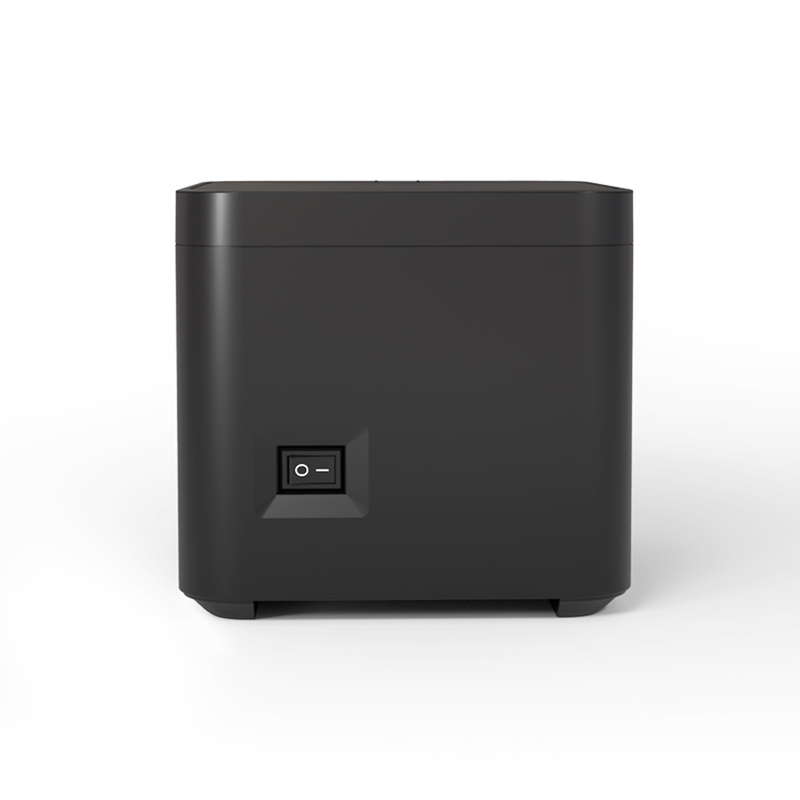

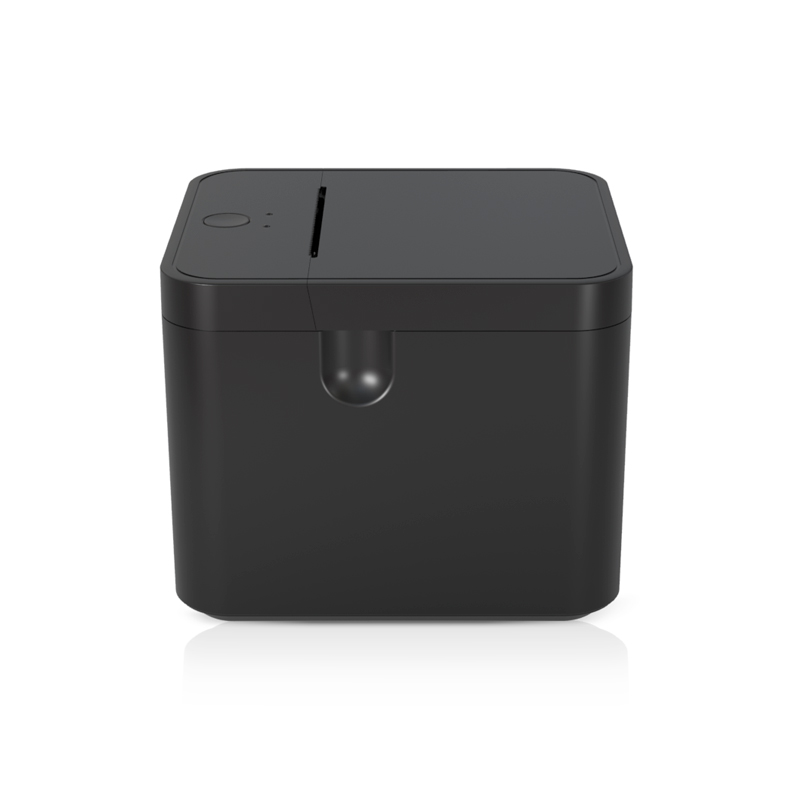

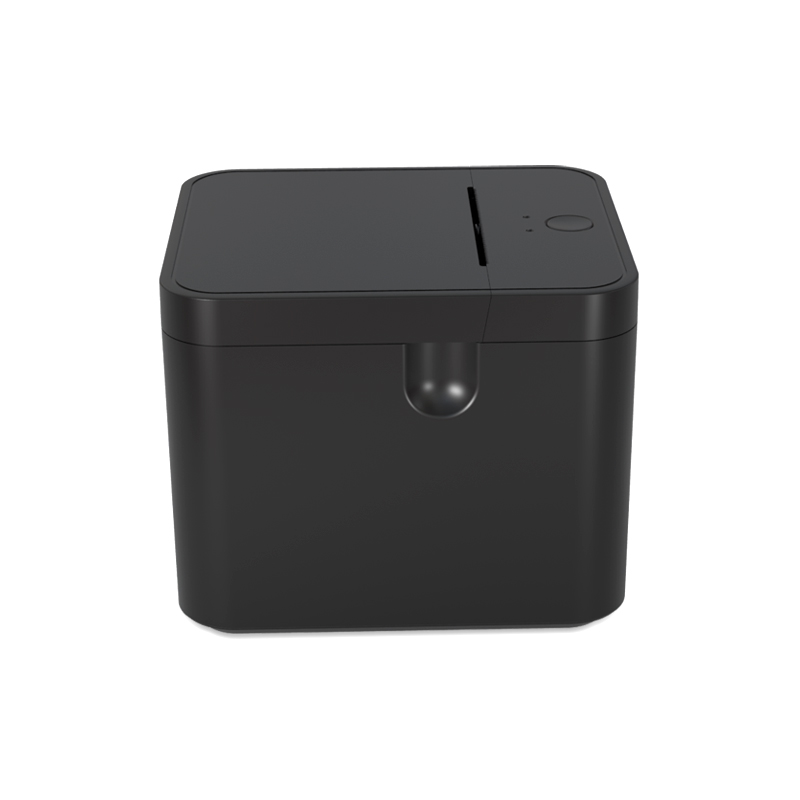

AW-5890A
Feature
1. Suitable for various commercial retail POS systems and other fields
2. High printing quality and low cost
3. Low noise, high-speed printing
4. Support cash box drive
5. Easy to pack paper structure, compact structure, easy to use and maintain
6. Low power consumption, low operating cost (no need for ribbons or ink cartridges)
-
￥0.00￥0.00
-
Product Description
Feature
1. Suitable for various commercial retail POS systems and other fields
2. High printing quality and low cost
3. Low noise, high-speed printing
4. Support cash box drive

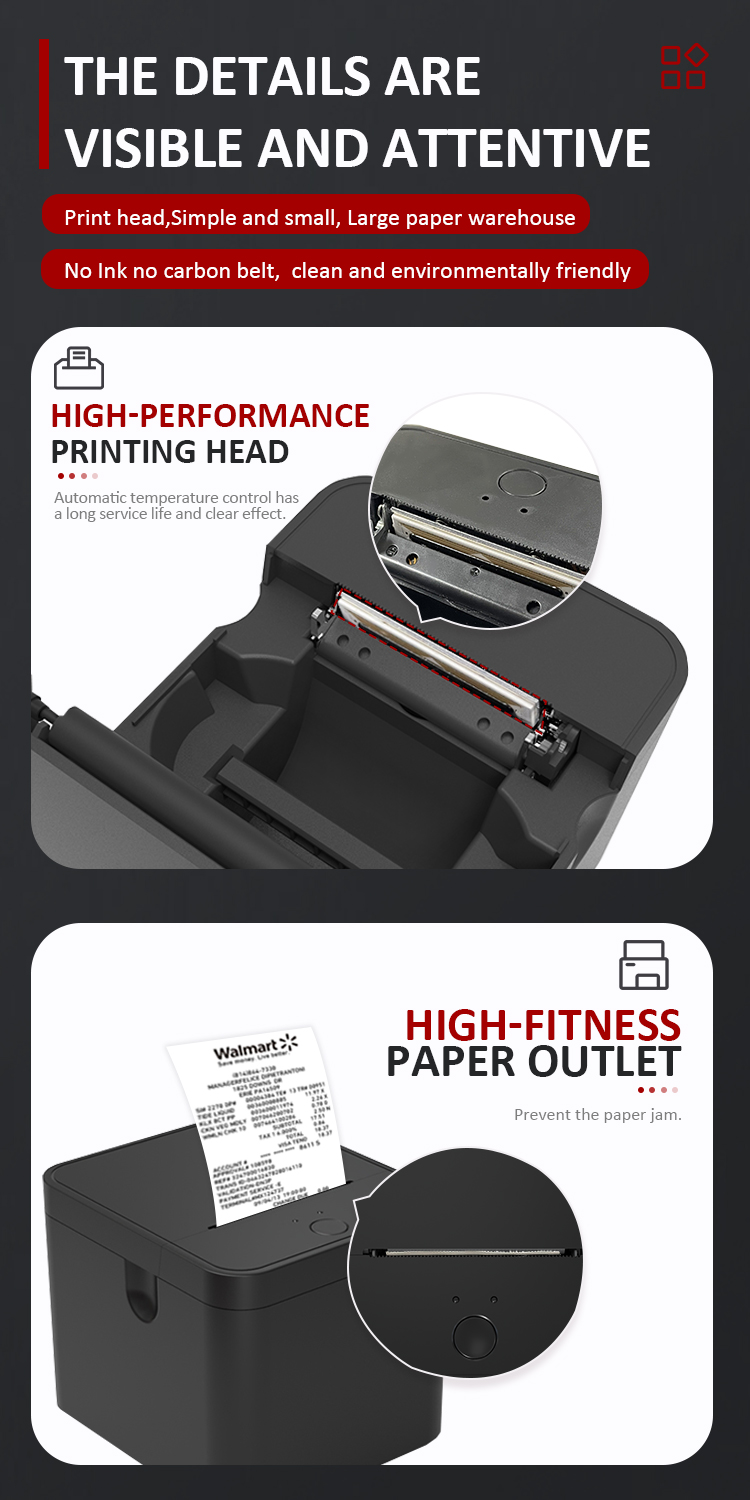

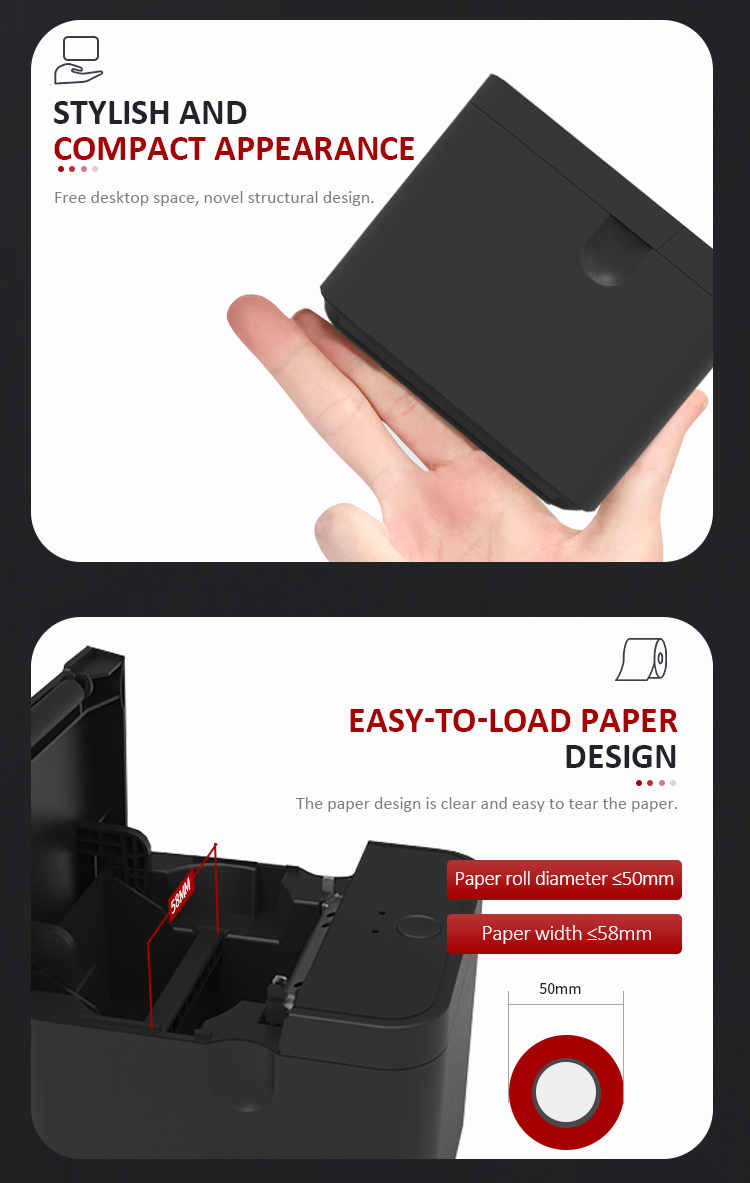

5. Easy to pack paper structure, compact structure, easy to use and maintain
6. Low power consumption, low operating cost (no need for ribbons or ink cartridges)
|
|
|

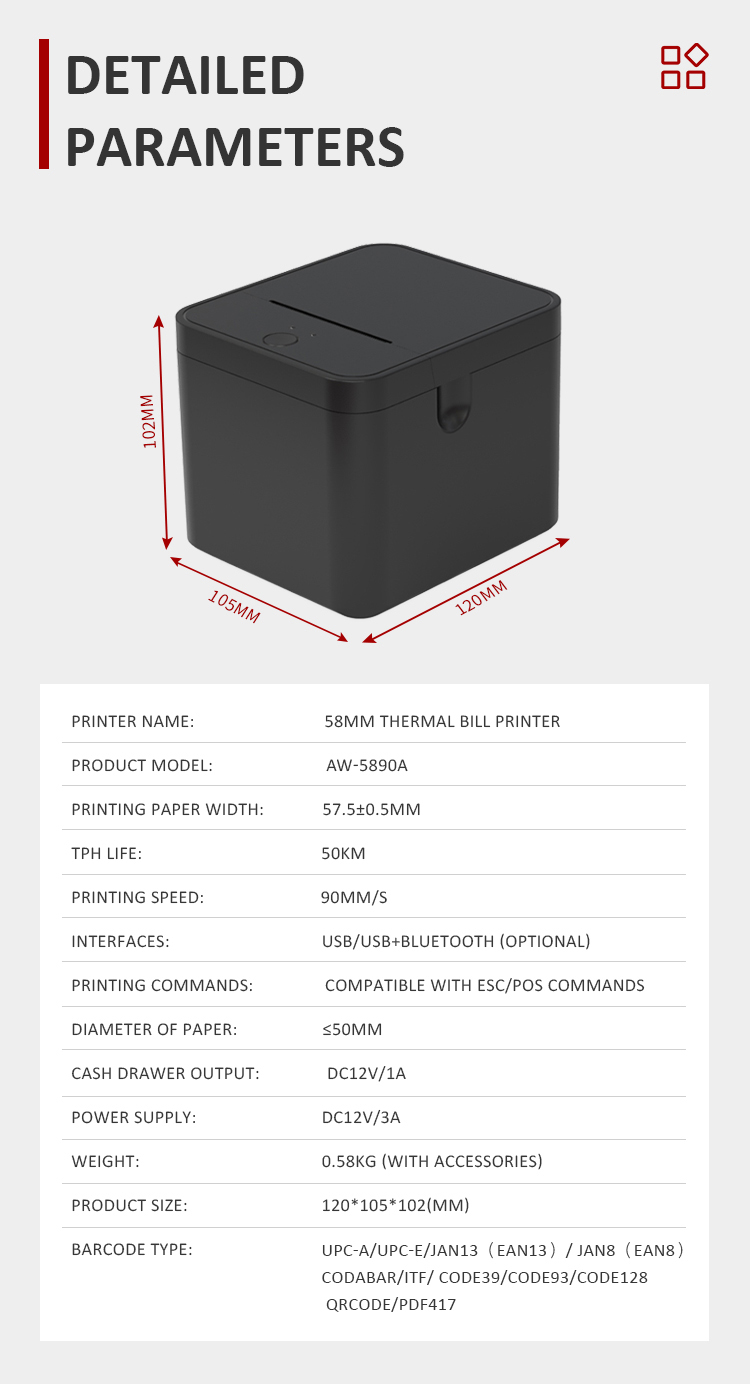

Specification ——
| Specifications | |
| Interfaces | USB / USB+Bluetooth (Optional) |
| Printing Command | ESC/POS |
| Printing Method | Thermal Line Printing |
| Printing Speed | 90mm/sec (max) |
| Printing Density | 384 dots/line |
| Character set | GB18030 (Simplified Chinese) |
| Print Font | ASCII Font A：12×24 ASCII Font B：9×17 Chinese: 24×24 |
| Character per line | Font A-32 lines/Font B-42 lines/Chinese-16 lines |
| Input buffer | 32 Kbytes / 64 Kbytes |
| Printer Head Life | 50KM |
| Printer Driver | Windows / Linux / MAC / OPOS |
| Paper | |
| Paper Type | Thermal Roll Paper |
| Paper Width | 57.5±0.5mm |
| Paper Roll Diameter | Φ 50mm |
| Paper Thickness | 0.06-0.08mm |
| Paper Out Detection | Support |
| Paper Cut | By hand |
| Electrical | |
| Adapter Voltage | DC 12V/3A |
| Cash Drawer Control | 12V/1A |
| Package | |
| Printer Dimension | 120*105*102mm |
| Unit Weight | 0.58kgs （with accessories) |
| Pieces Per CTN | 24 Pieces |
| Printer Color | Black or White |
| CTN Dimension | 57.2 x36 x 35.8 cm |
| Carton Weight | 15kgs |
| Working Environment | |
| Temperature | Working: 0~45℃ |
| Humidity | Humidity: 10%-80% |
| Accessories | |
| USB Cable | 1 Piece |
| Thermal Roll | 1 Piece |
| Manual | 1 Piece |
| Power Cable | 1 Piece |
