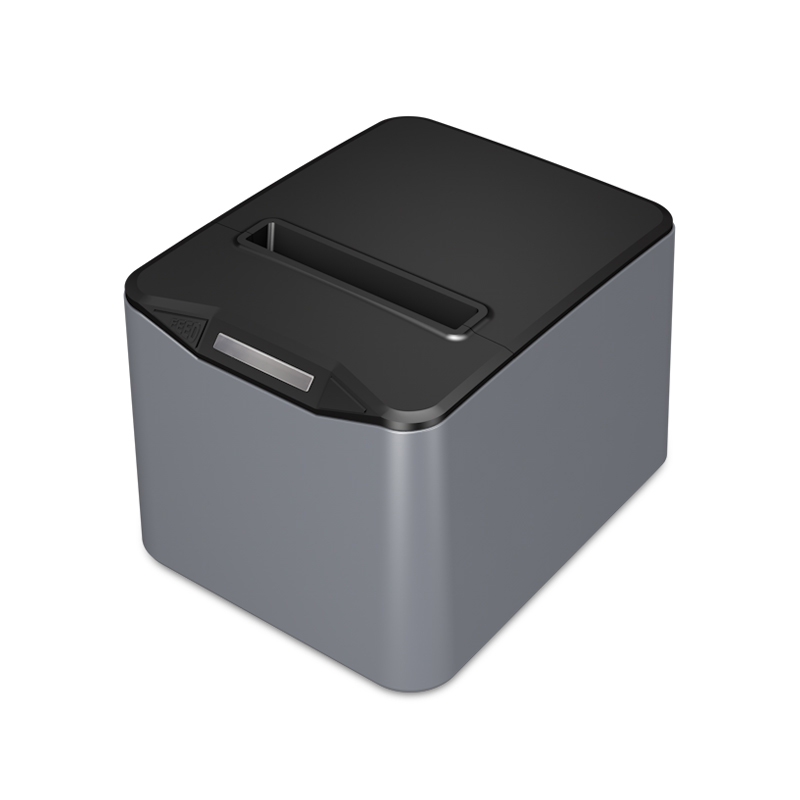

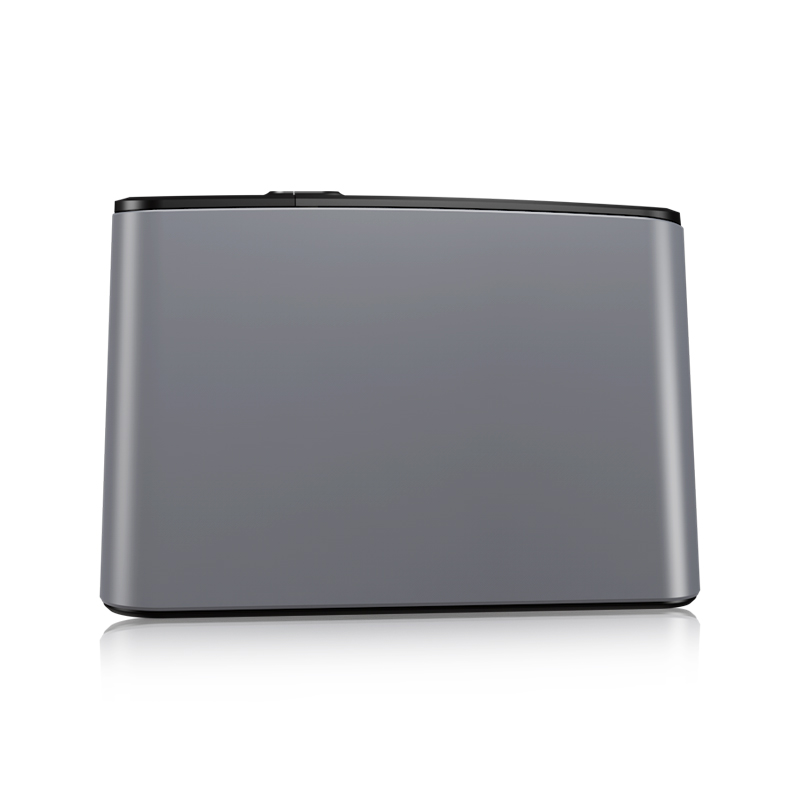

AW-Z230
Feature
1.High print quality, low cost, low noise, high speed printing;
2. Support cash box drive, support multiple languages

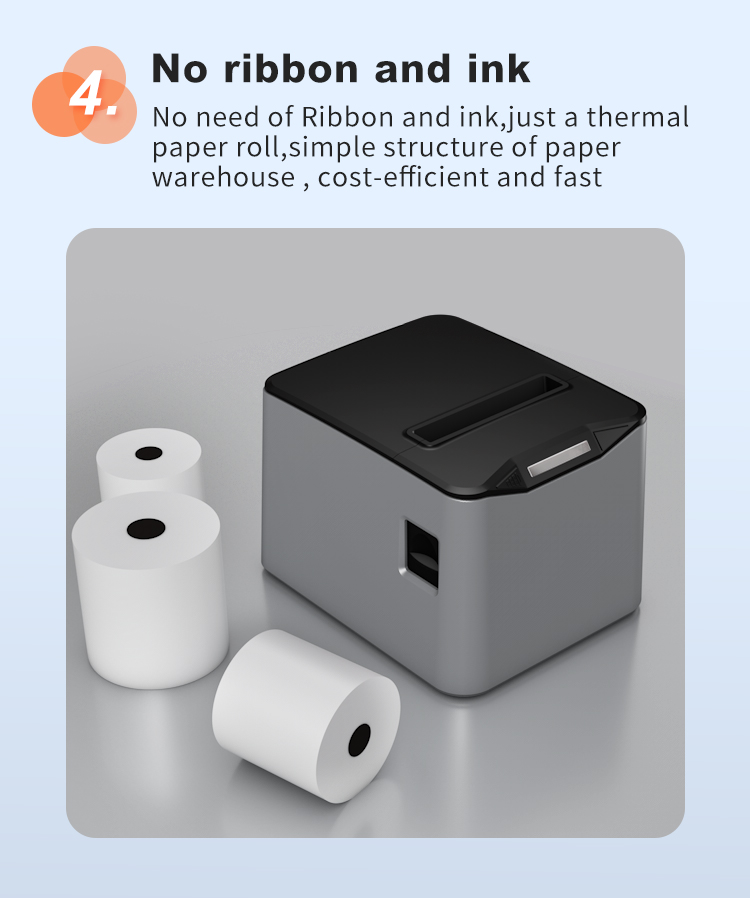

3. Low power consumption, low operating cost (no ribbon, ink cartridge required)
4. Built-in data buffer (can receive print data when printing)
5. Characters can be enlarged for printing, and character line spacing can be adjusted for printing
6. Support different density bitmaps and downloaded graphics printing
7. Support raster bitmap printing
8. Compatible with ESC/POS printing instruction set, multiple modes adjustable
-
￥0.00￥0.00
-
Product Description
Feature
1.High print quality, low cost, low noise, high speed printing;
2. Support cash box drive, support multiple languages
3. Low power consumption, low operating cost (no ribbon, ink cartridge required)
4. Built-in data buffer (can receive print data when printing)
5. Characters can be enlarged for printing, and character line spacing can be adjusted for printing
6. Support different density bitmaps and downloaded graphics printing
7. Support raster bitmap printing
8. Compatible with ESC/POS printing instruction set, multiple modes adjustable
|
|
|

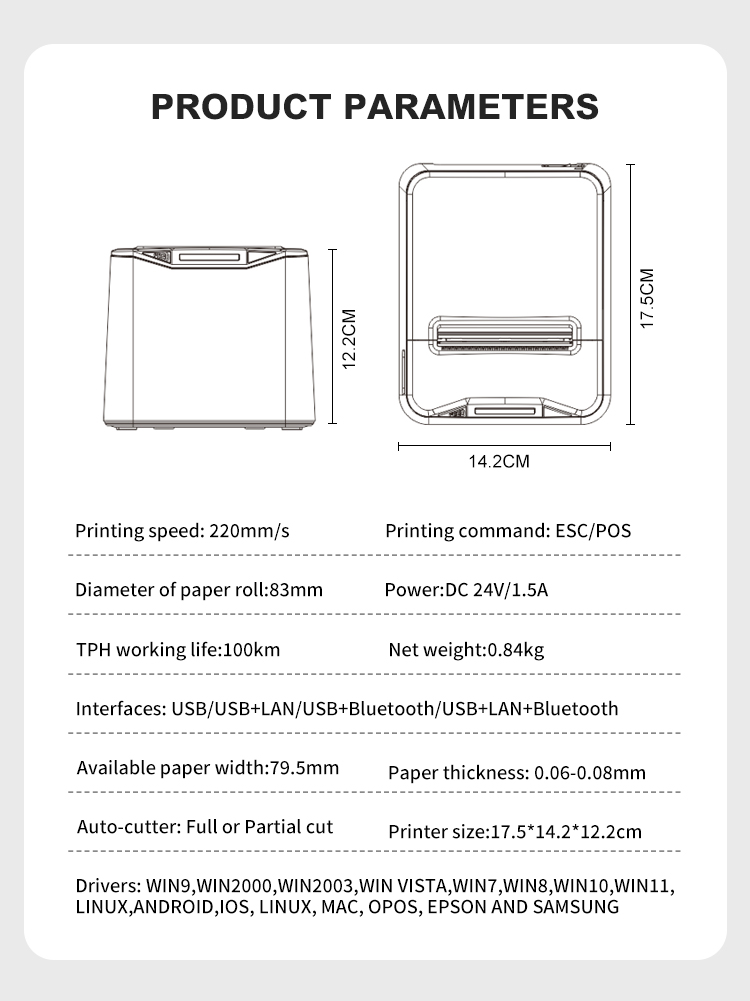

Specification ——
Specifications： | |
Print Method | Direct Line Thermal |

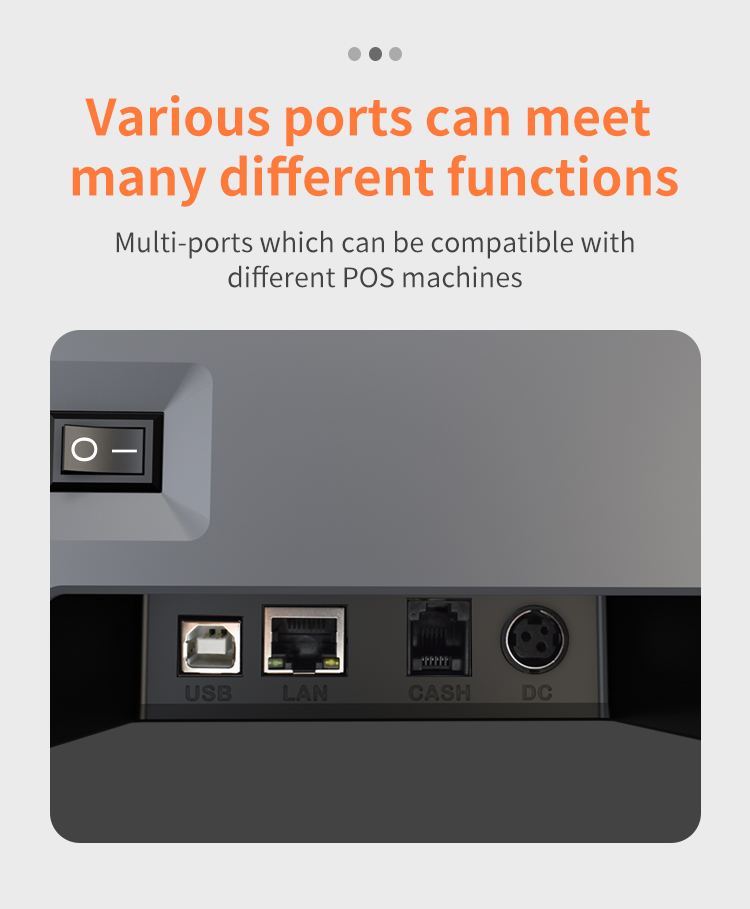

Interfaces | USB / LAN / Bluetooth (optional) |
Print Comand | ESC / POS command |
Print Speed | 220mm/s |
Resolution | 203DPI (8dot/mm) |
TPH Reliability | 100km |
Auto Cutter | Partial |
Cutter Life | 1.0 million cuts |
Logo | support downloading and printing logo |
Line Spacing | 3.75mm (Adjustable by commands) |
Extension Character | PC437（Standard Europe） 、 Katakana、 PC850（Multilingual） 、 PC860（Portuguese） 、 PC863（Canadian） 、 PC865（Nordic） 、 West Europe、 Greek、 Hebrew、 East Europe、 Iran、 WPC1252、 PC866（Cyrillic#2） 、 PC852（Latin2） 、 PC858、 IranII、 Latvian、 Arabic、 Thai、 PT151（1251） |
Character Size | ANK， Font A： 1.5×3.0mm（12×24 dots） Font B： 1.1×2.1mm（9×17 dots） |
Supported Code: | 1D: UPC-A / UPC-E / JAN13 (EAN13) / JAN8 (EAN8) / CODE39 / ITF /CODABAR /CODE93 / CODE128 |
Input Buffer | 96K bytes |
NV Flash | 256K bytes |
Driver | Win2003 / WinXP / Win7 / WIN8 / WIN10 / Linux ; Support IOS / Android |
Power | Input： AC 110V/220V, 50～60Hz ; Output： DC 24V/1.5A |
Paper | |
Paper Types | Thermal Roll Paper |

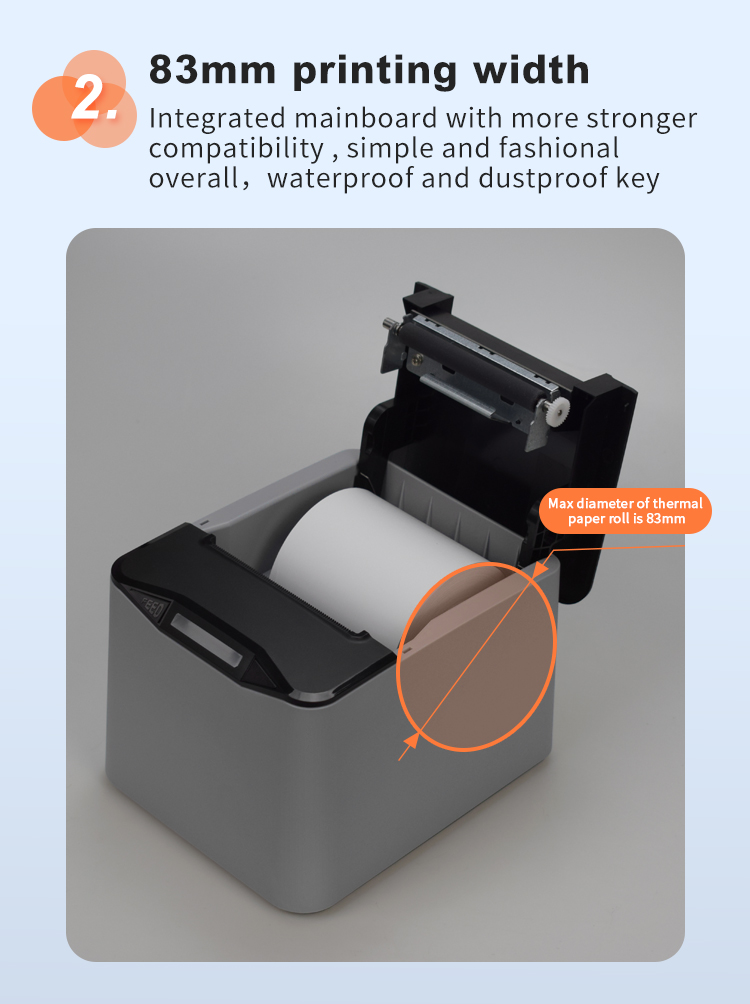

Paper Width | 79.5±0.5mm / φ 80 mm |
Print Width | 72mm |
Paper Thickness | 0.06-0.08 mm |
Package | |
Printer Dimension | 17.47*14.17*305.75px |
Printer N.W. | 0.84 kg |
Package | 1pc with accessories/Box, 12 boxes/CTN |

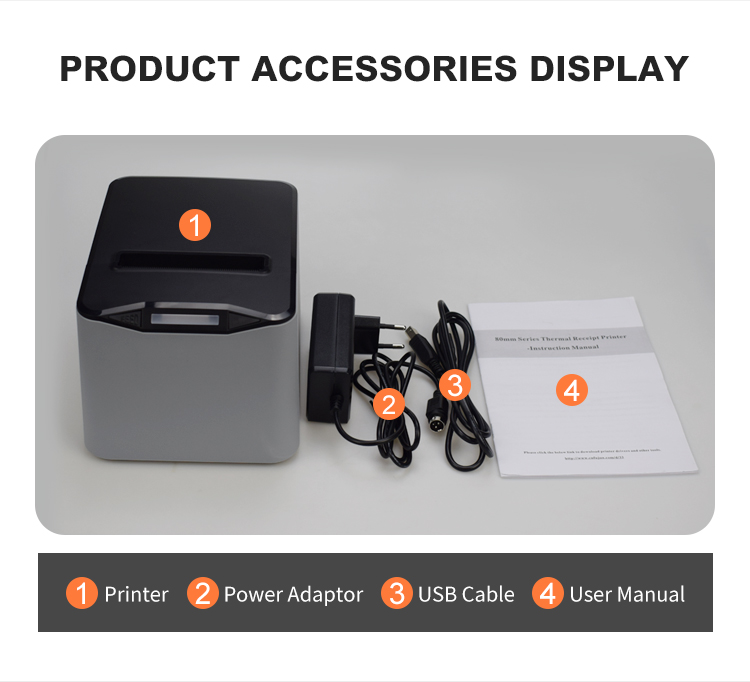

Accessories | Manual, USB Cable, Power Adapter, Paper Roll |
Box Dimension | 20.3*18.6*13.9 CM |
Box G.W. | 1.22 Kgs |
CTN Dimension | 61.4*38.8*29.8 CM |
CTN G.W. | 15Kgs |
Environmental Requirements | |
Work Environment | Temperature (0～45℃) humidity(10～80%) |
Storage Environment | Temperature(-10～60℃) humidity(10～90%) |
Mechanical Noise | less than 60dB |
