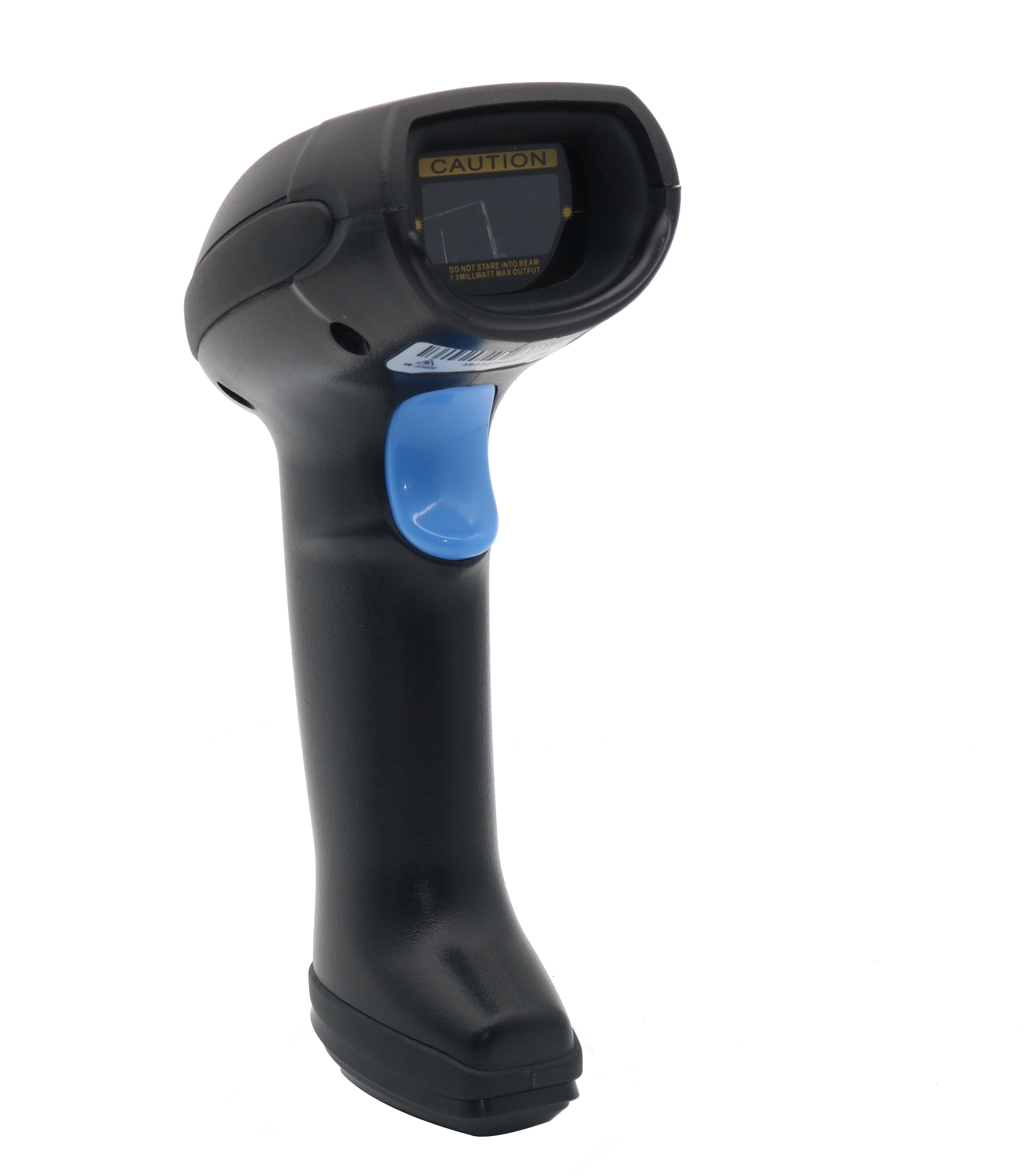

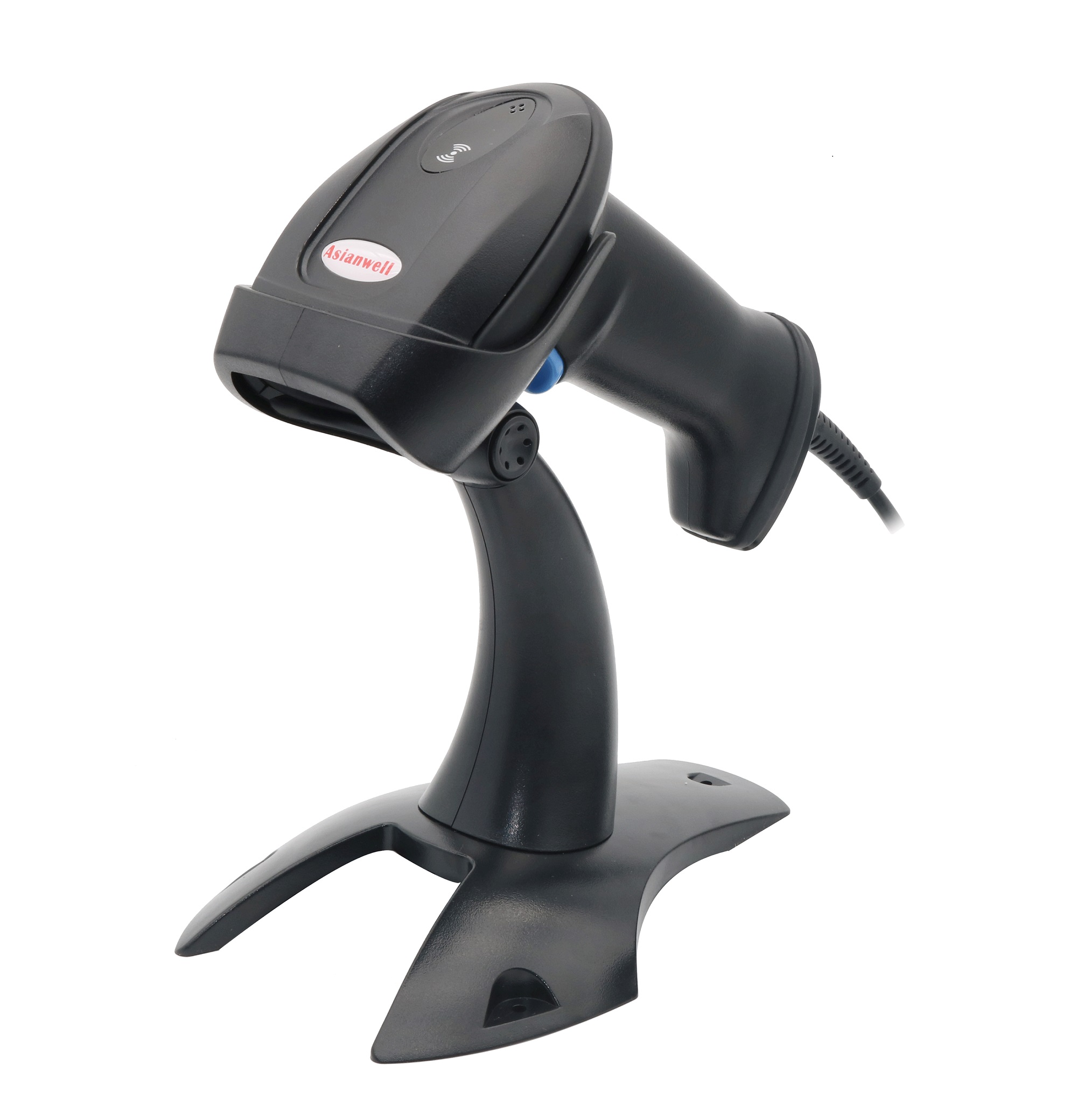

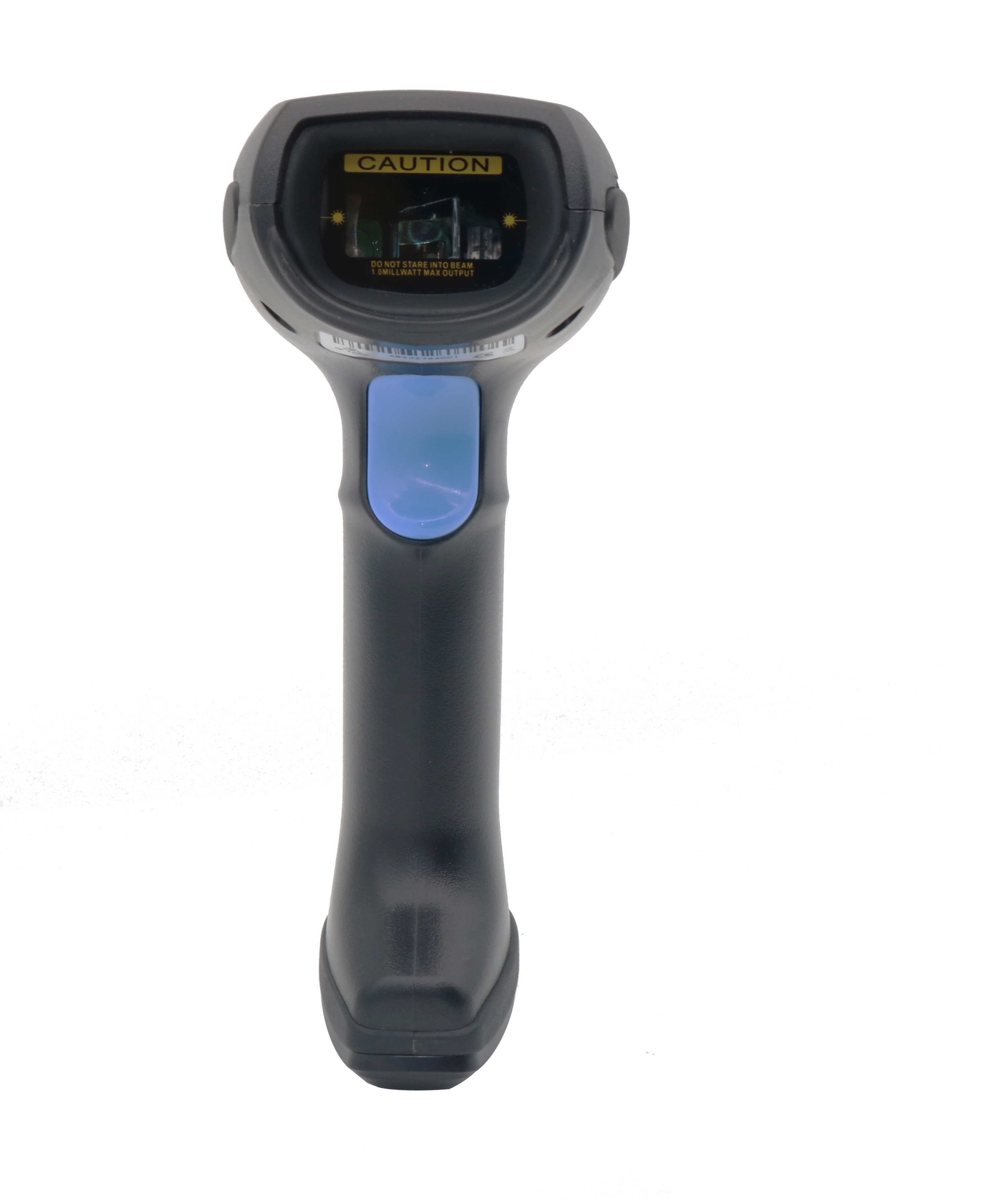

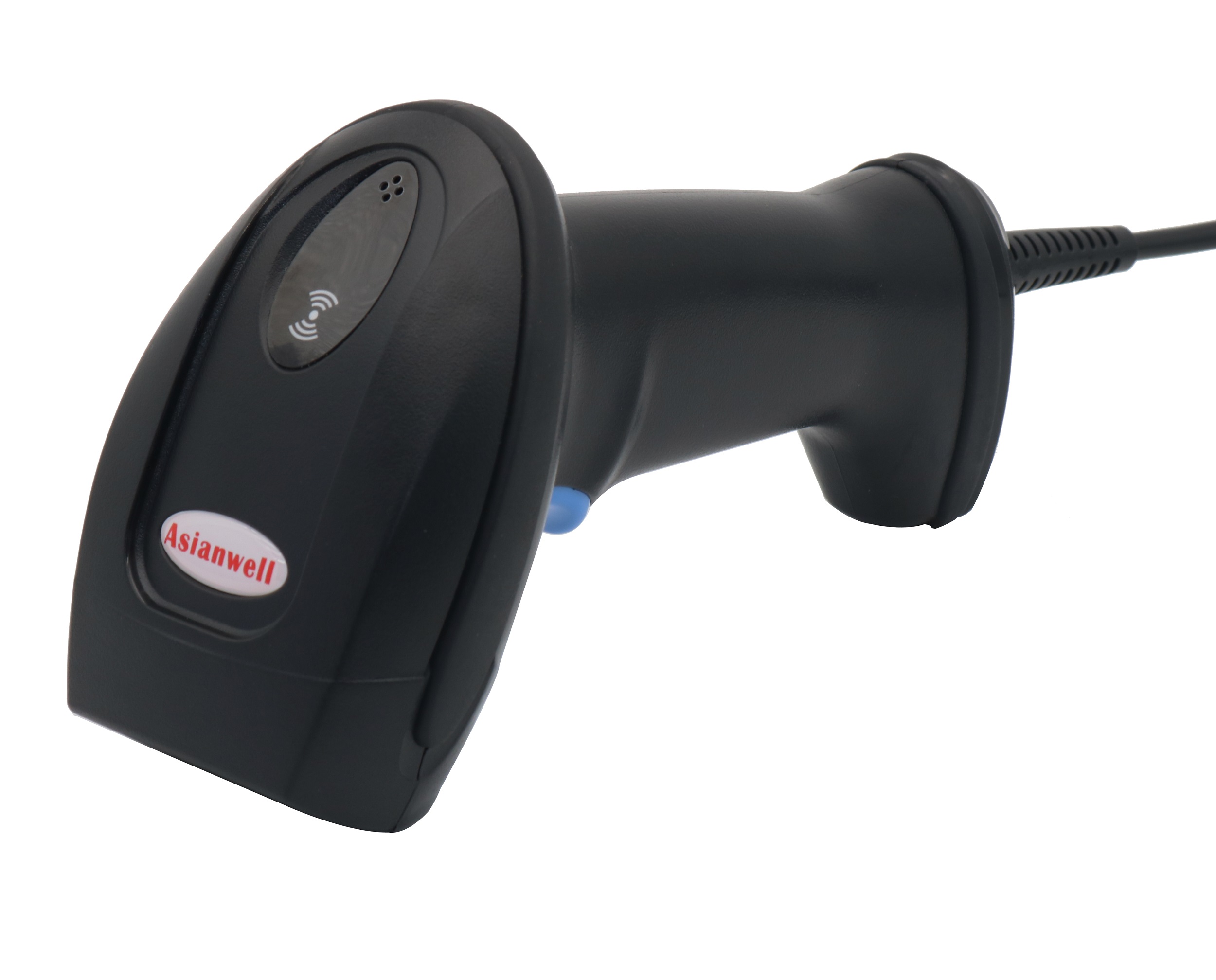

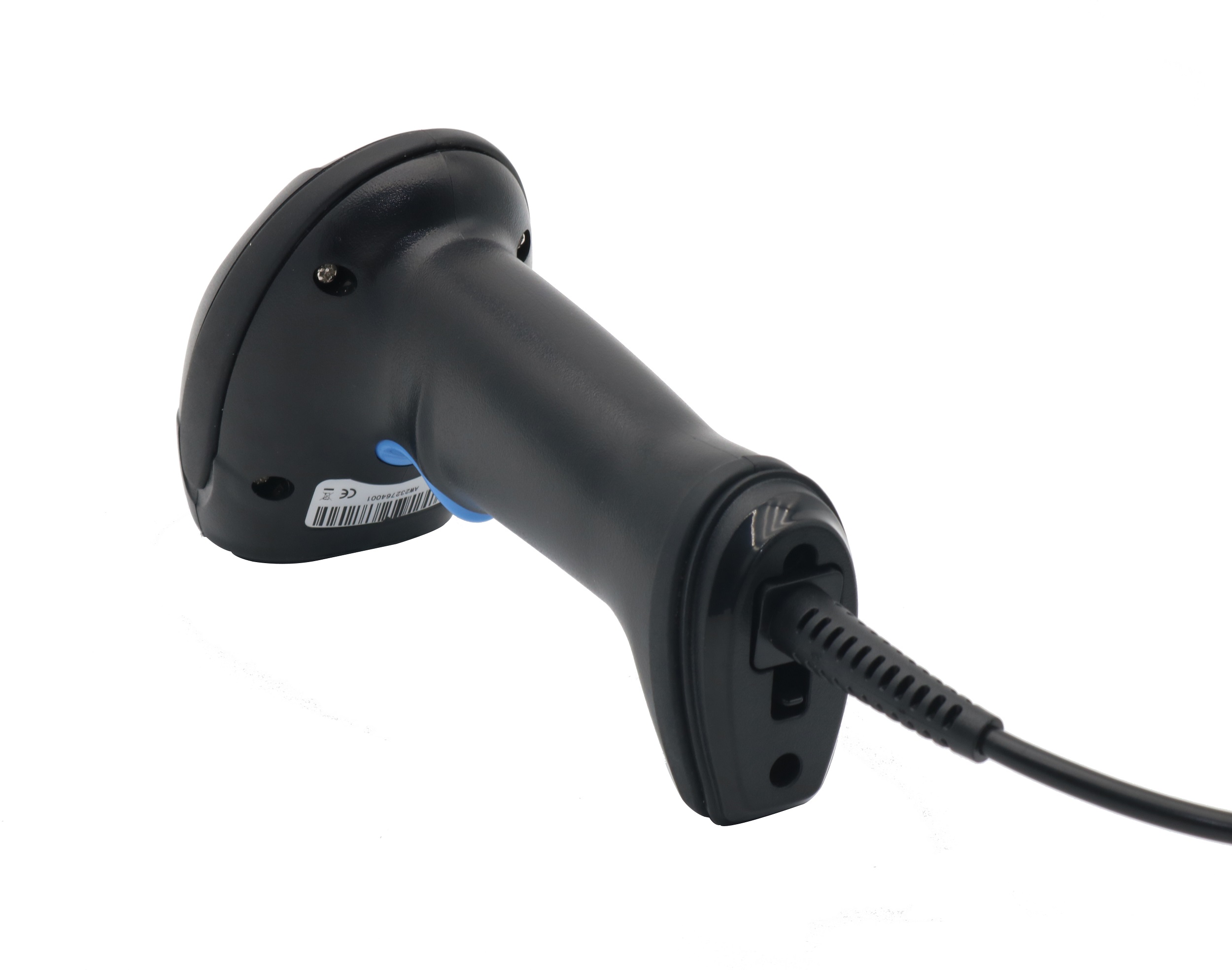

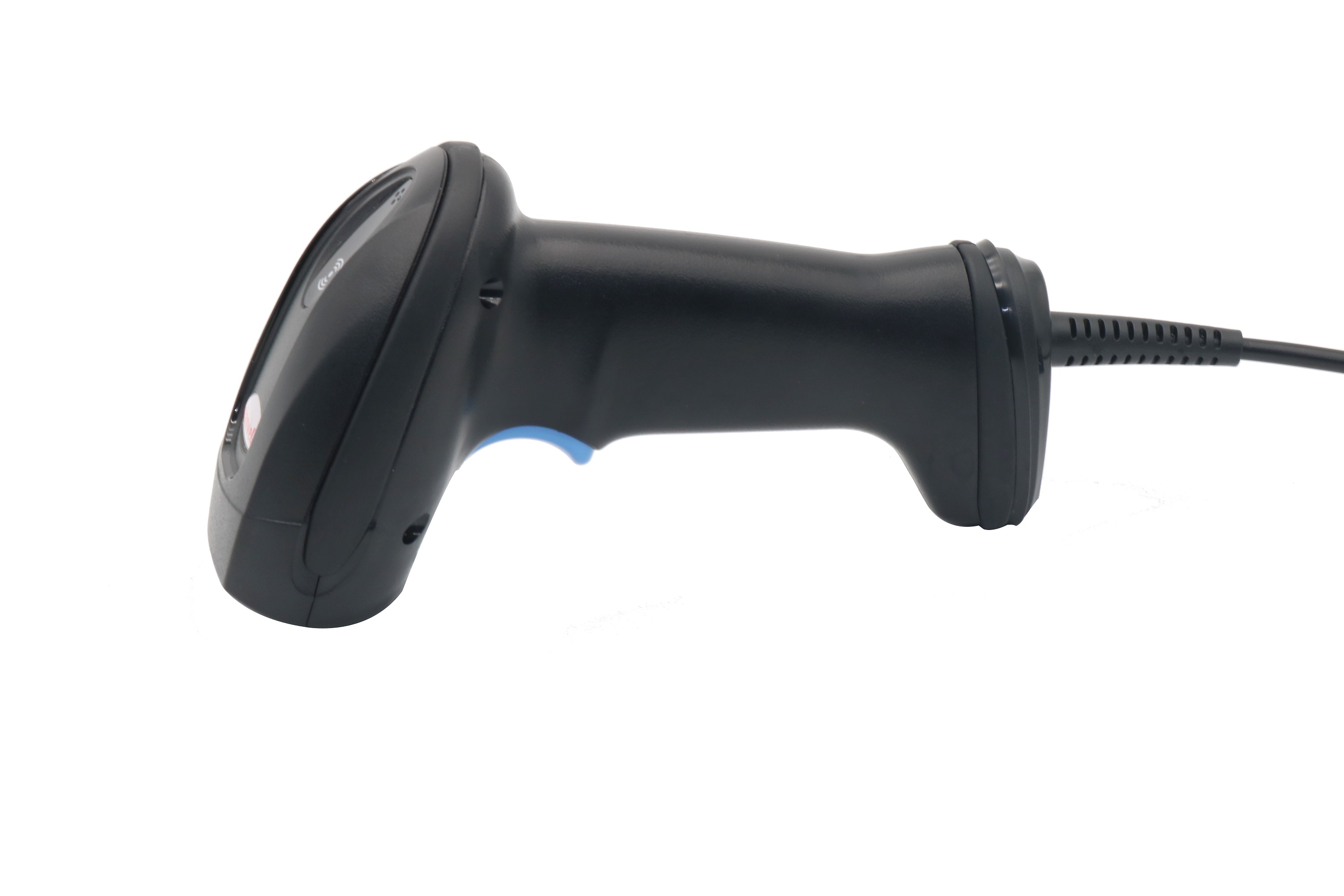

AW-X2000
Feature1. High resolution laser scanning engine
2. New decoding chip for interpreting various 1D codes
3. Scan speed not less than 150 times per second
4. Withstand multiple 3 meters drops to concrete
5. Plug and play, easy to set up and quickly match
-
￥0.00￥0.00
-
Product Description
Feature
1. High resolution laser scanning engine
2. New decoding chip for interpreting various 1D codes
3. Scan speed not less than 150 times per second
4. Withstand multiple 3 meters drops to concrete
5. Plug and play, easy to set up and quickly match
|
|
|
Specification ——
Performance Parameters | |
Light Sources | 650nm laser (Safe visible laser diode) |
Supported Symbologies | UPC- A, UPC-E, EAN-13, EAN-8, Codabar, Code 39, Code 39 Full ASCII, China Post, Plessey, MSI, Code 93, Code 128, Industrial 2 of 5, Interleave 2 of 5, Matrix 2 of 5, Code 11, ISBN, SSN, Code 32(Italian pharm code), Code 39 extended, GS1-128 and ITF-14, SISAS, GS1 Omnidirectional, GS1 Limited, Aviation25, RSS 14 |
Scan Type | Single laser |
Scan speed | ≥150times/s |
Scan Method | Manual/Continuous/Automaticscanning |
Scan angle | Yaw ±65°,Rotation ±30°,Pitch ±55° |
Precision | ≥3mil |
Depth of scan field | 20-280mm (0.33mm, PCS90%) |
Error Rate | Less than 1/5million |
Interface | USB-HID, USB-COM, PS2, RS232 |
Physical Parameters | |
Dimensions | 102mm*71mm*177mm |
Weight | 176.5g |
Material | ABS+PC |
Cable Length | 2M |
Environmental Parameters | |
Operating Temperature | -20℃~+50℃ |
Storage Temperature | -40℃~+70℃ |
Relative Humidity | 5%~95% RH（Non-condensing） |
Drop/Shock Resistance | Withstands multiple times 3meters drops to concrete |
Electrical Parameters | |
Voltage | DC5V±1% |
Operating Current | 85mA |
