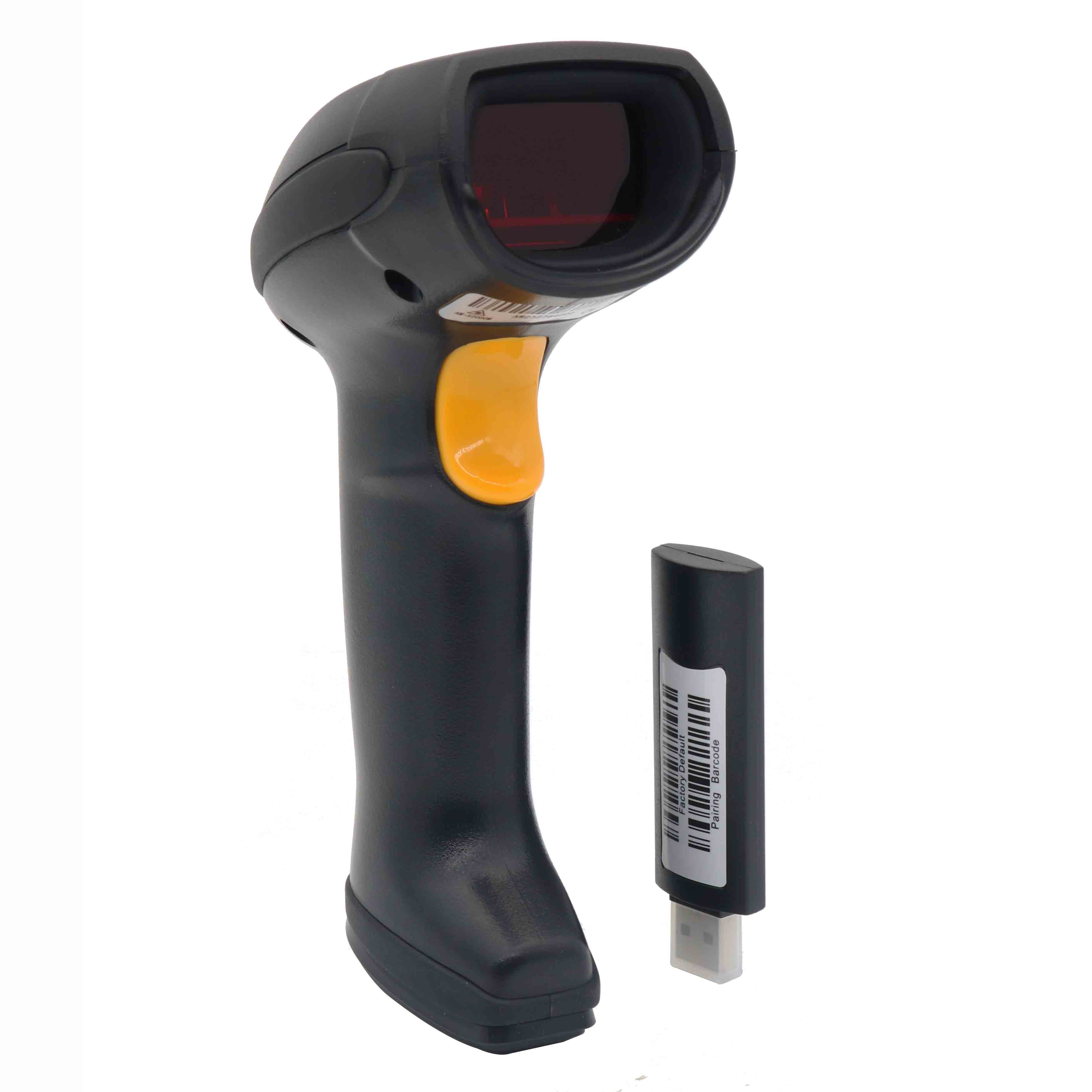

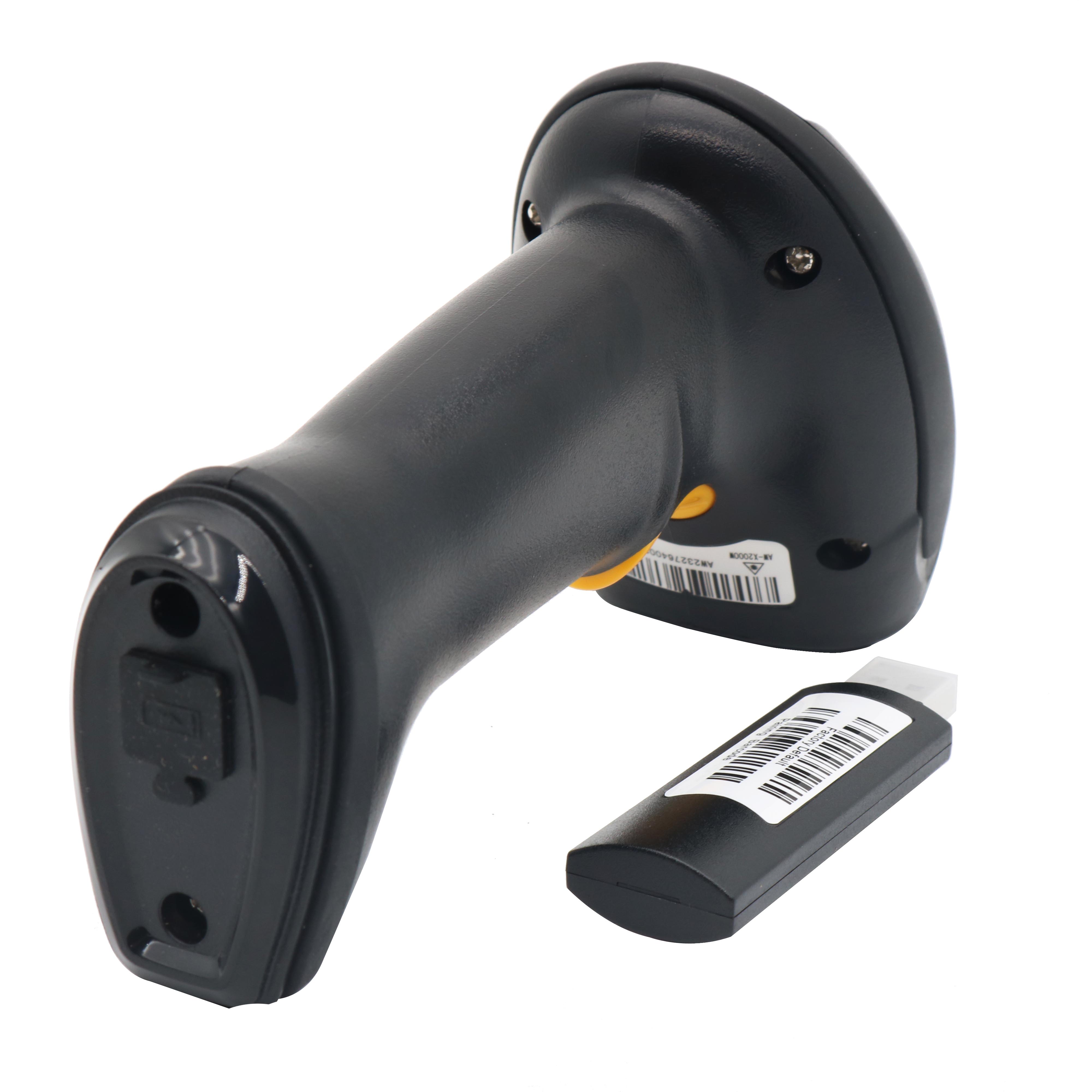

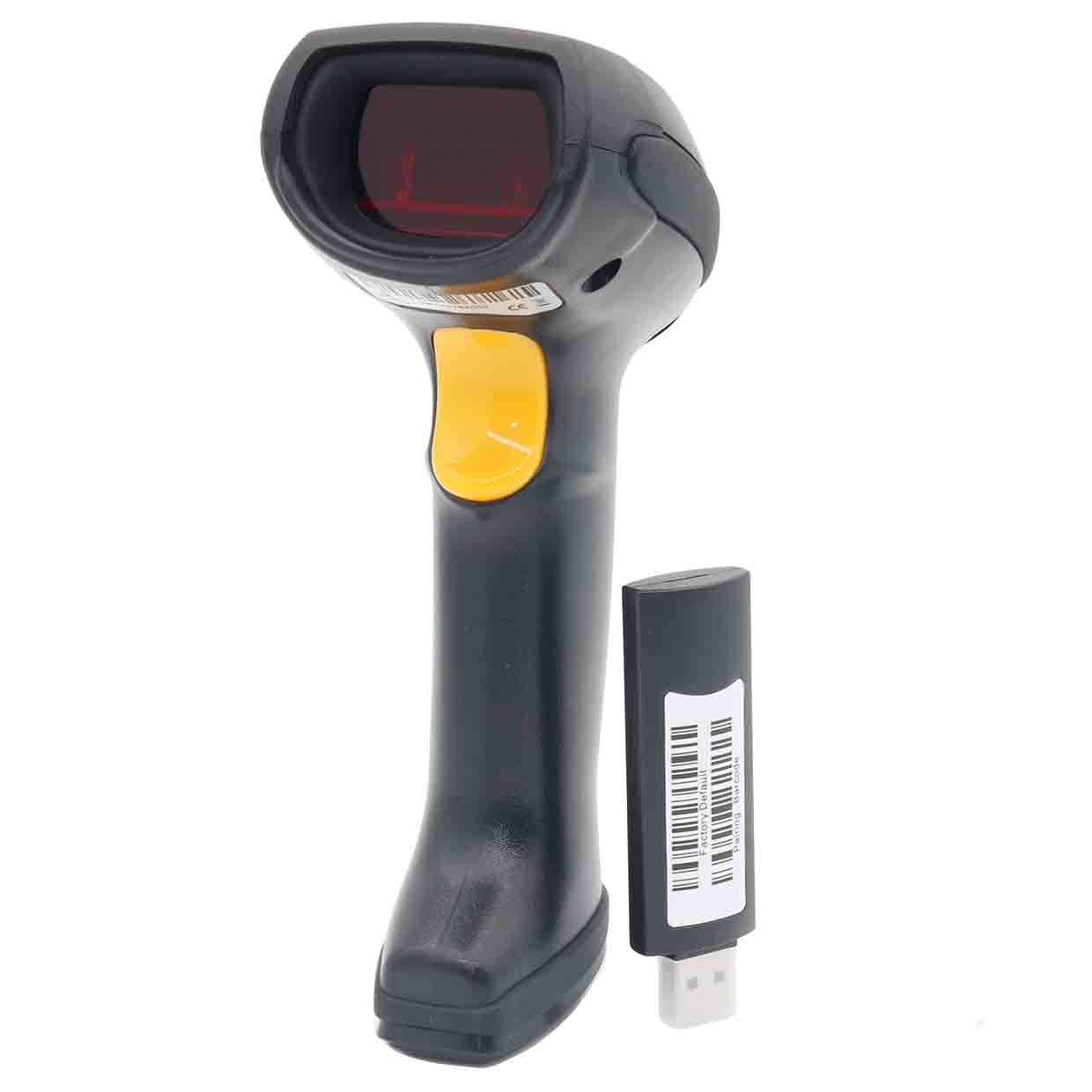

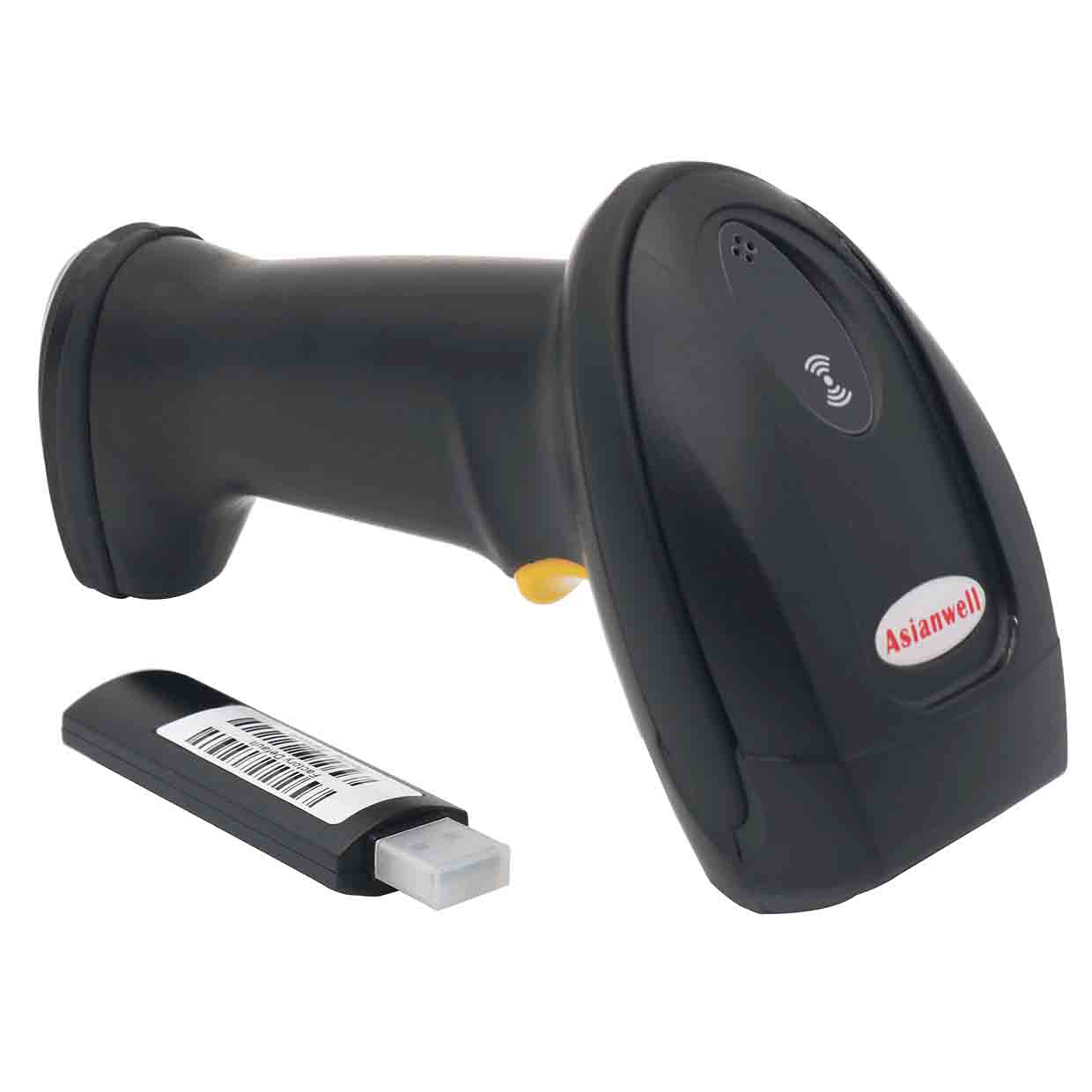

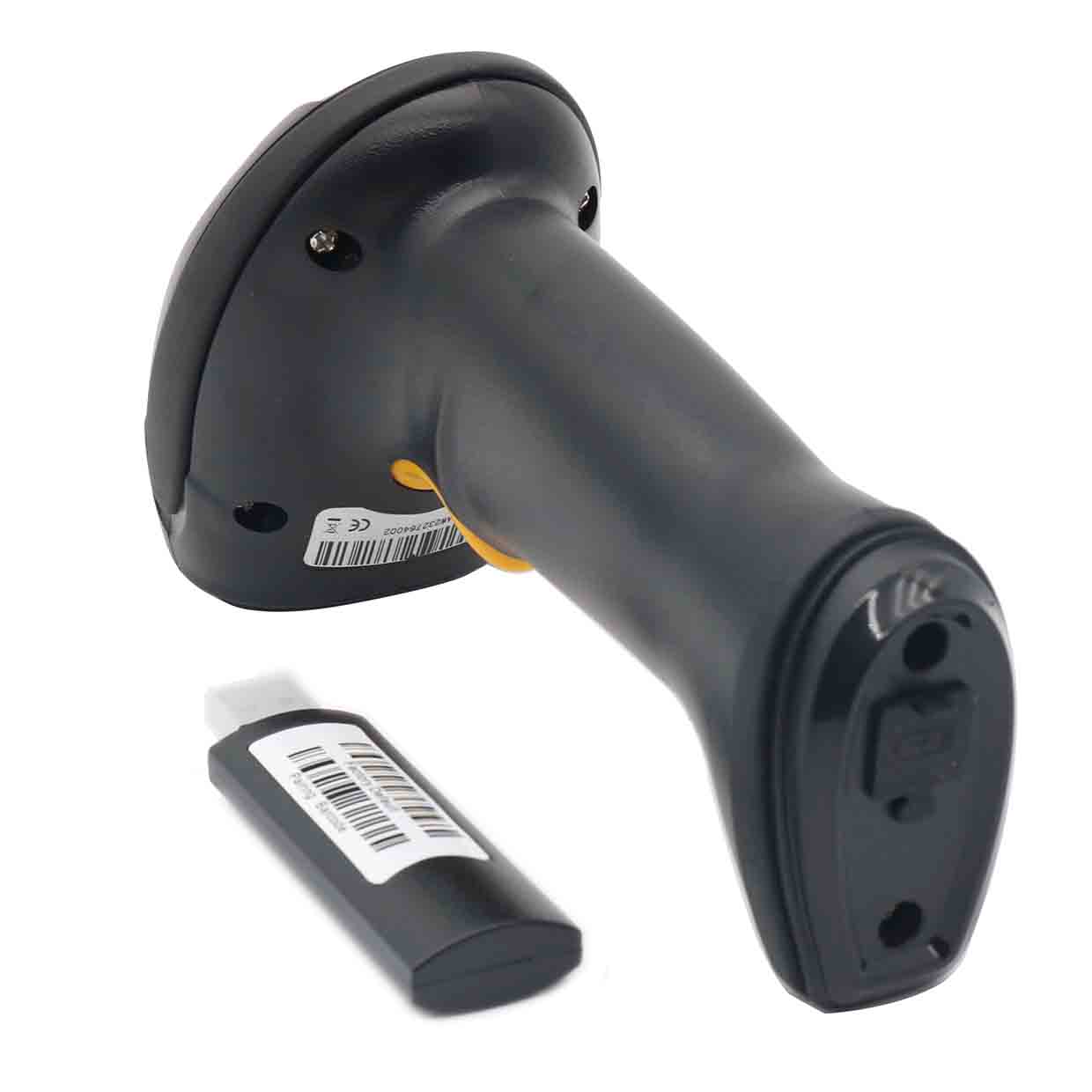

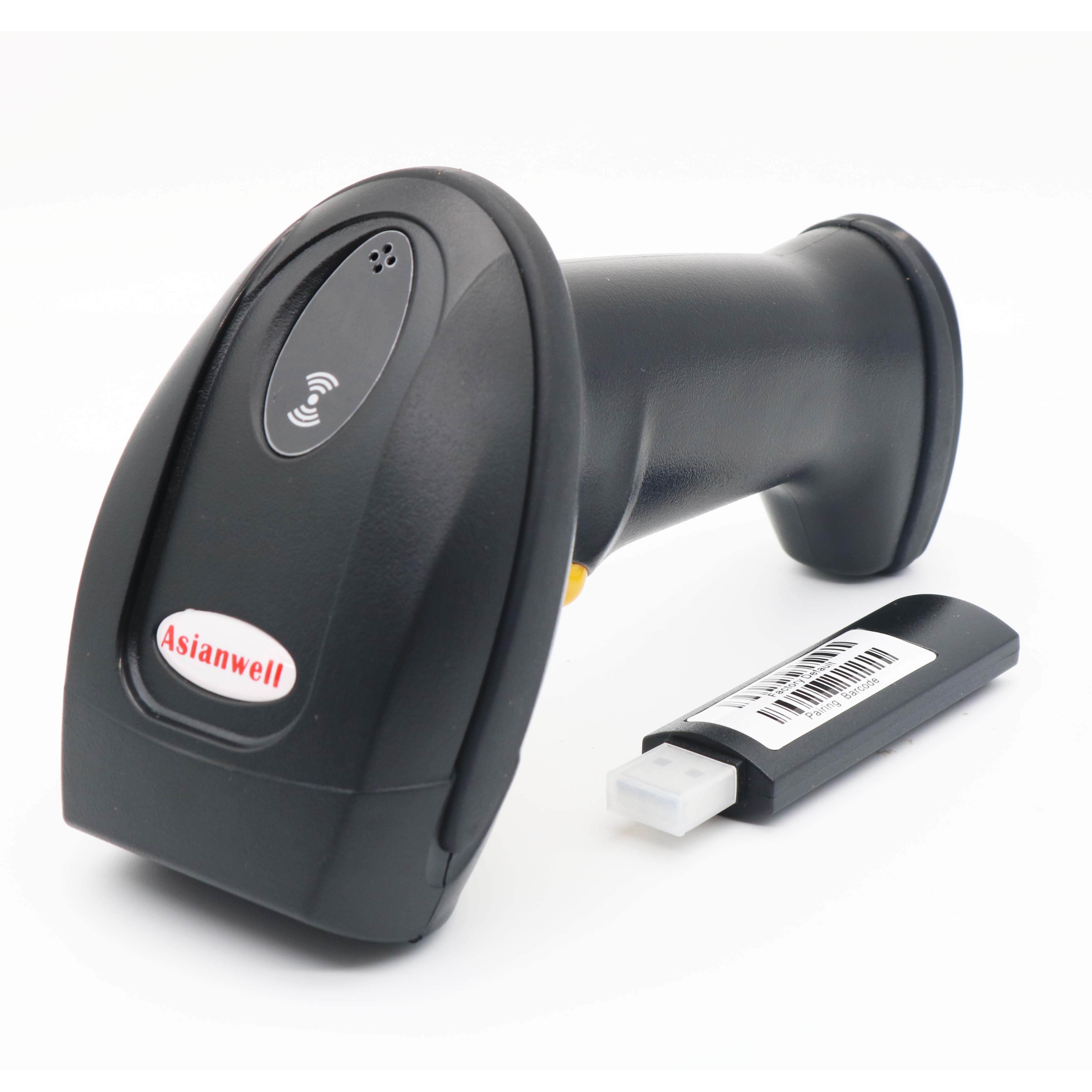

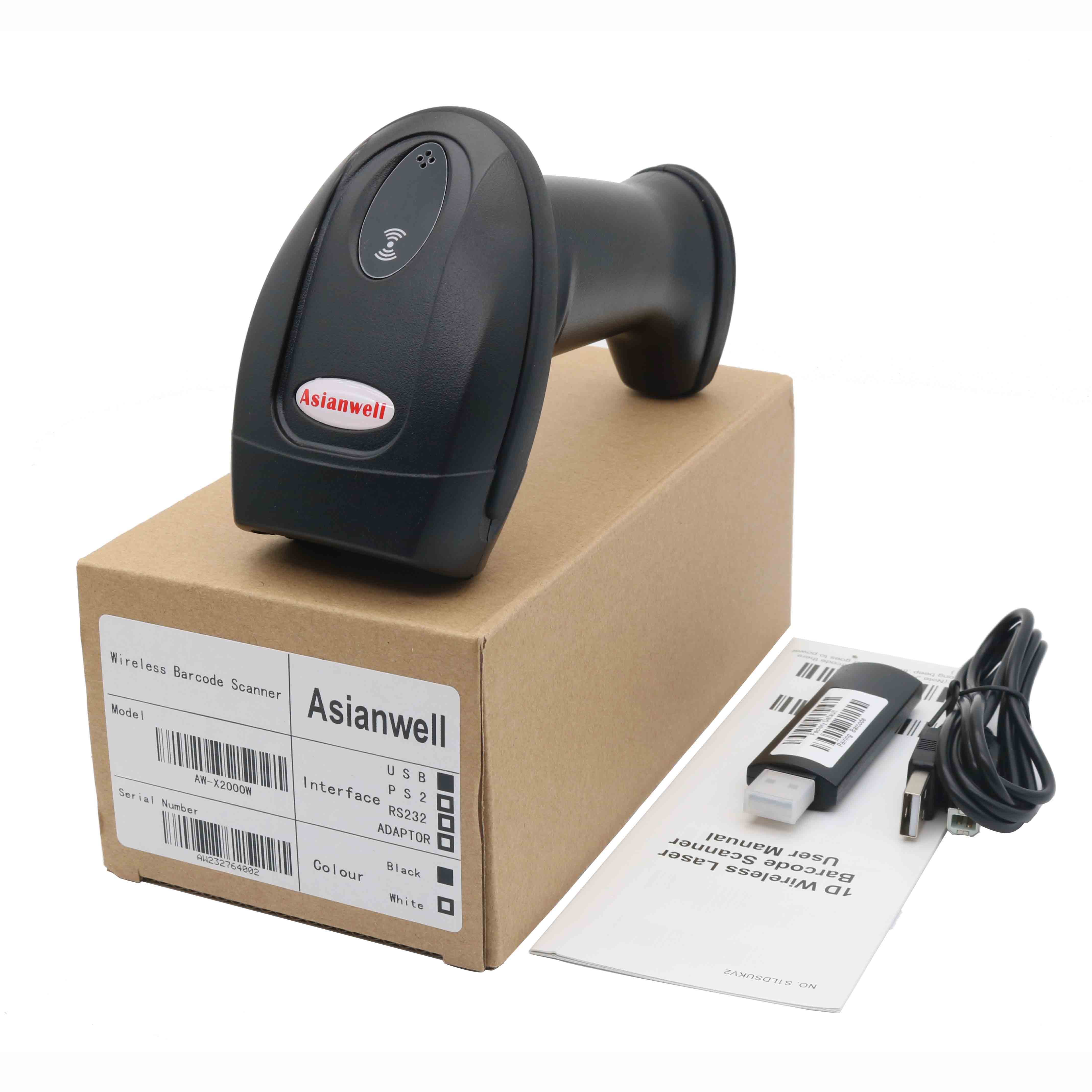

AW-X2000W
Feature1. Outstanding reading performance on 1D, postal codes, stacked, composite codes and Image capture
2. Mobility wireless design with 100-300 meters operation range
3. Pair mode: one to one, one to many ,many to one
4. Can store 512,000 bytes
5. Simple plug-and-play with USB dongle
-
￥0.00￥0.00
-
Product Description
Feature
1. Outstanding reading performance on 1D, postal codes, stacked, composite codes and Image capture
2. Mobility wireless design with 100-300 meters operation range
3. Pair mode: one to one, one to many ,many to one
4. Can store 512,000 bytes
5. Simple plug-and-play with USB dongle
|
|
|
Specification ——
Performance Parameters | |
Light Sources | 650nm laser (Safe visible laser diode) |
Supported Symbologies | EAN-8, EAN-13, UPC- A, UPC-E, Code 39, Code 11, Code 128, EAN128, Codabar, Industrial 2 of 5, Interleave 2 of 5, Matrix 2 of 5,MSI, China Post and other international common 1D code. |
Scan Type | Single laser |
Scan speed | ≥150times/s |
Scan Method | Manual/Continuous/Automatic Inductive Scanning (Optional) |
Scan angle | Yaw ±55°,Rotation ±30°,Pitch ±65° |
Precision | ≥4mil |
Depth of scan field | 10-250mm (0.33mm, PCS90%) |
Error Rate | Less than 1/5million |
Interface | USB-HID |
Operating Frequency | 2.4G |
| Transmission Distance | 100-300M(Open Yard) |
| Storage Ability | 512000 Bytes |
Pairing Mode | One to one |
Physical Parameters | |
Dimensions | 102mm*71mm*177mm |
Weight | 242g |
Material | ABS+PC flameresistant material |
Cable Length | 1.8M |
Environmental Parameters | |
Operating Temperature | -20℃~+40℃ |
Storage Temperature | -40℃~+70℃ |
Relative Humidity | 0%~85% RH（Non-condensing） |
Shock Resistance | Withstands multiple times 3meters drops to concrete |
Electrical Parameters | |
Voltage | DC5V±1% |
| Lithium Battery | 2200mA can last continue work 7 hours |
Operating Current | 85mA (Working); 150uA (Standby) |
