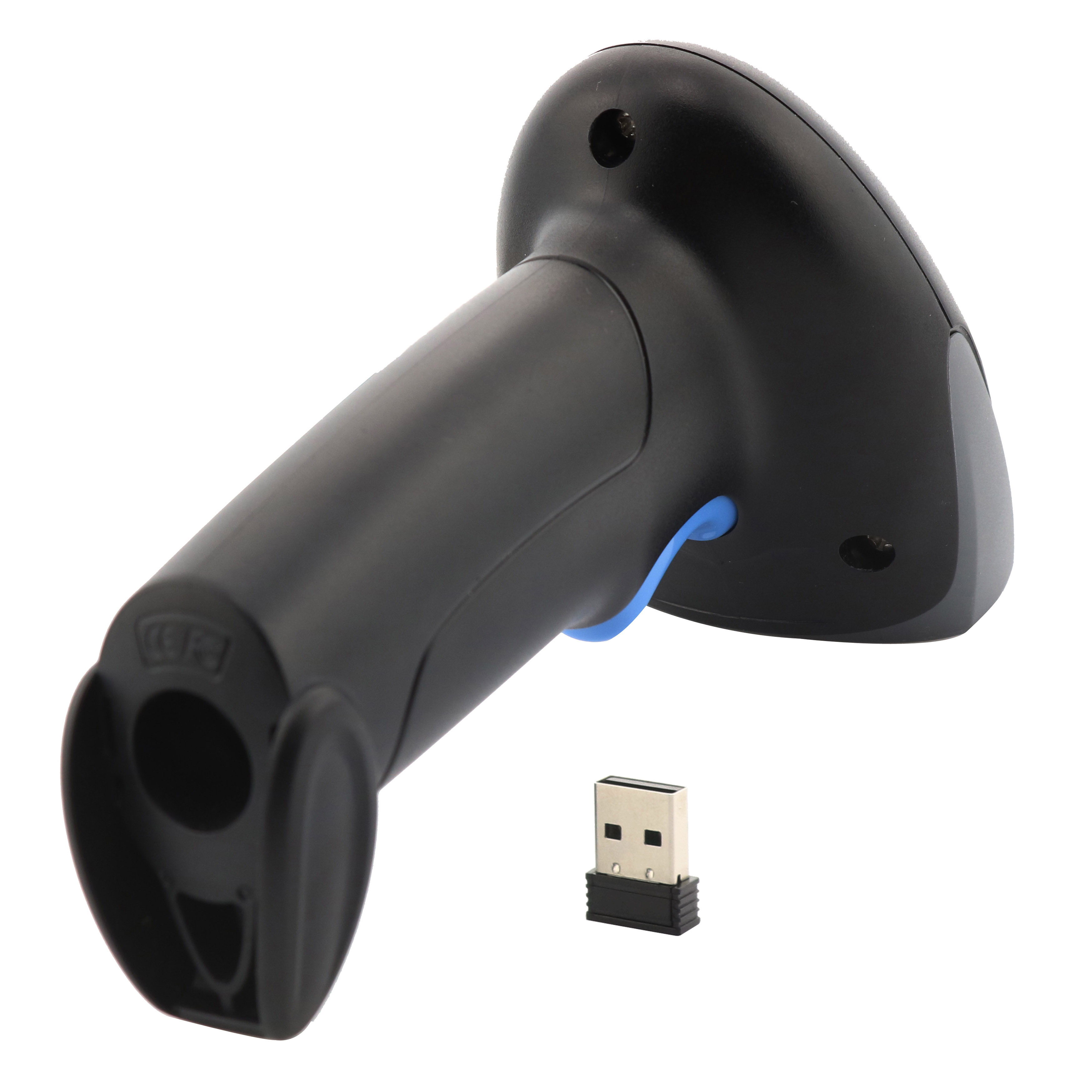

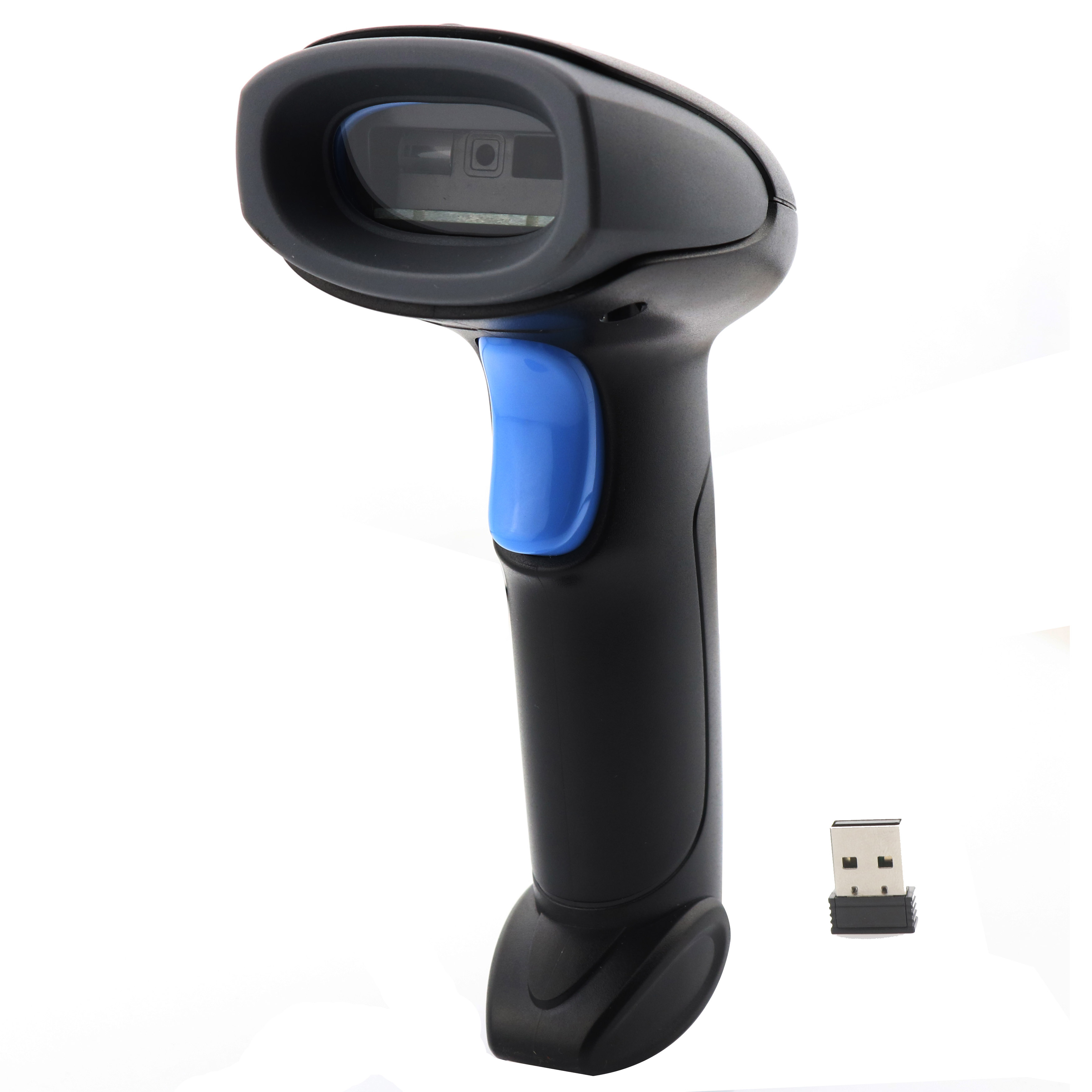

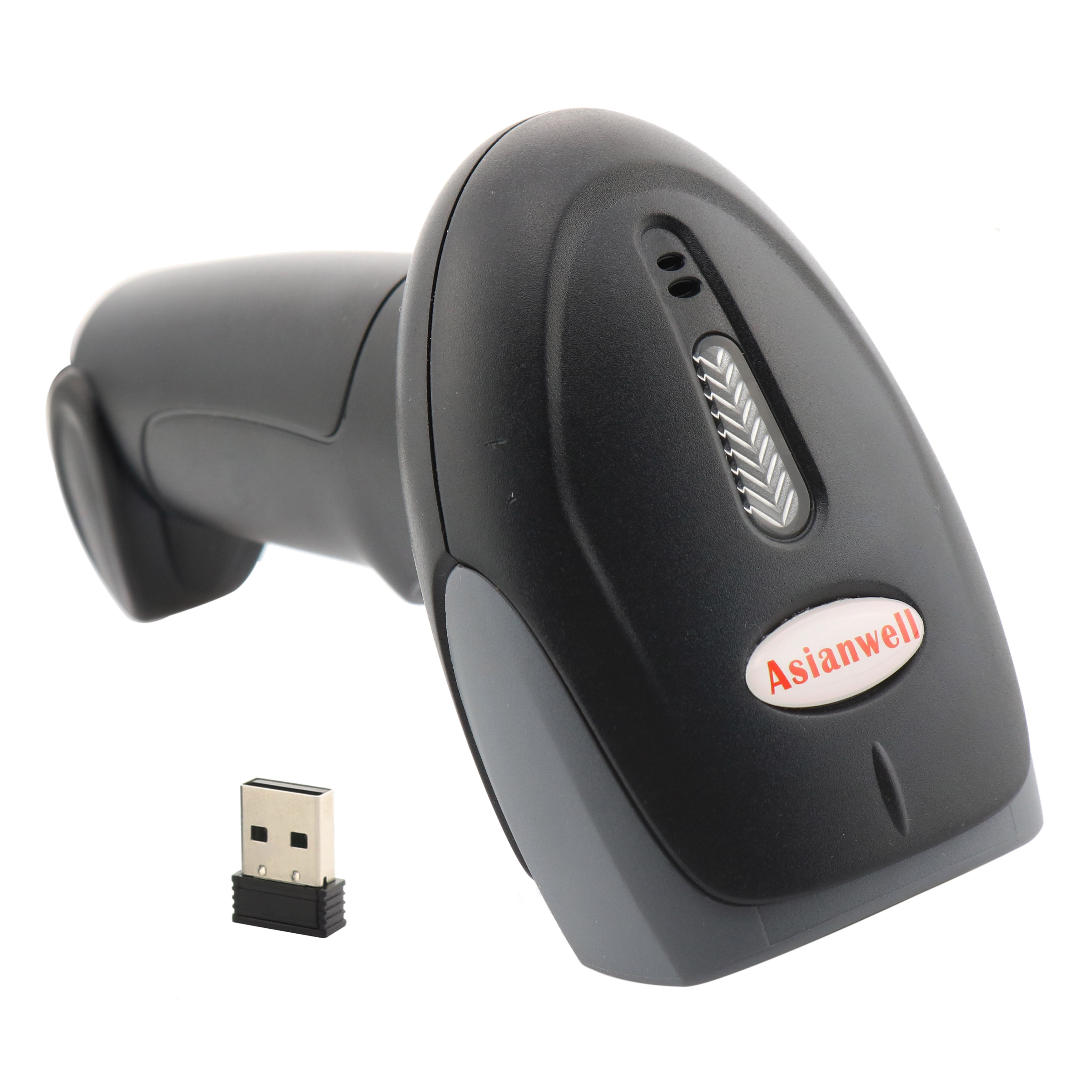

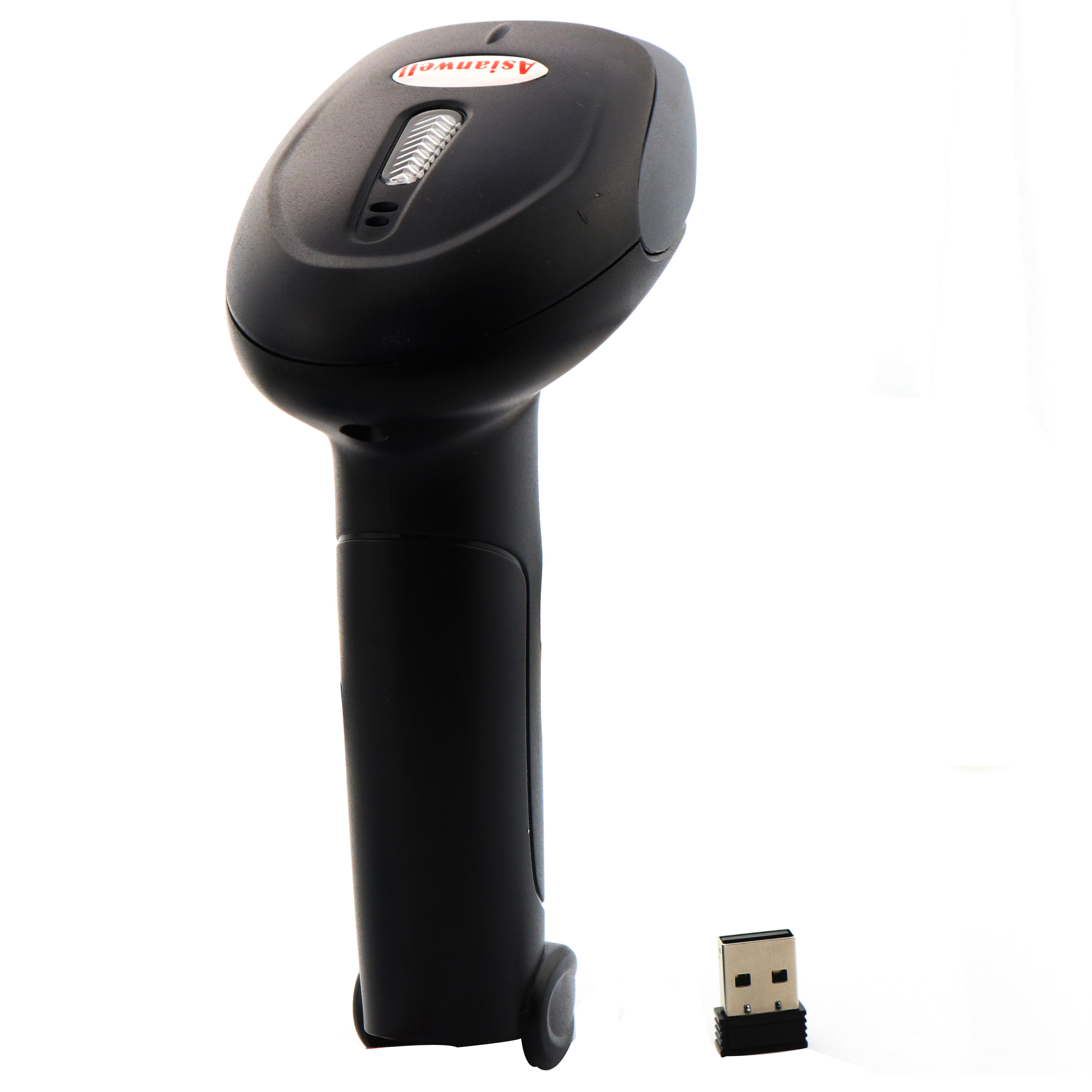

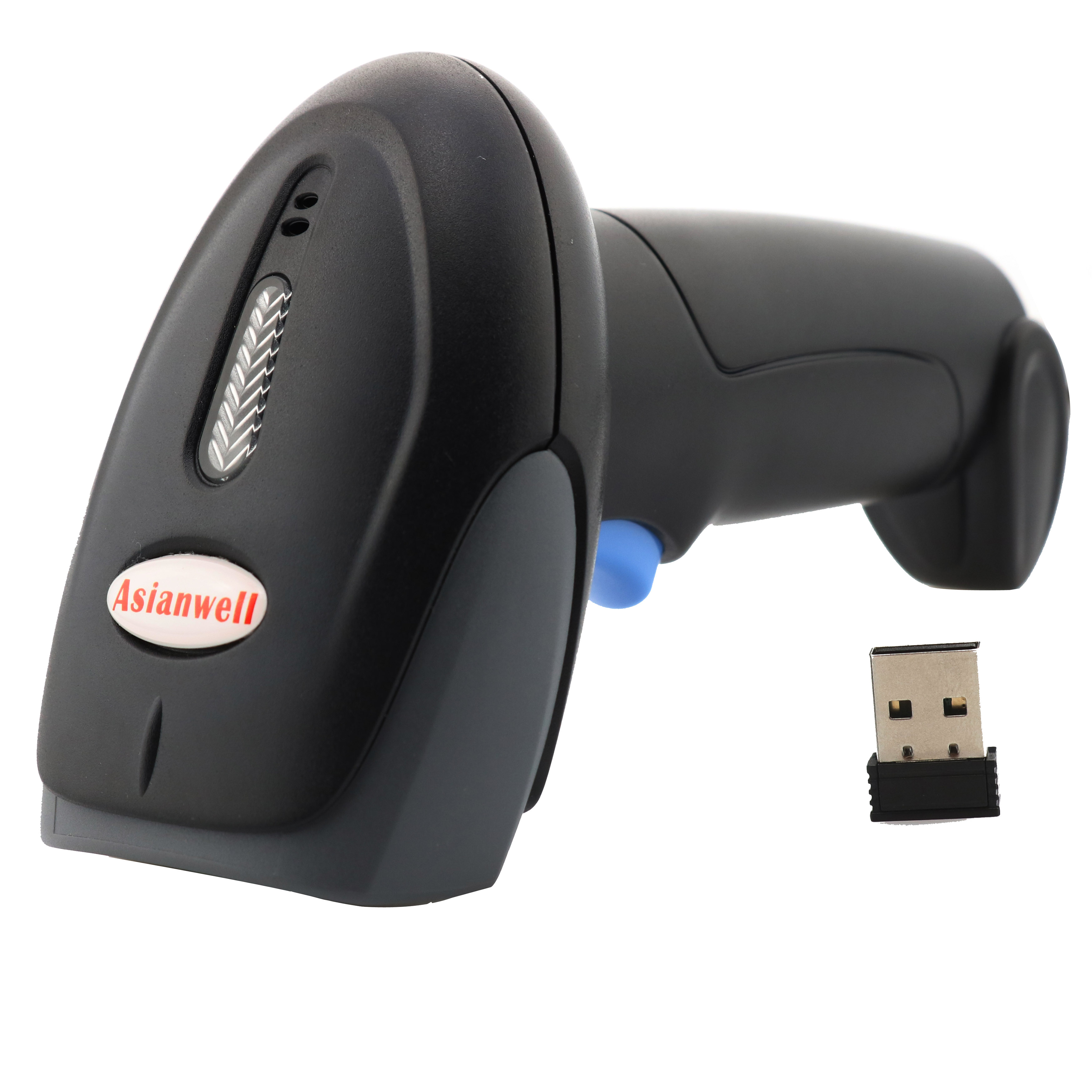

AW-2011RB
Feature1. Read all major 1D and 2D barcode symbologies
2. Read barcode symbology on phone screen
3. Supporting RS232, USB and PS2 interface
4. Anti-knock design, With IP54 level protection
5. Support 20 countries keyboard languages
6. Unique trigger design, very comfortable operation sense
7. Adopt CMOS image tech and intelligent image recognition system-
￥0.00￥0.00
-
Product Description
Feature
1. Read all major 1D and 2D barcode symbologies
2. Read barcode symbology on phone screen
3. Supporting RS232, USB and PS2 interface
4. Anti-knock design, With IP54 level protection
5. Support 20 countries keyboard languages
6. Unique trigger design, very comfortable operation sense
7. Adopt CMOS image tech and intelligent image recognition system
|
|
|
Specification ——
Technology | |
Scan type | 2D image CMOS |
Interface | USB-HID USB-COM, RS232 |
Resolution | 640 pixels(H)x 480 pixels(V) |
Scan Mode | Manual/Auto scan/ Continue Scan |
Lighting Sourcing | 617nm, LED Aiming light, White LED lightig light |
Scanning angle | Roll: ±360°, Pitch:±55°, Skew: ±55° |
Minimum Resolution | ≥5mil/0.127mm（PCS90%,CODE 39） |
Scan distance | EAN 50-250MM(13mil) |
Support Symbologies | 1D：UPC-A，UPC-E，EAN-8，EAN-13，ISSN，ISBN，Code 128， GS1-128， Code 39，Code 93，Code 11，Interleaved 2 of 5， ITF-6， ITF-14，Matrix 2 of 5，Industrial 2 of 5，Standard 2 of 5（IATA），Codabar（NW-7），Plessey，MSI Plessey，RSS，etc. |
Printing contrast | ≥15% |
Wireless | 2.4G & Bluetooth |
Communicate distance | 100-200m, with momery |
Physical | |
Size | 95mm x 72mm x 155mm （L xW xH） |
Weight | 195g |
Material | ABS+PC |
Cable Length | 1.8m |
Electronical | |
Voltage | 5V |
Working Current | 220mA， Sleep current USB 30mA, RS232 2uA |
Scanner Material | Eco-friendly, ABS+Rubber |
Battery | 2500mAh, after full charge continue use over 12hours |
Environmental | |
Operation Temperature | -20 ℃ - 50℃ |
Storage Temperature | -40 ℃ - 70℃ |
Humidity | 5% - 95% |
Ambient lighting | 0-100000LUX |
Seismic resistance | 3m |
Warranty | 24months |
Packing List | |
Barcode scanner×1pc, USB cable×1pc, Manul×1pc | |
Inner box | 1pc/box, 100 x 80 x 240mm, 0.48Kg |
Out box | 50pcs/ctn, 530 x 500 x 430mm, 24Kg |
