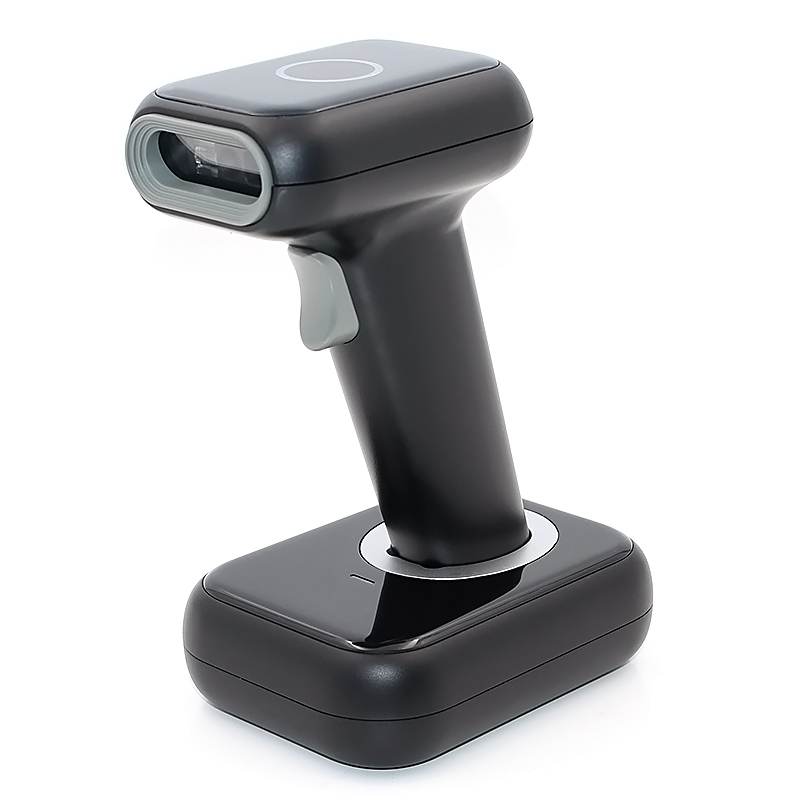

AW-V26WT
Feature
1. High performance with fast speed for all 1D&2D codes;
2. Support varied OS, Windows/ Android/ Mac/ Linux;
3. Fashional design and support scan codes on screen;
4. 2.4G and bluetooth is optional;5. Super storage ability, and 1200mAh large battery capacity
-
￥0.00￥0.00
-
Product Description
Feature
1. High performance with fast speed for all 1D&2D codes;
2. Support varied OS, Windows/ Android/ Mac/ Linux;
3. Fashional design and support scan codes on screen;
4. 2.4G and bluetooth is optional;
5. Super storage ability, and 1200mAh large battery capacity
|
|
|
Specification ——
Performance | ||||
Sensor | 640*480 COMS | |||
Symbologies | 1D | EAN-8、EAN-13、EAN-13 2 add-on、 EAN-13 5 add-on、ISSN、ISBN、UPC-A、UPC-E、Code 32、Code 39、Code 93、Code 128、Codabar、Industrial 2 of 5、Interleaved 2 of 5, Matrix 2 of 5、GS1-128、 GS1 DataBar（RSS14）、GS1 DataBar Limited、GS1 DataBar Expanded | ||
2D | PDF417，MicroQR，Data Matrix，QR code，Aztec | |||
Depth of field | Tested code | Min | Max | |
5mil code39 | 50px | 275px | ||
13mil UPC | 75px | 725px | ||
20 mil code39 | 175px | 1250px | ||
20 mil QR Code | 50px | 550px | ||
OS compatibility | Android，Windows XP，7，8，10，Linux，MACOS | |||
Scan Mode | Manual Scan,Automatic induction scan | |||
Countries Keyboards | American, German, French, Spanish, Italian, Belgian (French), small language (international keyboard) | |||
Min resolution | Code 39 6.6mil | |||
Decode capacity | 1D/2D Codes on printed paper and mobile screen | |||
Motion Tolerance | 1.6m/s | |||
Print contrast | 25% | |||
Secondary development | Not support | |||
Data output editing | Prefix&suffix | |||
Transmission range | Open space 25 meters | |||
Wireless technology | 2.4GHZ | |||
Transmission distance | 60m(empty ground) | |||
Wireless Transmit Power | 20dBm | |||
Wireless Receiving Power | 20dBm | |||
Scan Angle | Roll ±360°，Pitch ±72°，Skew ±82° | |||
Environmental | ||||
Drop | Withstand 5 drops from 1.5 meters | |||
Sealing | IP54 | |||
Operating Temperature | -20-55℃ | |||
Storage Temperature | -20-60℃ | |||
Operating Humidity | 5-95% Non-condensing | |||
Storage Humidity | 5-95% Non-condensing | |||
Ambient Light | 0-120000LUX | |||
Indicator light | Red and blue two-color indicator: red light power prompt, blue light link prompt | |||
Buzzer | Start prompt, decoding success prompt | |||
Physical | ||||
Trigger | Start, trigger Scan | |||
Program Upgrade | Support for client updates | |||
Net weight | 200g | |||
Gross Weight | 400g | |||
Dimension | 113mm* 82.5mm*163.7mm | |||
Packing | 186.7mm*111.8mm*83.6mm | |||
Cable length | 180CM(±3CM) | |||
Expected operating time | 16h | |||
Estimated charging time | 4.5h | |||
Number of scans | Scans nearly 16,000 times per charge (1000 scans per hour) | |||
Interface | USB port (free drive), USB virtual serial port (installation driver), serial port (free drive) | |||
Battery capacity | 1200MAH | |||
Storage Quantity | 120000 | |||
