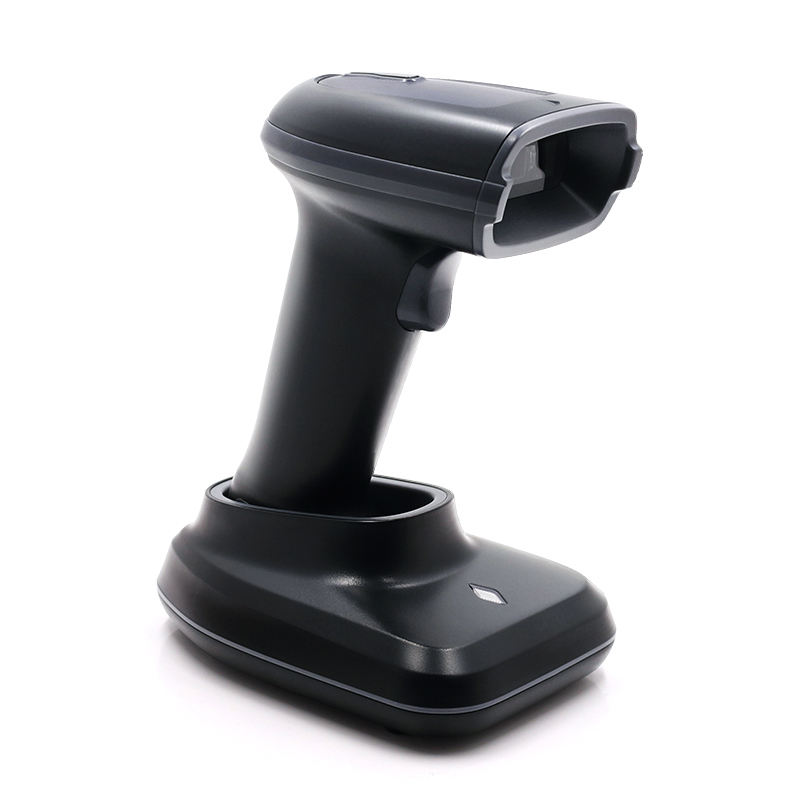

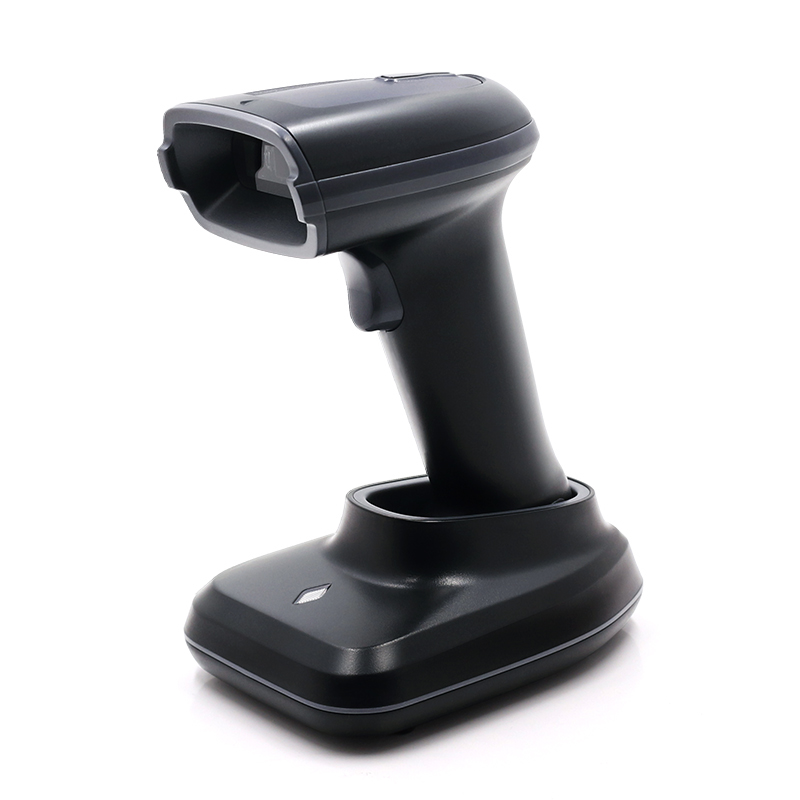

AW-V28WT
Feature
1. High performance with fast speed for all 1D&2D codes;
2. Support varied OS, Windows/ Android/ Mac/ Linux;
3. Fashional design and support scan codes on screen;
4. 2.4G and bluetooth is optional;5. Super storage ability, and 2000mAh large battery capacity
-
￥0.00￥0.00
-
Product Description
Feature
1. High performance with fast speed for all 1D&2D codes;
2. Support varied OS, Windows/ Android/ Mac/ Linux;
3. Fashional design and support scan codes on screen;
4. 2.4G and bluetooth is optional;
5. Super storage ability, and 2000mAh large battery capacity
|
|
|
Specification ——
| Performance | ||||
| Sensor | 640*480 COMS | |||
| Symbologies | 1D | Airline 2 of 5、Codabar、Code 128、Code 11、Code 32、 Code 39、Code93、Composite、EAN-8、EAN-13、UPC-A、 UPC-E、Full ASCII Code39、GS1 DataBar Omnidirectional、 GS1 DataBar Expanded、GS1 DataBar Limited、Matrix 2 of 5、 Hong Kong 2 of 5(China post)、Interleaved 2 of 5、Telepen、 MSI、Pharma code、Straight 2 of 5 Industrial、Trioptic Code | ||
| 2D | Aztec Code、AU Postal Code、Data Matrix Code、HANXIN、 Codablock A、Codablock F、DOT_Code、ENG Postal Code、 PDF417、MicroPDF417、JP Postal Code、KIX Postal Code、 Maxicode、QR Code、Micro QR Code、PLANET Code、 POSTNET Code、Royal Infomail Code、UPU Postal Code | |||
| Resolution | ≥5mil | |||
| Depth of scan field | Tested code | Min | Max | |
| 5mil code39 (size: 25mm*10mm) | 30mm | 2250px | ||
| 6mil PDF417 (size: 17mm*12mm) | 30mm | 120mm | ||
| 10 mil Data Matrix (size: 6mm*6mm) | 25mm | 110mm | ||
| 13 mil EAN-13 (size: 32mm*25mm) | 30mm | 250mm | ||
| 15 mil QR Code (8mm*8mm) | 25mm | 150mm | ||
| OS compatibility | Android，Windows XP，7，8，10，Linux，MACOS | |||
| Scan Mode | Manual Scan,Automatic induction scan | |||
| Countries Keyboards | American, German, French, Spanish, Italian, Belgian (French), small language (international keyboard) | |||
| Min resolution | Code 39 6.6mil | |||
| Decode capacity | 1D/2D Codes on printed paper and mobile screen | |||
| Motion Tolerance | 1.6m/s | |||
| Print contrast | ≥20% | |||
| Secondary development | Not support | |||
| Data output editing | Prefix&suffix | |||
| Transmission range | Open space 25 meters | |||
| Wireless technology | 2.4GHZ | |||
| Transmission distance | 60m(empty ground) | |||
| Wireless Transmit Power | 20dBm | |||
| Wireless Receiving Power | 20dBm | |||
| Scan Angle | Roll ±360°，Pitch ±72°，Skew ±82° | |||
| Environmental | ||||
| Drop | Withstand 5 drops from 1.5 meters | |||
| Sealing | IP54 | |||
| Operating Temperature | -10 - 60℃ | |||
| Storage Temperature | -20-70℃ | |||
| Operating Humidity | 5-95% Non-condensing | |||
| Storage Humidity | 5-95% Non-condensing | |||
| Ambient Light | 0-100000LUX | |||
| Indicator light | Red and blue two-color indicator: red light power prompt, blue light link prompt | |||
| Buzzer | Start prompt, decoding success prompt | |||
| Physical | ||||
| Trigger | Start, trigger Scan | |||
| Program Upgrade | Support for client updates | |||
| Net weight | 200g | |||
| Gross Weight | 400g | |||
| Dimension | 68mm* 96.5mm*175mm | |||
| Packing | 186.7mm*111.8mm*83.6mm | |||
| Cable length | 180CM(±3CM) | |||
| Expected operating time | ≥13h | |||
| Estimated charging time | ≤4.5h | |||
| Number of scans | Scans nearly 16,000 times per charge (1000 scans per hour) | |||
| Interface | USB port (free drive), USB virtual serial port (installation driver), serial port (free drive) | |||
| Battery capacity | 2000MAH | |||
| Storage Quantity | ≥15000 | |||
