AW-6800
Feature
1. Higher performance with faster scanning .
2. Unique design with comfortable Illumination.
3. Play and plug, no need any driver
4. Reliable quality with 2 years warranty
5. Support scan all 1D&2D, and screen codes
-
￥0.00￥0.00
-
Product Description
Feature
1. Higher performance with faster scanning .
2. Unique design with comfortable Illumination.
3. Play and plug, no need any driver
4. Reliable quality with 2 years warranty
5. Support scan all 1D&2D, and screen codes
|
|
|
Specification ——
| Apprearance | Physical | ||||
| Interface | USB / RS232 | |||
| Voltage | 5VDC± 5% | ||||
| Current(Typical) | 270mA ( 5 VDC) | ||||
| Current(Max) | 320mA ( 5 VDC) | ||||
| Standby Current | 170mA ( 5 VDC) | ||||
| Power Consumption(Typical) | 1350mW | ||||

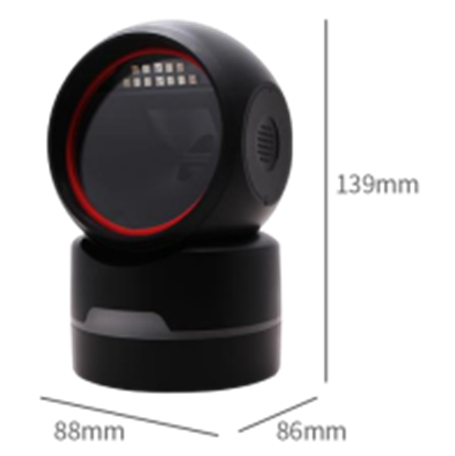

| Dimension | 88(W)×86(D)×139(H) mm | ||||
| Color | Black / White | ||||
| Net Weight(approx) | 260g | ||||
| Country Keyboard Layout | Multiple Country Keyboard Layout | ||||
| Indicator | LED, Beeper | ||||
| Performance | Environment | ||||
| Image Sensor | CMOS 640*480 | Operating Temperature | 0 ℃ ~ 50℃ | ||
| Light Source | RedLED + InfraredLED | Storage Temperature | -20℃ ~ +70℃ | ||
| Scan Angle | Skew±60° Pitch±60° Roll 360° | Humidity | 5% ~ 95% (Non-Condensing) | ||
| FOV | D=56° H =42° V =33° | Drop | with stands multiple 1.2m drops to concrete. | ||
| Resolution | ≥3.9mil | ||||
| Minimum Print Contrast | ≥20% | IP rating | IP50 | ||
| Decode Capacity | ESD | EN61000-4-2,±15KVAir Discharge、± 8KVcontact Discharge | |||
| 1D | Codabar、Code 11、Code 128、Code39、 Code 93、 EAN-8、EAN-13、GS1 DataBar、 UPC-A、 UPC-E、 Interleaved 2 of 5、 Industrial 2 of 5、 Matrix 2 of 5、 Straight 2 of 5 IATA、 MSI Plesse | ||||
| Ambient Light | 0 ~100,000LUX | ||||
| LED Safety | IEC62471 | ||||
| Accessories | |||||
| 2D | Aztec Code、HANXIN、Maxicode、 CodablockF、 DataMatrix Code ( DPM) 、PDF417、Micro PDF417、QR Code、 Micro QR Code、 DOT Code、GridMatrixCode | USB Cable | Data Transfer& Power Supply | ||
| RS232+USB(DC) | Data Transfer& Power Supply | ||||
| Remark. * The data in this leaflet is derived from our laboratory data and may differ from actual usage data. Technical specifications in the leaflet are subject to change without notice. * Test conditions: ambient temperature = 23°C; ambient illumination = 300 LUX incandescent lamp; paper code using the test sample code developed by our company. 2023/1/9 V1 Version | |||||
| Typical Decode Range | |||||
| Code39(5mil) | 0mm ~60mm Barcode Size： 25mm*10mm | ||||
| EAN-13(13mil) | 0mm ~230mm Barcode Size： 31mm*17mm | ||||
| QR(15mil) | 0mm ~160mm Barcode Size： 8mm*8mm | ||||
