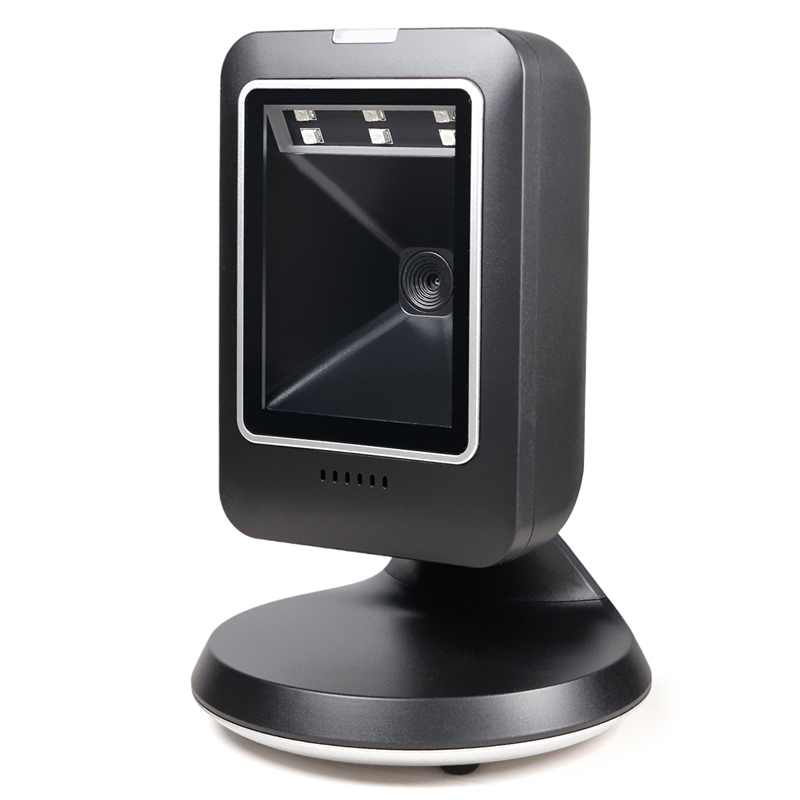

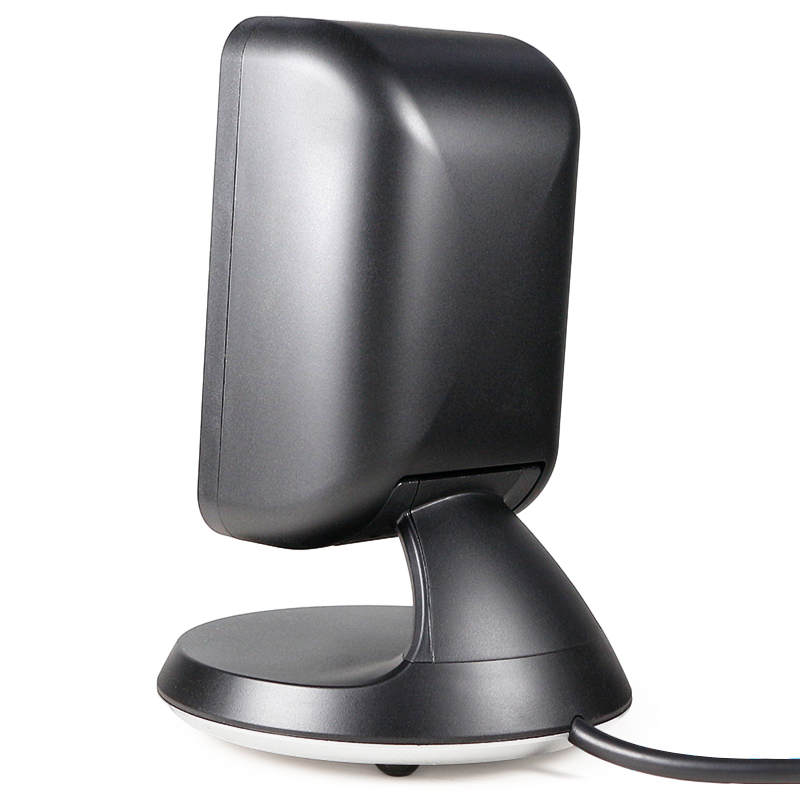

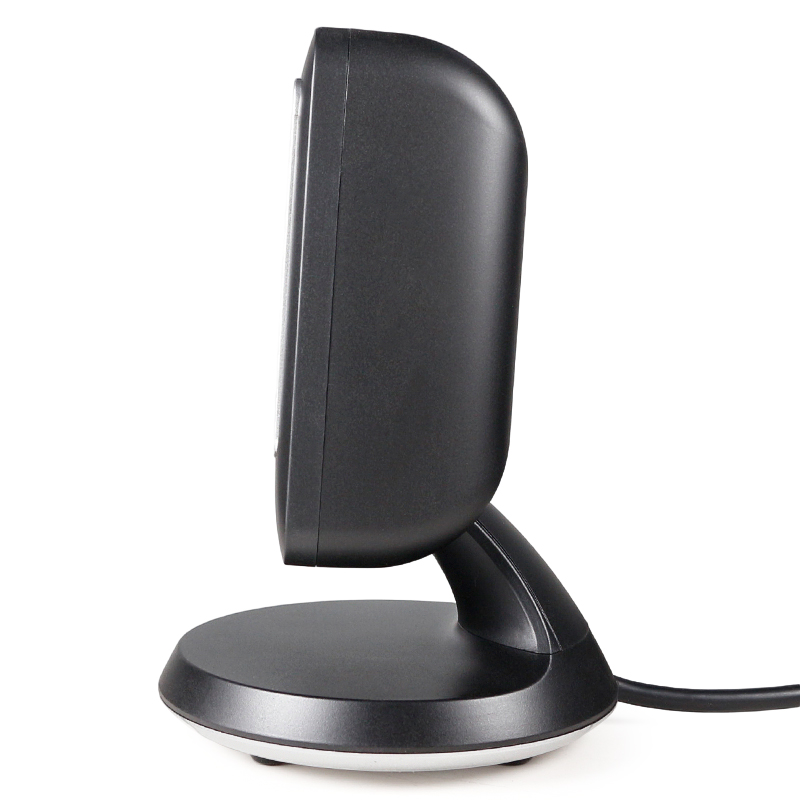

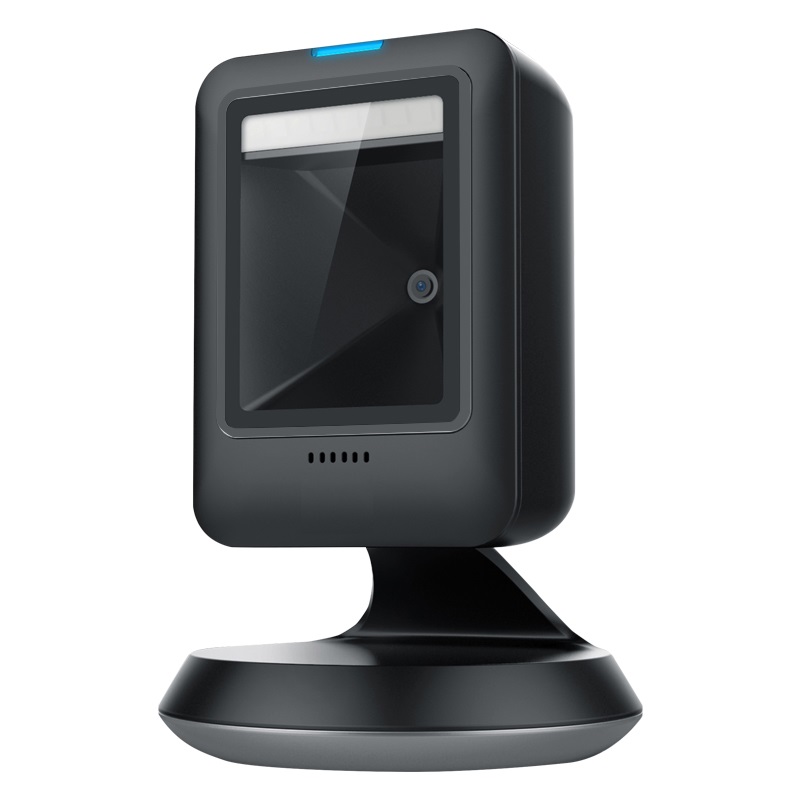

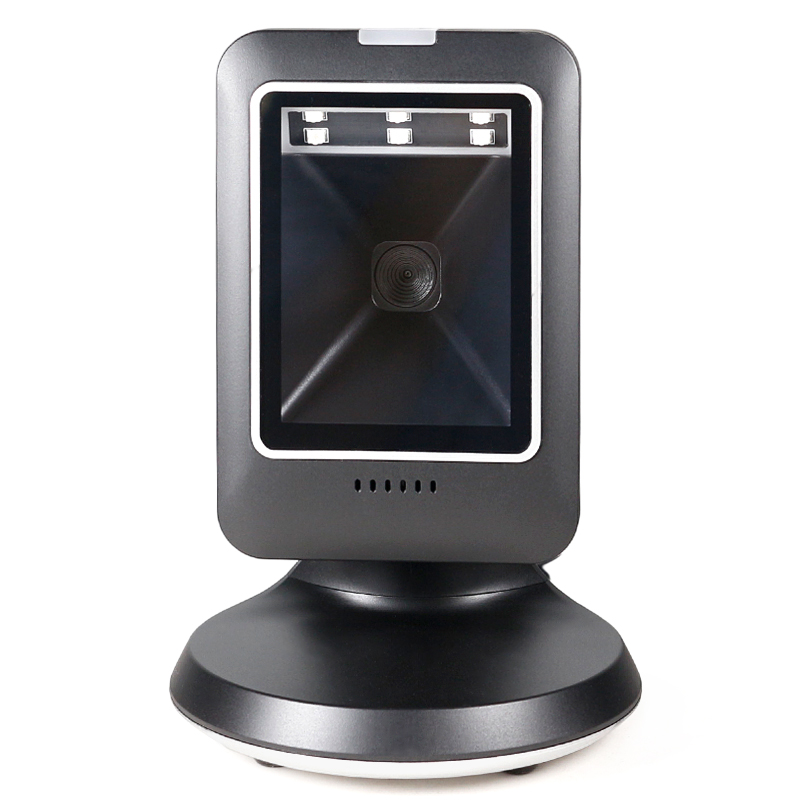

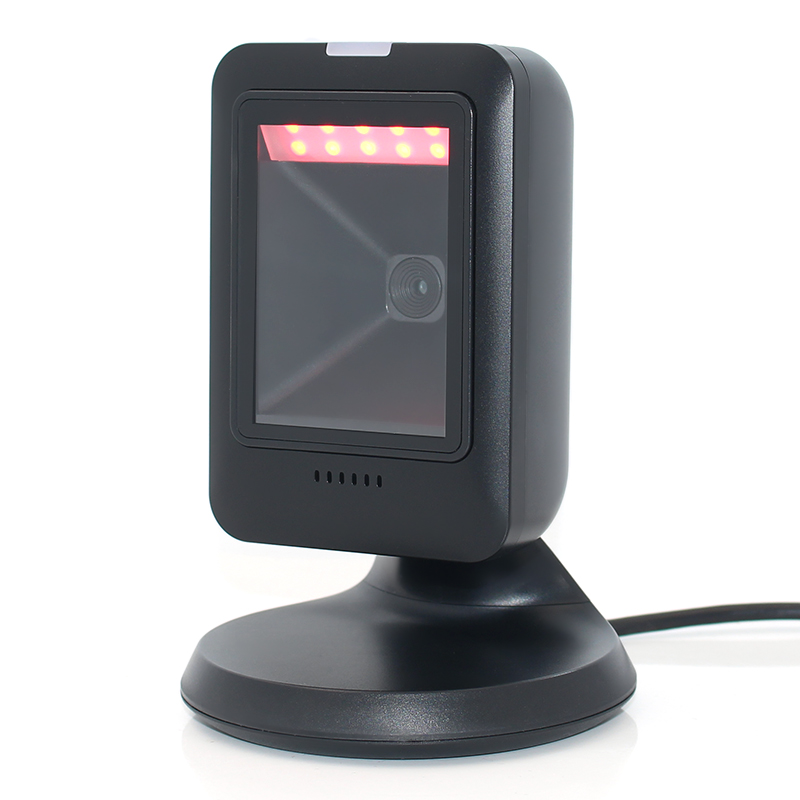

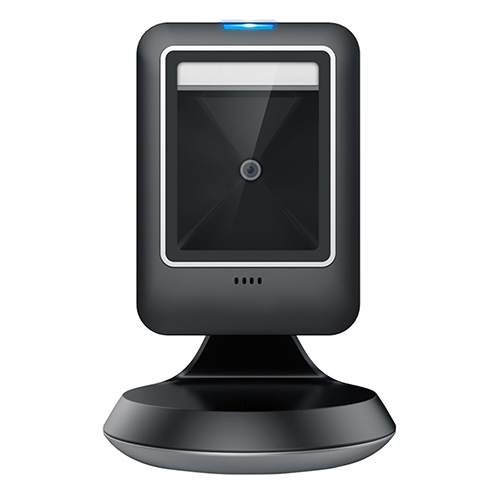

AW-6300
Feature
1. High speed identification: with high frame rate CMOS sensor, customized lens and excellent image
algorithm, it can quickly identify all kinds of barcodes.
2. Strong recognition ability: with independent image algorithm and iterative optimization for many years,
it can recognize all kinds of colors, high reflection, fold, Deformation, fuzzy barcode, high brightness
and low brightness mobile screen barcode.
3. Low power design: from the selection of the main chip, sensor and lighting to the circuit design, special low power processing has been done, taking into account the excellent scanning performance, while ensuring the reliability of data transmission in various power supply situations.-
￥0.00￥0.00
-
Product Description
Feature
1. High speed identification: with high frame rate CMOS sensor, customized lens and excellent image
algorithm, it can quickly identify all kinds of barcodes.
2. Strong recognition ability: with independent image algorithm and iterative optimization for many years,
it can recognize all kinds of colors, high reflection, fold, Deformation, fuzzy barcode, high brightness
and low brightness mobile screen barcode.
3. Low power design: from the selection of the main chip, sensor and lighting to the circuit design, special low power processing has been done, taking into account the excellent scanning performance, while ensuring the reliability of data transmission in various power supply situations.
|
|
|
Specification ——
| Performance | ||||
| Image Sensor | 640*480 Coms | |||
| Illumination | Red LED | |||
| Symbologies | 2D: QR Code、Micro QR、HANXIN、Aztec Code、Data Matrix、PDF417、Micro PDF417 | |||
| 1D: Codabar、Code 11、Code 128、EAN-8、EAN-13、Matrix 2 of 5、UPC-A、UPC-E、GS1 DataBar、Code 39、Code32、Code 93、GS1-128、Interleaved 2 of 5、Industrial 2 of 5、MSI Plessey | ||||
| Resolution | ≥5mil | |||
| Typical Decode Range | EAN-13 (13mil) | 25mm~200mm（Barcode Size：31mm*7mm） | ||
| PDF417 (6mil) | 10mm~145mm（Barcode Size：14mm*7mm） | |||
| Code39 (5mil) | 40mm~100mm（Barcode Size：27mm*8mm） | |||
| QR Code (15mil) | 15mm~180mm（Barcode Size：10mm*10mm） | |||
| Min Print Contract | ≥25% | |||
| Scan Angle | Skew±70°，Pitch±70°，Roll 360° | |||
| FOV | Diagonal 52.8°，Horizontal 41°，Vertical 31° | |||
| Electronic | ||||
| Interface | USB, RS232 | |||
| Dimension(mm) | 147(W)×48(D)×11.7(H) | |||
| Operating Voltage | 5VDC±5% | |||
| Power | 900mW(Typical) | |||
| Current | 5V DC, Operating: 180mA(RMS Typical)，250mA(RMS Max) | |||
| Standby: 140mA | ||||
| Environmental | ||||
| Operating Temperature | 0℃~+60℃ | |||
| Storage Temperature | -40℃~+70℃ | |||
| Operating Humidity | 5%~95%（Non-Condensing） | |||
| Embient Light | 0~100,000LUX | |||
| Accessories | ||||
| Cable | USB port: USB Cable | |||
| RS-232 port: RS232 Cable | ||||
