Operate OS

Android

Windows

Motherboard

RK3568   Android Industrial control motherboard

I5   Industrial control motherboard (i3, i7 optional)

CPU

Quad   core Cortex-A17 , 1.8GHz ARM Mali-T764 GPU, Support TE, ASTC, AFBC Memory compression technology

Intel   Four core and four thread, 2.0GHz

RAM

2G/DDR3

8G   DDR3 Notebook memory

Memory

16G

128G   SSD

Display

21.5inch   /23.6inch / 27inch / 32 inch,    1920*1080 resolution,  IPS LED   display is optional

Touch Screen

Pure   plane capacitive screen. Support 10 touch points

Port

Backside   2*USB;  1*RJ45 LAN; 1*Power Port

Backside   4*USB; 1*RJ45 LAN port; 1* Power Port

Bluetooth

Bluetooth   4.0

No

Ethernet

RJ45   self-adaption 10M/100M Network card

Wifi

802.11   a/b/g wifi

Speaker

Built-in

Scan parts specs

Light Source

Illumination:   650nm RED LED

Voltage

5VDC

1D code

UPC,EAN,Code128,Code39,Code93,Code11,Matrix2of5,Interleaved2   of 5,Codabar,MSI Plessey,GS1 DataBar, China Postal, KoreanPostal,etc

2D code

PDF417,MicroPDF417,Data   Matrix,Maxicode,QR Code,MicroQR,Aztec,Hanxin,etc

Scan resolution

4 mil   Code39

Scanning angle

Tilt   ： ±60° @ 0° Roll and 0° Skew
    Rotate： ±360° @ 0° Pitch and 0° Skew
    Deflection：±65° @ 0° Roll and 0° Pitch

Optical

40°   (H) X 35° (V)

Interface

USB

Sound

Beeper

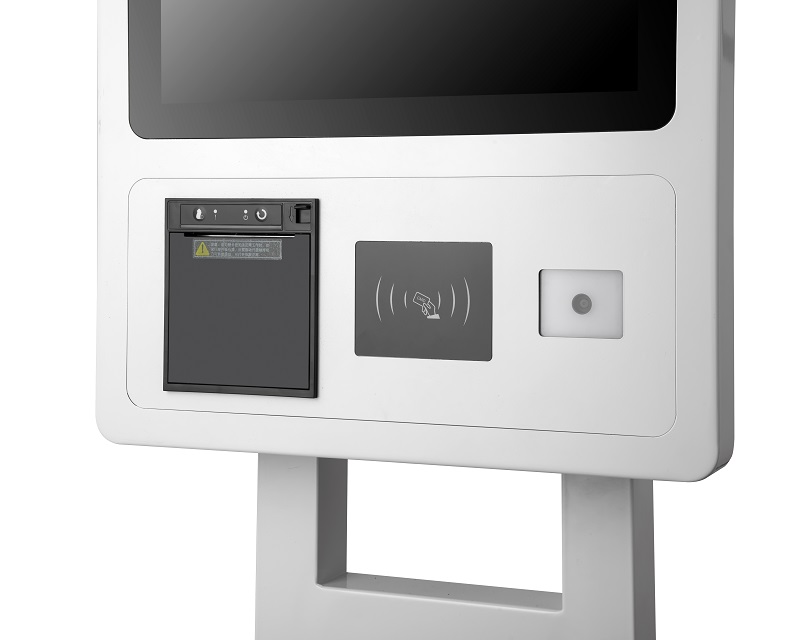

Printer parts specs

Print Width

58mm/   80mm

Voltage

24VDC

Light

LED   light, prompt for paper lack

Print Resolution

203*203DPI

Print Speed

260mm/s(max)

Paper tear off

Full   cut / half cut

Accessories

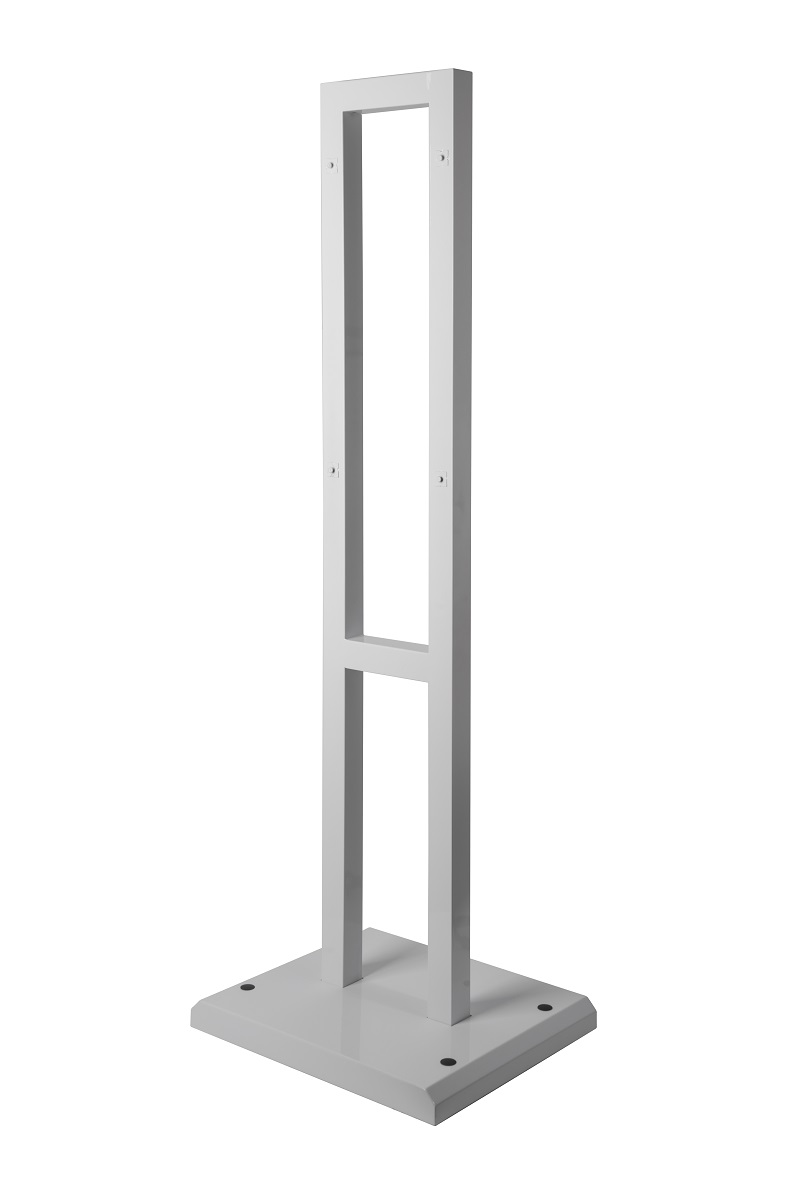

Stand

Full   metal stand

NFC

Optional

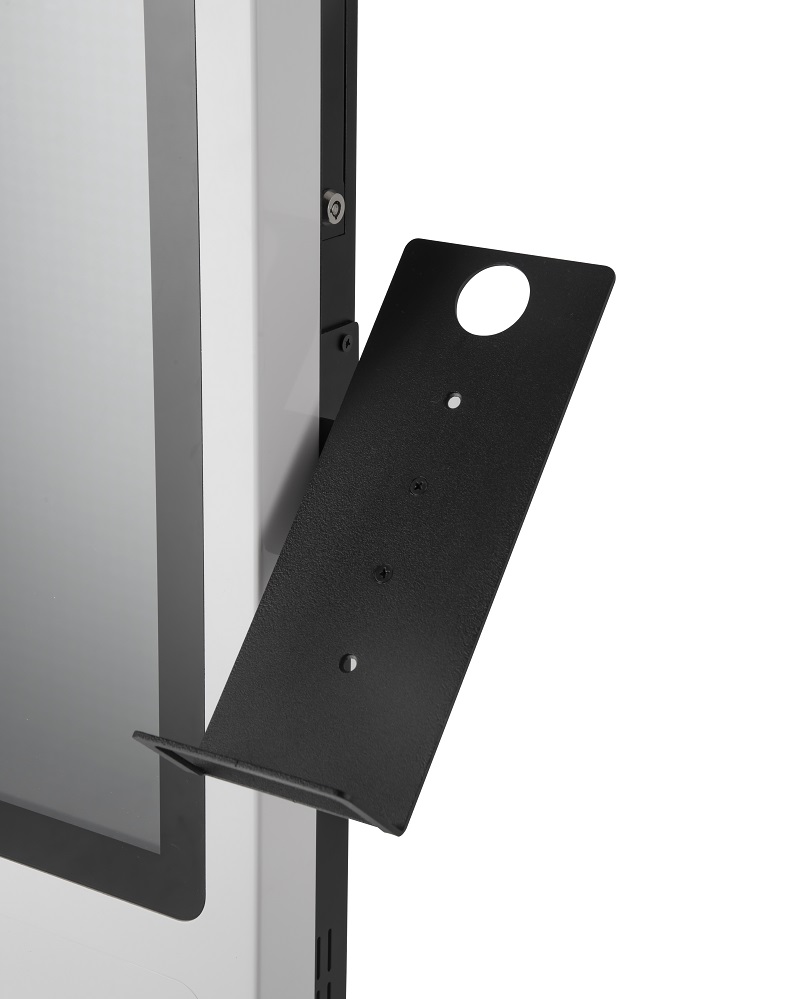

Bank swipe card stand

Optional

Camera

Optional

Packing

Machine

21.5inch:  2400px*1225px*525px,  18.4kgs;      23.6inch: 2500px*1275px*525px,  20kgs
    27inch:  2800px*1400px*525px,   22kgs;       32inch:  3050px*1600px*550px,  29kgs

Stand body

4150px*800px*200px,  13kgs

Stand plate

1375px*1150px*250px,  13kgs
