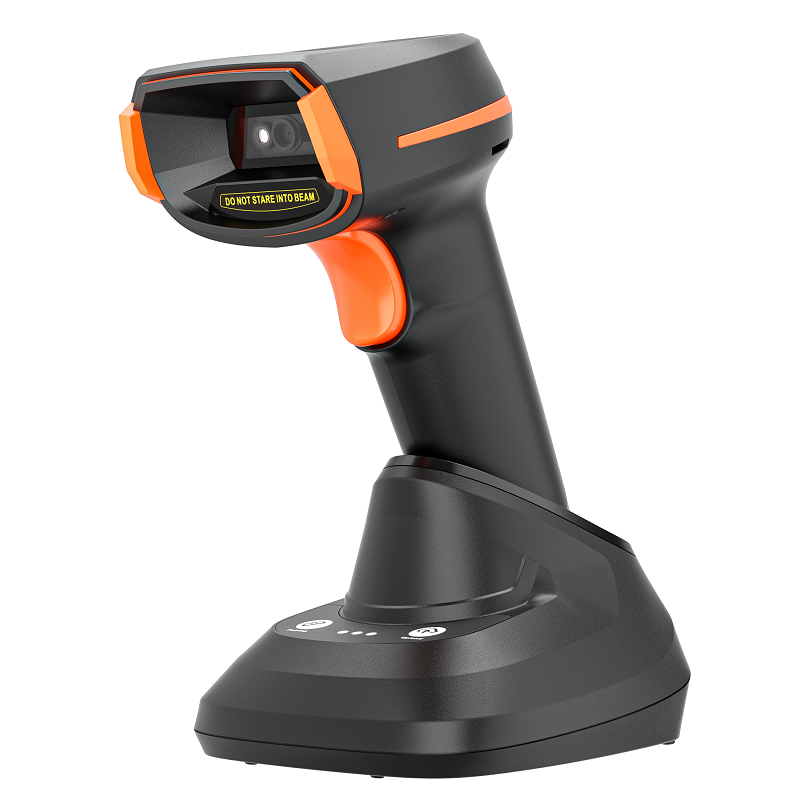

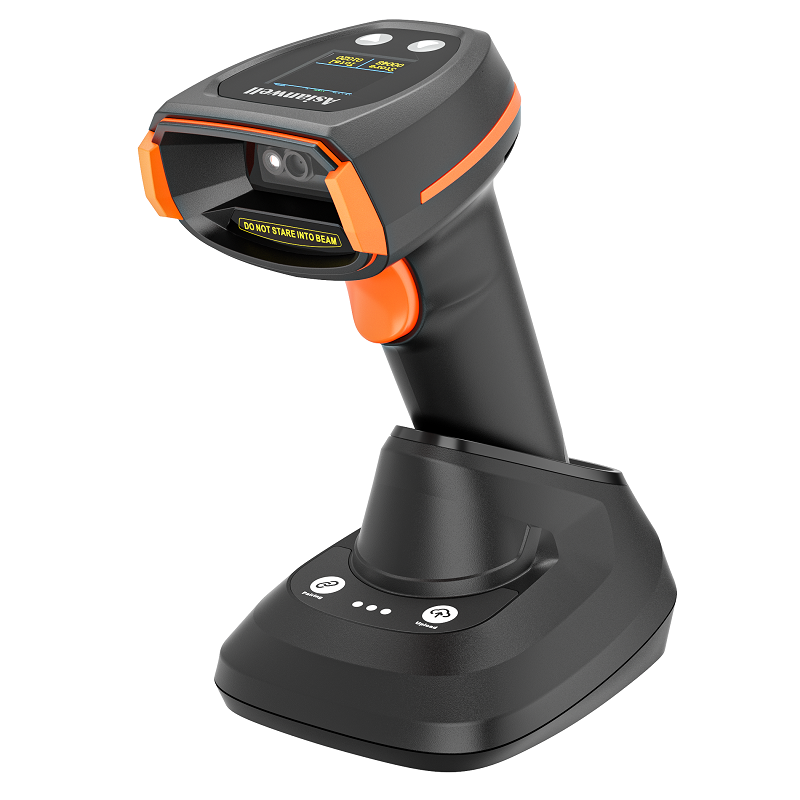

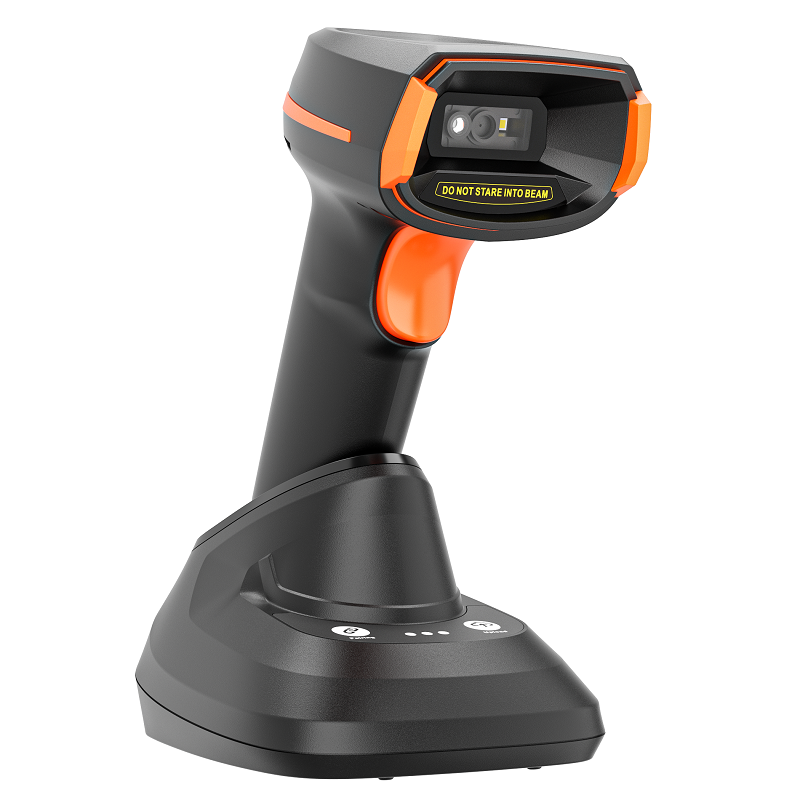

AW-4208WBS
Feature1. 1MP image frame rate up to 60fps
2. Easy and fast to pairing and uploaded data via cradle.
3. Support OCR ( Passport, ID card,driving license card,Visa Card etc.)
4. 3-in -1 transmission: Cradle +BT+Type-B Cable
5. Support screen display (1.44 inch color screen), real-time observation of battery power
6. Support for oƿine storage mode,can memory 380,000 characters (EAN-13 code)
-
￥0.00￥0.00
-
Product Description
Feature
1. 1MP image frame rate up to 60fps
2. Easy and fast to pairing and uploaded data via cradle.
3. Support OCR ( Passport, ID card,driving license card,Visa Card etc.)
4. 3-in -1 transmission: Cradle +BT+Type-B Cable
5. Support screen display (1.44 inch color screen), real-time observation of battery power
6. Support for oƿine storage mode,can memory 380,000 characters (EAN-13 code)
|
|
|
Specification ——
Technology | |
Support OS | Windows / iOS / Android |
Scan type | 2D image CMOS |
Interface | USB-HID USB-COM, RS232 |
Resolution | 1280 pixels(H)x 800 pixels(V) |
Scan Mode | Manual/Auto scan/ Continue Scan |
Lighting Sourcing | Aiming: 625 nm LED; illumination:4000K LED |
Frame rate | 60fp/s |
Scanning angle | Roll: ±360°, Pitch:±55°, Skew: ±55° |
Field of view | 41° horizontal, 28° vertical |
Minimum Resolution | ≥4mil（CODE 39） |
Scan distance | EAN 25-300MM(13mil) |
QR 30-350MM(20mil) | |
Support Symbologies | 1D：UPC/EAN/JAN, UPC-A & UPC-E, EAN-8 & EAN-13, JAN-8 &JAN-13, ISBN/ISSN, Code 39 (with full ASCII), Codabar (NW7), Code 128 & EAN 128,Code 93, Interleaved 2 of 5 (ITF), Addendum 2 of 5, IATA Code, MSI/Plessy, China Postal Code, Code 32 (Italian Pharmacode), RSS-14、RSS-Limited、RSS-Expand, etc. |
2D: QR Code, PDF417, Data Matrix, Aztec, Maxicode, Dotcode, GS1 DataBar Stacked, etc. | |
Printing contrast | ≥20% |
Visual Indicato | Red, blue and green LED lights, Buzzer and motor vibration |
Memory Capacity | 380000 bytes |
Work frequency | 2.400GHz-2.480GHz ISM frequency |
Wireless | 2.4G: 100m; Bluetooth HID: 40m(in open air) |
Paired Mode | one to one, or one to more (Optional) |
Physical | |
Size | Scanner: 92mm x 70mm x 179mm （L xW xH） |
Cradle: 94mm x 75mm x 122mm （L xW xH） | |
Weight | Scanner: 227g（with 18650 Electric core) |
Cradle: 132g | |
Material | ABS+PC, TPU |
Cable Length | 1.5m |
Electronical | |
Voltage | 5VDC±5 |
Working Current | 400mA |
Firmware Update | Computer online upgrade |
Scanner Material | Eco-friendly, ABS+Rubber |
Charge Mode | Wire charging / seat charging |
Battery | 2000mAh, 5hours full charge, continue use over 12hours |
Environmental | |
Operation Temperature | -10 ℃ - 50℃ |
Storage Temperature | -20 ℃ - 60℃ |
Humidity | 5% - 95% |
Electrostatic protection: | ±8 kV（Direct discharge) |
Ambient lighting | 0-100000LUX |
Seismic resistance | 1.6m |
IP Level | IP42 |
Packing List | |
Barcode scanner×1pc, Base ×1pc USB cable×1pc, Manul×1pc | |
Inner box | 1pc/box, 100 x 80 x 240mm, 0.59Kg |
Out box | 20pcs/ctn, 540 x 470 x 380mm, 11.7Kg |
