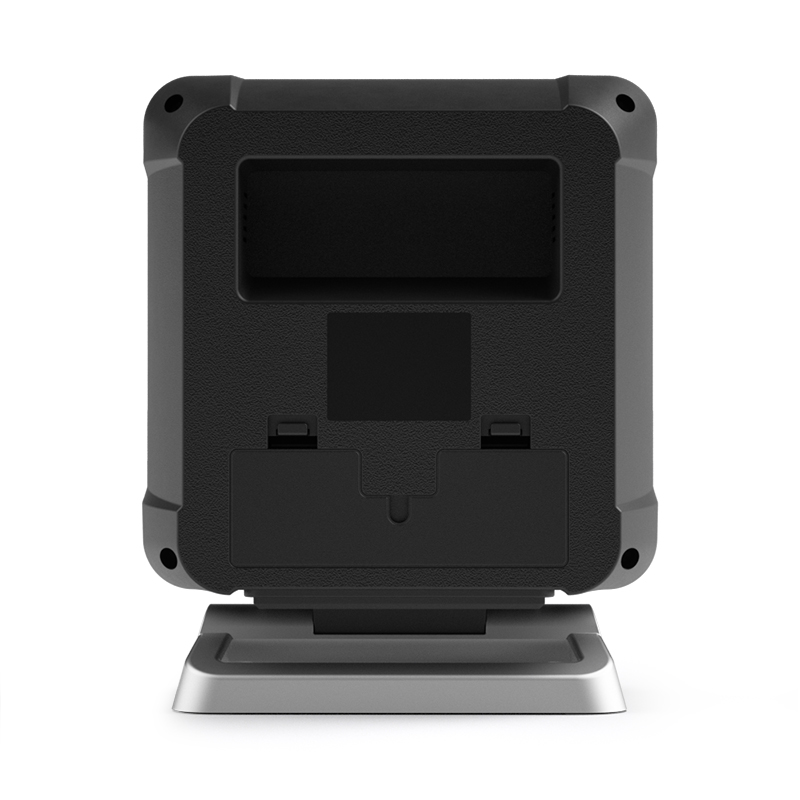

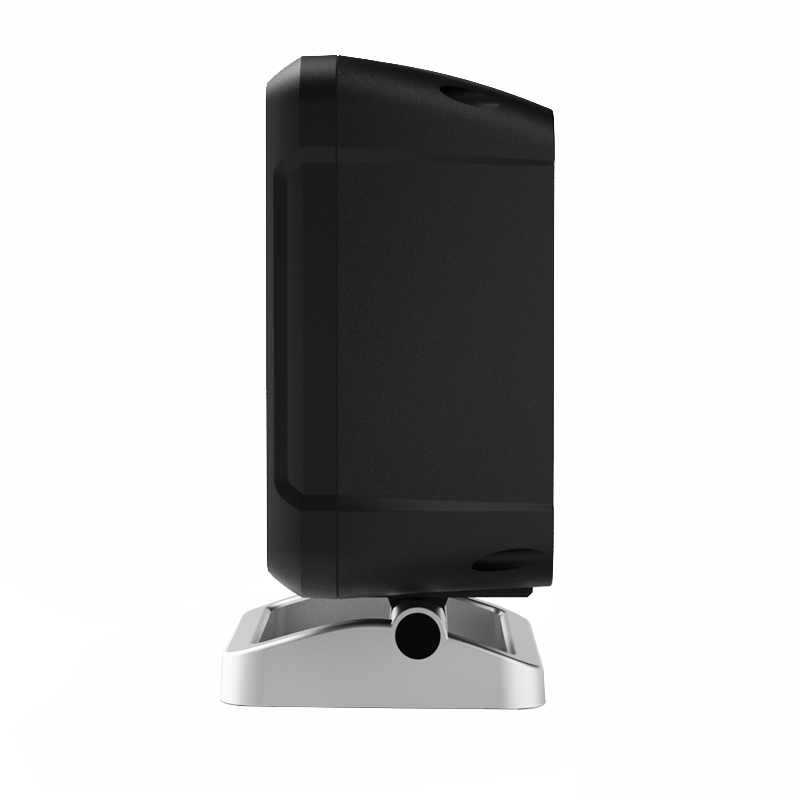

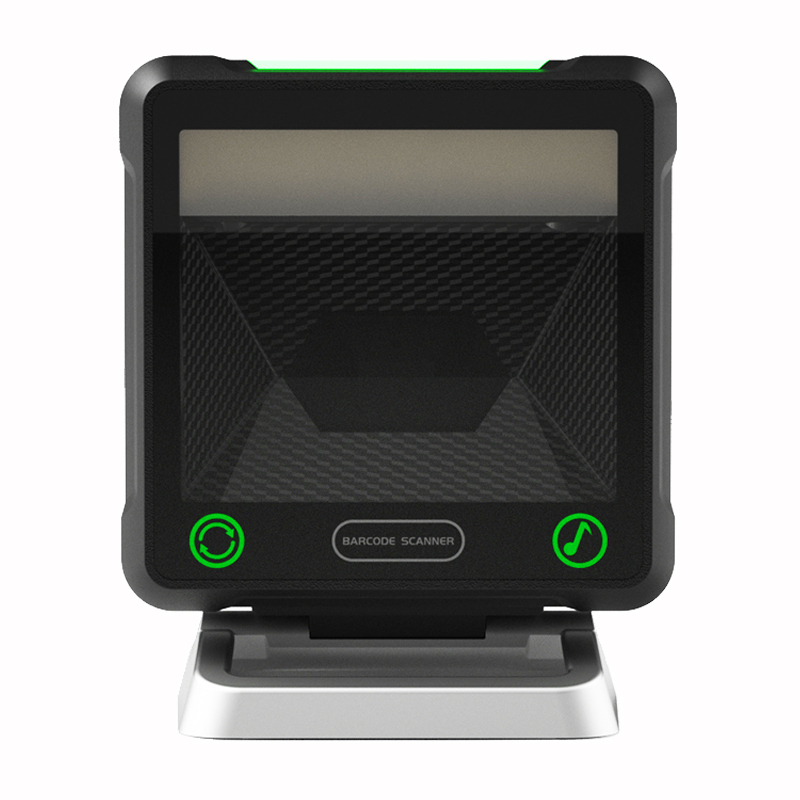

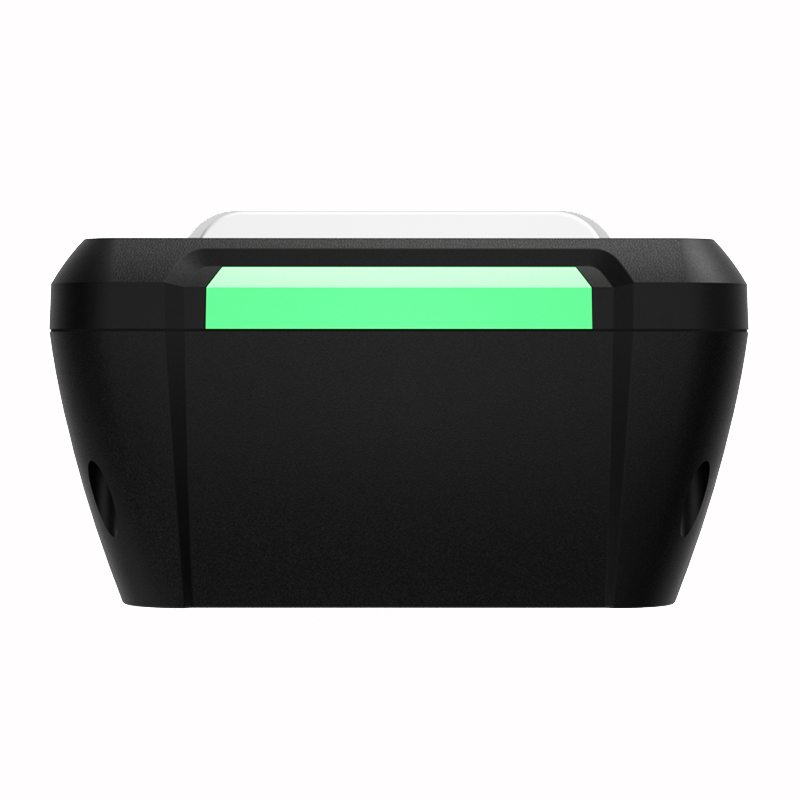

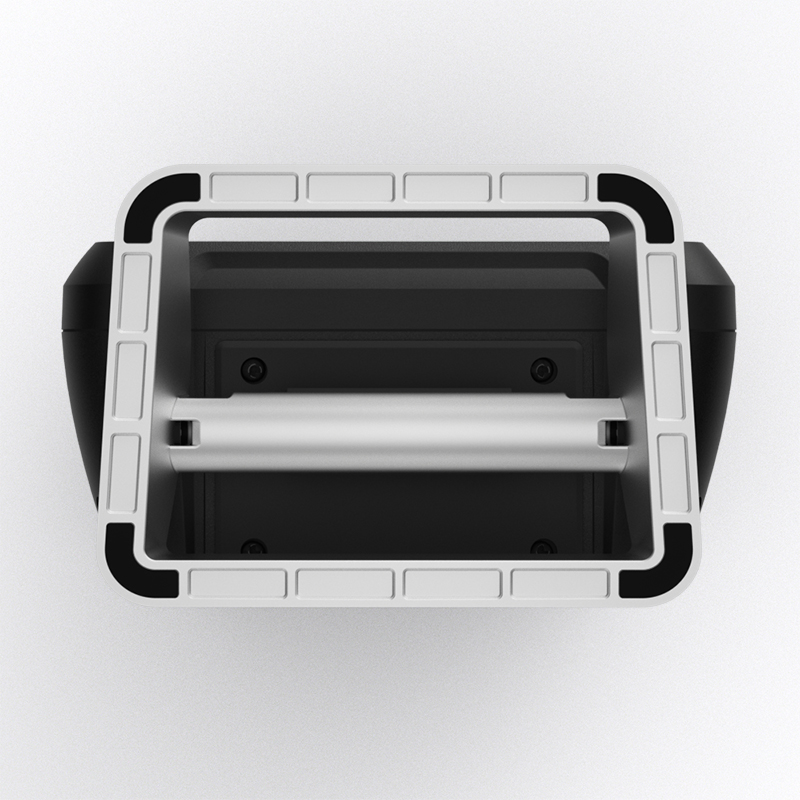

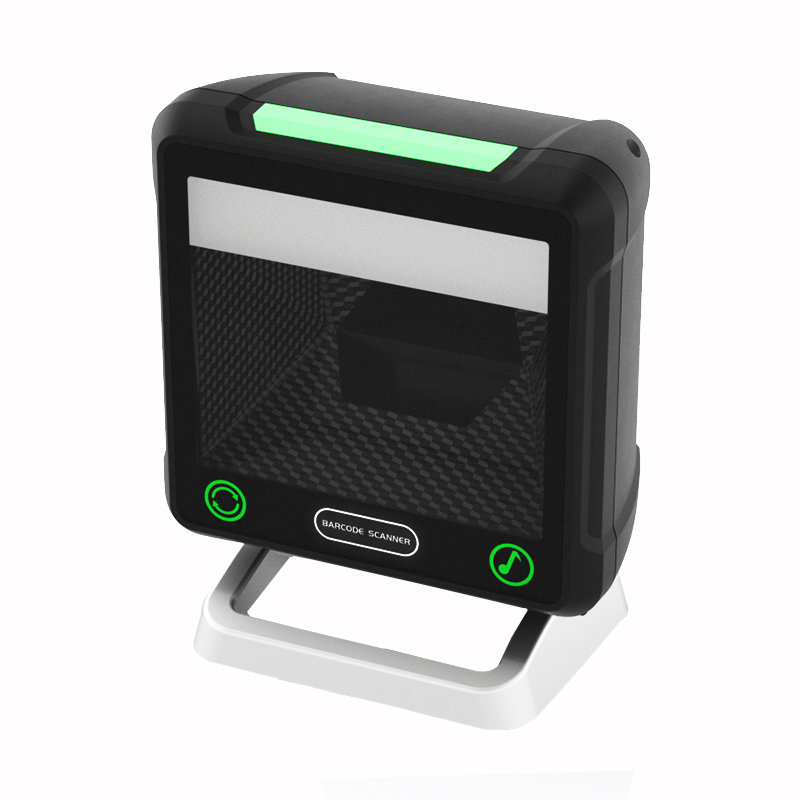

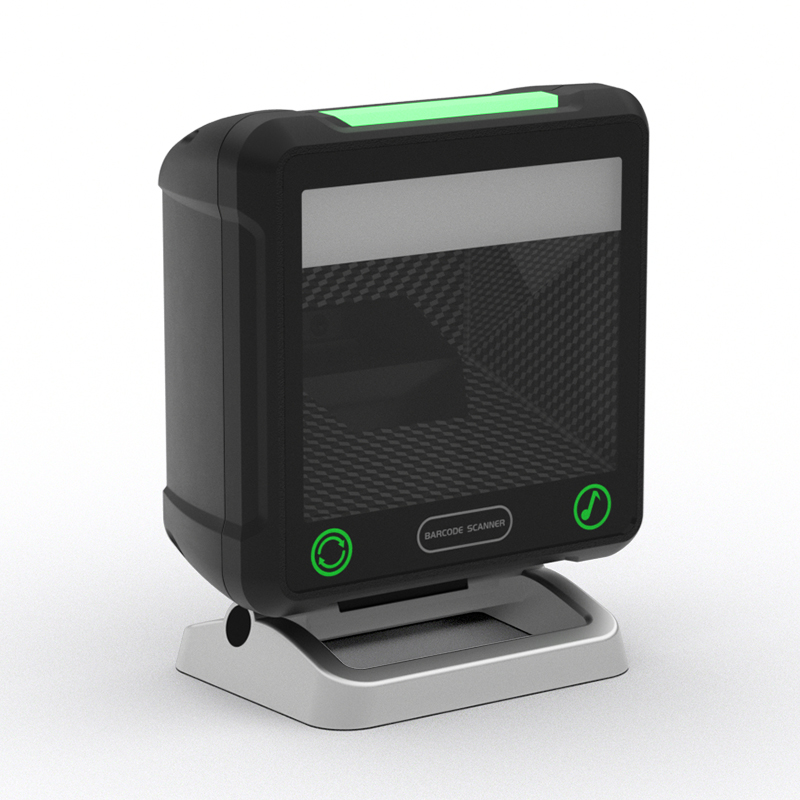

AW-S9T
Feature
1. Equipped with a new global exposure scan engine
2. Larger scanning window for easier reading
3. Adjustable angle, flexible and easy to use
4. Commonly used function buttons, easier to set
5. 5 styles of beeps, soft and bright LED indicators
6. Rich interfaces, strong compatibility, support a variety of systems and cash register-
￥0.00￥0.00
-
Product Description
Feature
1. Equipped with a new global exposure scan engine
2. Larger scanning window for easier reading
3. Adjustable angle, flexible and easy to use
4. Commonly used function buttons, easier to set
5. 5 styles of beeps, soft and bright LED indicators
6. Rich interfaces, strong compatibility, support a variety of systems and cash register
|
|
|
Specification ——
Physical parameters | |
Scan mode | Auto-sensing/continuous scanning |
Communication interface | USB-HID keyboard, USB-COM virtual serial port, RS232 serial port(optional). |
Interface type | USB TYPE-B |
Prompt way | Buzzer, LED light |
How it's set up | Press the button to set it, and manually scan the setting code in |
Housing material | ABS+PC |
Cable standards | Straight line 1.5m |
Exterior dimensions | 187mm× 155mm×97mm(product); 225mm× 164.5mm× 104mm(outer packing). |
Weight | Net weight: 837.7g; Gross weight 1037g |
Performance parameters | |
The type of scan | CMOS global exposure |
Resolution | 1280*800 |
Light source | 617nm red LED |
Scan angle | ±70°, ±54°, 360° (left and right, front and back, rotation). |
Scan rate | 120 times/second |
Field of view | 48° (H) x 30° (V) |
Print contrast | 20% minimum |
Decode the kind | 1D: UPC-A, UPC-E0, UPC-E1, EAN-8, EAN13, Code128, GS1-128, Code39, Code32, Code93, Code11, Interleaved 2 of 5, Industrial 25, Matrix 2 of 5, Standard 25, CodaBar, MSI-plessey, GS1 Databar |
Minimum resolution | 4mil |
Electrical parameters | |
Input voltage | DC 5V±10% |
Current | Operating: 240 mAh; Standby: 190 mAh |
Environmental parameters | |
Temperature | 0°C-50°C (working); -20°C~+70°C (storage). |
Humidity | 5%-95% non-condensing |
Feature:
1. Avoid accidental touches, using infrared optical dual sensing technology
2. Intelligent anti-rereading, target detection method effectively reduces rereading
3. Reliable performance, mature decoding logic and image processing technology
4. Easy to operate, plug and play, support firmware upgrade
5. Smooth reading, quick passing in front of the window, can quickly capture and identify
6. Eye protection design, soft light LED is not dazzling
Appearance | |
| |
Performance | |
Image Sensor | CMOS 1280*800 |
Light Source | Red LED + LED |
Scan Angle | Skew±70° Pitch±60° Roll 360° |
FOV | D=44.6° H=36.4° V=27.8° |
Resolution | ≥5mil |
Minimum Print Contrast | ≥20% |
Decode Capacity | |
1D | Codabar、Code 11、Code 128、Code 39、Code 32、Code 93、EAN-8、EAN-13、ISBN、ISSN、UPC-A、UPC-E、GS1 DataBar、ISBT128、NEC 2 of 5、MSI Plessey、GS1 128、Industrial 2 of 5、Telepen、Interleaved 2 of 5、Matrix 2 of 5、Hong Kong 2 of 5、Postal Code、Trioptic、Straight 2 of 5 IATA |
2D | QR Code、Micro QR、Data Matrix、PDF417、Micro PDF417、HANXIN、Aztec Code、Maxi code |
Typical Decode Range | |
Code39（5mil） | 0 mm~40 mm Barcode Size：25mm*10mm |
EAN-13（13mil） | 5 mm~270 mm Barcode Size：31mm*17mm |
QR（15mil） | 0 mm~200 mm Barcode Size：8mm*8mm |
Physical characteristics | |
Interface | USB / RS232 |
Operating Voltage | 5 VDC±5% |
Operating Current(typical) | 450mA（5 VDC） |
Operating Current(Max) | 480mA（5 VDC） |
Standby Current | 220mA（5 VDC） |
Power Consumption | 2250mW |
Dimension(not with stand) | 145(W)×77(D)×136(H)mm |
Dimension(with stand) | 145(W)×84.5(D)×147(H)mm |
Color | Gray-blue |
Net weight | 415g（not with stand） / 520g（include stand） |
Country Keyboards | 30 country keyboard |
Indication | LED indicator, Beeper |
Environmental | |
Operating Temperature | -10℃ ~ 50℃ |
Storage Temperature | -20℃~ 60℃ |
Humidity | 5%~95%（Non-condensing） |
Drop | Can withstand multiple drops from a height of 1m onto a concrete floor. |
IP Level | IP52 |
ESD | EN61000-4-2，±6KV direct charge，±15KV air charge |
Ambient Light | 0~100,000LUX |
LED Safety | IEC 62471 |
Accessories | |
USB Cable | For data transmission, power supply. |
RS232 Cable | For data transmission, power supply. |
Stand | Flexible installation |
