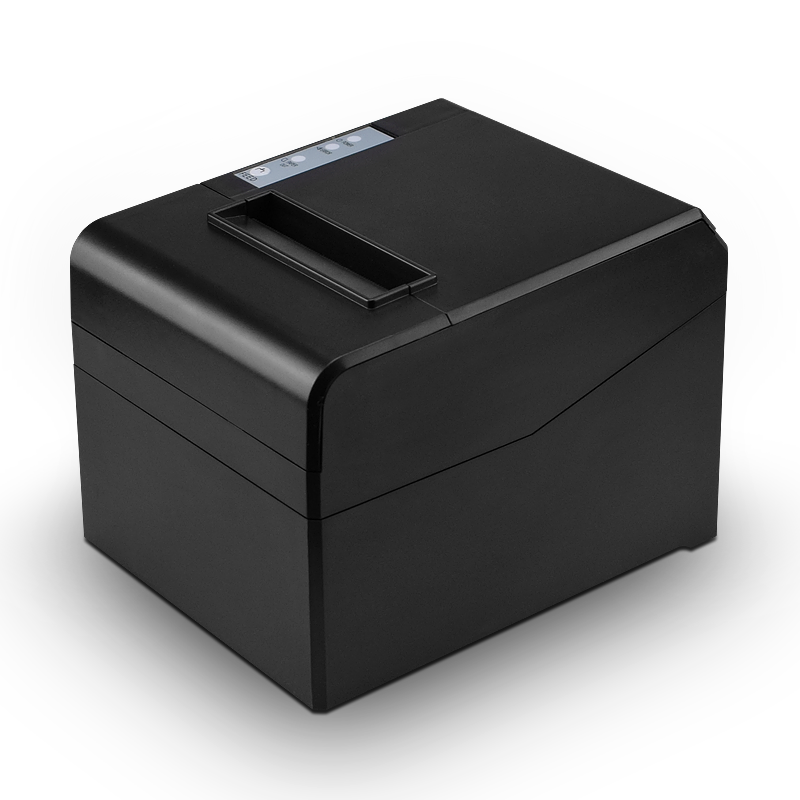

AW-8330
Feature
1.High print quality, low cost, low noise, high speed printing;
2. Support cash box drive, support multiple languages
3. Low power consumption, low operating cost (no ribbon, ink cartridge required)
4. Built-in data buffer (can receive print data when printing)
5. Characters can be enlarged for printing, and character line spacing can be adjusted for printing
6. Support different density bitmaps and downloaded graphics printing
7. Support raster bitmap printing
8. Compatible with ESC/POS printing instruction set, multiple modes adjustable
-
￥0.00￥0.00
-
Product Description
Feature
1.High print quality, low cost, low noise, high speed printing;
2. Support cash box drive, support multiple languages
3. Low power consumption, low operating cost (no ribbon, ink cartridge required)
4. Built-in data buffer (can receive print data when printing)
5. Characters can be enlarged for printing, and character line spacing can be adjusted for printing
6. Support different density bitmaps and downloaded graphics printing
7. Support raster bitmap printing
8. Compatible with ESC/POS printing instruction set, multiple modes adjustable
|
|
|
Specification ——
Specifications | |
Interfaces | Serial port/USB port/ Ethernet/Bluetooth/WIFI (optional) |
Print Comand | ESC/POS |
Print Method | Thermal Line Printing |
Pirnt Speed | 220mm/sec |
No. of Total Dots | 512 dots/Line |
Auto Paper Cutter | Full or Partial cut |
Print Width | 72mm |
Print Font | 12 x 24; 24x 24 |
Character Set | Alphanumeric /Chinese Kanji |
NV Flash | 256K bytes |
Compatible OS | Win9X/Win2000//Win2003/Win Vista/ Win 7/Window XP /win 8/Win8.1/Win10/linux/Android/iOS Compatible with ESPON,SAMSUNG |
Paper | |
Type | Roll Paper |
Width | 79.5±0.5mm |
Roll Diameter | 83mm |
Paper Thickness | 0.06-0.08mm |
Electrical | |
Adapter Voltage | DC24V/2.5A |
Cash Drawer Control | 12V/1A |
Print Head | Reliability |
Print Reliability | 100km |
Physical | |
Dimension | 23*22*425px |
Unit Weight | 1.30kgs |
Pieces Per CTN | 8 Pieces |
Color | Black |
CTN Dimension | 46.6 x 43.8 x 34.8cm |
Carton Weight | 17kgs |
Environmental | |
Temperature | Working: 0 to 45 Degrees |
Humidity | Working: 10%-80% |
Warantty | 12 months at least |
Other Features | Bold printing / character adjusting / line spacing setting supported ; Support multiple 1D and QR code types printing |
Aceesories | |
USB Cable | 1 x 1M Cable |
Adapter | 24V /2.5A |
Thermal Roll | 1 Piece |
Manual | 1 Piece |
Power Cable | 1 Piece |
