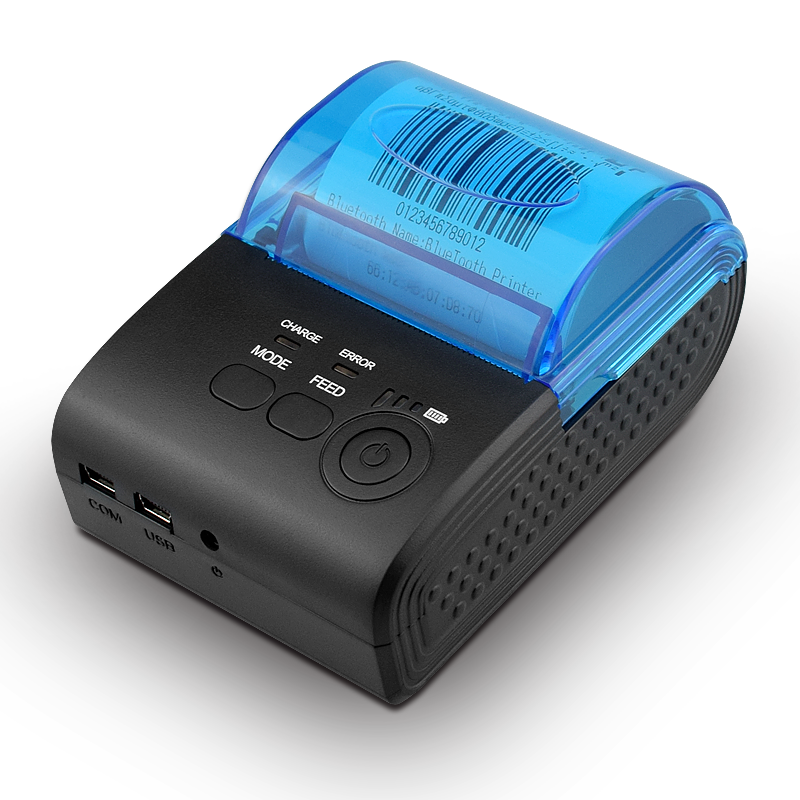

AW-5805
Feature
1. Small size with bluetooth connect
2. High printing quality and low cost
3. Low noise, high-speed printing
4. Super large capacity battery can last long time
5. Easy to pack paper structure, compact structure, easy to use and maintain
6. Low power consumption, low operating cost (no need for ribbons or ink cartridges)
-
￥0.00￥0.00
-
Product Description
Feature
1. Small size with bluetooth connect
2. High printing quality and low cost
3. Low noise, high-speed printing
4. Super large capacity battery can last long time
5. Easy to pack paper structure, compact structure, easy to use and maintain
6. Low power consumption, low operating cost (no need for ribbons or ink cartridges)
|
|
|
Specification ——
| Specifications | |
| Interfaces | USB / Bluetooth 4.0 |
| Print Comand | ESC/POS |
| Print Method | Thermal Line Printing |
| Pirnt Speed | 70mm/sec |
| Resolution | 203DPI (8dot/mm) |
| No. of Total Dots | 384 dots/Line |
| Print Width | 48mm |
| Character Size | 1.5 x 3.0mm (W x H)/3.0 x 3.0mm (W x H) |
| Print Font | 12 x 24; 24x 24 |
| Character Set | Alphanumeric /Chinese Kanji |
| Data Buffer | UP to 50K bytes |
| Compatible OS | Window Systems ; Android & IOS Operate Systems |
| Paper | |
| Type | Roll Paper |
| Width | 57.5± 0.5mm |
| Roll Diameter | φ≤38mm |
| Paper Thickness | 0.06-0.08mm |
| Electrical | |
| Battery | 9 VDC/1500mA |
| Charging mode | DC9V/2A |
| Standby Time | 4 days after fully charged |
| Continuous Printing | 120 pieces Thermal Roll for fully charged battery |
| Physical | |
| Dimension | 103.5*78*45.5mm |
| Unit Weight | 440g (including accessories: lithium-ion batteries, cable, test paper) |
| Carton Size | 47x38x850px |
| GW per carton | 18kg (40pcs/CTN) |
| Color | Black |
| Environmental | |
| Temperature | Working: -10 to 50 Degrees |
| Humidity | Working: 10%-90% |
| Warantty | 12 months at least |
| Certificates | CE& FCC ROHS ISO9001:2008 |
| Other Features | Paper detection, Power detection, Manual shut down, 1D&QR Code Print; Led indicator; Big Paper Warehouse; Quick-acting USB Charging |

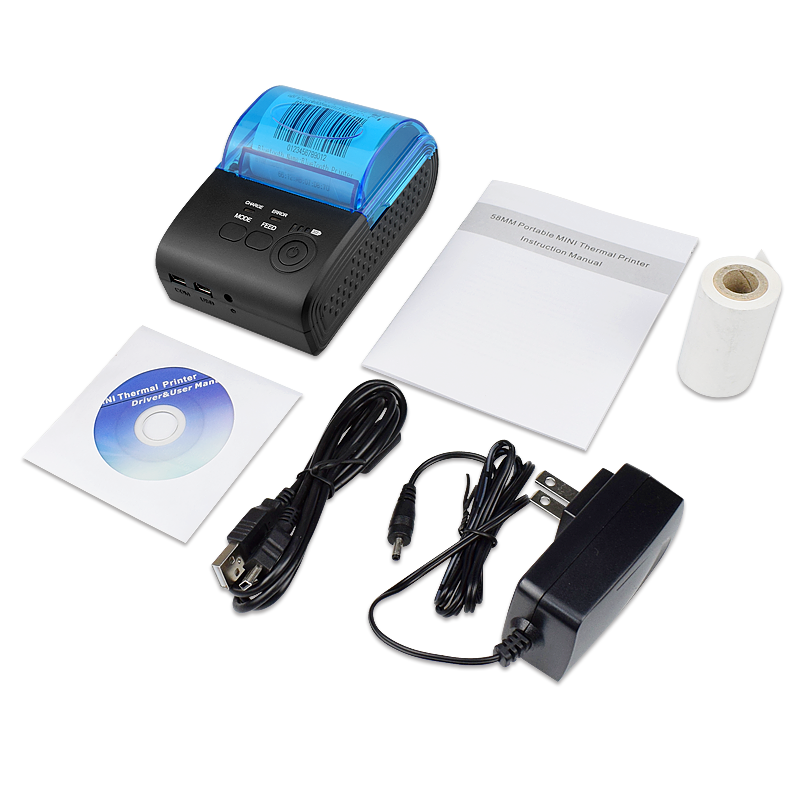

| Accessories | |
| USB Cable | 1 x 1M Cable |
| CD Driver | 1 Piece |
| Adapter | 9V /2A |
| Thermal Roll | 1 Piece |
| Manual | 1 Piece |
