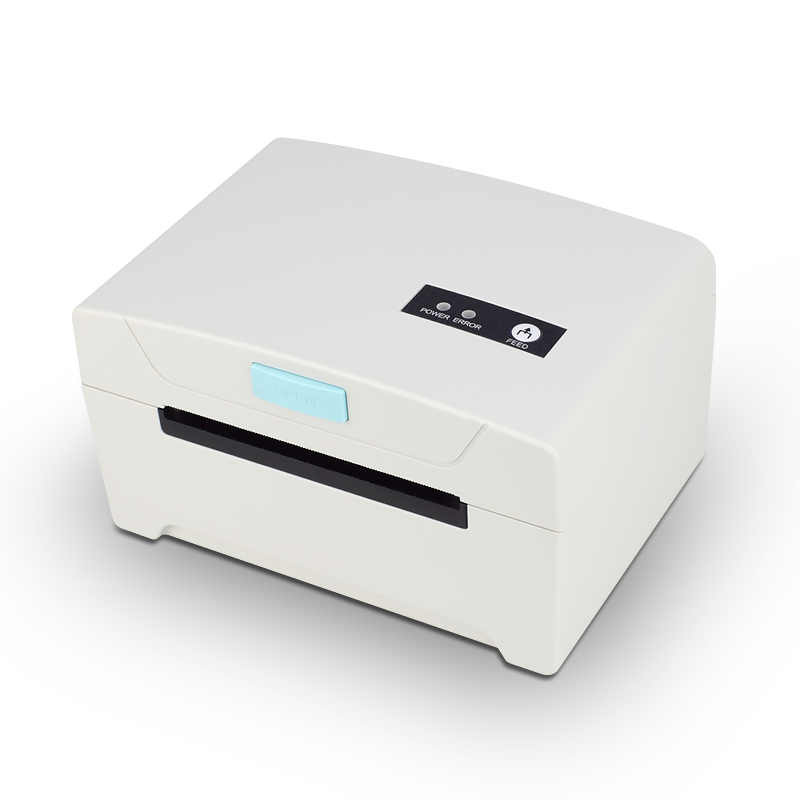

AW-8600
Feature:
1, No paper warehouse design, no ribbon.
2, External bracket paper holder , for printing two different types of labels.
3, Dual-wall frame, robust and sturdy structure.
4, TPH special designed overcoat, endure large printing volume.
5, CPCL and TSPL programming language.
-
￥0.00￥0.00
-
Product Description
Feature:
1, No paper warehouse design, no ribbon.
2, External bracket paper holder , for printing two different types of labels.
3, Dual-wall frame, robust and sturdy structure.
4, TPH special designed overcoat, endure large printing volume.
5, CPCL and TSPL programming language.
|
|
|
Specification ——
Specifications | |
Interfaces | USB / LAN / Bluetooth |
Print Comand | CPCL / TSPL command (ESC/POS command) |
Print Method | Direct Line Thermal |
Pirnt Speed | 200mm/sec (MAX) |
Resolution | 203DPI (8dot/mm) |
Inner Code | Supported 11 types font size |
Print parameters | Support to download the Logo trademark |
Media Sensor | Dual-media sensors: transmissive and reflective |
Barcodes | 1D: UPC-A / UPC-E / JAN13 (EAN13) / JAN8 (EAN8) / CODE39 / ITF / CODABAR / CODE93 / CODE128 |
2D: QR Code, PDF417 | |
Paper | |
Thermal Paper Types | continuous paper, label paper, folded paper, tag paper |
Effective Print Width | 80mm (Max 576 points) |
Available Max Paper Width | 80±0.5mm |
Paper Thickness | 0.06-0.30 mm |
Package | |
Printer Dimension | 160*110*93mm |
Unit Weight | 1.65kgs （with accessories) |
Pieces Per CTN | 12 Pieces |
CTN Dimension | 46.5 x 38x 47 cm |
Gross Weight per CTN | 21 kgs |
Environmental | |
Working Temperature | +0 ℃ ~ 50 ℃ (no condensation ) |
Working Humidity | 20% ~ 85% RH (no condensation ) |
Storage Temperature | -20 ℃ ~ 60 ℃ (no condensation ) |
Storage Humidity | 5% ~ 95% RH (no condensation ) |
Mechanical Noise | less than 60dB |
