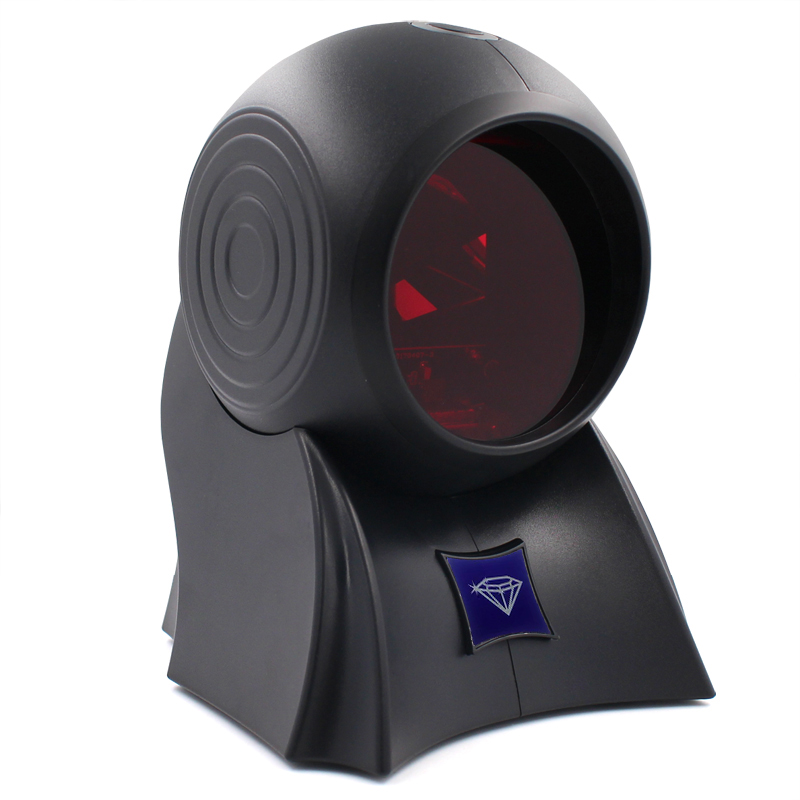

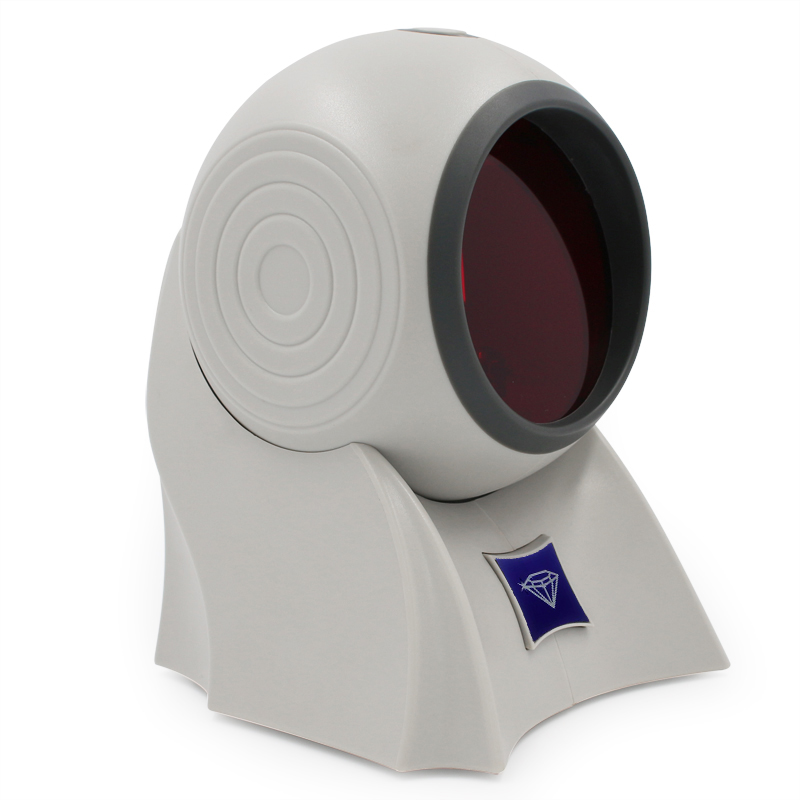

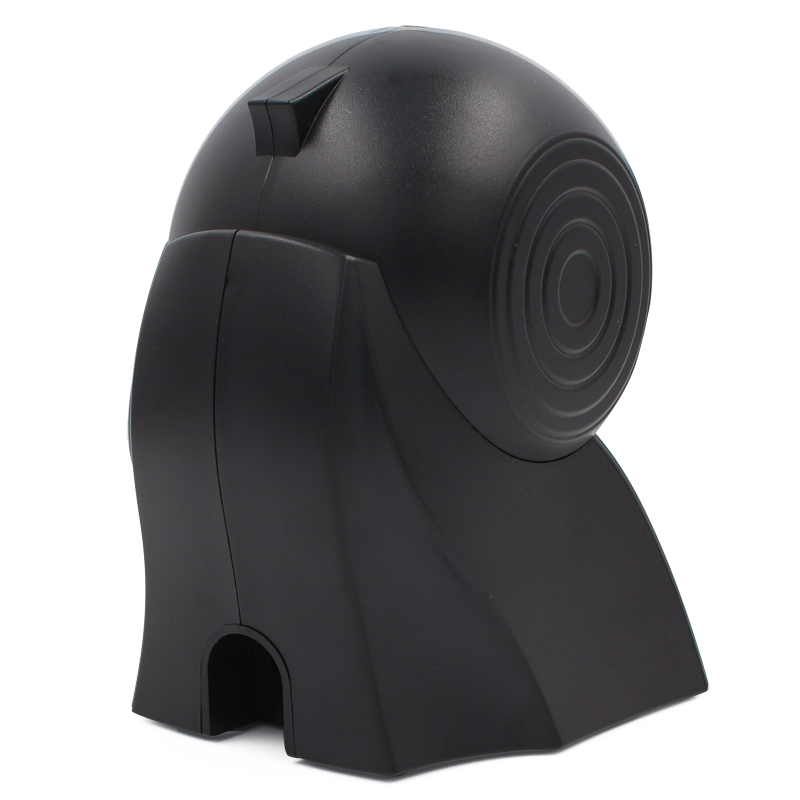

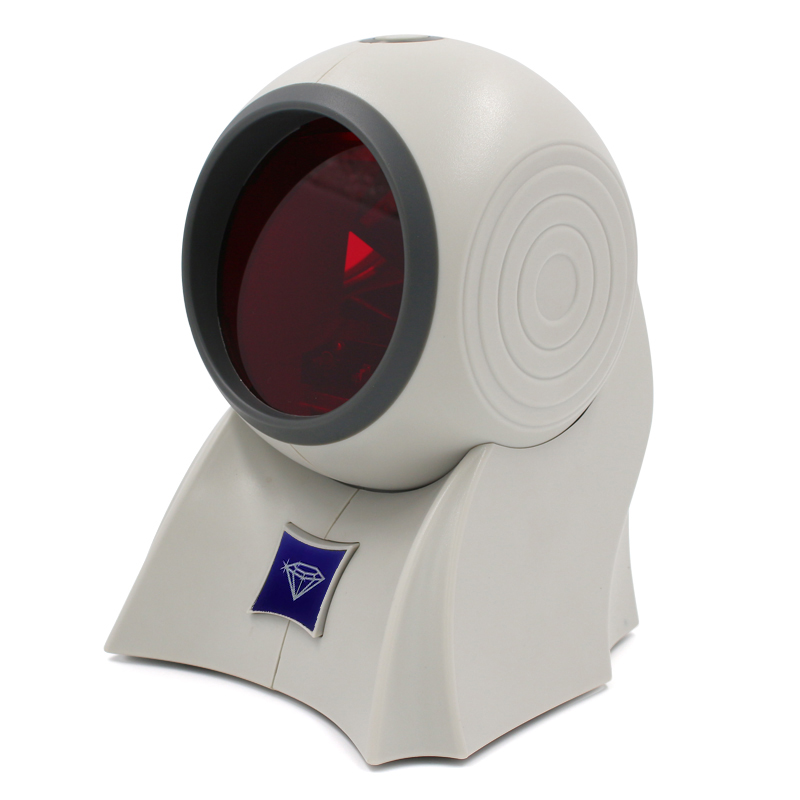

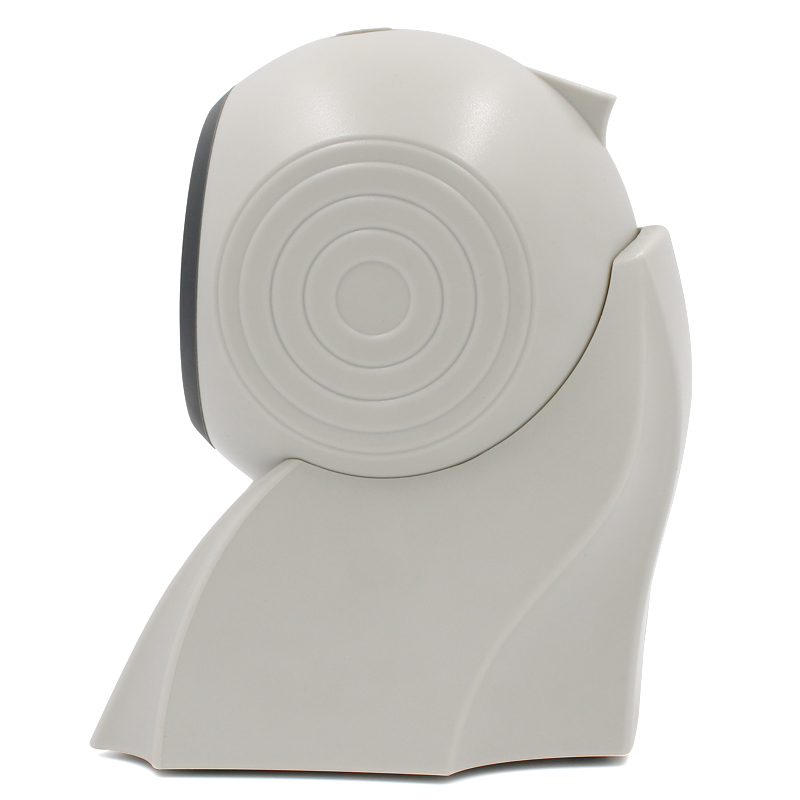

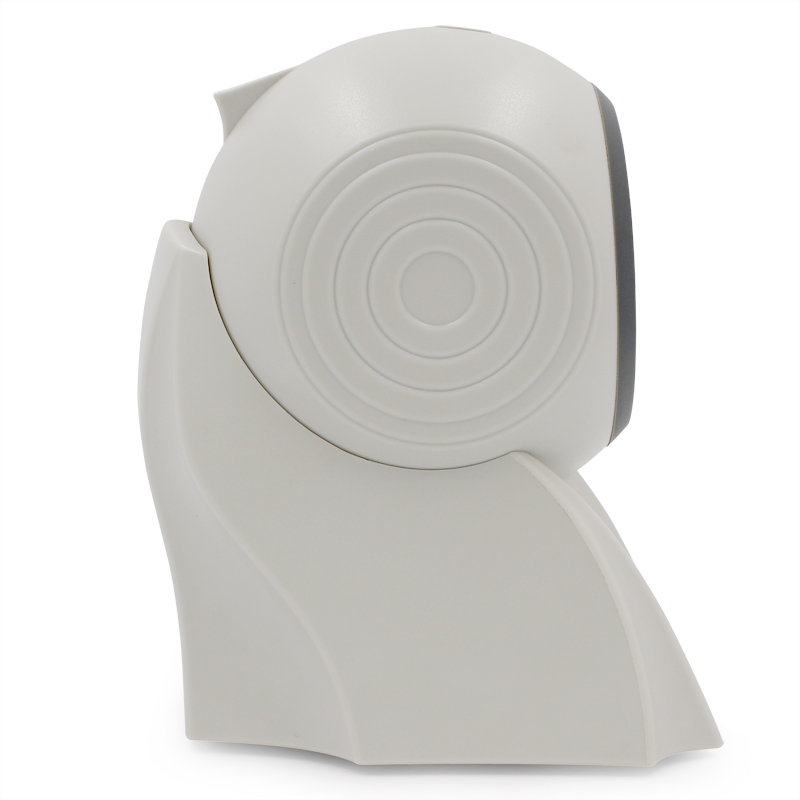

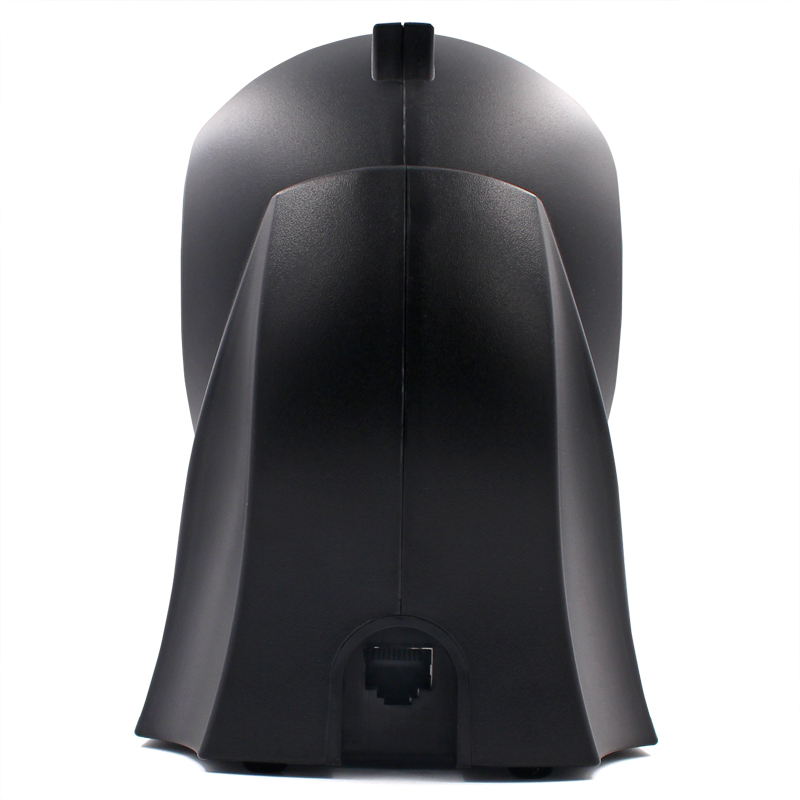

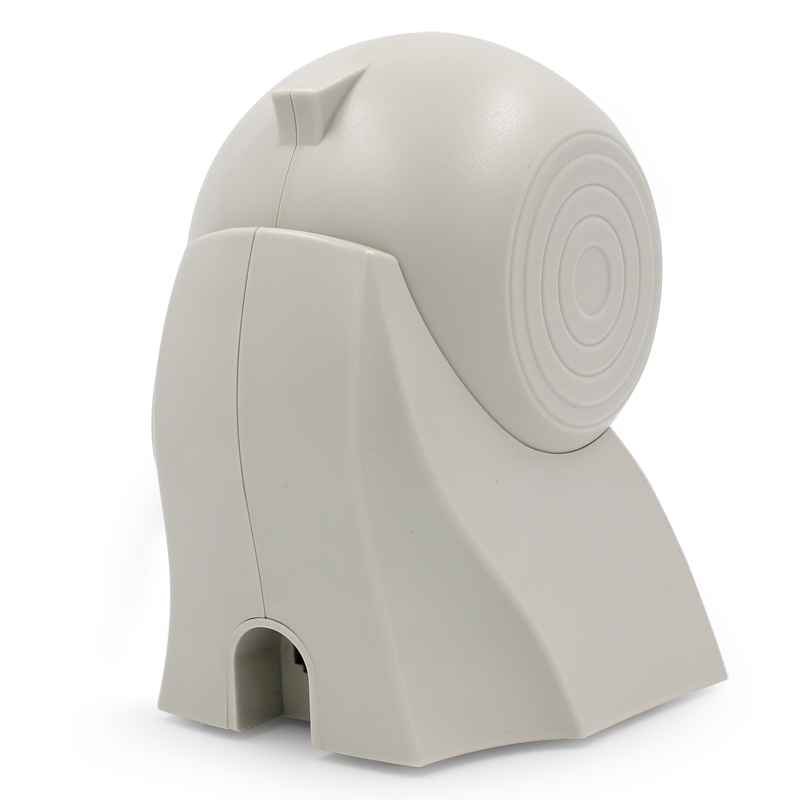

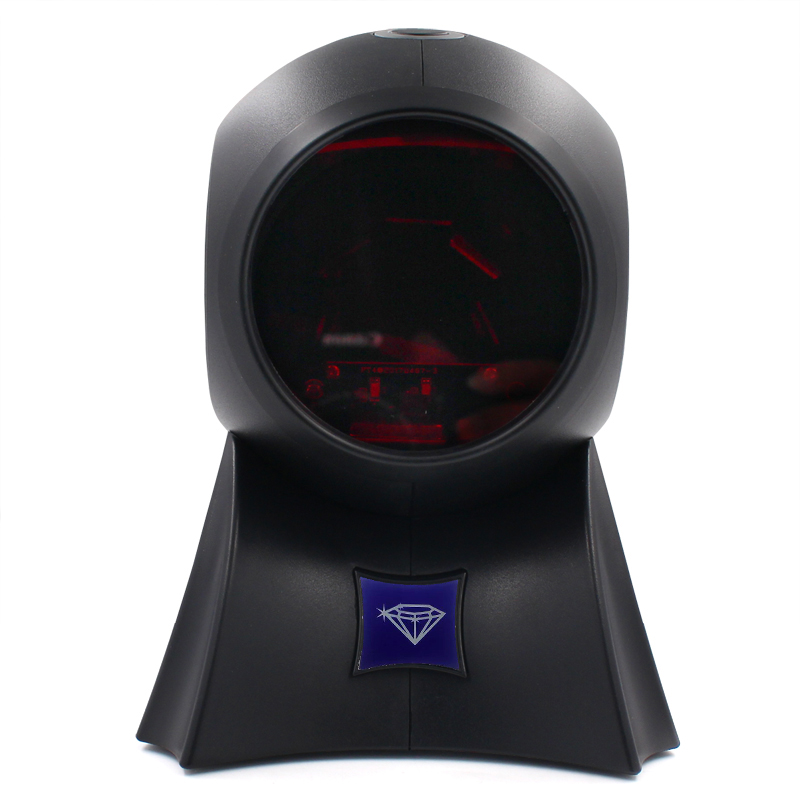

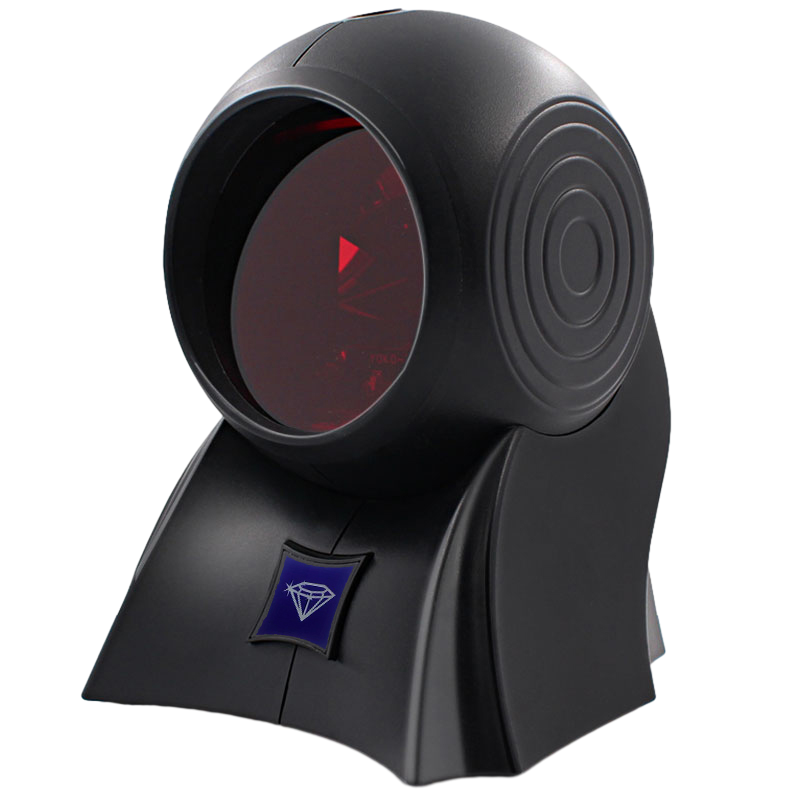

AW-3090
Feature
1. Scan Method: 20lines Laser
2. Scan Speed: 1500 times/s
3. Scan Angle: 5 directional
4. Support autoscan and continue scan-
￥0.00￥0.00
-
Product Description
Feature
1. Scan Method: 20lines Laser
2. Scan Speed: 1500 times/s
3. Scan Angle: 5 directional
4. Support autoscan and continue scan
|
|
|
Specification ——
| Performance | |||||
| Light source | 650nm visual laser diode | ||||
| Sensor | Omnidirectional multilines (5 directions and 4 parallel lines in each direction) | ||||
| Scan Speed | 1120scan/s | ||||
| Print contrast | ≥25% | ||||
| Error rate | 1/50000 | ||||
| Scan Engle | Roll±360°，Skew ±60°，Pitch ±70° | ||||
| Symbologies | EAN-8、EAN-13、EAN-13 2 add-on、 EAN-13 5 add-on、ISSN、ISBN、 UPC-A、UPC-E、Code 39、Code93、Code 128、Codabar、Interleaved 2 of 5 | ||||
| Depth of field | Tested Code | MIN | MAX | ||
| 5 mil Code 39 | 25px | 125px | |||
| 6.6 mil Code 39 | 25px | 275px | |||
| 10 mil Code 39 | 25px | 375px | |||
| 13 mil UPC | 25px | 450px | |||
| OS | Linux，Windows XP、7、8、 10 | ||||
| Resolution | 4.0mil | ||||
| Scan Mode | Automatical / Continuous scanning | ||||
| Keyboard | American, German, French, Japanese, Italian, Belgian, Dutch | ||||
| Secondary development | Not support | ||||
| Barcode output editing | Before and after barcode data can be deleted (up to 4 bits) | ||||
| Indicator light | Red and blue light prompt: red light prompt power on, blue light prompt decoding successfully | ||||
| Buzzer | Startup prompt, successful scan prompt | ||||
| Button | Key wake up | ||||
| Environmental | |||||
| Drop | Withstand 5 drops from 1.5 meters | ||||
| Sealing | IP54 | ||||
| Storage Temperature | -20-60℃ | ||||
| Operating Temperature | -10-50℃ | ||||
| Storage Humidity | 5-95% Non condensing | ||||
| Operating Humidity | 5-95% Non condensing | ||||
| Ambient Light | 0-70000LUX | ||||
| Physical | |||||
| Net Weight | 388g | ||||
| Packing weight | 688g | ||||
| Cable Length | USB/RS232:180CM(±3CM) | ||||
| Dimension (L*W*H) | 115mm*114mm*152mm | ||||
| Packing (L*W*H) | 236mm*165mm*133mm | ||||
| Interface | KB,USB,serial port | ||||
| Voltage | 5V | ||||
| USB | Standby power | 155mA/0.775W | Serial port | Standby power | 154mA/0.77W |
| Operating Power | 155mA/0.775W | Operating Power | 154mA/0.77W | ||
| Max Power | 191mA/0.955W | Max Power | 192mA/0.96W | ||
| Laser rating standard | It conforms to the safety standard of national level 2 laser | ||||
| Certification | CE & FCC DOC compliance | ||||
