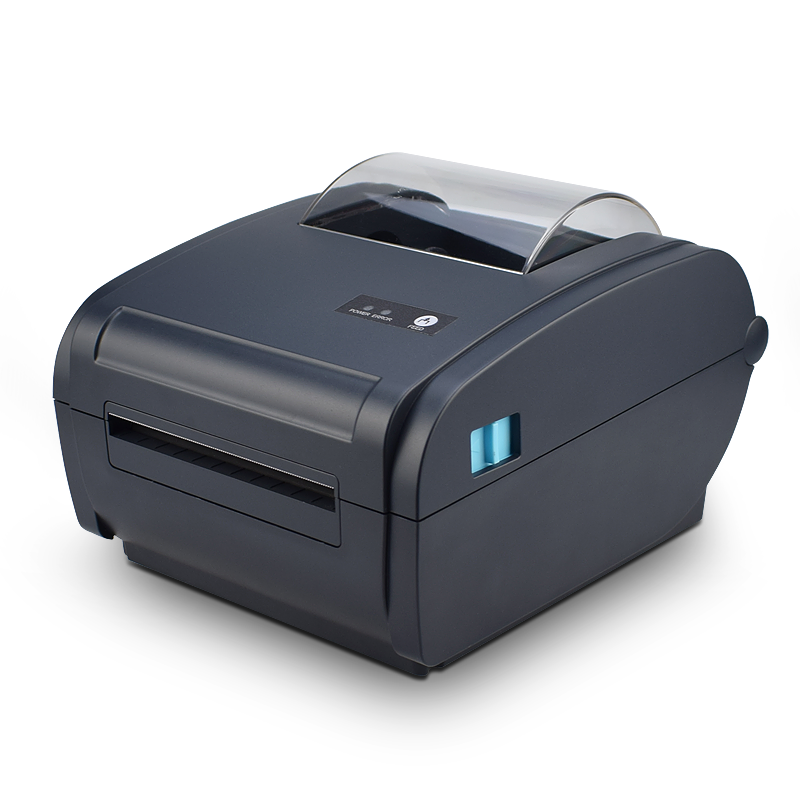

AW-9210
Feature:
1. With adjustable paper warehouse, it can be used in a variety of printing papers.
2. Thermal printing with no ribbon, no consumables, print by paper loading
3. Quickly position the paper with a dual media sensor to ensure accurate print position
4. Support up to 110mm width label paper, large width can be also easily printed.
5. CPCL and TSPL programming language
-
￥0.00￥0.00
-
Product Description
Feature:
1. With adjustable paper warehouse, it can be used in a variety of printing papers.
2. Thermal printing with no ribbon, no consumables, print by paper loading
3. Quickly position the paper with a dual media sensor to ensure accurate print position
4. Support up to 110mm width label paper, large width can be also easily printed.
5. CPCL and TSPL programming language
|
|
|
Specification ——
Specifications | |
Interfaces | USB / LAN / Bluetooth / WIFI |
Print Comand | TSPL command/CPCLcommand (ESC/POS command) |
Print Method | Direct Line Thermal |
Pirnt Speed | 160mm/sec (MAX) |
Resolution | 203DPI (8dot/mm) |
Inner Code | Supported 11 types font size |
Print parameters | Support to download the Logo trademark |
Media Sensor | Dual-media sensors: transmissive and reflective |
One-dimensional code | UPC-A / UPC-E / JAN13 (EAN13) / JAN8 (EAN8) / CODE39 / ITF / CODABAR / CODE93 / CODE128 |
Two-dimensional code | QR Code, PDF417 |
Printer Driver | Win2003 / WinXP / Win7 / WIN8 / WIN10 / MACOS ; Support IOS / Android |
Paper | |
Thermal Paper Types | continuous paper, label paper, folded paper, tag paper |
Effective Print Width | 100mm (Max 800 points) |
Available Max Paper Width | 110 ± 0.5mm |
Paper Thickness | 0.06-0.30 mm |
Electrical | |
Charging Method | external charger DC 24V/2.5A |
Print Head | Reliability |
Print Reliability | 100000000 pulse / dot or 50km |
Physical | |
Printer Dimension | 226*180*147mm |
Unit Weight | 1.9kgs （with accessories) |
Pieces Per CTN | 8 Pieces |
Printer Color | White |
CTN Dimension | 60*39.6*35 cm |
Gross Weight | 15.5kgs |
Environmental | |
Operating Temperature | +0 ℃ ~ 50 ℃ (no condensation allowed) |
Working Humidity | 20% ~ 85% RH (no condensation allowed) |
Storage Temperature | -20 ℃ ~ 60 ℃ (no condensation allowed) |
Storage Humidity | 5% ~ 95% RH (no condensation allowed) |
Mechanical Noise | less than 60dB (A weighted RMS) |

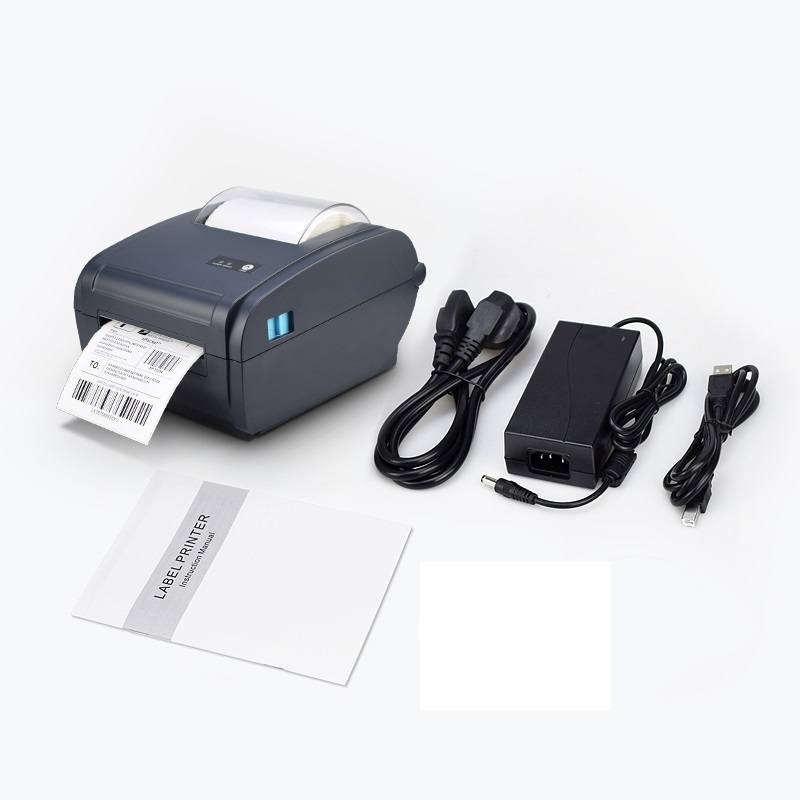

Accessories | |
USB Cable | 1 x 1M Cable |
CD Driver | 1 Piece |
Power Adapter | 1 Piece |
Power Cable | 1 Piece |
Manual | 1 Piece |
