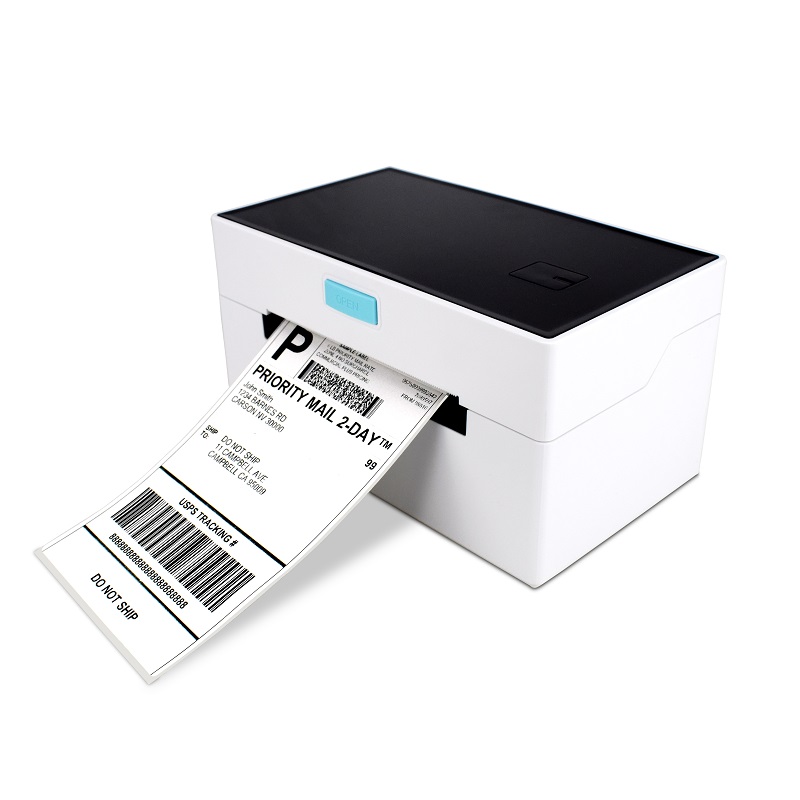

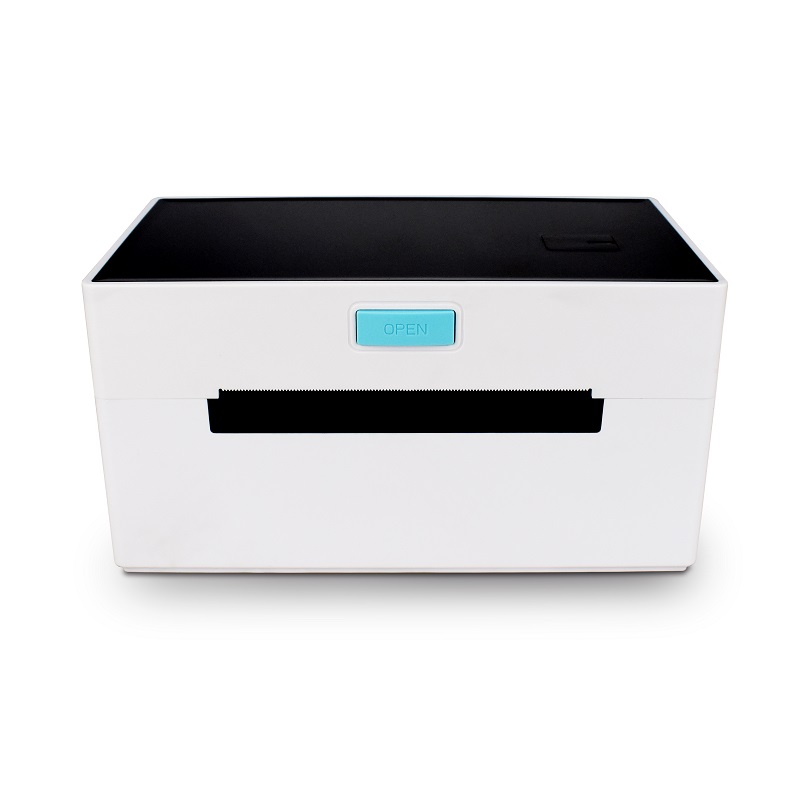

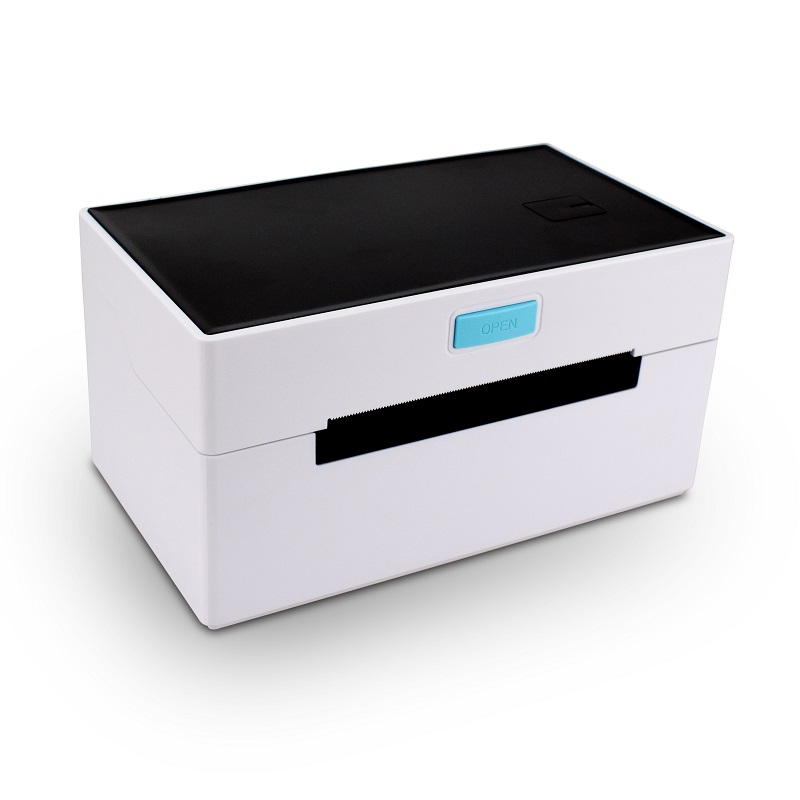

AW-9220
Feature:
1, No paper warehouse design, no ribbon.

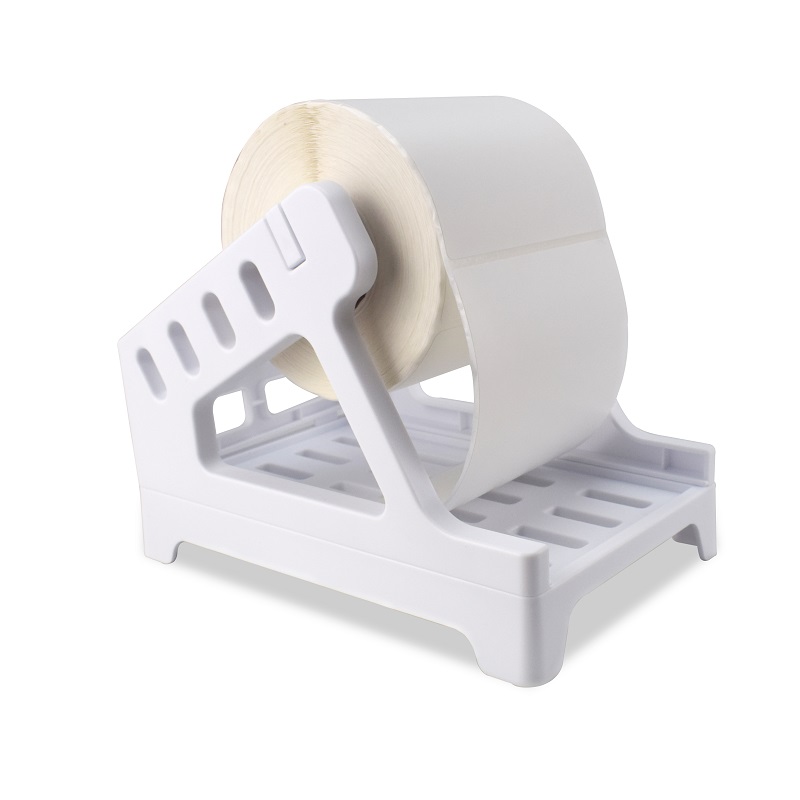

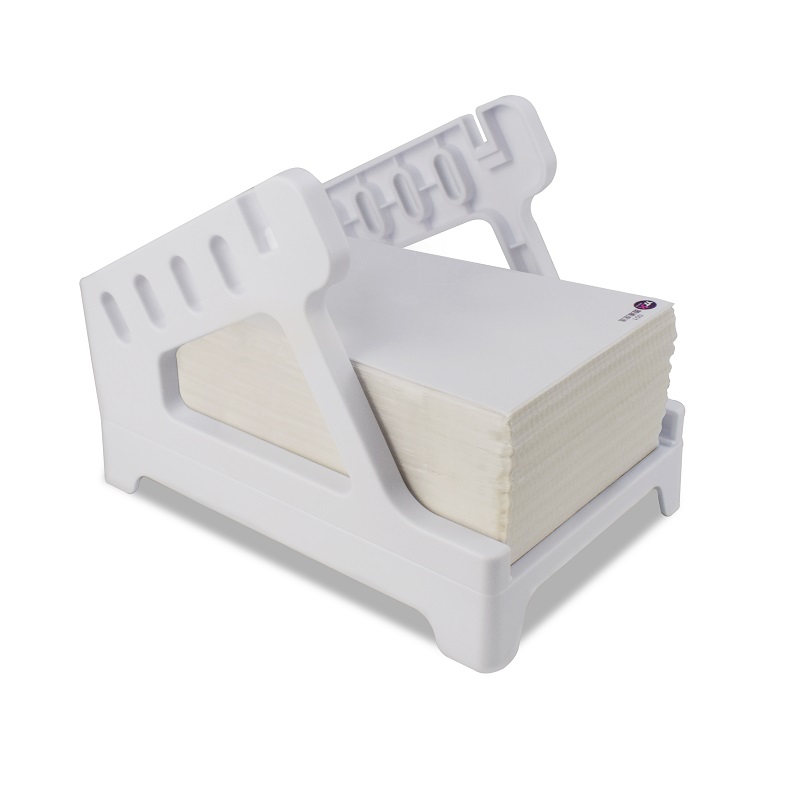

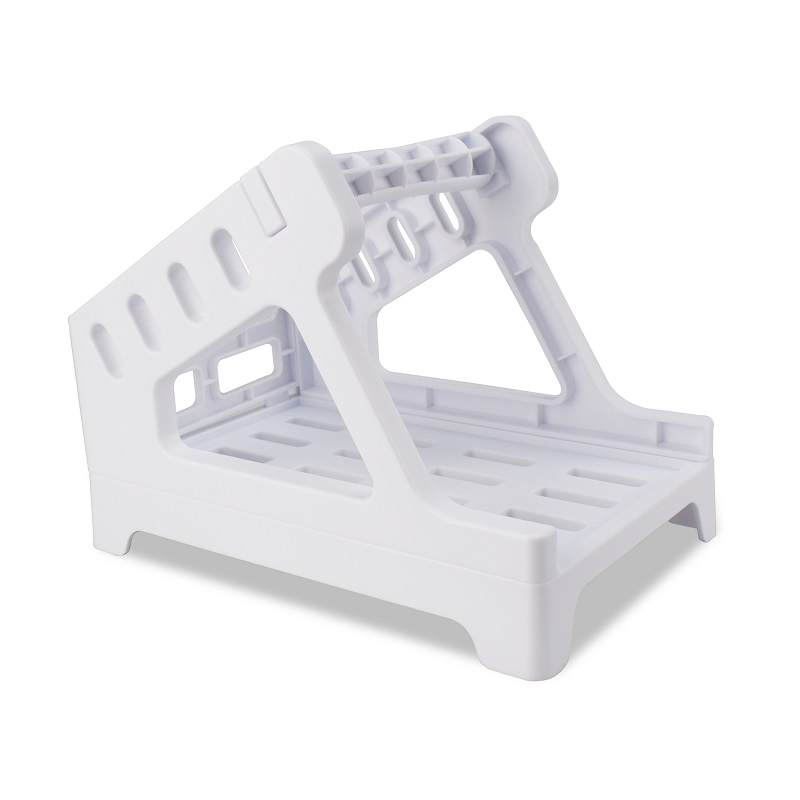

2, External bracket paper holder , for printing two different types of labels.
3, Dual-wall frame, robust and sturdy structure.

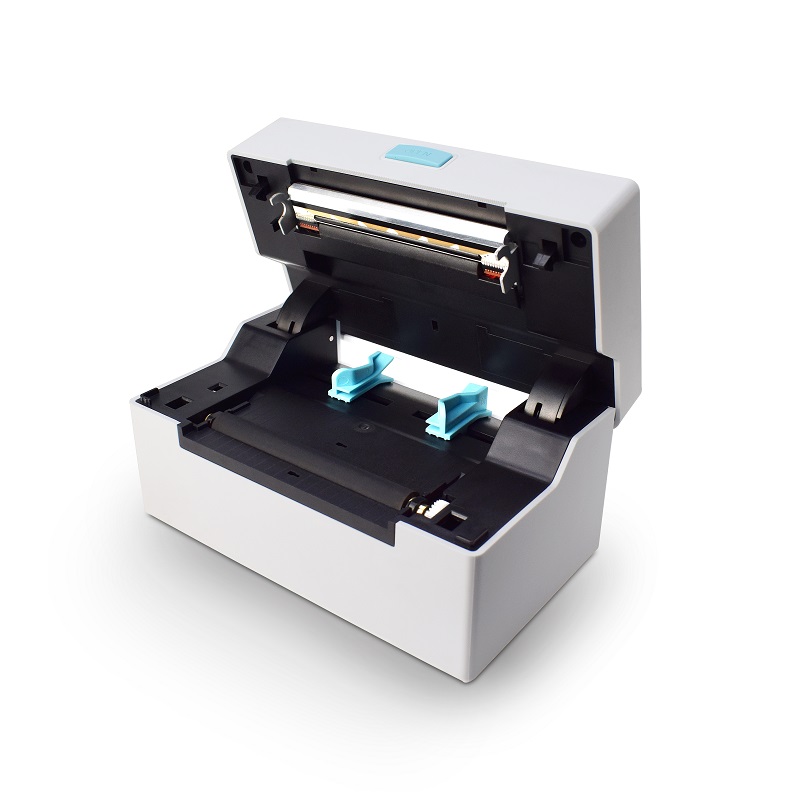

4, TPH special designed overcoat, endure large printing volume.
5, CPCL and TSPL programming language.
-
￥0.00￥0.00
-
Product Description
Feature:
1, No paper warehouse design, no ribbon.
2, External bracket paper holder , for printing two different types of labels.
3, Dual-wall frame, robust and sturdy structure.
4, TPH special designed overcoat, endure large printing volume.
5, CPCL and TSPL programming language.
|
|
|
Specification ——
Specifications | |
Print Method | Direct Line Thermal |

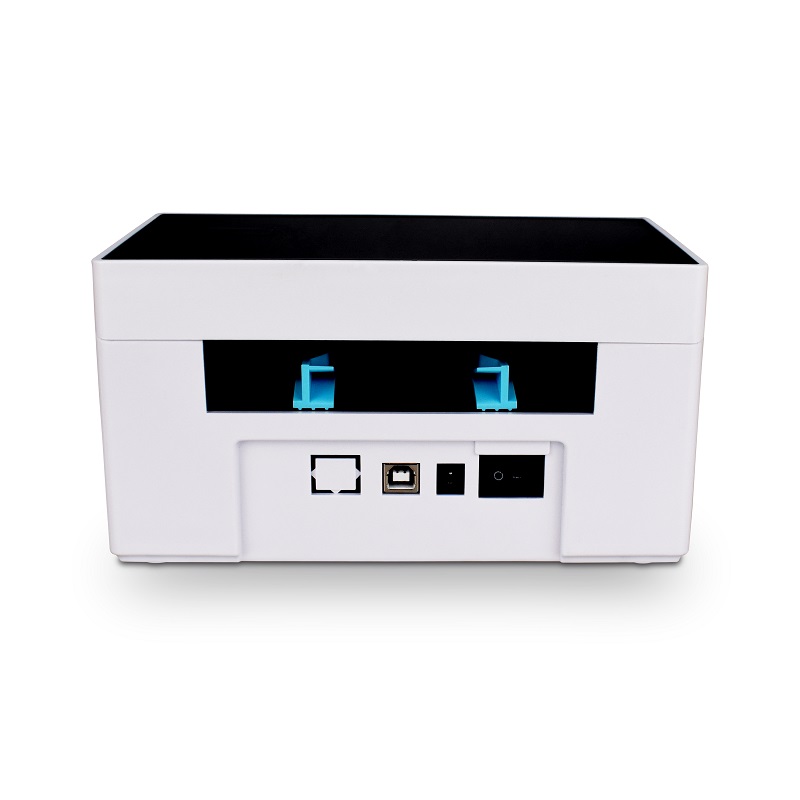

Interfaces | USB / LAN / Bluetooth |
Print Comand | TSPL(CPCL/ESC/POS compatible) |
Pirnt Speed | Max to 160mm/s |
Resolution | 203DPI (8dot/mm) |
Media Sensor | Transmissive and Reflective |
Logo | support downloading and printing logo |
Supported Font: | ASCII Font: 8*12, 9*17, 12*20, 12*24, 14*10, 14*25, 16*24, 21*27,24*32, 32*48 |
Supported Code: | 1D: UPC-A / UPC-E / JAN13 (EAN13) / JAN8 (EAN8) / CODE39 / ITF / CODABAR / CODE93 / CODE128 |
Driver | Win2003 / WinXP / Win7 / WIN8 / WIN10 / MACOS ; Support IOS / Android |
Power | 24V/2.5A DC charger |
TPH Reliability | about 50km or 100millions pulses |
Paper | |
Paper Types | continuous paper, label paper, folded paper, tag paper |
Max paper roll | 110*100mm (width*diameter) |
Print Width | 104mm (Max 800 points) |
Paper Thickness | 0.06-0.30 mm |
Package | |
Printer Dimension | 20*11.6*265px |
Printer N.W. | 0.98KG |
Package | 1pc with accessories/box, 12boxes/ctn |

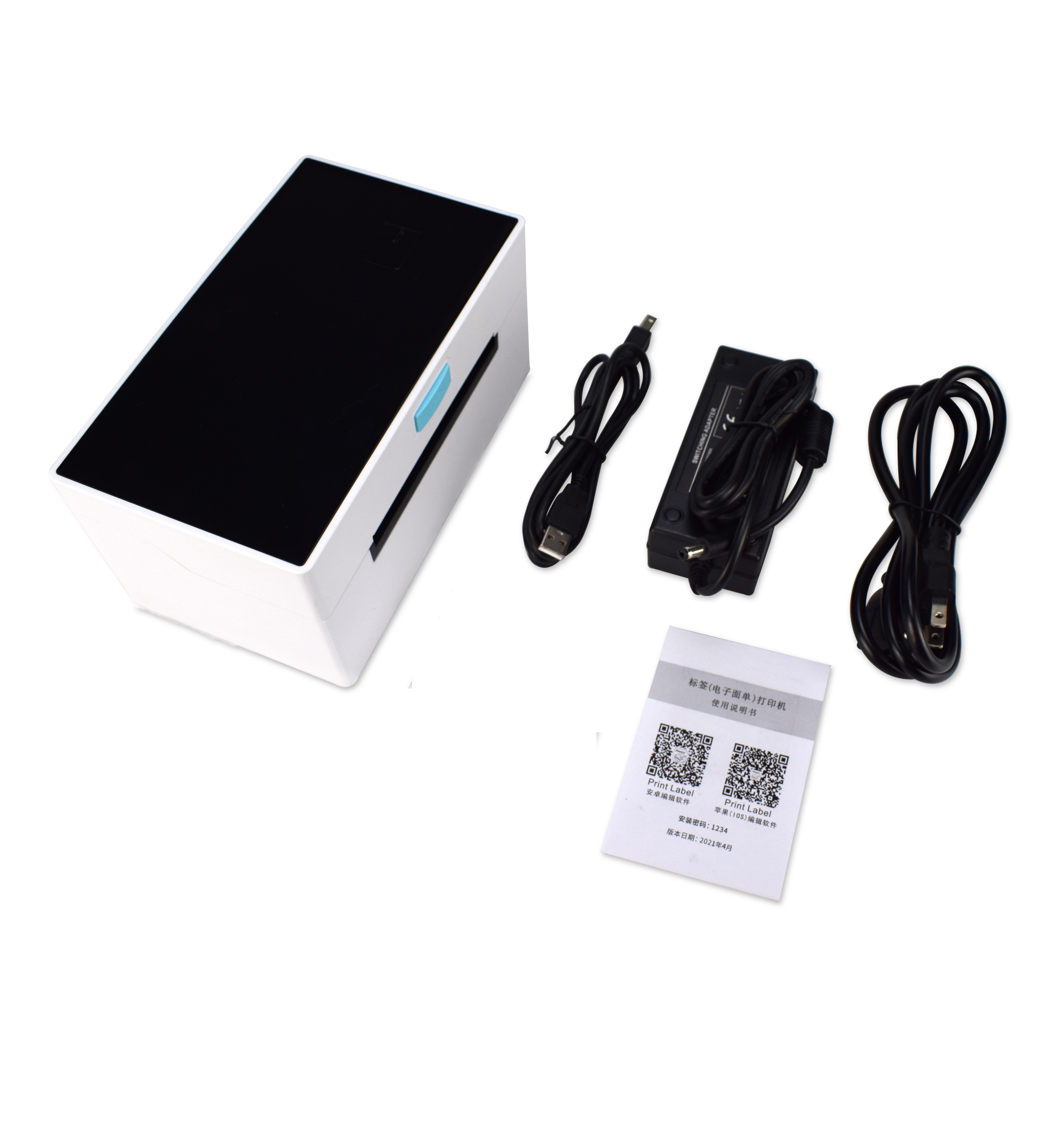

Accessories | Manual, CD driver, USB Cable,Adapter, Power line |
Box Dimension | 21*18.5*12.6CM |
Box G.W. | 1.58Kgs |
CTN Dimension | 43.5*38.5*26.7 cm |
CTN G.W. | 20kgs |
Environmental | |
Working Temperature | +0 ℃ ~ 50 ℃ (no condensation ) |
Working Humidity | 20% ~ 85% RH (no condensation ) |
Storage Temperature | -20 ℃ ~ 60 ℃ (no condensation ) |
Storage Humidity | 5% ~ 95% RH (no condensation ) |
Mechanical Noise | less than 60dB |
