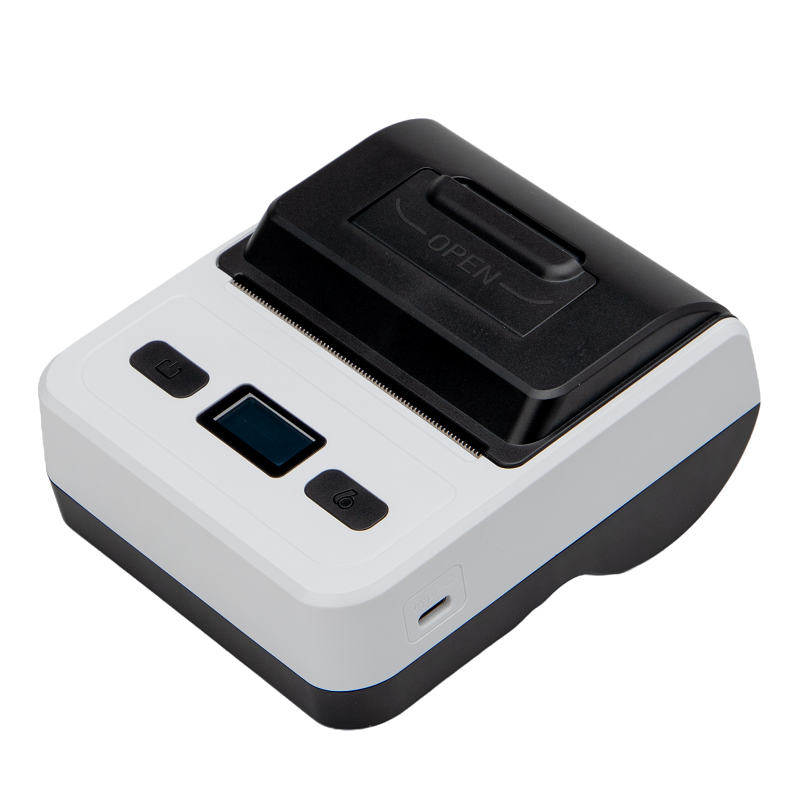

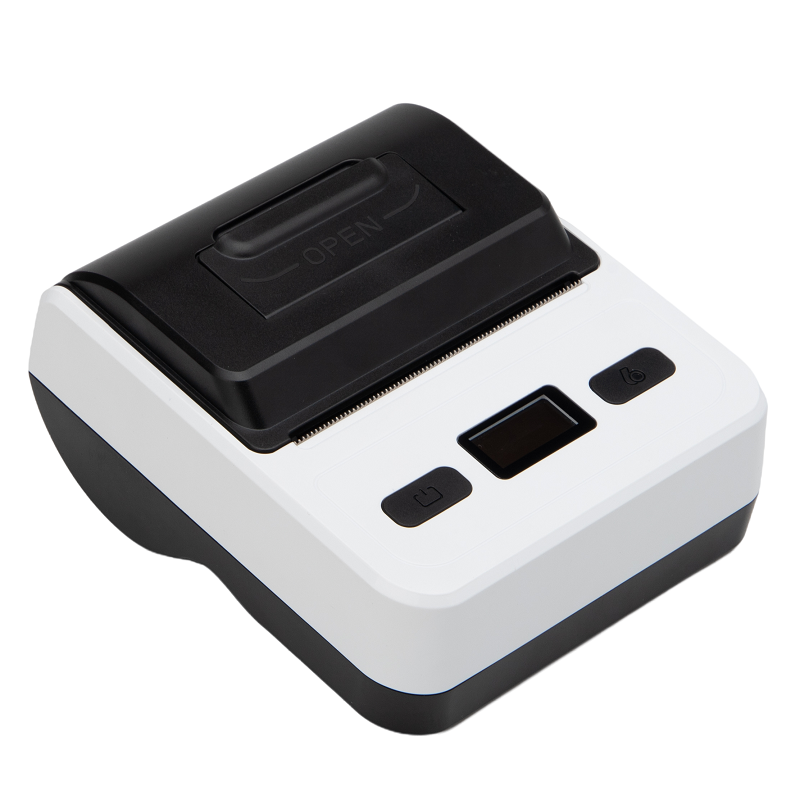

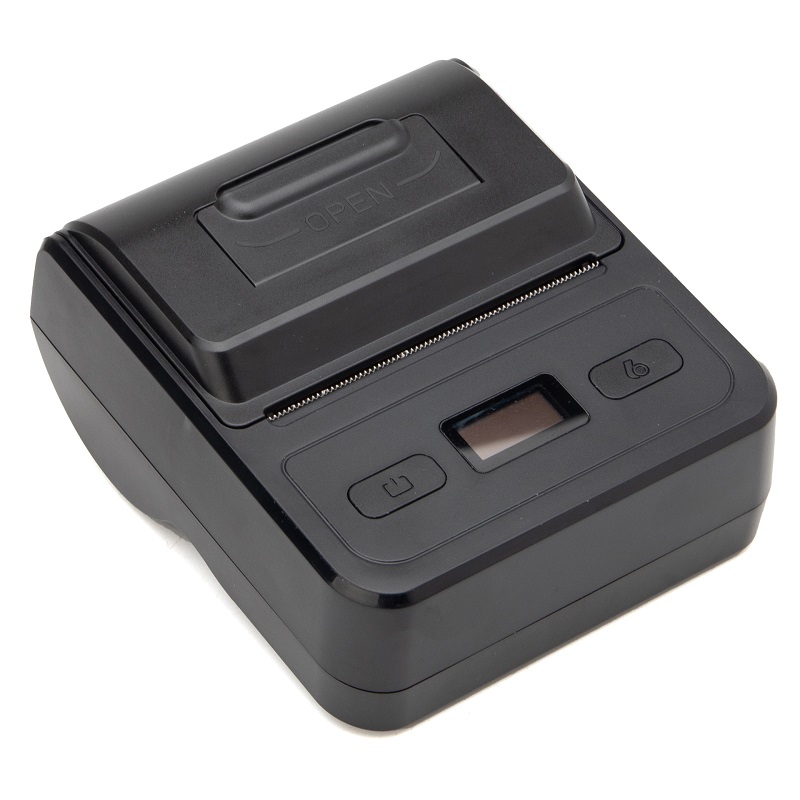

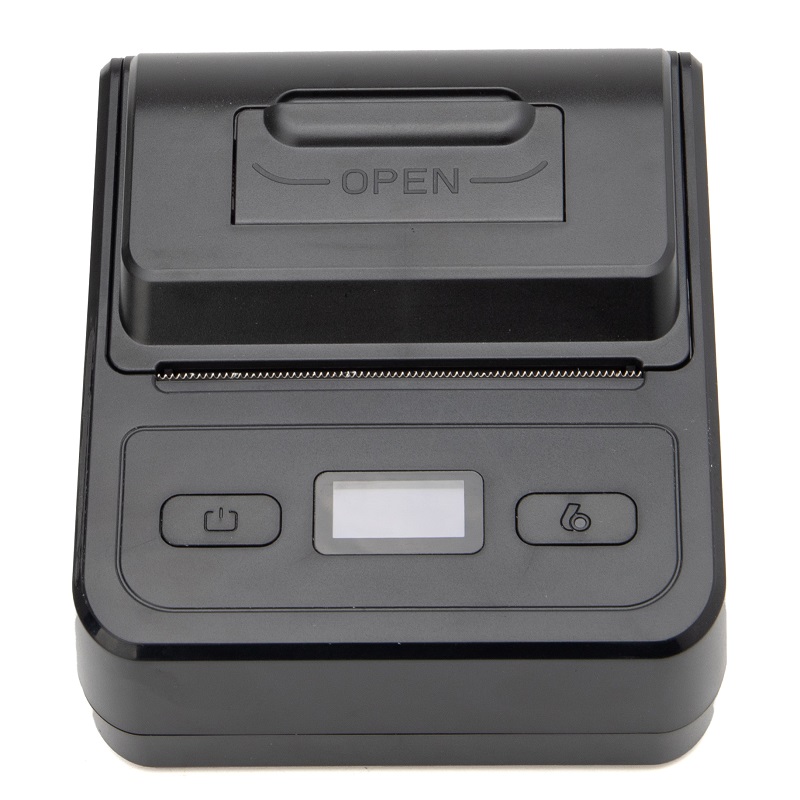

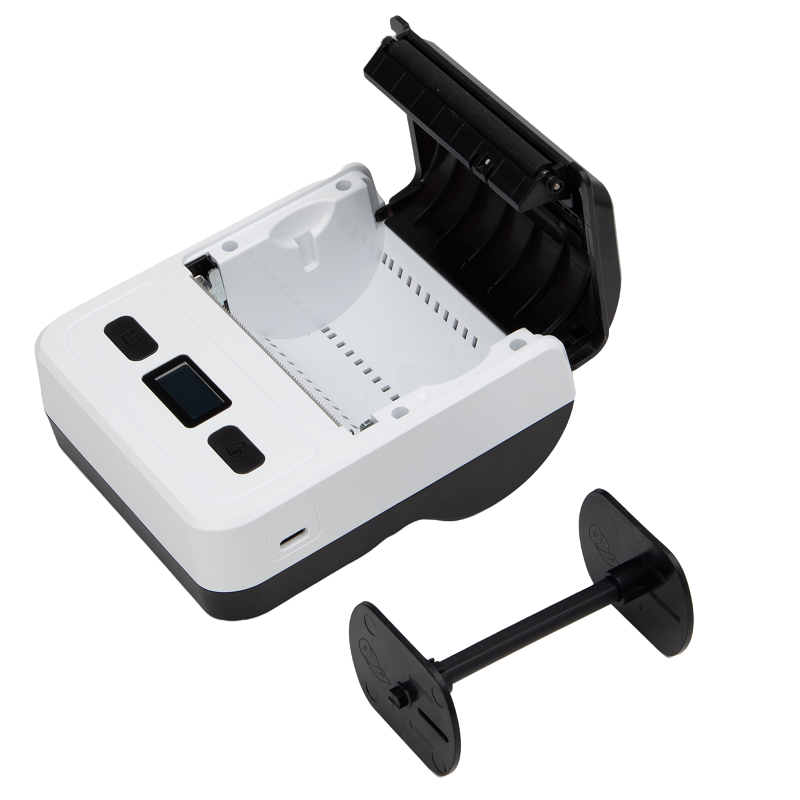

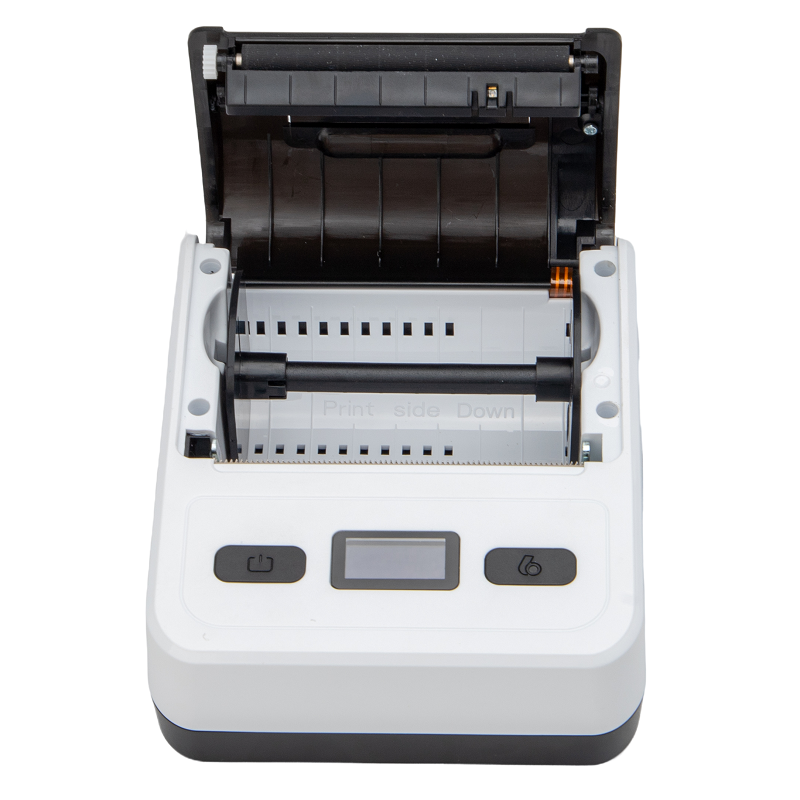

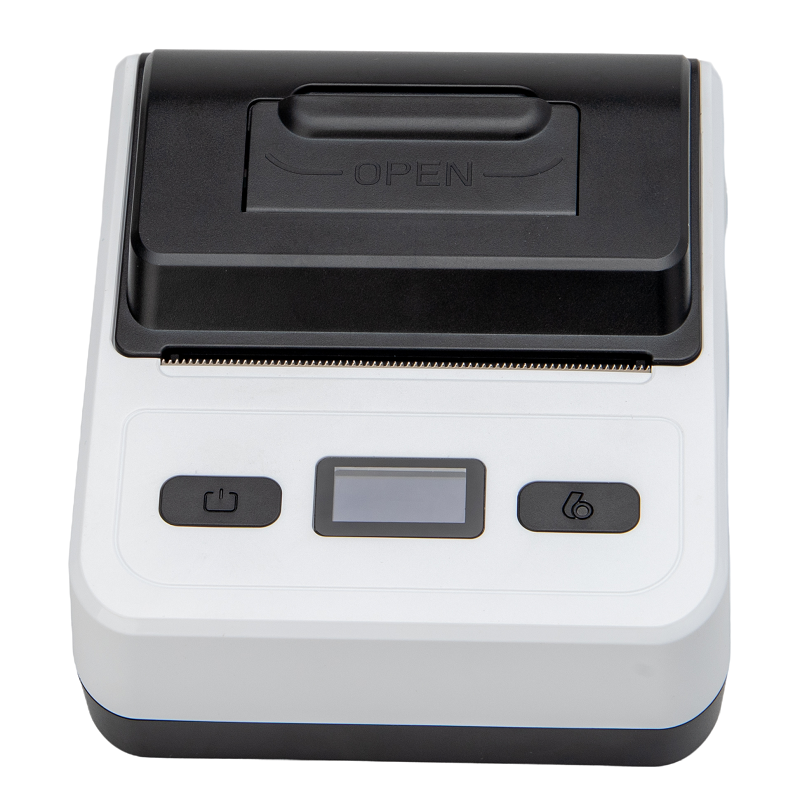

AW-8008
Feature
1. Support print barcode label and receipt bill
2. Small size by bluetooth connect, easy to be take
3. 58MM large print width 50mm big paper diamter4. Fast print speed with stable performance
5. Super large capacity battery can last long time
6. Low power consumption, low operating cost (no need for ribbons or ink cartridges)
-
￥0.00￥0.00
-
Product Description
Feature
1. Support print barcode label and receipt bill
2. Small size by bluetooth connect, easy to be take
3. 58MM large print width 50mm big paper diamter
4. Fast print speed with stable performance
5. Super large capacity battery can last long time
6. Low power consumption, low operating cost (no need for ribbons or ink cartridges)
|
|
|
Specification ——
Specifications | |
Interfaces | USB+Bluetooth |
Print Comand | Support ESC/POS compatible, TSPL instruction set |
Print Method | Direct Line Thermal |
Pirnt Speed | 70mm/sec |
Print Resolution | 203 DPI |
TPH Life | 50km (25% printing density or less) or per dot: 100 million pulses |
Inner Code | ASCII font library (8x16, 12x24, 16x32, 24x48), GBK (16x16), GB1830 (24X24) |
Print content | English, Numbers, Various symbols, Chinese characters, Graphics, Curves, Pre-stored icons |
One-dimensional code | UPC / UPC-E / CODE39 / EAN-13 / EAN-8 / CODABAR / CODE128 / CODE93 / CODE128 / ITF |
Two-dimensional code | QR Code, PDF417 |
Parameter settings | Printing parameters, Bluetooth parameters, other parameters, etc. |
Black mark detection | Yes |
Label detection | Yes |
Status indication TFT display | Communication mode, Printing, Out of paper, Out of power, Sleep mode, Paper type |
Paper | |
Thermal Paper Types | continuous paper, label paper |
Available Rang of Paper Width | 30-80mm |
Roll Diameter | φ≤50mm |
Available Printing Width | 72mm (24 Chinese characters/line 48 English characters/line standard 24 dot matrix high font) |
Paper Thickness | 0.06-0.20 mm |
Electrical | |
Charging Method | AC 100-240v 5060Hz 0.4A DC 5V 1A |
Battery | DC7.4V/ 2000 mAh rechargeable lithium battery |
Physical | |
Printer Dimension | 109*125*63mm |
Unit Weight | 340g （with battery) |
Pieces Per CTN | 40 Pieces |
Printer Color | Black and White |
Environmental | |
Operating Temperature | +0 ℃ ~ 50 ℃ (no condensation allowed) |
Working Humidity | 20% ~ 85% RH (no condensation allowed) |
Storage Temperature | -20 ℃ ~ 60 ℃ (no condensation allowed) |
Storage Humidity | 5% ~ 95% RH (no condensation allowed) |
Mechanical Noise | less than 60dB (A weighted RMS) |
